Ares
OPERATIONS & ELECTRICAL
Input voltage : 120~277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : No dimming
Lumens per Watt : 120 LPW at 80CRI
Beam angle : 120˚
DESCRIPTION

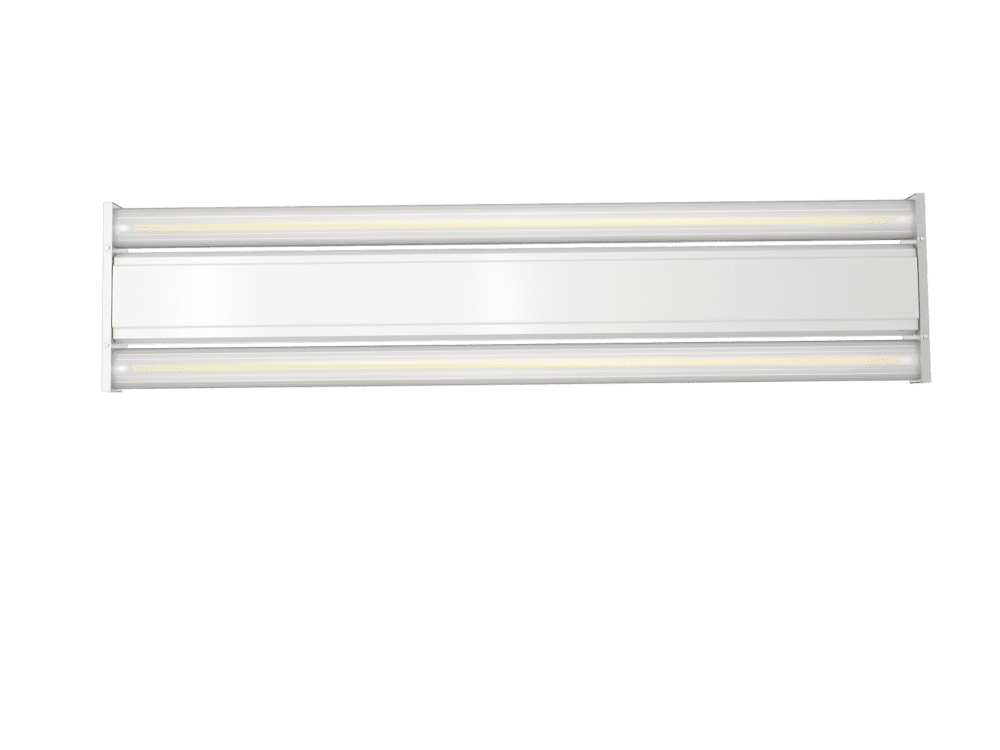

The ARES series is an ideal solution for warehouses, grocery stores, train stations and industrial production floors, as it features a versatile installation method. This product can either be suspended or used elegantly as a surface-mount fixture. Furthermore, the ARES fixture is uniquely designed to be able to be installed on inclined surfaces using available optional accessories.
ORDERING CODE
| AE-IL-AR | UV | 4FT | 200W | C0 | N | 40 |
|---|---|---|---|---|---|---|
| FIXTURE FAMILY | VOLTAGE | SIZE | POWER | BEAM ANGLE | CRI | CCT |
|
AE-IL-AR ERALUX industrial fixtures Ares linear high bay |
UV 120-277Vac |
2FT 2 feet length |
100W 100 watts: 12,000 lumens |
C0 120˚ beam angle |
N Normal 80 CRI |
40 4000K CCT |
|
120W 120 watts: 14,000 lumens |
50 5000K CCT |
|||||
|
4FT 4 feet length |
200W 200 watts: 24,000 lumens |
60 6000K CCT |
