RIZZUTO

The Rizzuto Series combines high efficacy and a distinguished look in an outdoor area light luminaire. It offers multiple mounting methods and a variety of light distribution types to suit different lighting needs. Available power options reach up to 300W with lumen output up to 39,000 lumens. The fixture includes a durable aluminum die cast housing, polycarbonate or optional glass lens, and finish options in black, bronze, Nebula white and aluminum powder coat. Compatible mounting types include direct bracket, slip fitter, pole, and trunnion mounts.

Téléchargements
Finition
RIZZUTO finish preview
Finitions populaires
RIZZUTO

Caractéristiques techniques principales

Électricité

Tension d'entrée120-277 V
Variation d'intensité0-10 V

Optique

Gamme Lumen13000 - 39000 Lumens
CRI70
CCT2200K, 3000K, 4000K, 5000K, 6500K
DistributionType 2, Type 3, Type 4, Type 5

Physique

MontageDirect, Pole Direct, Pole Slip Fitter

Certifications

AnnoncescULus, RoHS, IP65

Ressources

Spec Sheet RIZZUTO Afficher · Télécharger

Install Instruction Rizzuto Afficher · Télécharger

Rizzuto IES Files Afficher · Télécharger

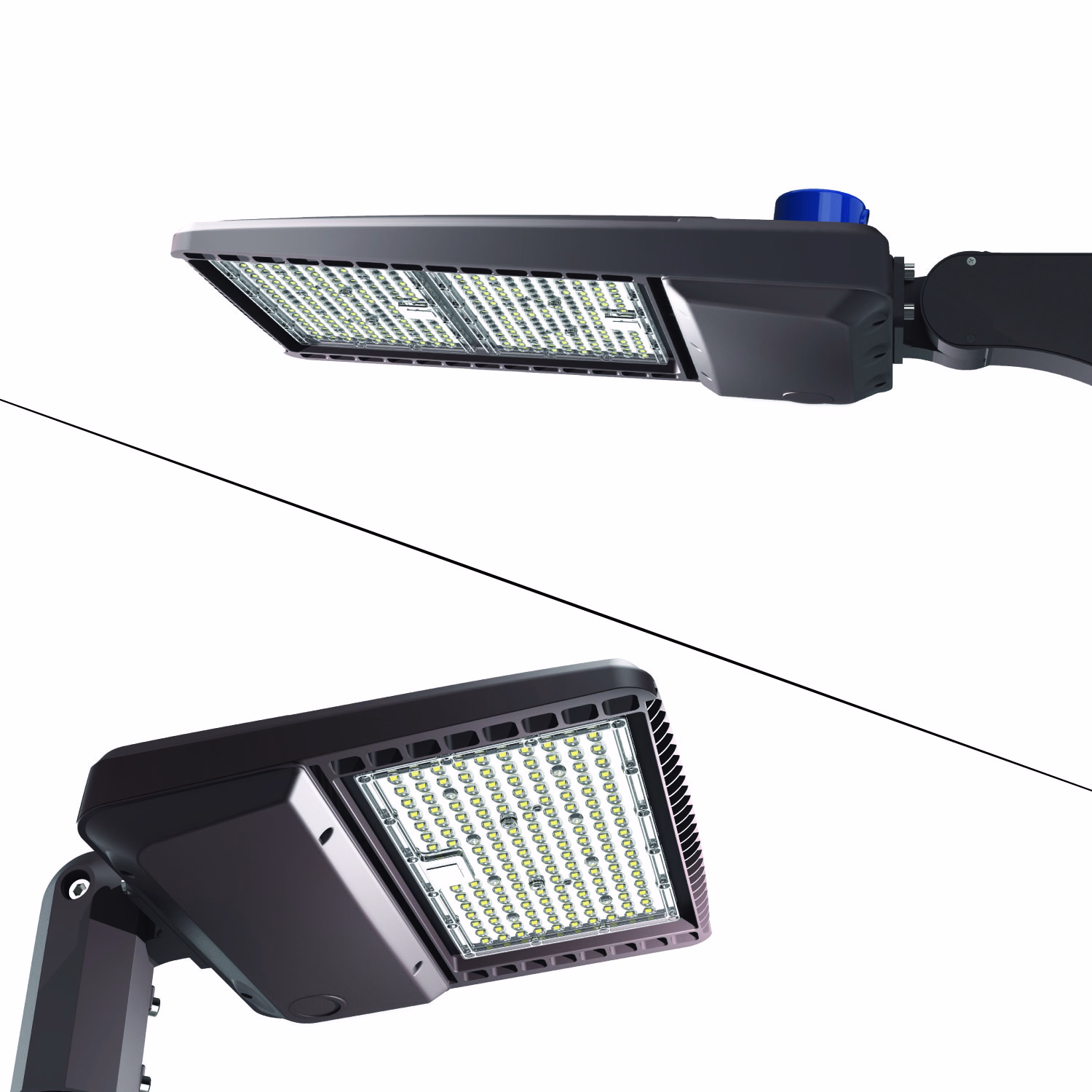

Performances à haut rendement

Performances à haut rendement

Delivering up to 130 lm/W and available in power levels from 100W to 300W, providing powerful illumination for demanding outdoor applications.

Faites défiler pour découvrir

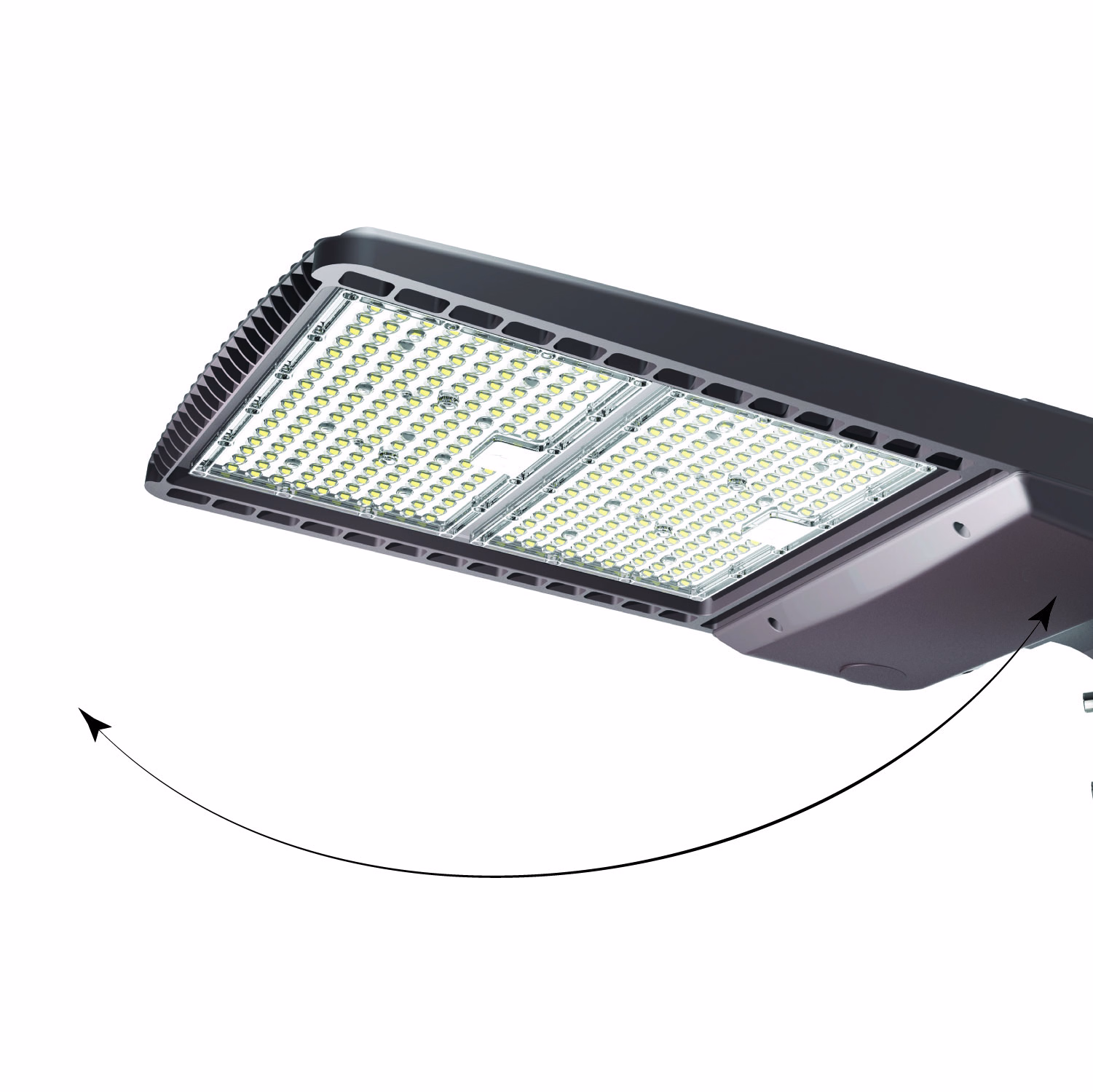

Versatile Mounting & Distribution

Versatile Mounting & Distribution

Multiple mounting methods and Type 2, 3, 4, and 5 distributions allow seamless adaptation to a wide range of site and roadway lighting requirements.

Faites défiler pour découvrir

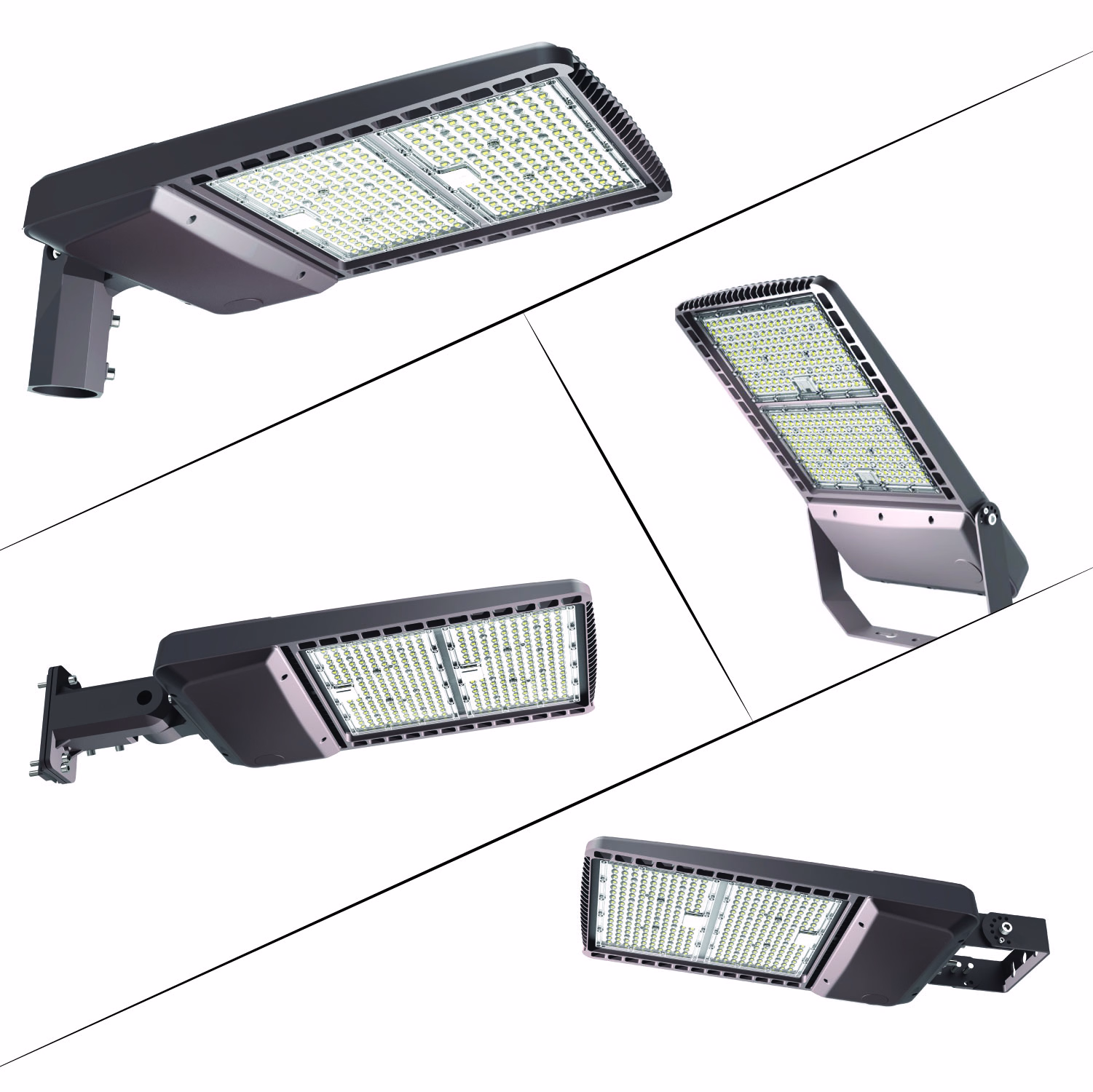

Fixation polyvalente

Fixation polyvalente

Compatible with slip fitter, direct, yoke, and U-bracket mounting options, while IP65, and surge-protected construction ensure reliable outdoor performance.

Faites défiler pour découvrir
