Emergency Exit Light

EXITA BY-F2230CA

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347Vac
Power factor : 0.9
Max Input Current : 80mA
Power Consumption : 4.5W
Emergency Power : 3W
Run Time on Battery : 120 mins

Features & Benefits

Multiple Mounting
It comes with different mounting types. It can be installed on wall, ceiling, and end mount. Suitable for Damp location.


CCT option
5700K & 7200K. Overcharge/Over-discharge protection.


Value Engineered Design
The housing is made of UV Stabilized Thermoplastic to provide safety against flame and fire.


Configurations
High grade acrylic diffuser, with fully illuminated characters using long-life, high intensity LEDs. And comes standard with 3 pictograms with special French pictogram, Single or Double Face.


Battery Performance
The battery is made of High performance, Ni-Cad Battery Test Switch. Its charging time is 24 hours, and it lasts for 120 minutes.


Description

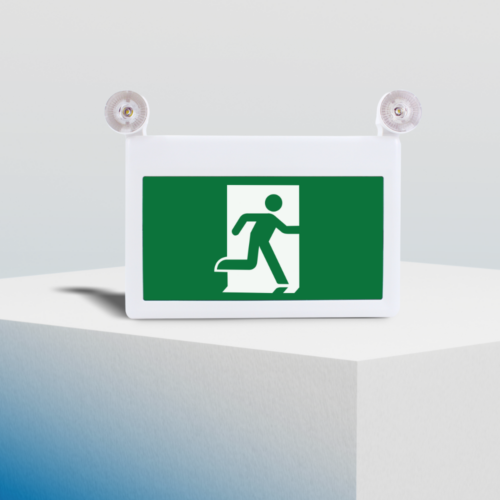

The EXITA BY-F2230CA is the Thermoplastic Running Man Sign Combo exit light from ERALUX. This exit light comes standard for mounting either on ceiling, wall or even for side installations. It also comes standard with three pictograms that can be changed in the field to offer versatility to the installation process.

Downloads

Install Instruction EXITA BY-F2230CA

Download

Spec Sheet EXITA BY-F2230CA

Download

Product Configurator

Your Product Code :

Color and color temperature

5700K

7200K

Color Finish

Powder Coated White Finish

Control

On/Off

Certifications

5 Year Warranty

RoHS

UL Certified
