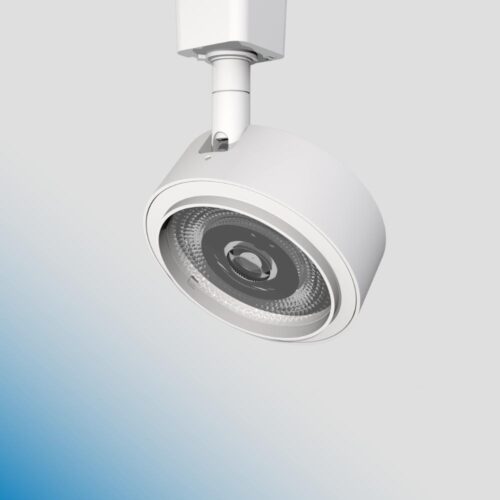

Maven Canopy
OPERATIONS & ELECTRICAL
Input voltage : 120Vac
Power factor : >0.9
Total harmonic distortion (THD) : <30%
Dimming : N/A
Lumens per Watt : 73-78 LPW at 90CRI
Distribution : Narrow flood, flood, wide flood
DESCRIPTION
The Maven CANOPY was made for quick and easy installation without a pre-existing track system. A perfect combination with the other MAVEN series’ track lights, MAVEN CANOPY attaches seamlessly to the surface of your choice. Available in various CCT, and adapter options, MAVEN provides an even distribution at various beam angles. The LED head is adjustable for a 360-degree rotation, and able to bend up to 90 degrees for a wide range in motion.
ORDERING CODE
| FIXTURE FAMILY | VOLTAGE | DISTRIBUTION | CRI | CCT | FINISH |
|---|---|---|---|---|---|
|
AE-TL-MVC ERALUX Maven Surface mount canopy light |
12 120-277V input voltage |
NF Narrow Flood distribution - 26° 10.5 watts: 819 lumens at 4000K |
P Premium 90 CRI |
30 3000K CCT |
BK Black powder coat finish |
|
FL Flood light distribution - 38° 10.5 watts: 819 lumens at 4000K |
WH White powder coat finish |
||||
|
40 4000K CCT |
|||||
|
WF Wide Flood light distribution - 66° 10.5 watts: 819 lumens at 4000K |
SV Silver powder coat finish |
