OUTDOOR FIXTURE

SAPPHIRE X ET7069

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : TRIAC DIM
Lumens per Watt : 57-66LPW at 80CRI
Beam angle : 24˚, 40˚, 60˚, 40˚x25˚

Features & Benefits

PREMIUM MATERIALS
Constructed from aluminum die-cast enhancing thermal heat dissipation while providing excellent figure strength.


MULTIPLE FINISH OPTIONS
Select from black, white, or silver powder coat anti- cracking finishes to accent your project space.


CRI
80 CRI provides greater rendering allowing for a more natural light look.


ACCESSORIES
Several shroud attachments available including angled-shroud (AS), or straight-shroud(OS) providing your fixture a covered lens and a unique appearance.


Description

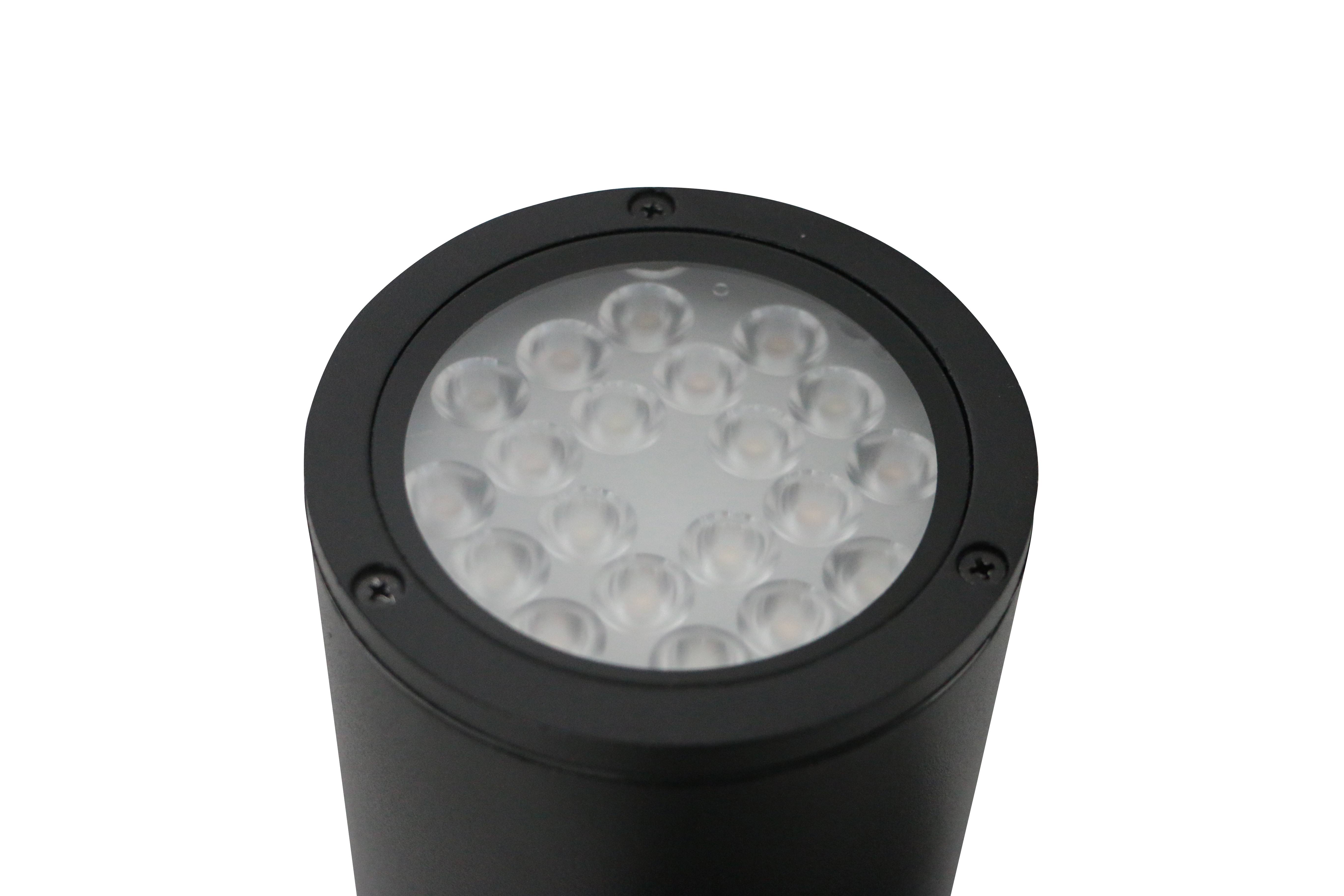

The SAPPHIRE X is an LED accent light with multiple beam patterns and retractable shrouds, 360° rotatable and 180° tiltable, ideally suited for accent lighting. This fixture comes standard with a thermoset powder coat finish that provides superior resistance to corrosion and weathering. It is also enhanced with high density tempered glass. It is available with a NPT 0.5" stem with choices of mounting accessories allow installation on hard surfaces.  It is TRIAC dimming compatible.

Downloads

Install Instruction Sapphire X ET7069

Download

Spec Sheet Sapphire X ET7069

Download

Sapphire X ET7069 IES Files

Download

Product Configurator

Your Product Code :

AE-OD-ET7069
POWER
CCT
BEAM ANGLE
CRI
ACCESSORIES
FINISH
MOUNTING

Dimensions

4 inches

Output

1272lm

1999lm

2283lm

Color and color temperature

80 CRI

3000K

4000K

Color Finish

Powder Black Finish

Powder White Finish

Silver Finish

Optics

24 Degrees

40 Degrees

60 Degrees

Control

On/Off

Accessories

MTA Mounting

MTB Mounting

MTC Mounting

MTJ Mounting

MTJS Mounting

Certifications

5 Year Warranty

ETL Certified

RoHs Certified

IP65 Rated

Marine Finish
