TZ
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 120-277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V Dimming
Lumens per watt : 140 LPW at 70CRI
Distribution : TYPE 3
Features & Benefits

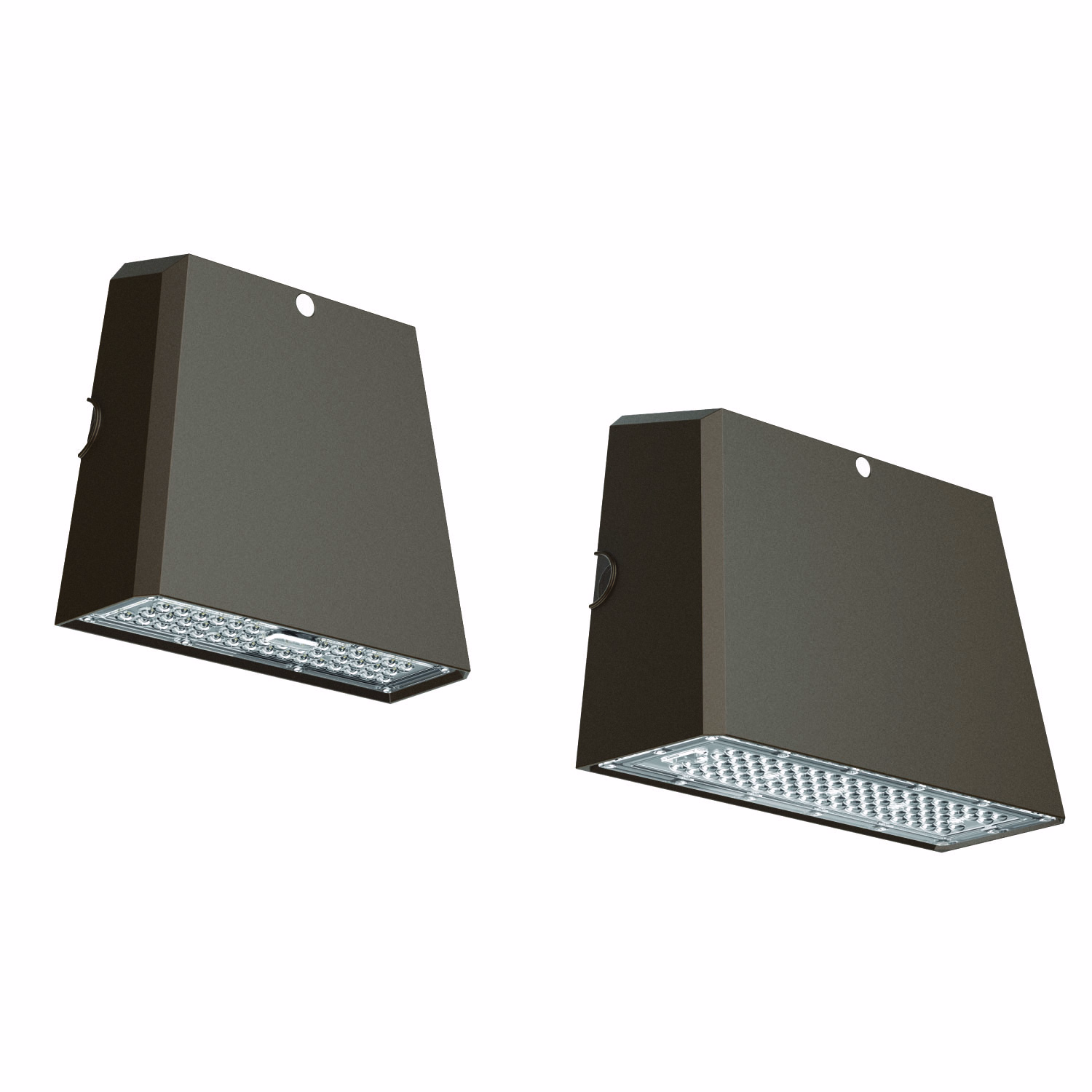

SELECTIVITY
With selectable on field power and color temperature, this fixture enables you to customize your unique fixture to your project space.
FINISH
The bronze powder coating finish will demonstrate a sleek look to buildings.
SPECIAL DISTRIBUTION
The TZ series offers a type 3 light distribution to brighten up buildings, entrances and pathways.

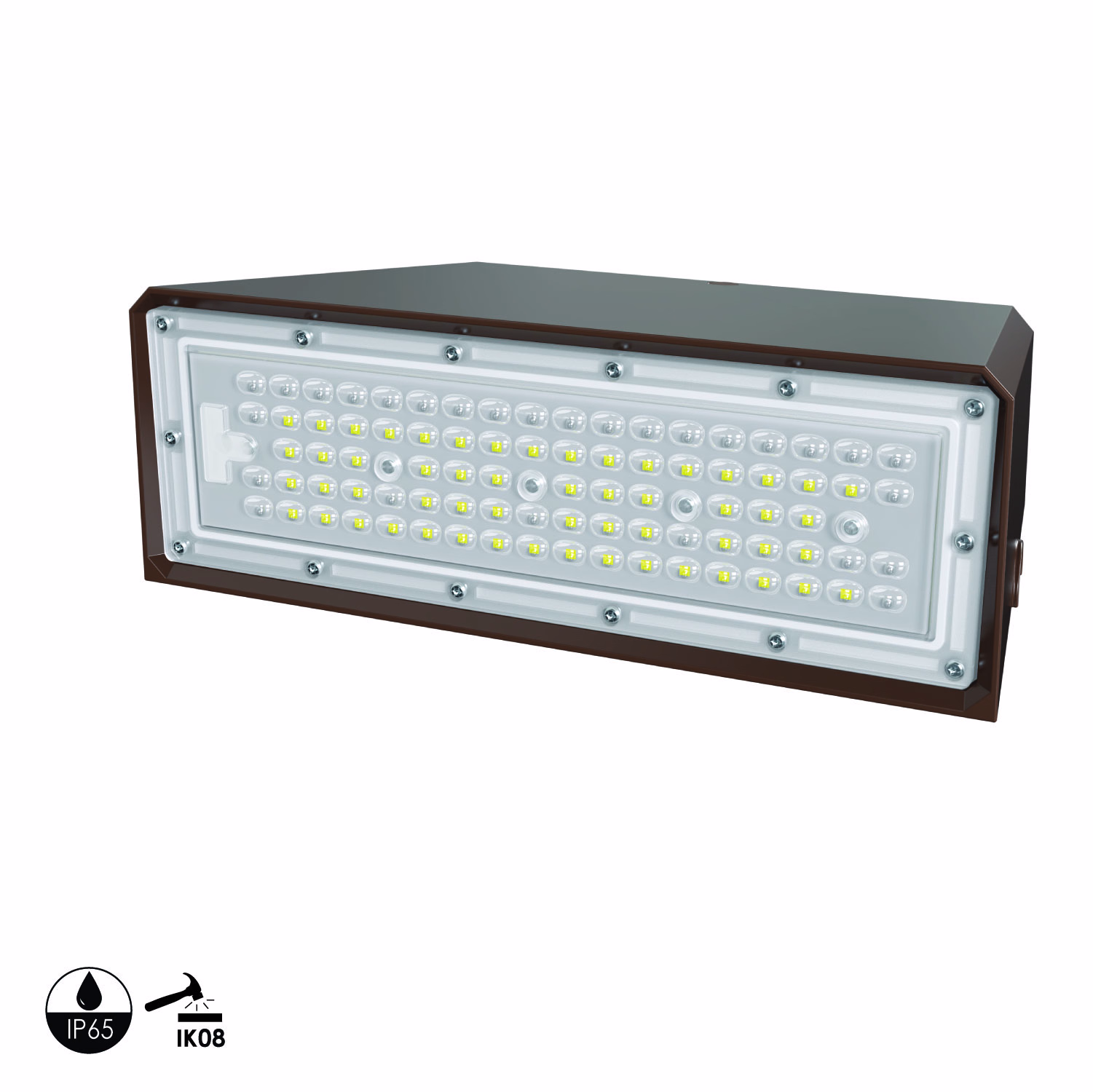

PROTECTION
Integrated surge protection, IK08 rated, LED fixture and driver IP66 rated all allows for protection against harsh environmental conditions.
SLIM MODERN DESIGN
The TZ provides the same functions as other wall pack types, with a more slimer modern design and being more light weight.
Description

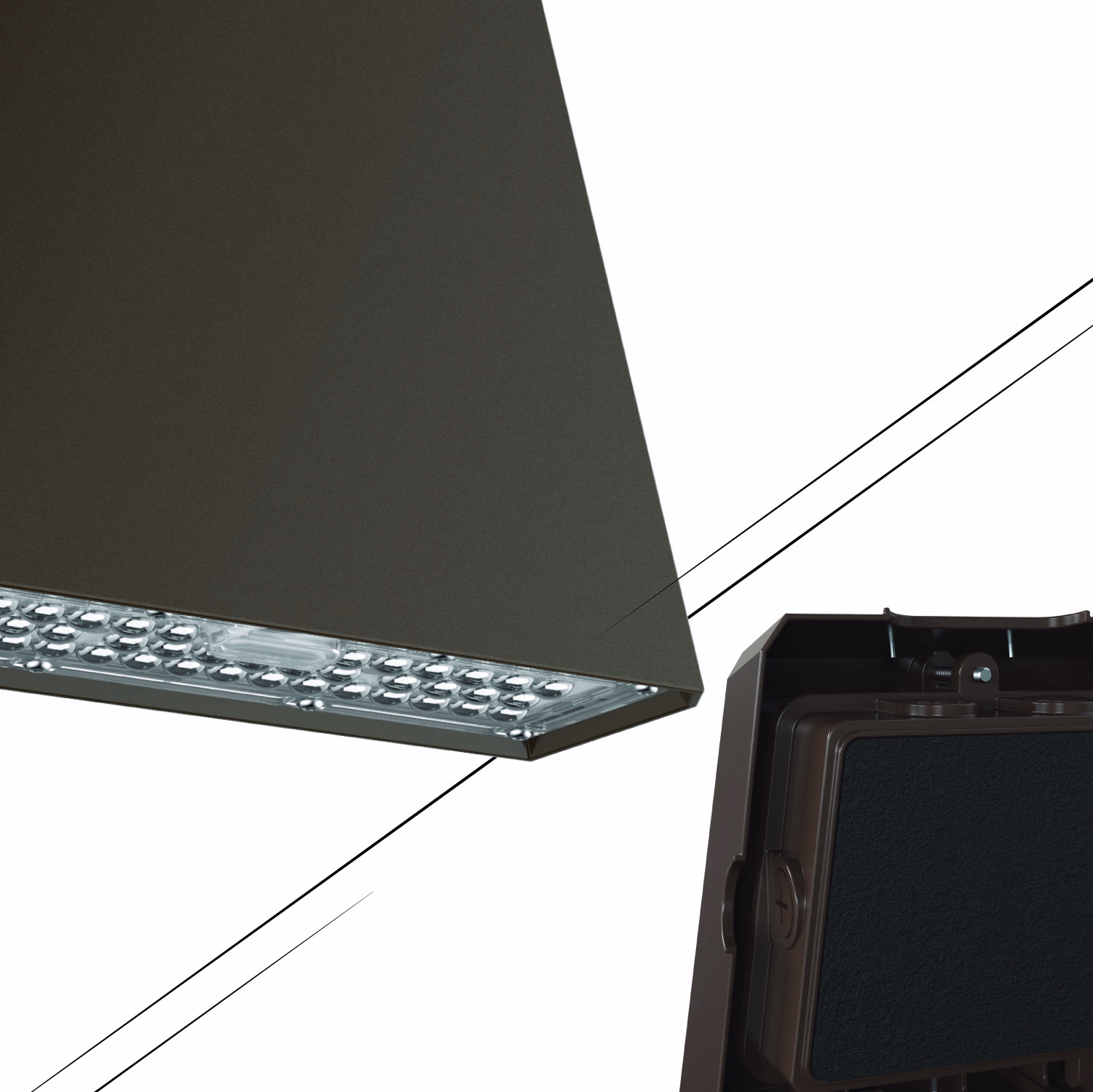

The TZ series stands out among wall packs with its slim, "dark sky friendly" design that conserves space while enhancing aesthetics. Its adjustable installation angle allows for customized lighting direction. Featuring Type 3 optical lenses and an IP wet location rating, this compact fixture is perfect for illuminating pathways, entrances, and building facades in residential areas, all while minimizing light pollution.
Downloads
Product Configurator
Your Product Code :
Output
1400/2100/3150/4200lm
2940/4900/7420/9800lm
Color and color temperature
70 CRI
3000K
4000K
CCT Switchable
Power Switchable
Color Finish
Bronze Finish
Black Finish
Control
On/Off
0-10V Dimming
Photocell
Accessories
Emergency Backup Battery
Certifications
5 Year Warranty
ETL Certified
RoHs Certified
IP65
Wet rated
