AQX SLIM
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 120~277Vac
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V dimming with dim-to-off
Lumens per Watt : 85-90 LPW at 90CRI
Distribution : 108 degrees beam angle
Features & Benefits
Mounting Options
AQX linear has various mounting options; surface / suspended mount and continuous runs are achievable

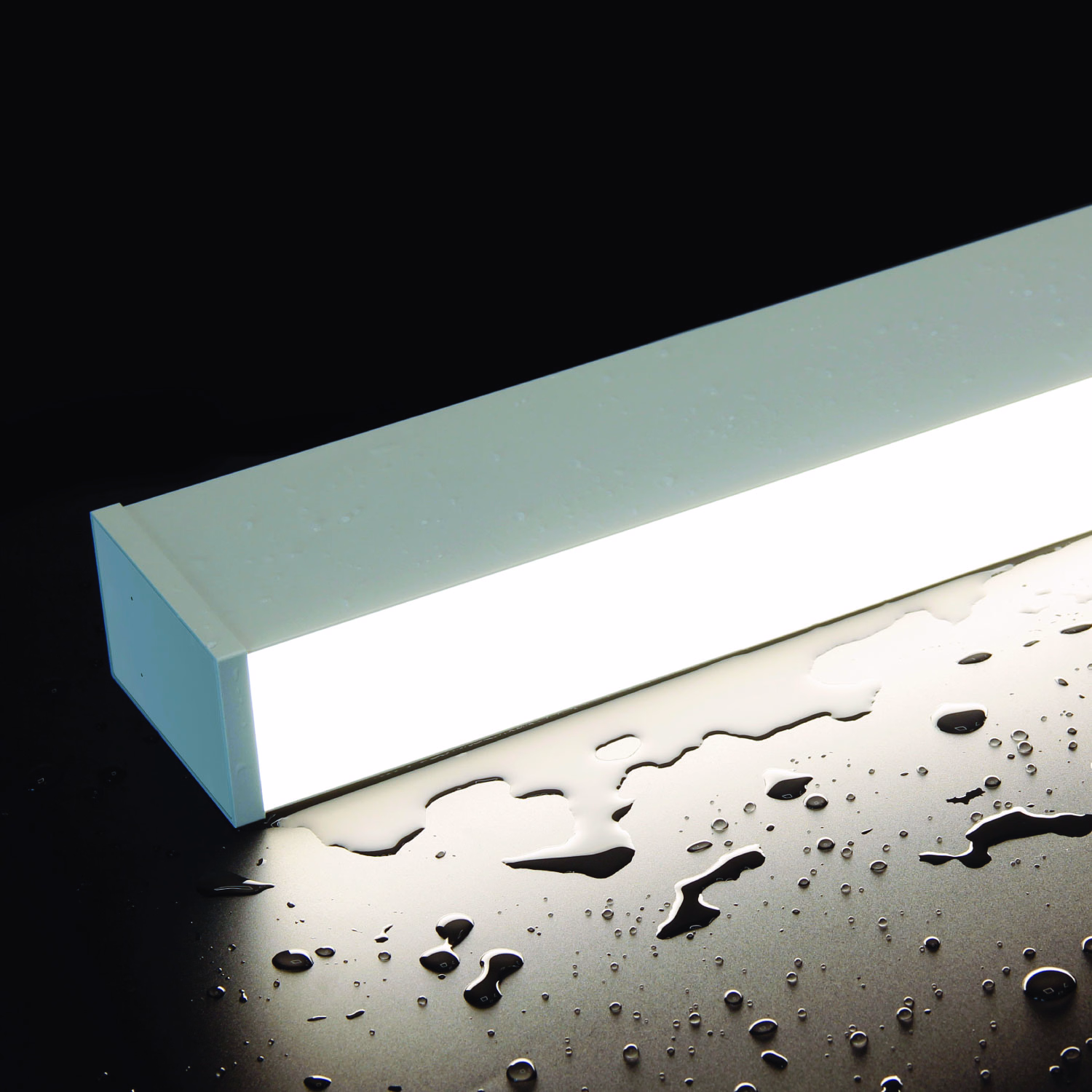

Protection
IP65 rated (NOT FULLY EXPOSED AT OUTDOOR)
Premium Design and Materials
Aluminum die cast housing for superior thermal heat dissipation, strength, and rigidity. Integrated fin heat dissipation structure built into the fixture's housing provides long lasting LED and driver function
Finish
Standard ERALUX finish provides an elegant look to the fixture's housing. It comes in Black/White/Silver
Description
Our AQXS Linear is IP65 rated/ Not fully exposed at outdoors. It can be surface mounted or suspended ; stand alone or continuous. Maintains high efficiency at 90CRI. The best option for pools, subway entrance or even train platforms.
Downloads
Product Configurator
Your Product Code :

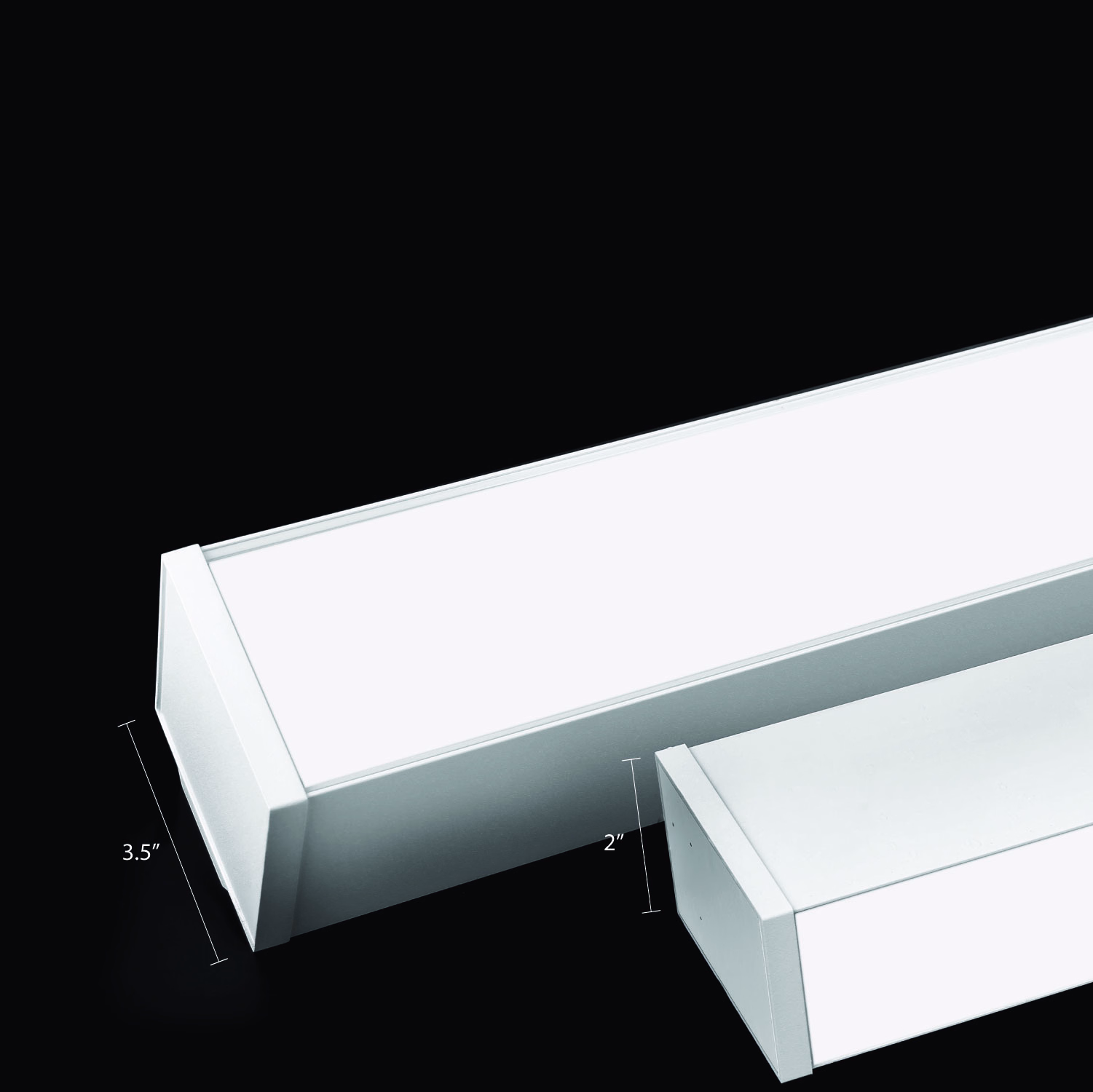

Dimensions
4ft
6ft
8ft
Output
2936lms
4404lms
5872lms
Color and color temperature
90 CRI
3000K
3500K
4000K
Color Finish
Atomic Black Finish
Nebula White Finish
Silver Finish
Optics
Suspended Downlight
Surface Mount
Control
On/Off
0-10V Dimming
Accessories
Suspension Mount Kit Canopy with 2 holes Suspension wire
Suspension Mount Kit Canopy with 1 hole Suspension wire
Surface Mount Kit
5-Pin Dimmable waterproof cable connector
4FT 5-PIN Connection Cable for Continuous Runs
6FT 5-PIN Connection Cable for Continuous Runs
8FT 5-PIN Connection Cable for Continuous Runs

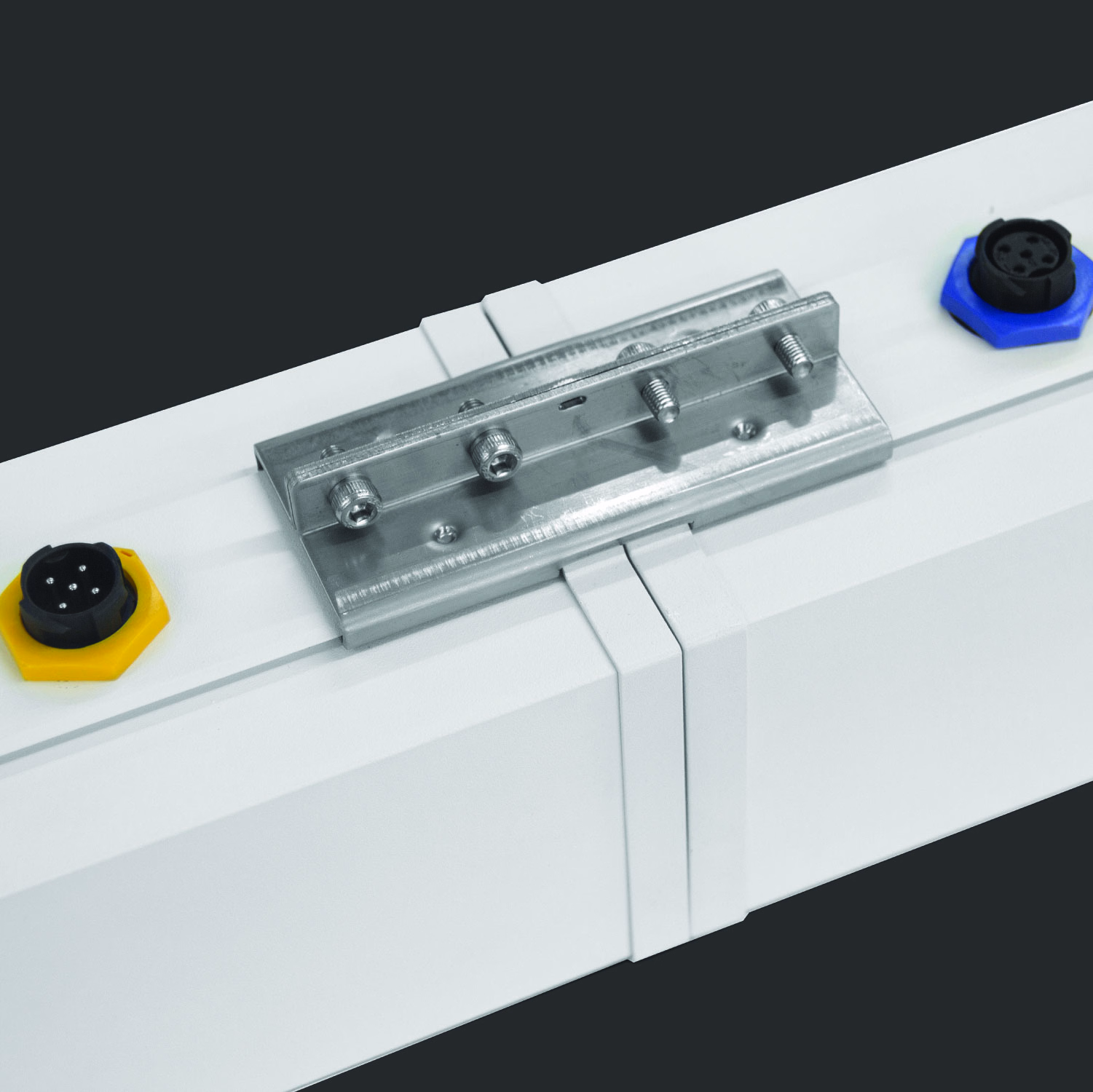

Linkable Metal Accessory For Continuous Runs
Certifications
5 Year Warranty
ETL Canada & US
RoHs Certified
IP65
IK08
Revit
