Linear Fixture

SPS

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V external dimming down to 10%
Lumens per Watt : 88 LPW at 90CRI white, 75 LPW at 90CRI black
Distribution : Lambertian

Features & Benefits

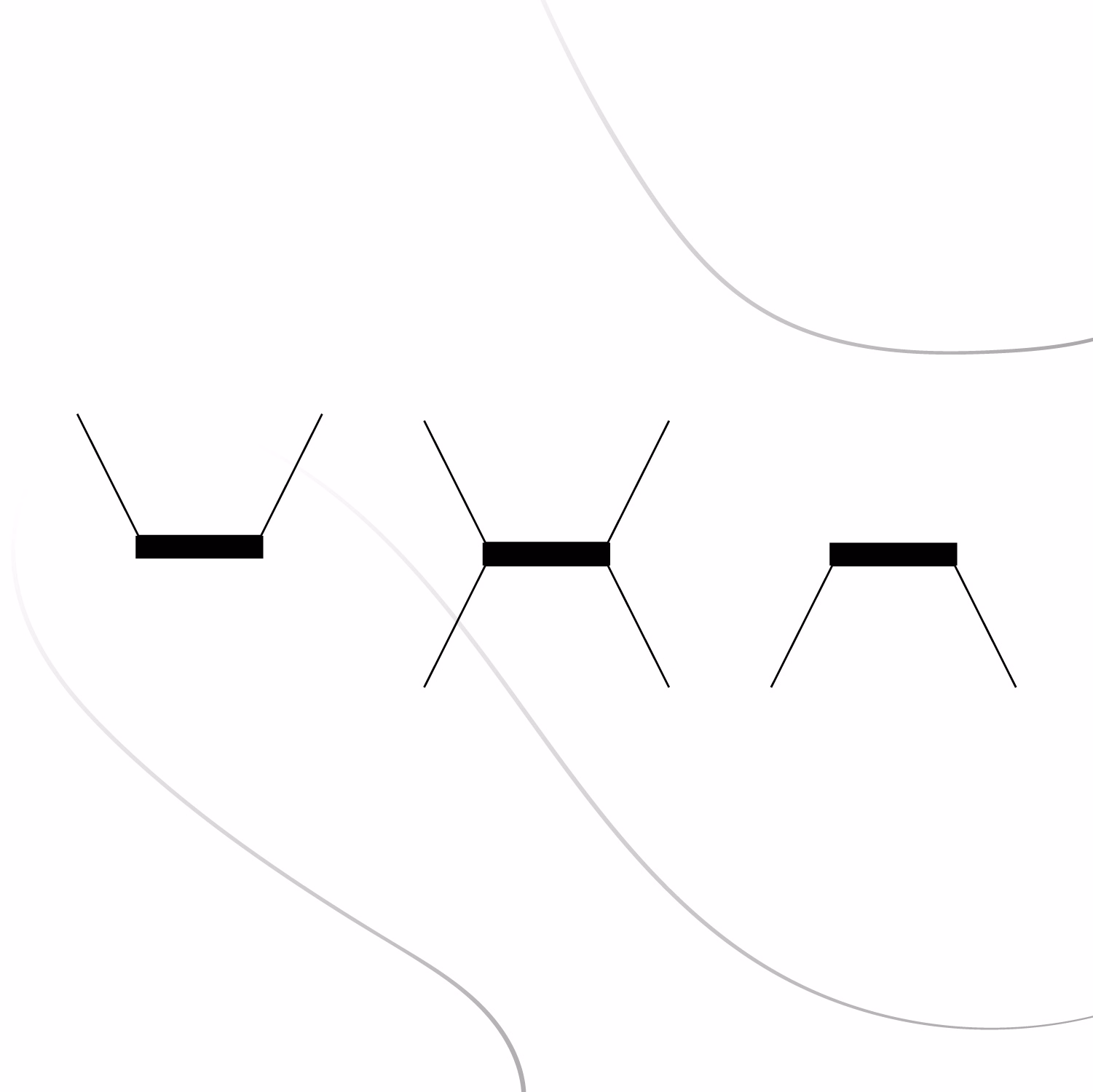

Direct and Indirect Light
The SPS provides both up and down light capabilites to enhance your project space.


Anti Glare Finish
Custom Eralux anti-glare black and white finishes helps reduce glare off of the fixture's housing, accenting your project space.


Power and CCT Switchable
Power and CCT switch to change between 3 CCT options which vary from warm to cool light on site.


Mulitple Sizes
Available in 2, 4, 6, and 8 feet along with various shaopes such as L, X and T fixtures. Easily connect these fixtures to create continuous runs and creative designs.


Description

The SPS series is a revolutionary compact product with the ability to adjust lumen output and offers a variety of up light and downlight options. It even offers the unique option of 100% up light. Whether its pendant mount or wall mount, the installation process is simple and will result in an elegant lighting solution.

Downloads

Install Instruction SPS

Download

Spec Sheet SPS

Download

SPS IES Files

Download

Product Configurator

Your Product Code :

AE-SF-SPS
GEN
VOLTAGE
LENGTH
POWER
ACCENT
CRI
CCT
DIMMING
LENS
FINISH
BEAM
ACCESSORIES

Dimensions

2ft

4ft

6ft

8ft

Output

1760lm

2640lm

3520lm

4400lm

5280lm

7040lm

8800lm

Color and color temperature



90 CRI



3000K



3500K



4000K



5000K



CCT Switchable



Power Switchable

Color Finish

Atomic Black Finish

Nebula White Finish

Silver Finish

RAL 6032 Signal Green

RAL 6027 Light Green

RAL 6005 Moss Green

RAL 5003 Sapphire Blue

RAL 7001 Silver Grey

RAL 7033 Cement Grey

RAL 7038 Agate Grey

RAL 9001 Cream

RAL 9006 Silver

RAL 7040 Window Grey

RAL 1015 Light Ivory

RAL 2012 Salmon Orange

RAL 3031 Orient Red

RAL 8024 Beige Brown

RAL 9003 Signal White

RAL 9007 Grey Aluminum

RAL 9022 Light Pearl Grey

RAL 7011 Iron Grey/Gun Powder

RAL 9004 Signal Black

Custom Color

Optics

Up and Down Light

100% Uplight

L Shape

T Shape

X Shape

Control

On/Off

0-10V Dimming

Accessories

Black Canopy Set

Black Powercord

SPS Link

SPS Suspension Kit

White Canopy Set

White Powercord

Certifications

5 Year Warranty

ETL Canada & US

RoHs Certified
