EMERGENCY EXIT LIGHT

EXITA BY-F5024CA

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347Vac
Power factor : 0.9
Input Power : 2W
Emergency Power : 2W
Run Time on Battery : 120 MIN

Features & Benefits

Multiple Mounting
It comes with different mounting types. It can be installed on wall, ceiling, and end mount. Suitable for Damp location


CCT option
6500K. Overcharge/Over-discharge protection


Value Engineered Design
The housing is made of steel frame to provide safety against flame and fire.


Configurations
High grade acrylic diffuser, with fully illuminated characters using long-life, high intensity LEDs. And comes standard with 3 pictograms, Single or Double Face,


Battery Performance
The battery is made of High performance, Ni-Cad Battery Test Switch. Its charging time is 24 hours, and it lasts for 90 minutes.


Description

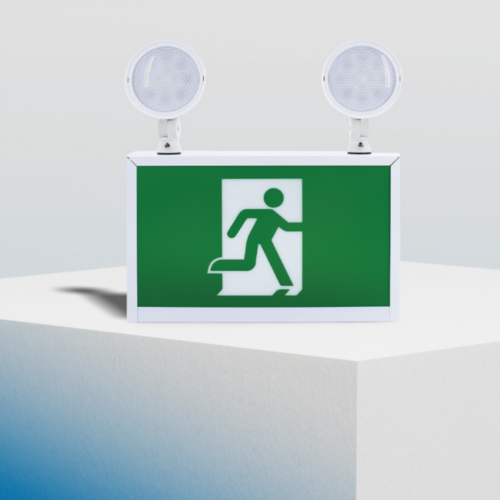

The EXITA-5024 is the Metal Running Man Sign Combo exit light from ERALUX. This exit light comes standard for mounting either on ceiling, wall or even for side installations. It also comes standard with three pictograms that be can changed in the field to offer versatility to the installation process. The housing provides a rigid, lightweight and durable sign.

Downloads

Install Instruction EXITA BY-F5024CA

Download

Spec Sheet EXITA BY-F5024CA

Download

Product Configurator

Your Product Code :

Color and color temperature

6500K

Color Finish

Powder Coated White Finish

Control

On/Off

Certifications

5 Year Warranty

RoHS

UL Certified
