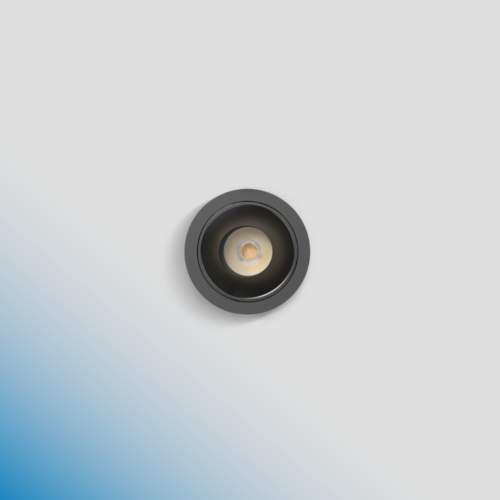

KINETA NANO
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input Voltage : 120~277V
Power Factor : 0.9
Total Harmonic Distortion (THD) : <20%
Dimming : 0-10V external dimming & Triac dual dimming
Lumens per Watt : 80 LPW at 90CRI
Distribution : 15˚, 24˚, 38˚, 55˚
Features & Benefits
Super Modular Design
Unique super modular design making the assemble and disassemble process toolless and effortless. Lens changing and trim changing can be easily done in just one minute.
Flexible Heads
One engine module fits for both fixed and adjustable heads, in both round and square shapes, making KINETA fit for any kinds of projects and customizable space lighting.
Various Reflector Options
Reflectors are available in specular, diffuse and charcoal black. They could fulfill all your needs to create a desirable lighting effect.
Premium Design and Construction
Housing made from aluminum diecast for increased rigidity and strength. Radial engine shape conveniences wire arrangement, reduces engine weight and heat dissipation without sacrificing aesthetics.
Various Models
Trims are available in two finishes either black or white. It has two models as well, either trimless or standard finish.
Description
The KINETA NANO is a 2-inch recessed downlight offers a range of optical options, it can be either adjustable or fixed. Variety of reflectors and trim finishes available making it an attractive addition. It comes in either round or square shape, in addition to the trimless option. It is available in two power options 5 W – 332 lm and 8 W – 440 lm, dual dimming option and multiple CCTs.
Downloads
Product Configurator
Your Product Code :
Dimensions
2 inches
Output
332lm
440lm
Color and color temperature
90 CRI
2700K
3000K
3500K
4000K
Color Finish
RAL 9003 Signal White
Atomic Black Finish
Optics
15 Degrees
24 Degrees
38 Degrees
55 Degrees
Control
On/Off
0-10V Dimming
TRIAC Dimming
Accessories
EMBB
Certifications
5 Year Warranty
ETL Canada & US
RoHS Certified
IP20
