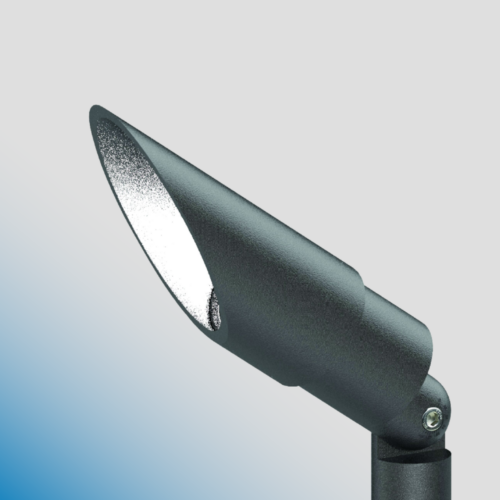

SAPPHIRE ET7066
You may also like…
![[removal.ai]_3dc76b62-027c-450d-97f0-cccaed2f1c9f_Screenshot 2024-07-12 090659](https://eralux.com/wp-content/uploads/2024/07/removal.ai_3dc76b62-027c-450d-97f0-cccaed2f1c9f_Screenshot-2024-07-12-090659.png)
![[removal.ai]_6a9e267f-9319-436a-9d06-b11c9d1e4858_Screenshot 2024-07-12 090839](https://eralux.com/wp-content/uploads/2024/07/removal.ai_6a9e267f-9319-436a-9d06-b11c9d1e4858_Screenshot-2024-07-12-090839.png)
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 120~277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : TRIAC DIMMING
Lumens per Watt : 79 LPW at 80CRI
Beam angle : 15˚, 24˚, 36˚, 50˚, 50˚x 20˚
Features & Benefits
PREMIUM MATERIALS
Constructed from aluminum die-cast enhancing thermal heat dissipation while providing excellent figure strength.
MULTIPLE FINISH OPTIONS
Select from black, white, or silver powder coat anti- cracking finishes to accent your project space.
CRI
80 CRI provides greater rendering allowing for a more natural light look.
ACCESSORIES

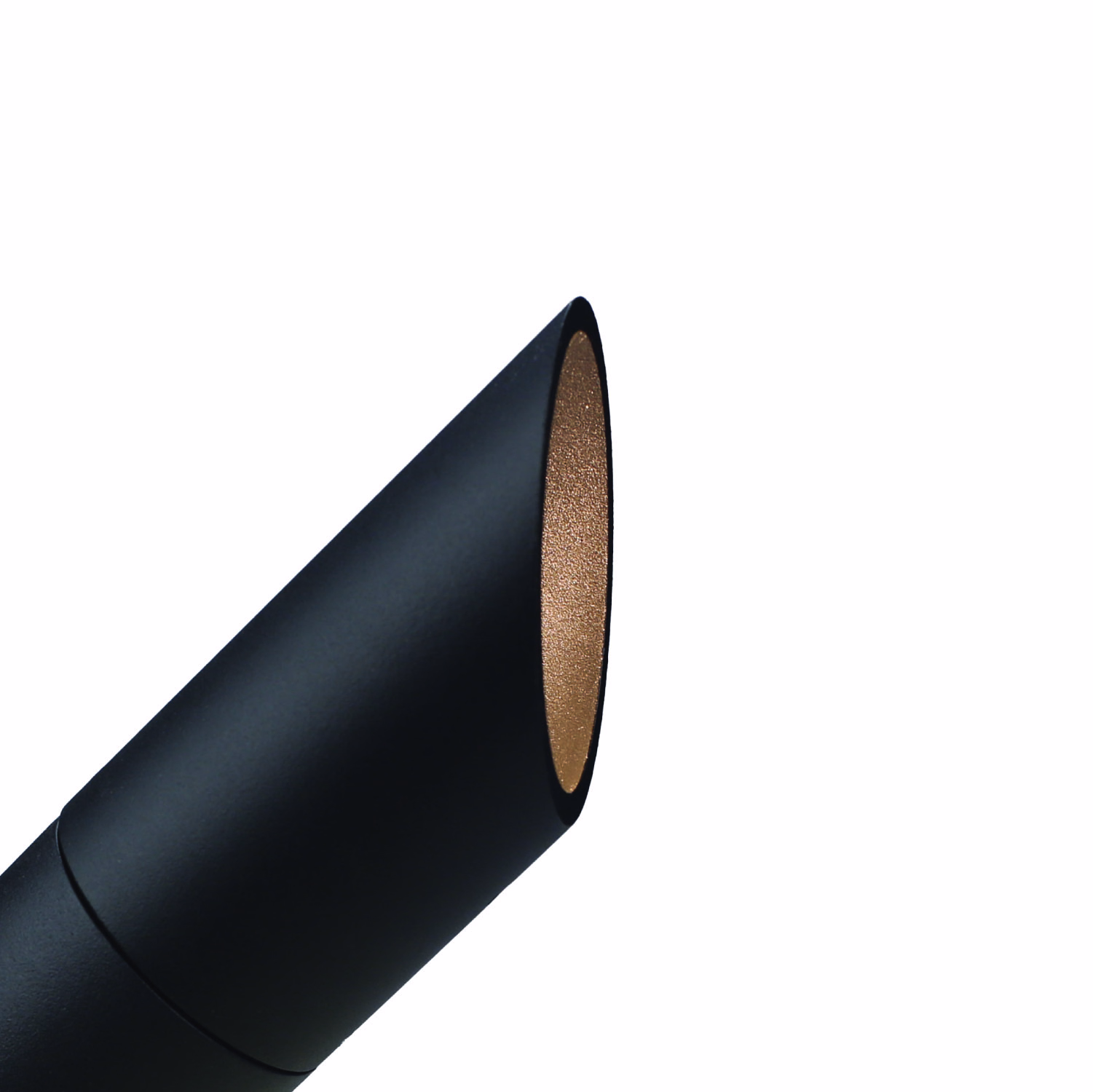

Several shroud attachments available including angled-shroud (AS), or straight-shroud(OS) providing your fixture a covered lens and a unique appearance.
Description

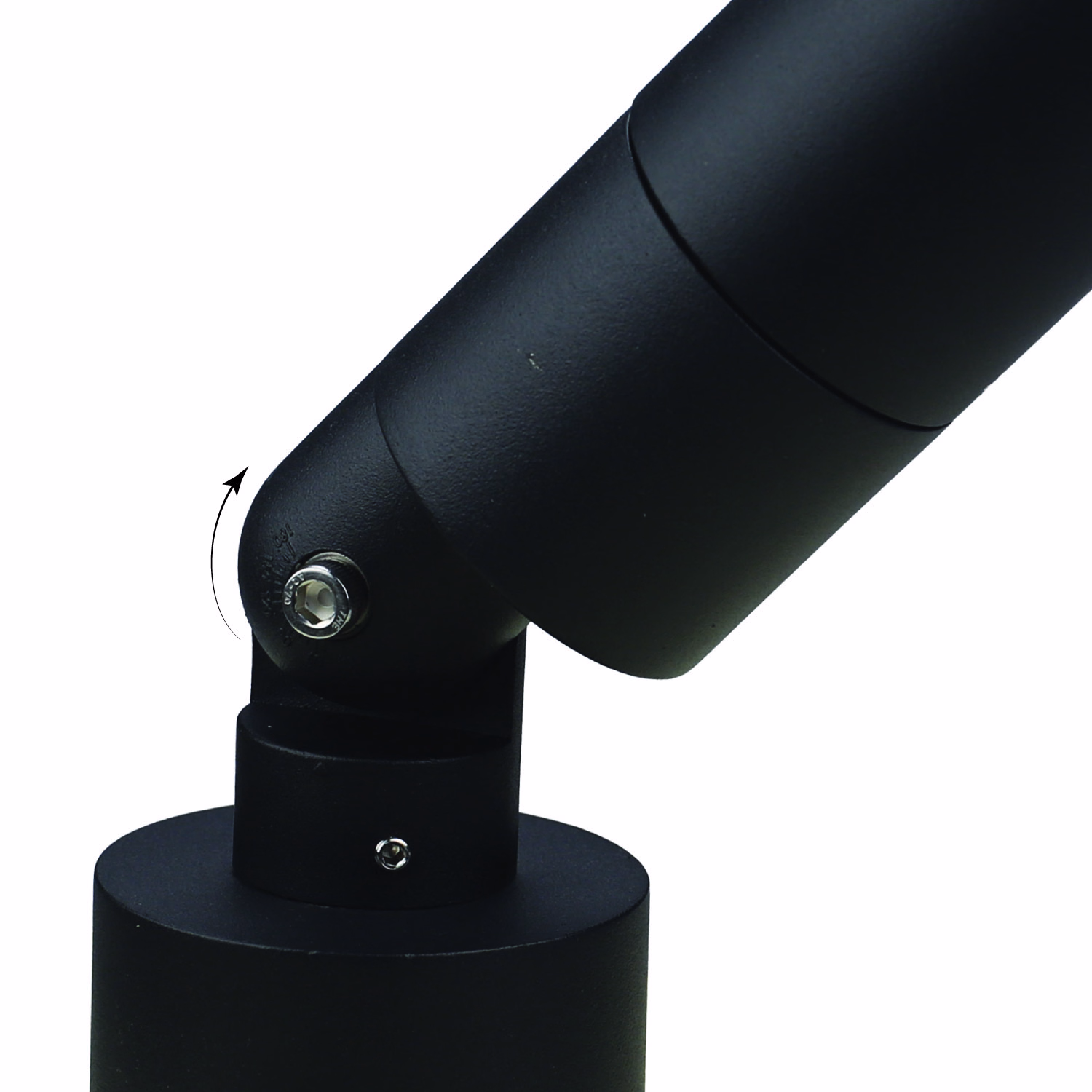

The Sapphire is an LED accent light with multiple beam patterns and retractable shrouds, 360° rotatable and 180° tiltable, ideally suited for accent lighting. The miniature size makes its appearance unobtrusive. NPT 0.5" stem with choices of mounting accessories allow installation on hard surfaces. It is TRIAC dimming compatible.
Downloads
Product Configurator
Your Product Code :
Dimensions
Output
1002lm
1291lm
Color and color temperature
80 CRI
2700K
3000K
4000K
5000K
Color Finish
Powder Black Finish
Powder White Finish
Silver Finish
Optics
15 Degrees
24 Degrees
36 Degrees
50 Degrees
Control
On/Off
TRIAC Dimming
Accessories
MTA Mounting
MTB Mounting
MTC Mounting
MTJ Mounting
MTJS Mounting
Certifications
5 Year Warranty
ETL Certified
RoHs Certified

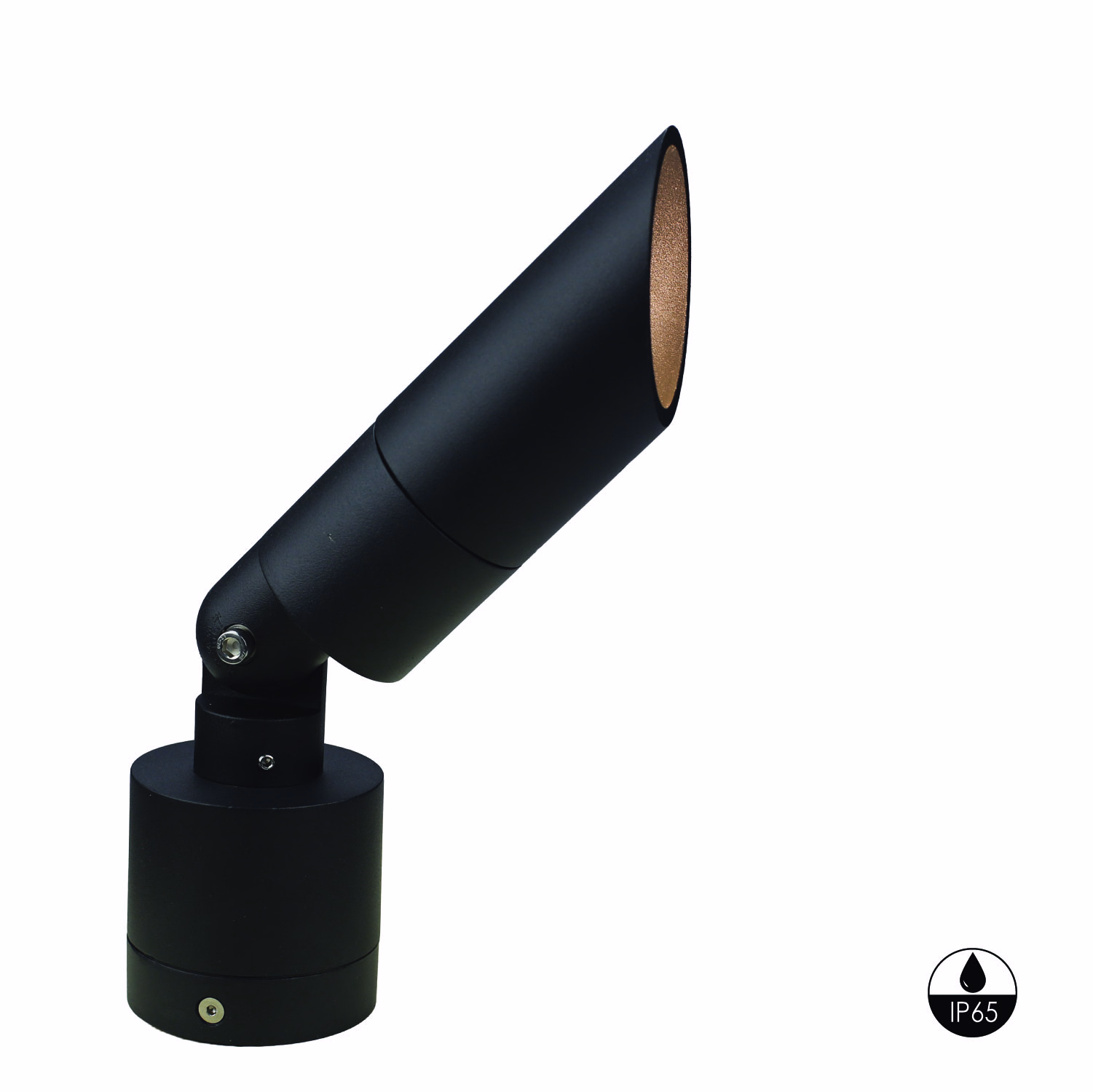

IP65 Rated
