DOWNLIGHT

TANGO

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V external dimming down to 10%
Lumens per Watt : 75~78 LPW at 90CRI
Distribution : Lambertian

Features & Benefits

Energy Efficient Luminaire
Energy star certified high-efficiency output of >75 lumens per watt at 90CRI.


Unparalleled Light Flexibility
Use the DIP switches on the top of the fixture's housing to switch between 3 lumen packages and 4 color temperature options from 2700k to 5000k.


Retrofit and New Construction
Approved for use for retrofit and new constructions


Wet Rated
Wet location rated and suitable for temperatures ranging from -20 to 40 degrees Celsius. Housing made from aluminum for increased rigidity and strength.


Description

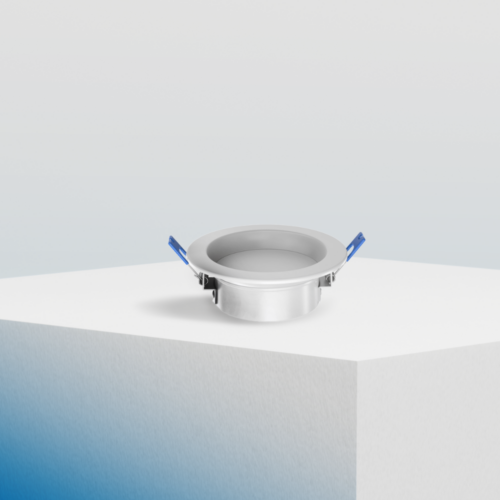

The TANGO series is the 6- and 8-inch commercial downlight family from ERALUX. This downlight features a spring mechanisms that makes installation a breeze. It is perfect for retrofit and for new constructions environment (junction box or frame kit required). The 6 inches can achieve up to 2000 lumens while the 8 inch can achieve 2500 lumens at 90 CRI, 3000K. The TANGO Series separates itself from competitor downlights by having selectable lumens, and CCT switches, enabling high flexibility at the project location.

Downloads

Install Instruction TANGO

Download

Spec Sheet TANGO

Download

TANGO IES Files

Download

Product Configurator

Your Product Code :

AE-DL-TGE
SIZE
POWER
DIMMING
CRI
CCT
FINISH

Dimensions

4 inches

6 inches

Output

1000lm

1500lm

2000lm

2500lm

Color and color temperature



90 CRI



3000K



3500K



4000K



5000K



CCT Switchable



Power Switchable

Color Finish

RAL 9003 Signal White

Optics

100 Degrees

Control

On/Off

0-10V Dimming

Accessories

Emergency Backup Battery

New Construction Frame Kit

Certifications

5 Year Warranty

UL Certified

Energy Star Certified

RoHs Certified

Wet Rated
