TRACK FIXTURE

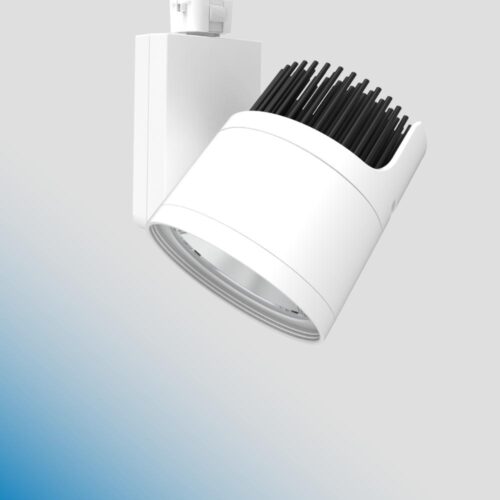

DREAM CHASER MAX

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : TRIAC DIMMING
Lumens per Watt : 79~92 LPW at 90CRI
Distribution : Spot 20º/ Narrow Flood 40º/ Flood 50º

Features & Benefits

MULTIPLE MOUNTING ADAPTERS
Choose from any of the popular track systems such as Juno, Halo, Lightolier, or Global.


VALUE ENGINEERED DESIGN
Aluminum die cast housing for superior thermal heat dissipation, strength, and rigidity. Integrated fin heat dissipation structure built into the fixture's housing provides long lasting LED and driver function.


PAINT FINISH:
Factory standard in black, white, and silver. Contact for custom paint finishes to enhance your fixture to suit your project space.


MULTIPLE OPTIONS
Customize your track head by selecting from a variety of beam angle, CCT options allowing you to have a unique fixture that suits your project.


Description

The DREAM CHASER series differentiates itself with the appearance of its heatsink combined elegantly with the curvy machined die cast housing. This DREAM CHASER comes with various beam patterns, track adapters to make it suitable for many applications whether retrofit or new constructions. The MAX version distinguishes itself through its high lumen output.

Downloads

Install Instruction DREAM CHASER MAX

Download

Spec Sheet DREAM CHASER MAX

Download

IES Files DREAM CHASER MAX

Download

Product Configurator

Your Product Code :

AE-TL-DCX
DISTRIBUTION
CRI
CCT
ADAPTER
FINISH

Dimensions

4.8 inches

Output

4275lm

Color and color temperature

90 CRI

2700K

3000K

3500K

4000K

Color Finish

White Powder Coat Finish

Silver Powder Coat Finish

Black Powder Coat Finish

Optics

Spot

Narrow Flood

Flood

Control

ON/OFF

TRIAC

Accessories

GES Adapter

Halo Adapter

Juno Adapter

Lightolier Adapter

Certifications

5 Year Warranty

ETL Canada & US

RoHs Certified
