TRACK FIXTURE

CHANDRA

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : TRIAC DIMMING
Lumens per Watt : 86 LPW at 90CRI
Distribution : Narrow flood (beam angle 13˚), Flood (beam angle 25˚), Wide flood (beam angle 35˚)

Features & Benefits

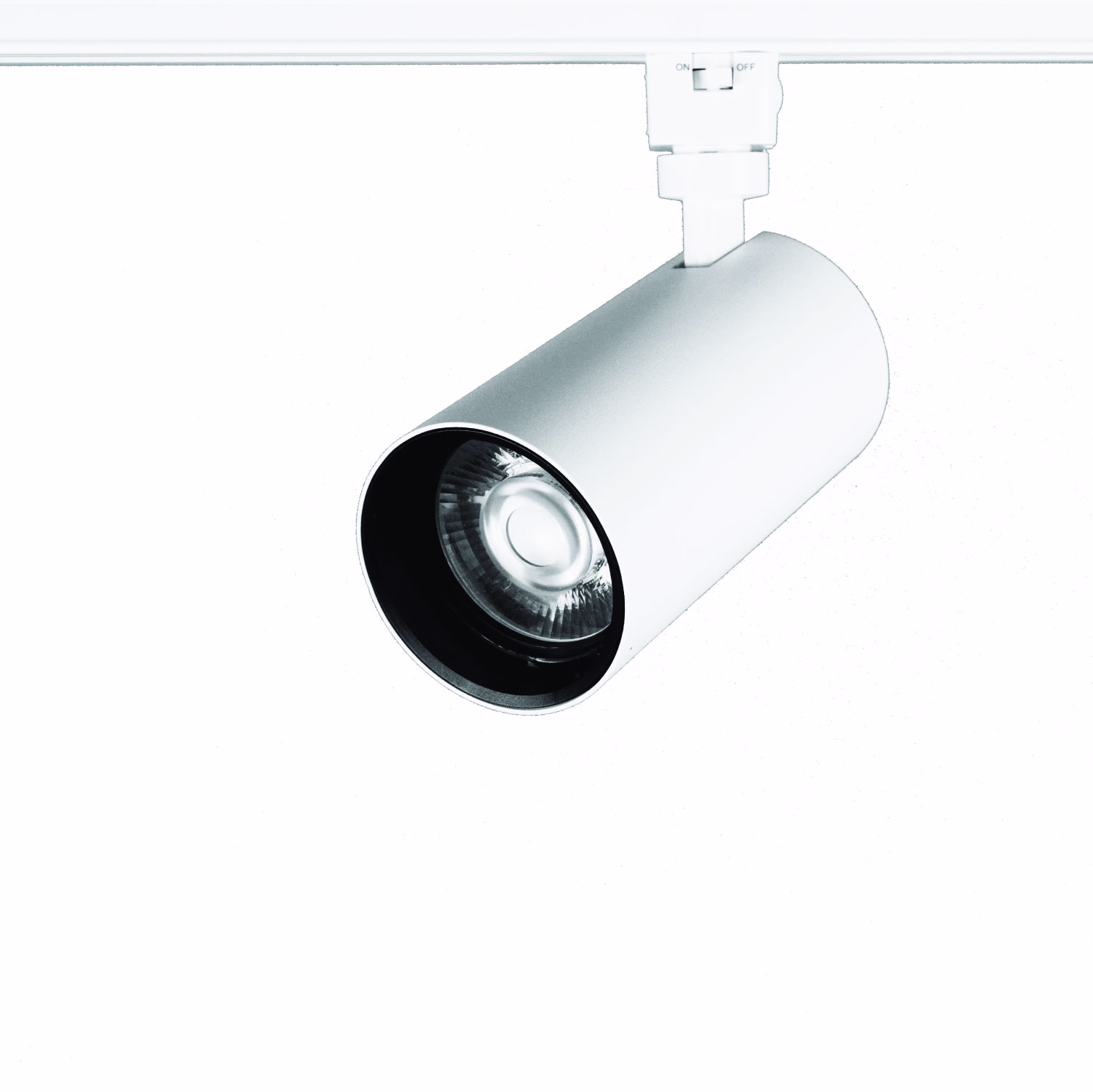

MULTIPLE MOUNTING ADAPTERS
Choose from any of the popular track systems such as Juno, Halo, Lightolier, or Global.


VALUE ENGINEERED DESIGN
Aluminum die-cast materials selected for efficient thermal heat dissipation, enhanced structural rigidity maximizing LED life and driver function.


PAINT FINISH
Factory standard in black, white, and silver. Contact for custom paint finishes to enhance your fixture to suit your project space.

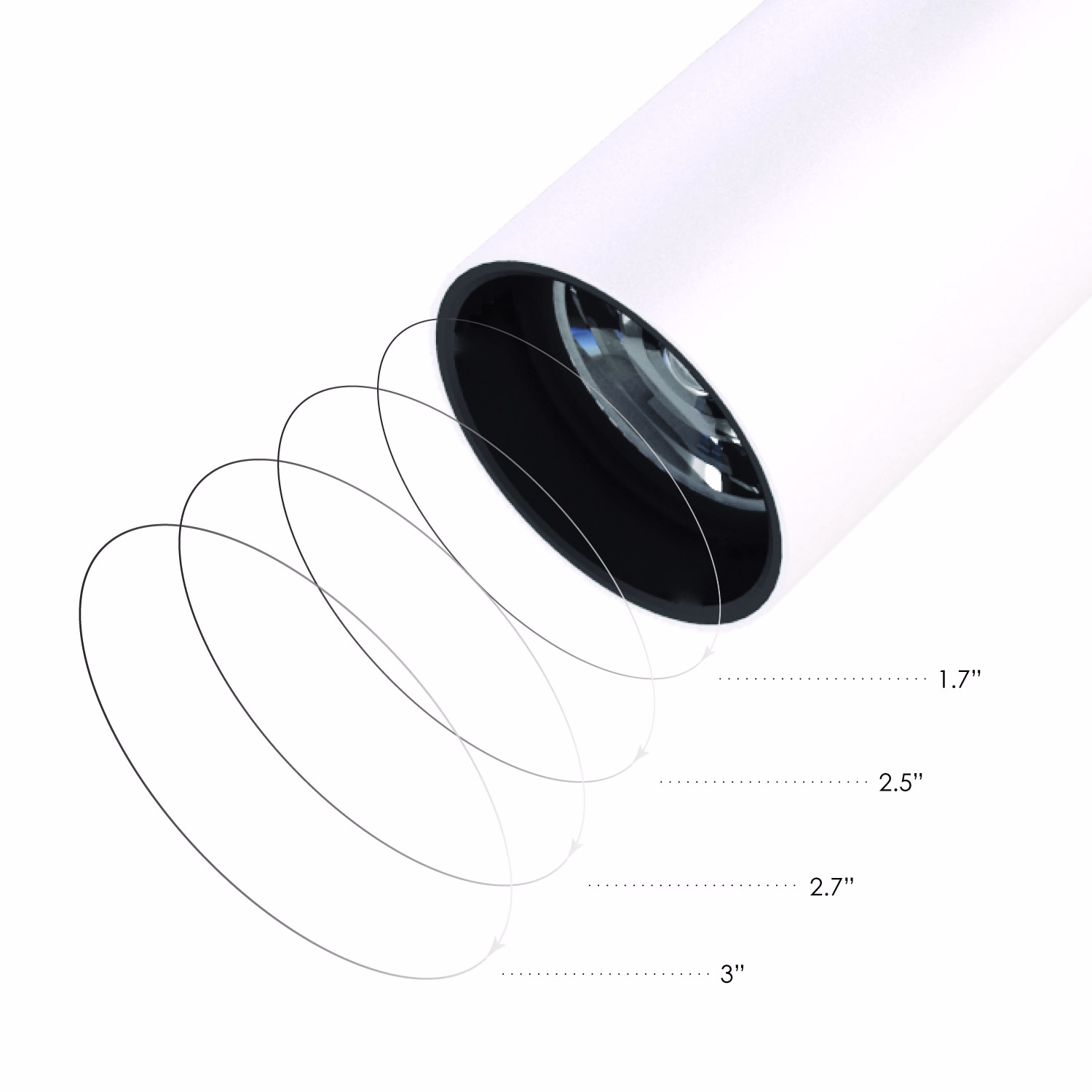

MULTIPLE OPTIONS
Customize your track head by selecting from a variety of beam angle, CCT, and CRI options allowing you to have a unique fixture that suits your project.


EFFICIENT DESIGN
Integrated components allow for small stem and clean aesthetic appearance.


ACCESSORIES
Hexcell louvers, and snoots available to help further customize your track fixtures and provide a specific look and beam distribution that your project space requires.


Description

The CHANDRA series track lighting fixture is specifically designed for the retail environment. It distinguishes itself with its sleek look, variety of optical options, and a series of accessories to adapt to every possible scenario. The installation of accessories on this product is simply a breeze. This enables fast deployment of fixtures around stores for reconfigurations of products. This product comes at standard 90 CRI, but also caters for lighting experts with a high-GAI (Gamut Area Index) option for an enhanced visual effect on products.

Downloads

Install Instruction CHANDRA

Download

Spec Sheet CHANDRA

Download

IES Files CHANDRA

Download

Product Configurator

Your Product Code :

AE-TL-CD
VOLTAGE
DISTRIBUTION
CRI
CCT
ADAPTER
FINISH

Dimensions

3.15 inches

Output

1720lm

Color and color temperature

90 CRI

2700K

3000K

3500K

4000K

Superior HIGH GAI

Color Finish

White Powder Coat Finish

Silver Powder Coat Finish

Black Powder Coat Finish

Optics

Narrow Flood

Flood

Wide Flood

Control

ON/OFF

TRIAC

Accessories

GES Adapter

Halo Adapter

Juno Adapter

Lightolier Adapter

Hexcell Louver

Snoot (Black & White)

Certifications

5 Year Warranty

ETL Canada & US

RoHs Certified
