NuSTAR
OPERATIONS & ELECTRICAL
Input voltage : 120V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : Triac dimming
Lumens per Watt : 77-92 LPW at 90CRI
Distribution : Narrow flood, Flood, Wide flood, Very Wide Flood
DESCRIPTION

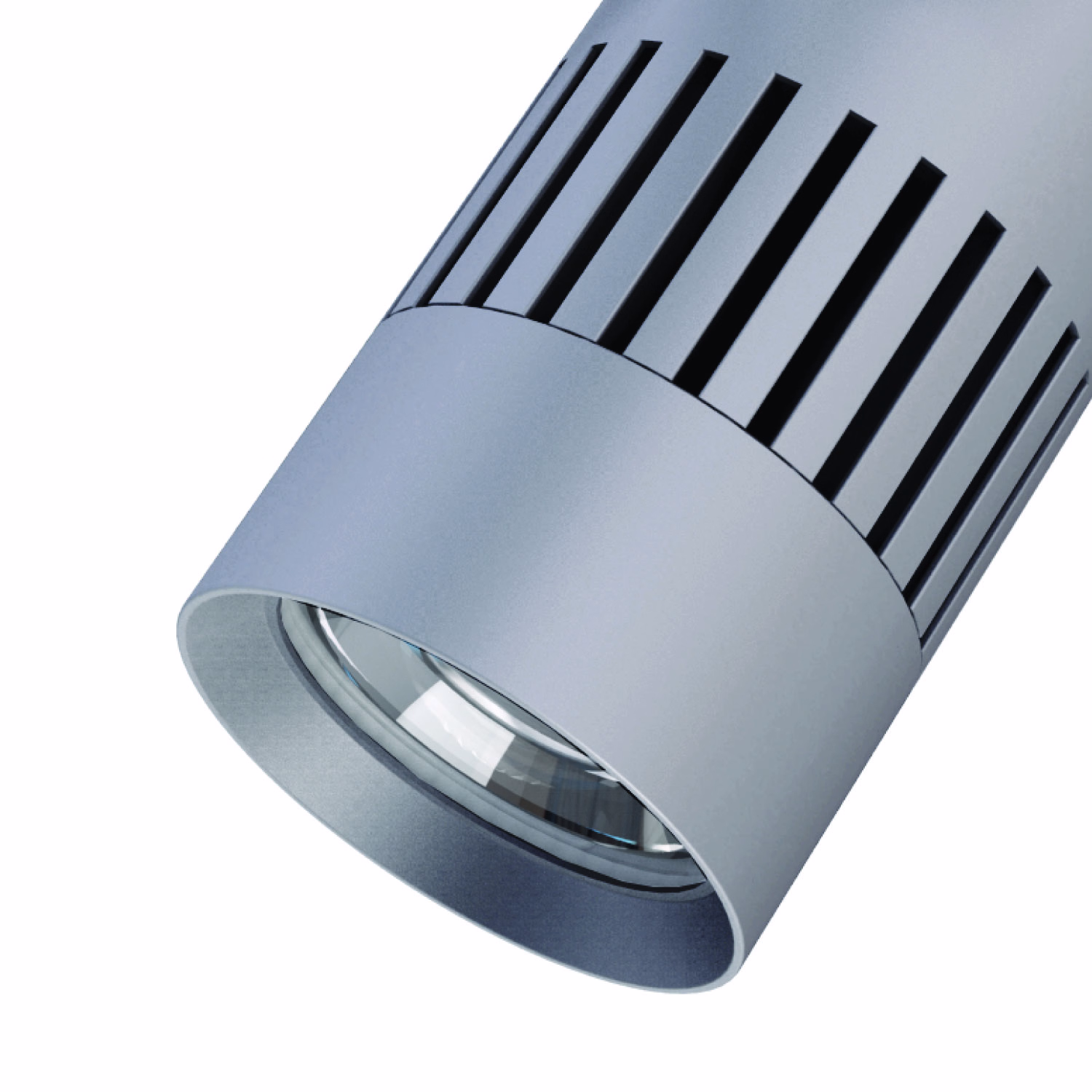

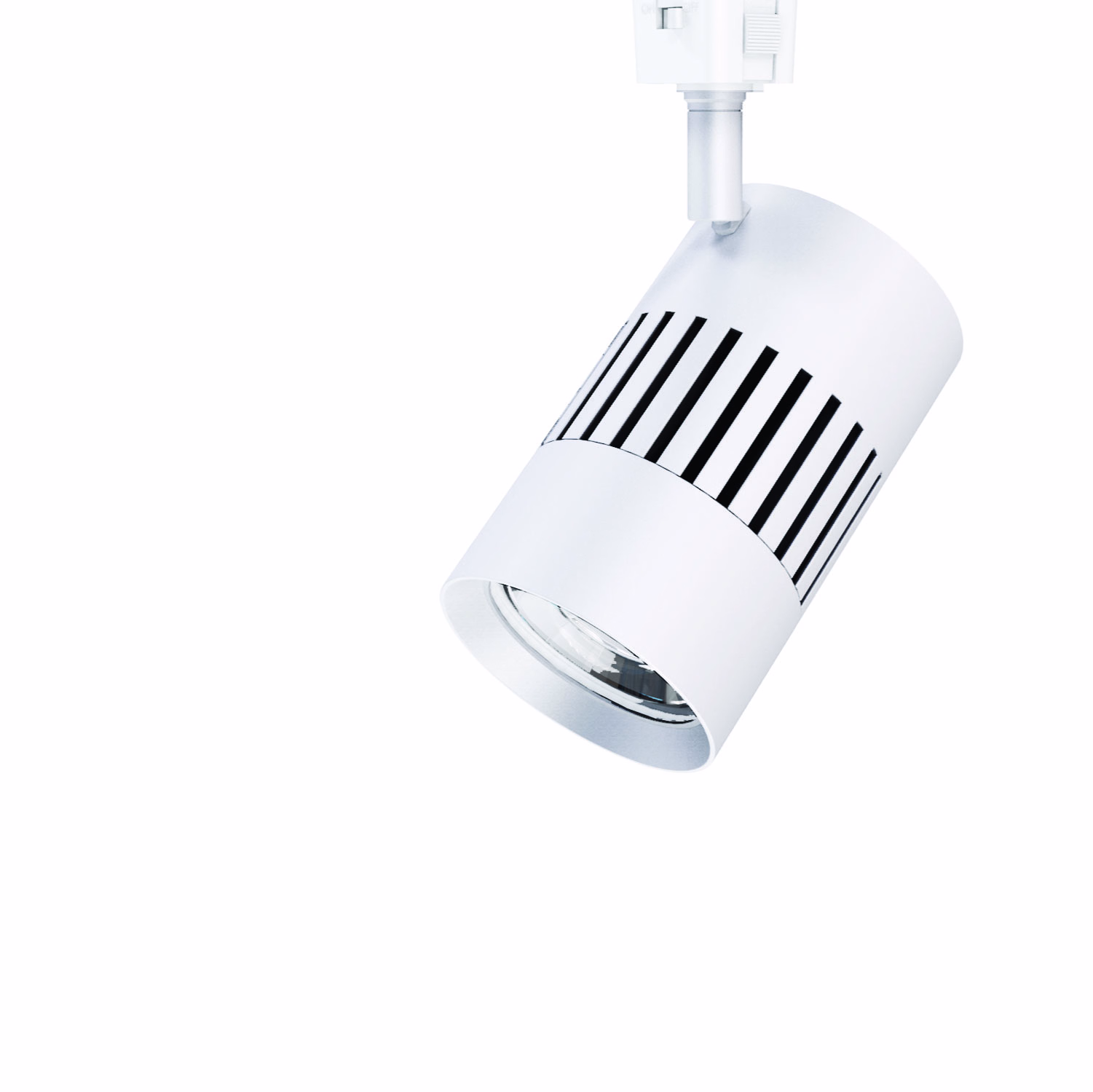

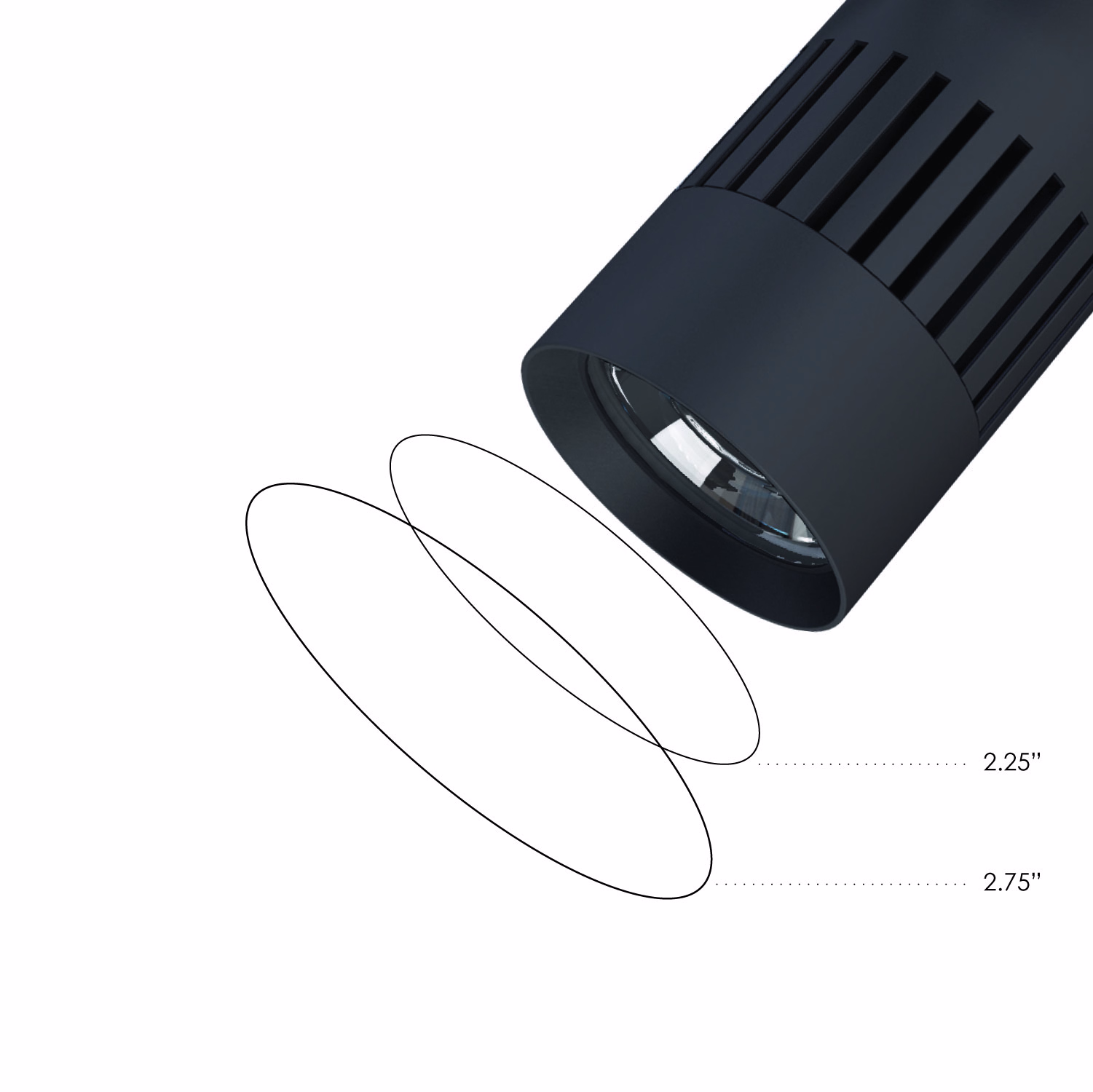

The NuSTAR series features a semi exposed heatsink to maximize energy savings and an integrated driver enclosure. This track fixture comes in two lumen packages with their corresponding geometry. It comes standard at 90 CRI, but also caters for lighting experts with a HIGH-GAI (Gamut Area Index) option for an enhanced visual effect on products.
ORDERING CODE
| FIXTURE FAMILY | LUMEN | VOLTAGE | DISTRIBUTION | CRI | CCT | ADAPTER | FINISH |
|---|---|---|---|---|---|---|---|
|
AE-TL-NS ERALUX NuSTAR Series track light |
14 13.5 watts: 1148 lumens at 90CRI 3000K |
12 120V |
NF Narrow Flood light distribution |
P Premium 90 CRI |
27 2700K CCT |
J1 Juno mounting system |
BK Black powder coat finish |
|
FL Flood light distribution |
30 3000K CCT |
G1 Global mounting system |
WH White powder coat finish |
||||
|
31 29 watts: 2407 lumens at 90CRI 3000K |
WF Wide Flood light distribution |
S* Superior HIGH-GAI * Available only at 3000K & 3500K |
35 3500K CCT |
H1 Halo mounting system |
|||
|
VF Very Wide Flood light distribution |
40 4000K CCT |
L1 Lightolier mounting system |
SV Silver powder coat finish |
