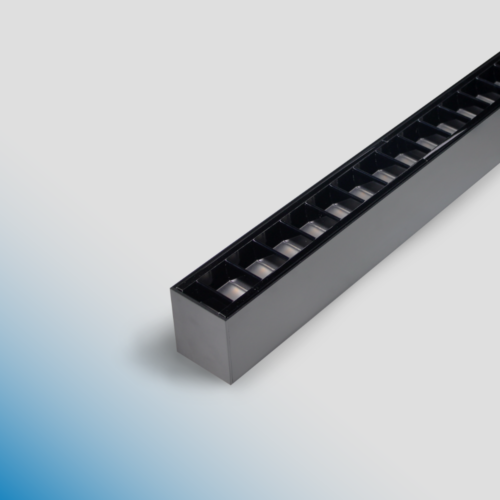

G5 Prime Shadow
OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V external dimming down to 10%
Lumens per Watt : 60 LPW at 80CRI for 6 and 8FT
54 LPW at 80CRI for 4FT
Distribution : Lambertian
DESCRIPTION
The G5 PRIME SHADOW is a high-end, black reflector, low glare architectural linear, which offers a high lumen output while maintaining a UGR level below 16. The housing can be connected seamlessly to achieve longer runs. It is available for various run lengths for suspended mounting, surface mounting, and wall mounting. Our ERALUX colour finish reduces glare using a baked enamel coating that enhances your project space.
ORDERING CODE
| FIXTURE FAMILY | VOLTAGE | LENGTH | POWER | CCT | CONTROLS | FINISH | LENS |
|---|---|---|---|---|---|---|---|
|
AE-SF-G5 ERALUX G5 linear architectural fixture |
CA 120-347Vac input voltage |
4 4 feet length |
40 40 watts: 2,160 lumens |
30/35/40 3000/3500/4000K selectable CCT |
010 0-10V external dimming down to 10% |
WH-GB ERALUX Nebula White finish |
-PS Parabolic Black Lens |
|
6 6 feet length |
50 50 watts: 3,000 lumens |
BK-GB ERALUX Atomic Black |
|||||
|
8 8 feet length |
70 70 watts: 4,200 lumens |
30/40/50 3000/4000/5000K selectable CCT |
SV-GB Silver- RAL9006 |
