LINEAR FIXTURE

F2

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per feet : 750lms/ft
Distribution : Lambertian

Features & Benefits

CCT Switchable
Adjustable CCt can be set in field from 3000K, 3500K to 4000K to fulfill various indoor application scenarios

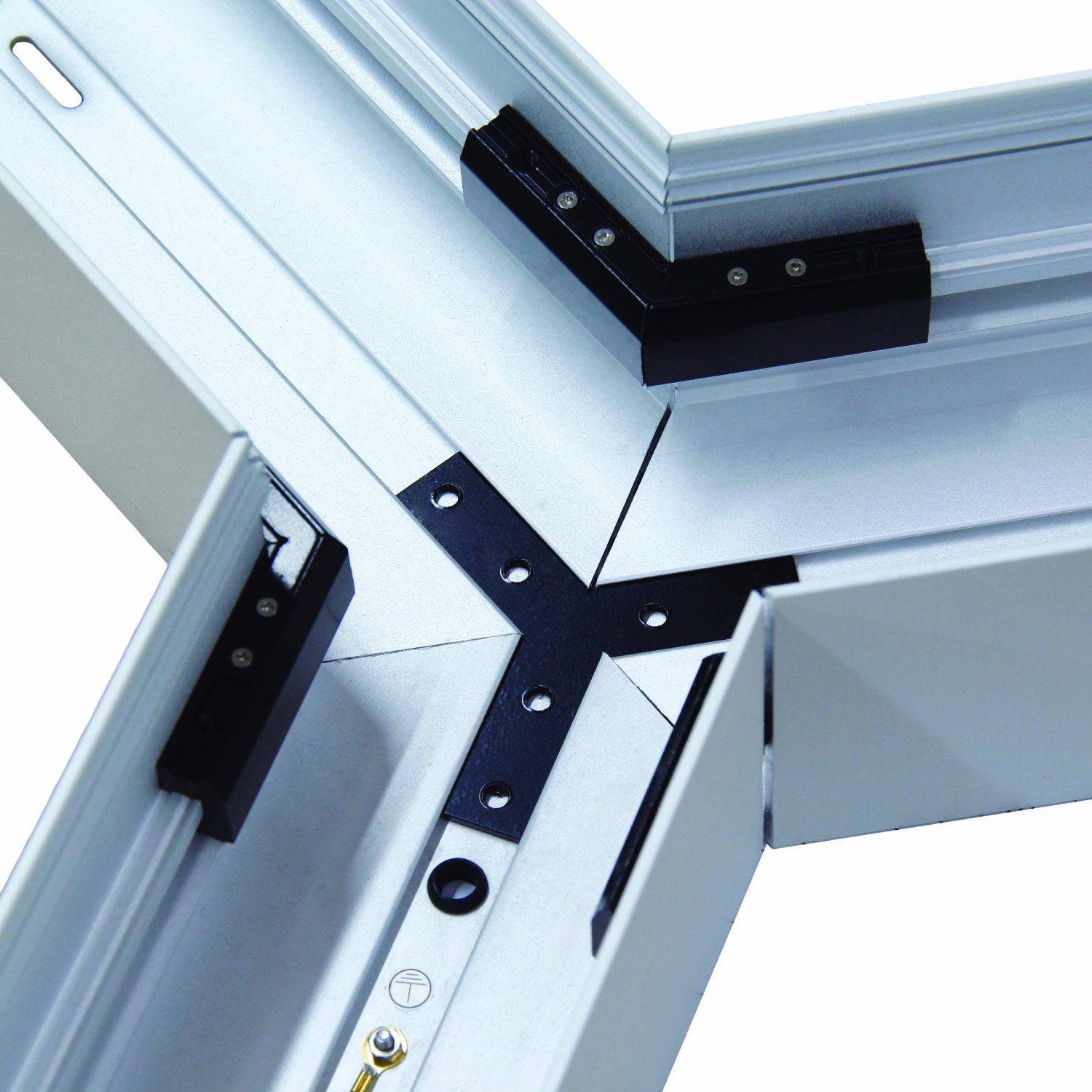

Continuous Runs
Easily connect multiple fixtures together for continuous surface mounting configurations wiht the help of our simple link kits


Customizability
The F2 is a highly customizable fixture using the L, X and T shapes offered to create elegant and sleek designs

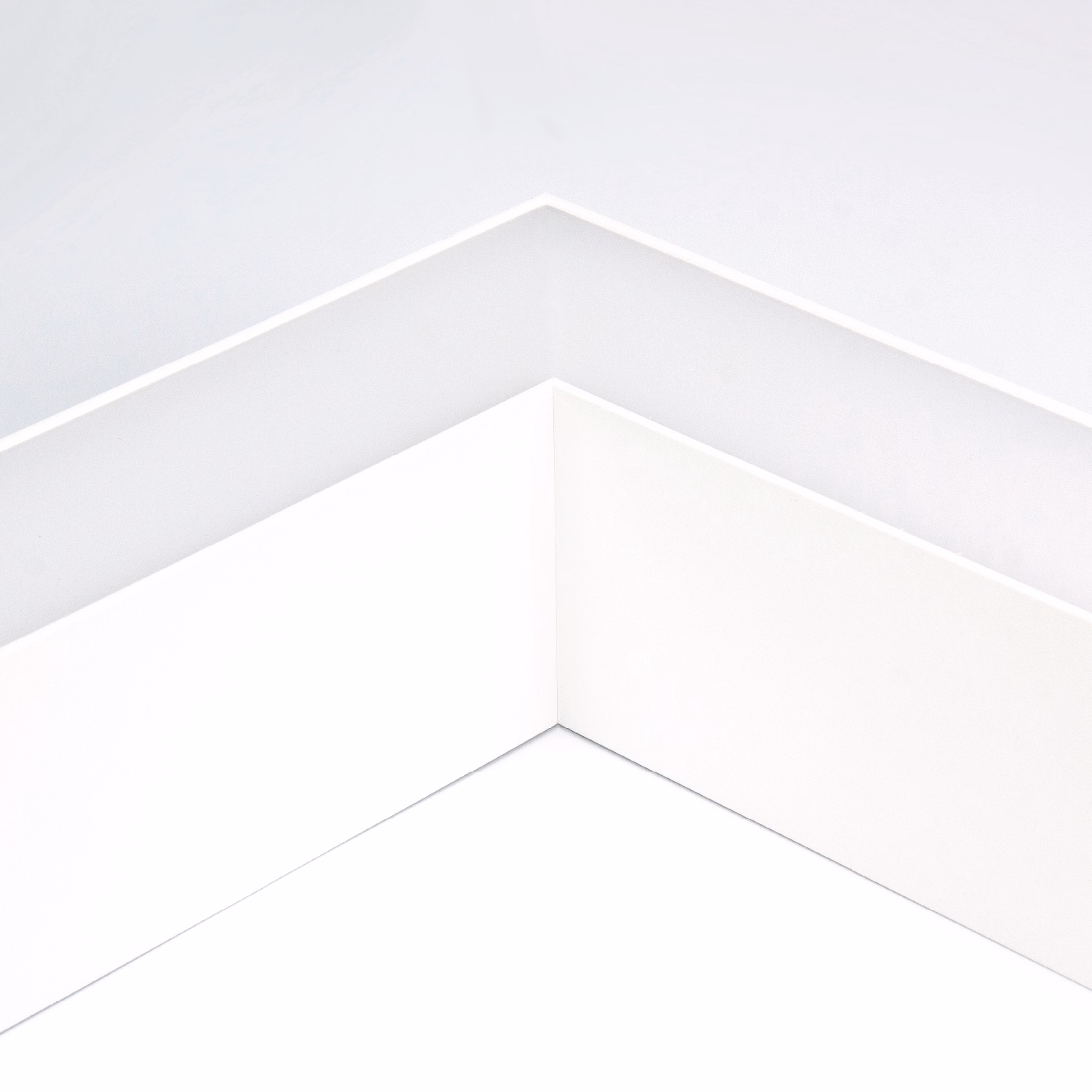

Finishes
Standard Eralux finishes in atomic black, nebula white and silver options to provide an elegant look to the fixture's housing.
Fixture housing can be cutsomized, provided the RAL number to suit any design space


Removable Light Engine
The removable light engine allows for easy of access to driver, wiring, links and CCT switch


Description

The F2 series is the surface mount linear architectural lighting fixture from ERALUX. The F2 Series offers the simplicity of installation for a fast and efficient delivery. It is further enhanced with the access to the led board, drivers and any other components from below. They are available in 4-, 6- and 8-feet lengths. The CCT switchable switch also enables a rapid change of lighting environment.

Downloads

Install Instruction F2

Download

Spec Sheet F2

Download

F2 IES Files

Download

Spec Sheet F2 UGR

Download

F2 UGR IES Files

Download

Product Configurator

Your Product Code :

AE-SF-F2-
LENGTH
POWER
CCT
LENS
FINISH

Dimensions

3ft

4ft

6ft

8ft

Output

2300lm

3000lm

4500lm

6000lm

Color and color temperature



80 CRI



3000K



3500K



4000K



CCT Switchable



Power Switchable

Color Finish

Atomic Black Finish

Nebula White Finish

Silver Finish

RAL 6032 Signal Green

RAL 6027 Light Green

RAL 6005 Moss Green

RAL 5003 Sapphire Blue

RAL 7001 Silver Grey

RAL 7033 Cement Grey

RAL 7038 Agate Grey

RAL 9001 Cream

RAL 9006 Silver

RAL 7040 Window Grey

RAL 1015 Light Ivory

RAL 2012 Salmon Orange

RAL 3031 Orient Red

RAL 8024 Beige Brown

RAL 9003 Signal White

RAL 9007 Grey Aluminum

RAL 9022 Light Pearl Grey

RAL 7011 Iron Grey/Gun Powder

RAL 9004 Signal Black

Custom Color

Optics

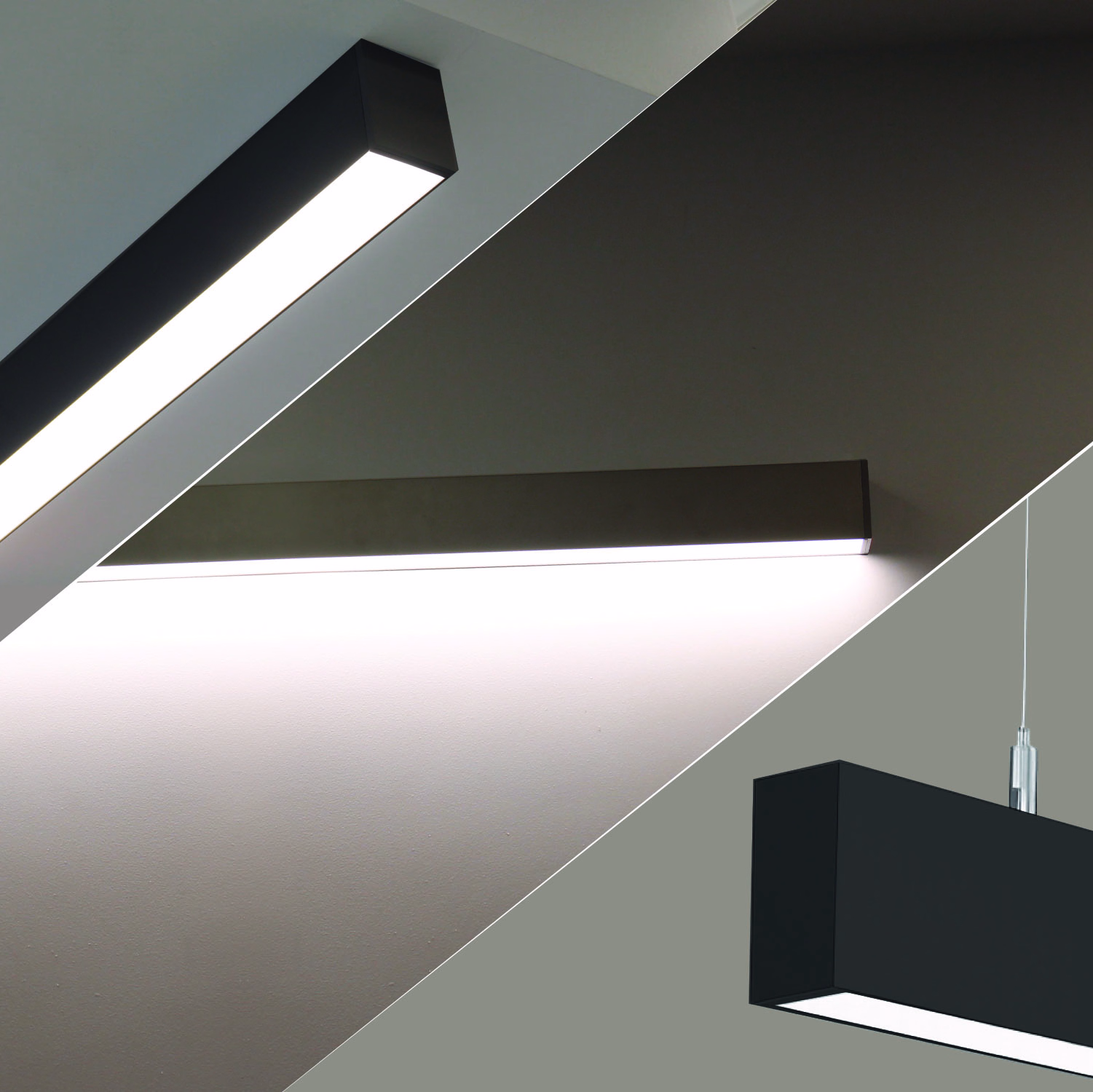

Surface Mount

Surface Mount

Suspended Downlight

L Shape

T Shape

X Shape

Control

On/Off

1-10V Dimming

Accessories

F2 Links

Lens Remover

Dissasembly Tool

Certifications

5 Year Warranty

ETL Canada & US

RoHs Certified
