OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : >0.9
Total harmonic distortion (THD) : <20%
Dimming : TRIAC & 0-10V external dimming down to 10% for 30W and down to 1% for 50W
Lumens per Watt : 70~100 LPW at 90CRI
Distribution : 24˚, 36˚, 42˚, & 60˚
Features & Benefits
Innovative Design
Aluminum die-cast heatsink
Improved design extends LED and driver lifespan
Stainless steel spring-action clip

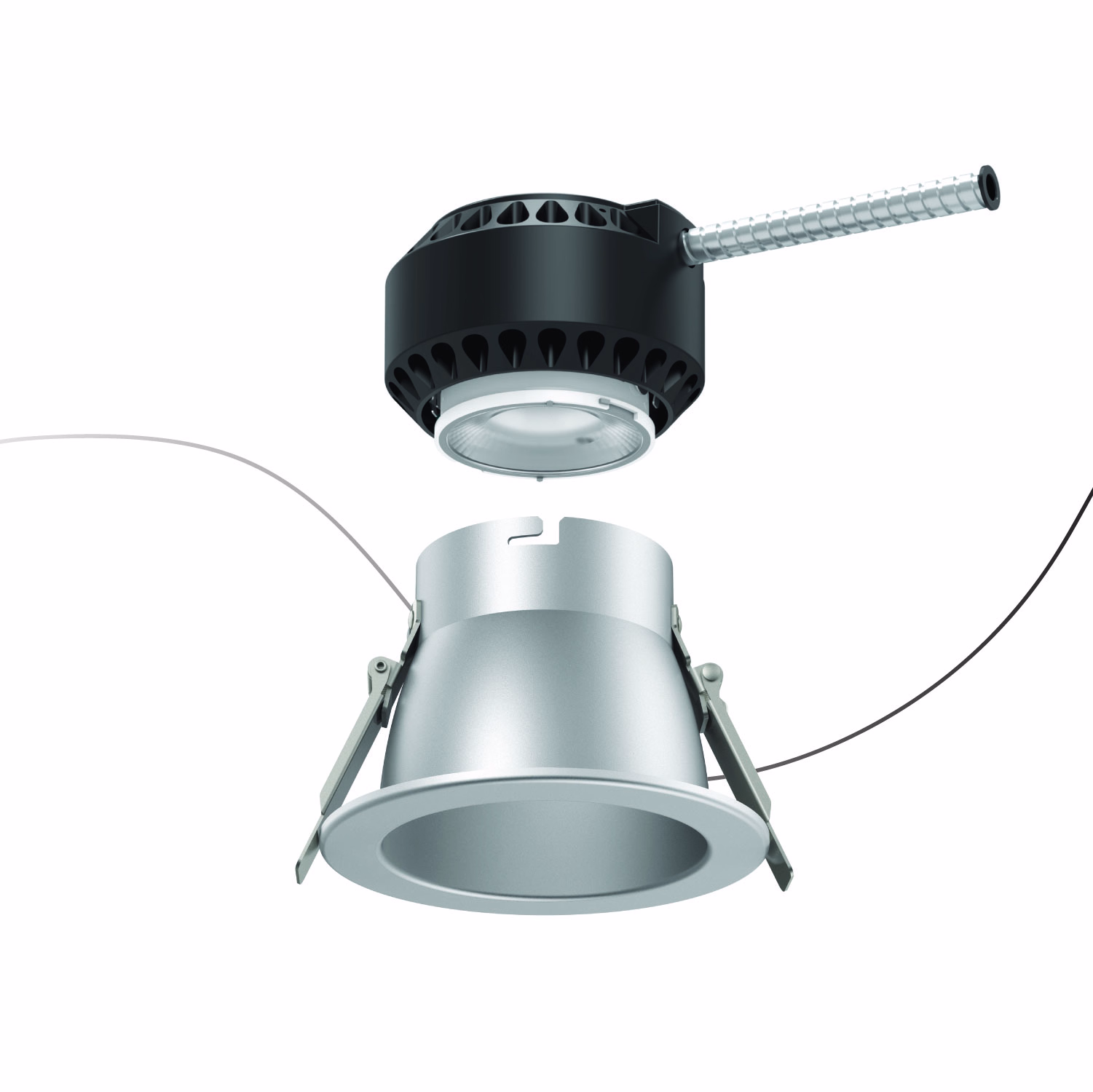

Quick connector for easy installation
Multiple Options
2 power options 18/24/30W and 30/40/50W
3 sizes 4”, 6”, and 8”

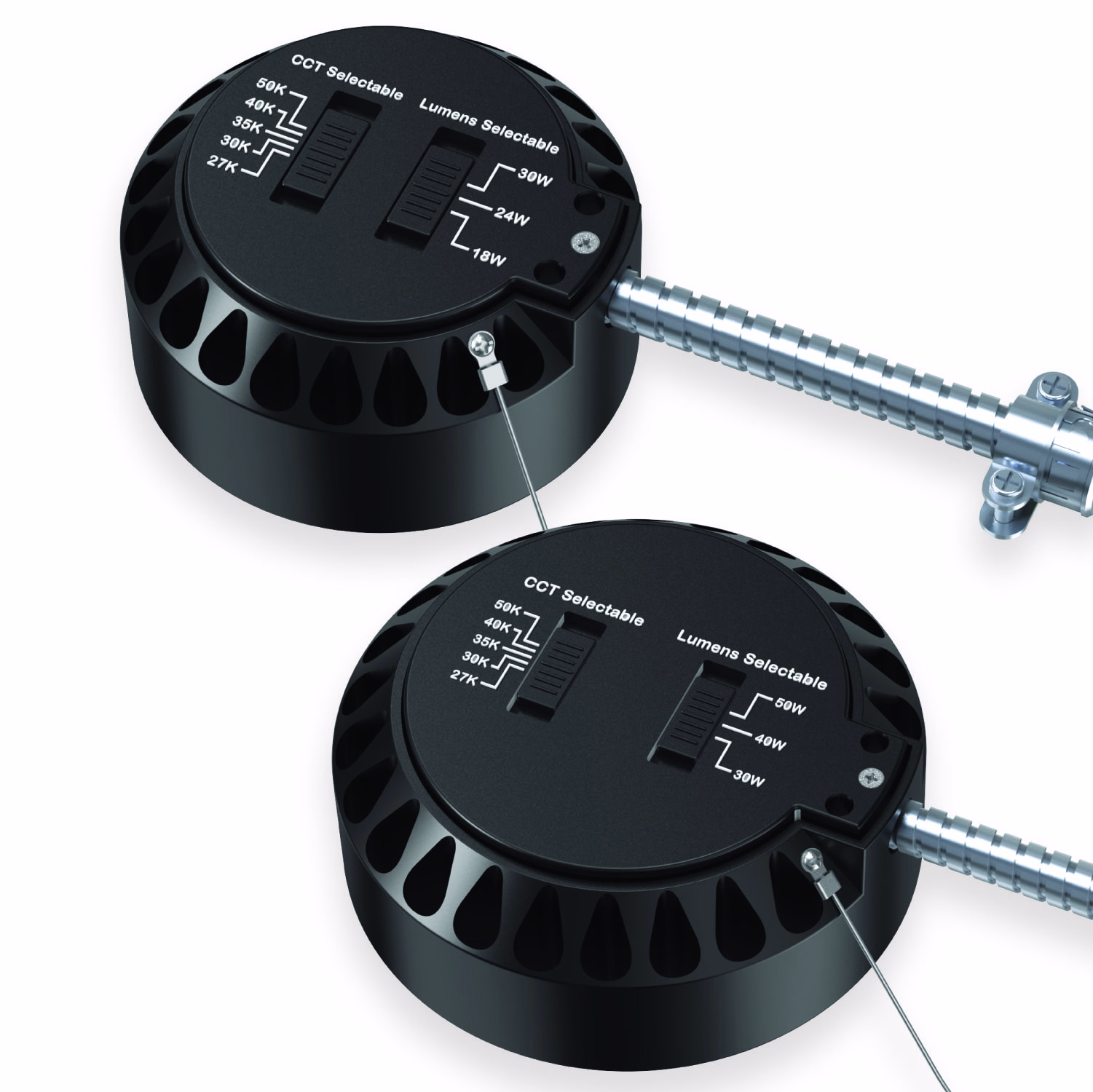

5 CCT switchable from 2700K to 5000K

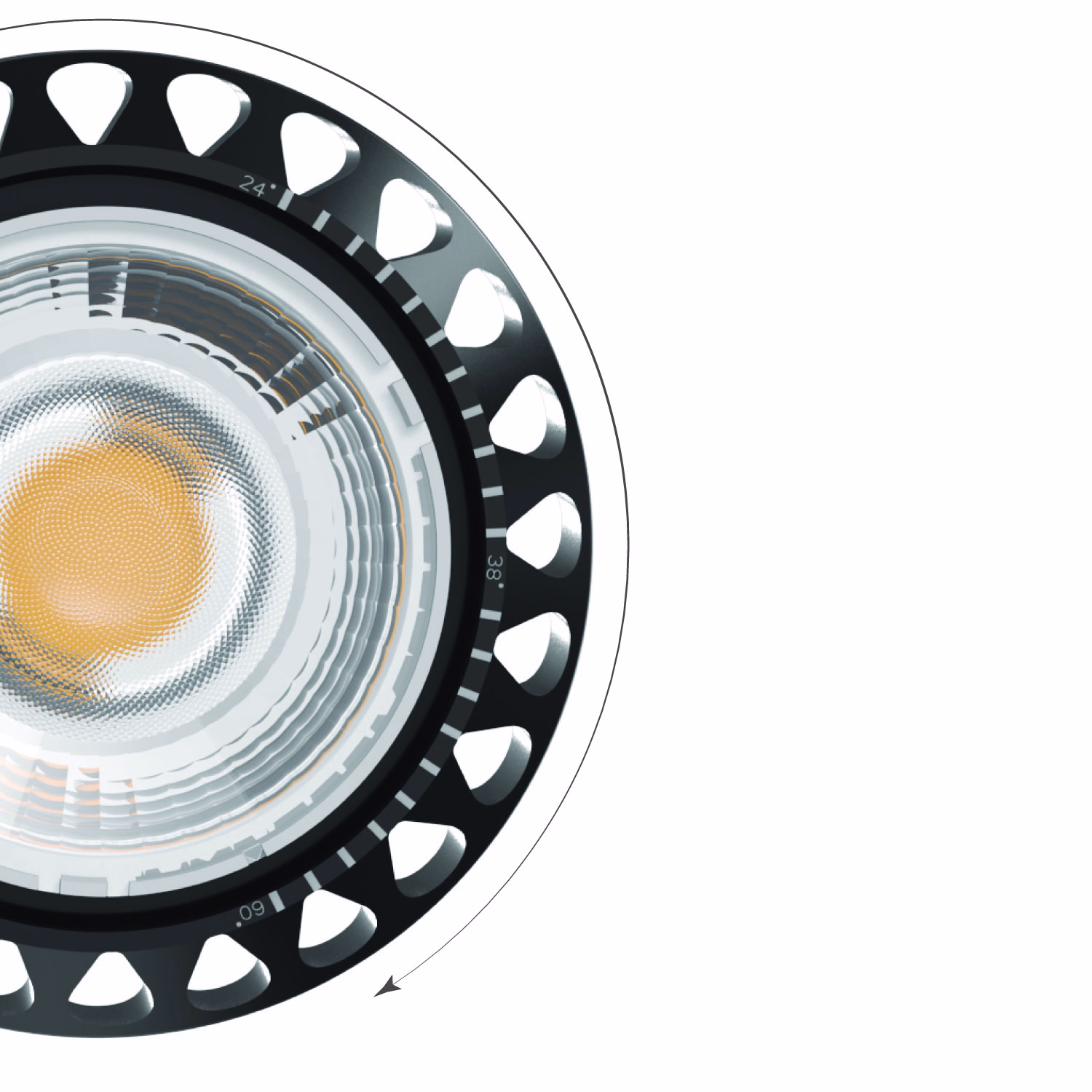

Adjustable beam angle 24˚, 36˚, & 60˚ for 30W and 36˚, 42˚, & 65˚ for 50W
3 reflector finishes black, white, and matte silver
Mountings Available
Durable stainless steel spring action housing clips for retrofit installations or purchase with the new construction frame kit for new constructions.
Accessories
New construction frame kit
8W Emergency back up battery
Compatible with Aria Plus
Description

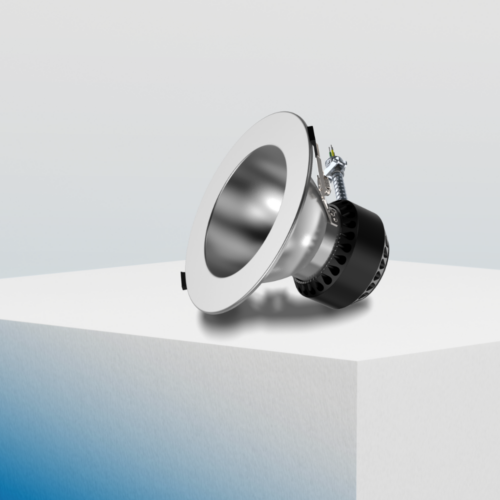

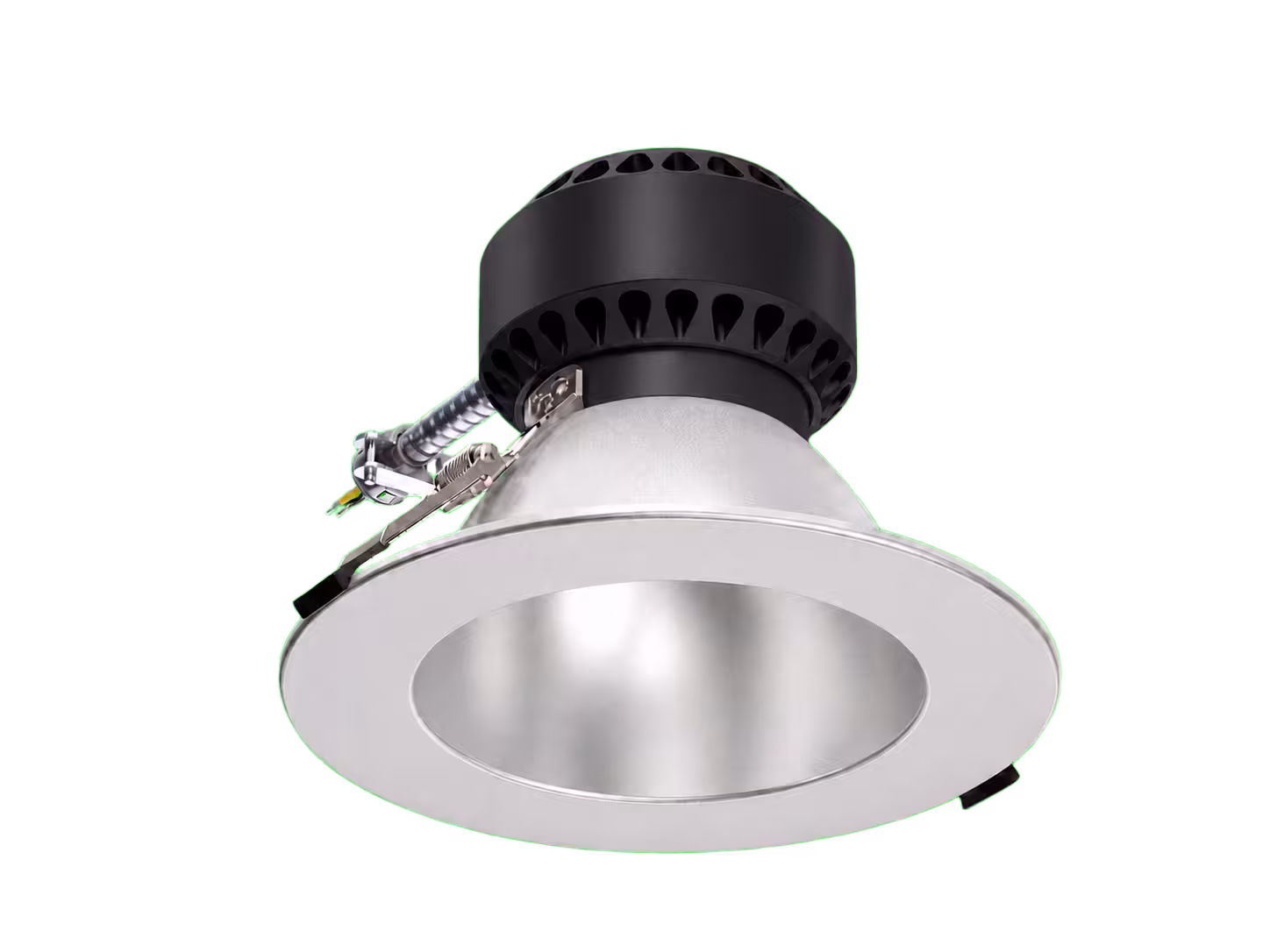

The GALAXY is a recessed downlight offers a range of optical options. Variety of reflectors and trim finishes available making it an attractive addition. It comes in a round shape. It is available in multiple power switchable options 18/24/30W for 4” & 6” or 30/40/50W for 6” and 8”, multiple CCTs, and adjustable beam angles with low UGR 16, 19.
Downloads
Product Configurator
Your Product Code :
Dimensions
4 inches
6 inches
8 inches
Output
1800/2400/2700lm
3000/4000/4550lm
Color and color temperature
90 CRI
2700K
3000K
3500K
4000K
5000K
CCT Switchable

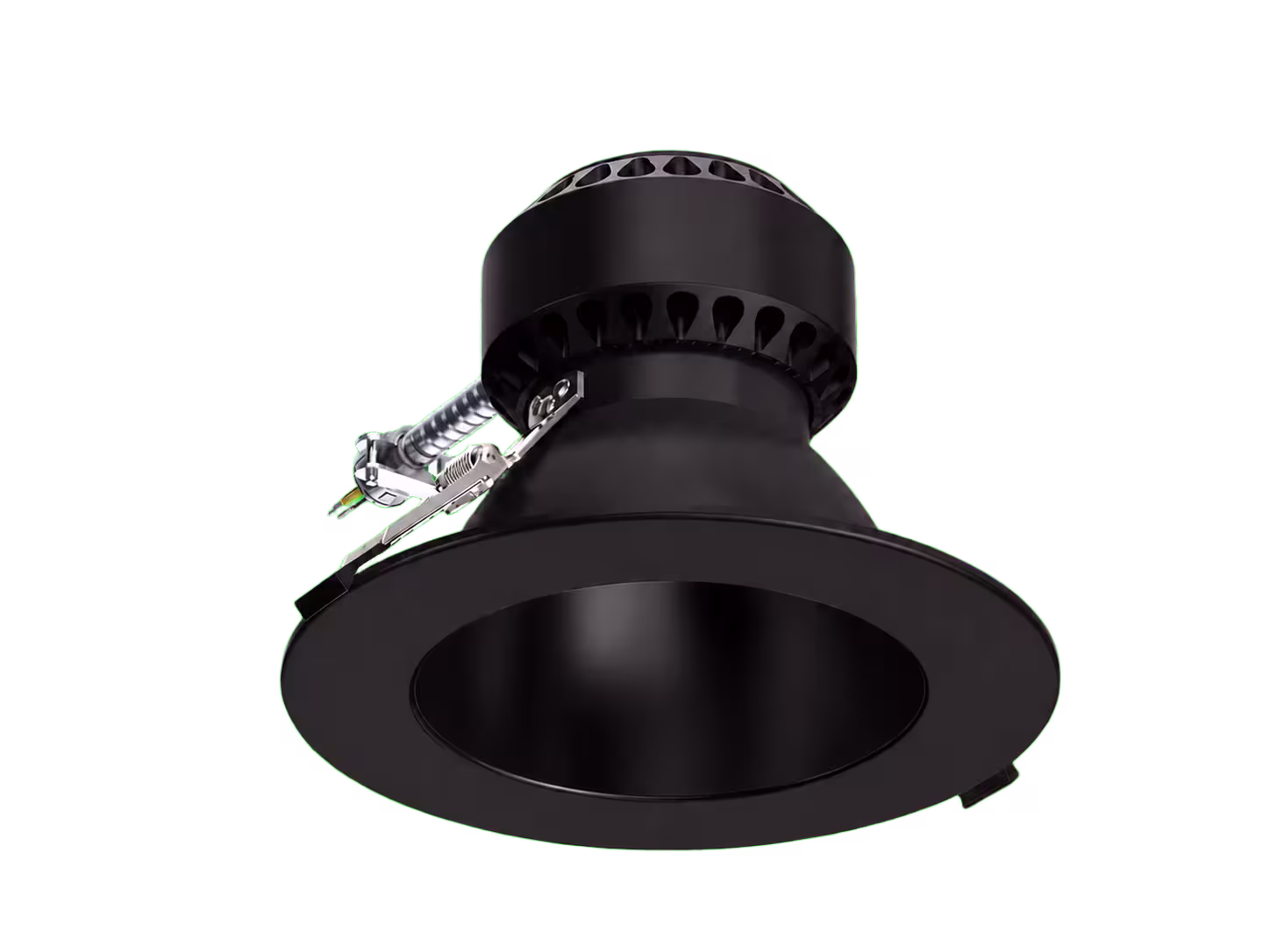

Color Finish
Matte White
Matte Black
Matte Silver
Optics
24 Degrees
36 Degrees
42 Degrees
60 Degrees
Control
On/Off
0-10V Dimming
Accessories
Emergency Backup Battery
New Construction Frame Kit
Certifications
5 Year Warranty
ETL Certified
Energy Star Certified
RoHs Certified
Wet Rated
Surge Protector
