OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per Watt : 130 LPW at 80CRI
Distribution : Lambertian
Features & Benefits
Mounting Options
JSQ Linear has several mounting options making it applicable for any scenario. It can be surface or suspended , stand alone or continuous runs.
Efficient Design
The integrated lens and modular metal plate make installation a breeze. The slim, lightweight design is ideal for shipping and installation over long distances.
High Efficiency
Performance 130 lumens per watt gives great energy savings for your project space.
CCT and Power Selectable
3 lengths (2/4/8ft), each comes with 3 CCT options (3500/4000/5000K) and 3 different power settings for each length that could fulfill various project requirements.
Description

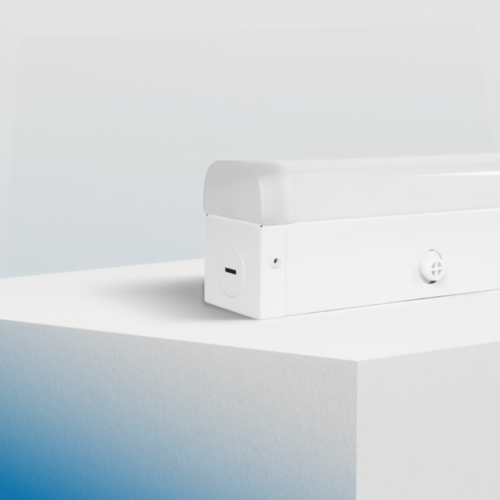

The JSQ series is the economical and yet discrete replacement for linear fixtures. They are available in 2-,4- and 8-feet lengths and are designed to meet installation needs for surface mounted requirements. Furthermore, this luminaire offers a performance above 130 LPW while showing great versatility in operating voltage from 120 to 347V. Luminous part is integrated and fastened to fixture body by snap-locks which makes it easy to open fixtures. Field-adjustable light output and CCT options.
Downloads
Product Configurator
Your Product Code :
Dimensions
2ft
4ft
8ft
Output
1950lm
2600lm
3250lm
2600lm
3900lm
5200lm
6500lm
7800lm
9100lm
Color and color temperature
80 CRI
3500K
4000K
5000K
CCT Switchable
Power Switchable
Color Finish
Atomic White Finish
Optics
Suspended Downlight
Surface Mount
Control
On/Off
0-10V Dimming
Motion Sensor
Accessories
Surface Mount Kit for Junction Box
Certifications
5 Years Warranty
UL Certified
