Linear Fixture

VADOR

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V external dimming down to 10%
Lumens per Watt : ≥130 LPW at 80CRI 4000K
Distribution : Lambertian

Features & Benefits

Tri-Proof Structure
IK10 impact resistant, IP66 rated suitable for wet locations. All polycarbonate ensures strength of fixture structure while providing elegant look and finish.


Simple Design
Simple mounting bracket accessory included with fixture allows for suspended mounting or surface mounting.


Closing Clasps
Stainless steel, easy-to-use housing clips ensure waterproofing and LED fixture function.


Strong Components
Metal fixed terminals for secure installation and fixture rigidity.


Description

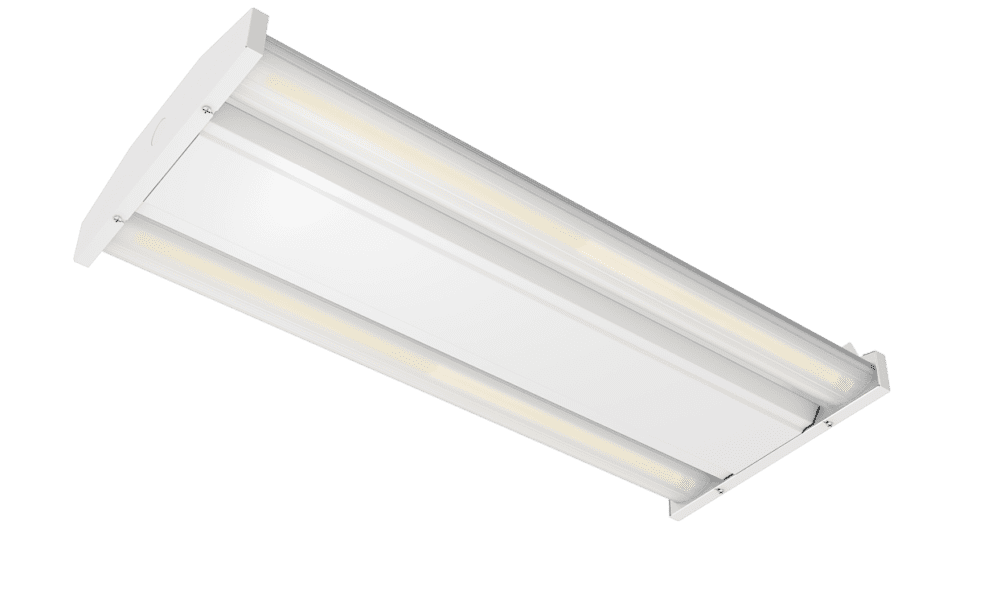

The Vador Series is an energy efficient and economical LED linear fixture designed for harsh environment and industrial suited applications where dust and water resistance are necessary. This fixture is designed with the highest quality polycarbonate casing that features a unique continuous poured gasket that seals the channel ensuring seal integrity.

Downloads

Install Instruction VADOR

Download

Spec Sheet VADOR

Download

VADOR IES Files

Download

Product Configurator

Your Product Code :

AE-SF-VD
INPUT VOLTAGE
LENGTH & POWER
CCT
LENS
CONTROLS

Dimensions

4ft

Output

5200lm

7020lm

Color and color temperature



80 CRI



3500K



4000K



5000K

Optics

Suspended Downlight

Surface Mount

Control

On/Off

0-10V Dimming

Emergency Backup Battery

Certifications

5 Year Warranty

ETL Canada & US

RoHs Certified

IP66

IK10
