Linear Fixture

VADOR EVOLVE

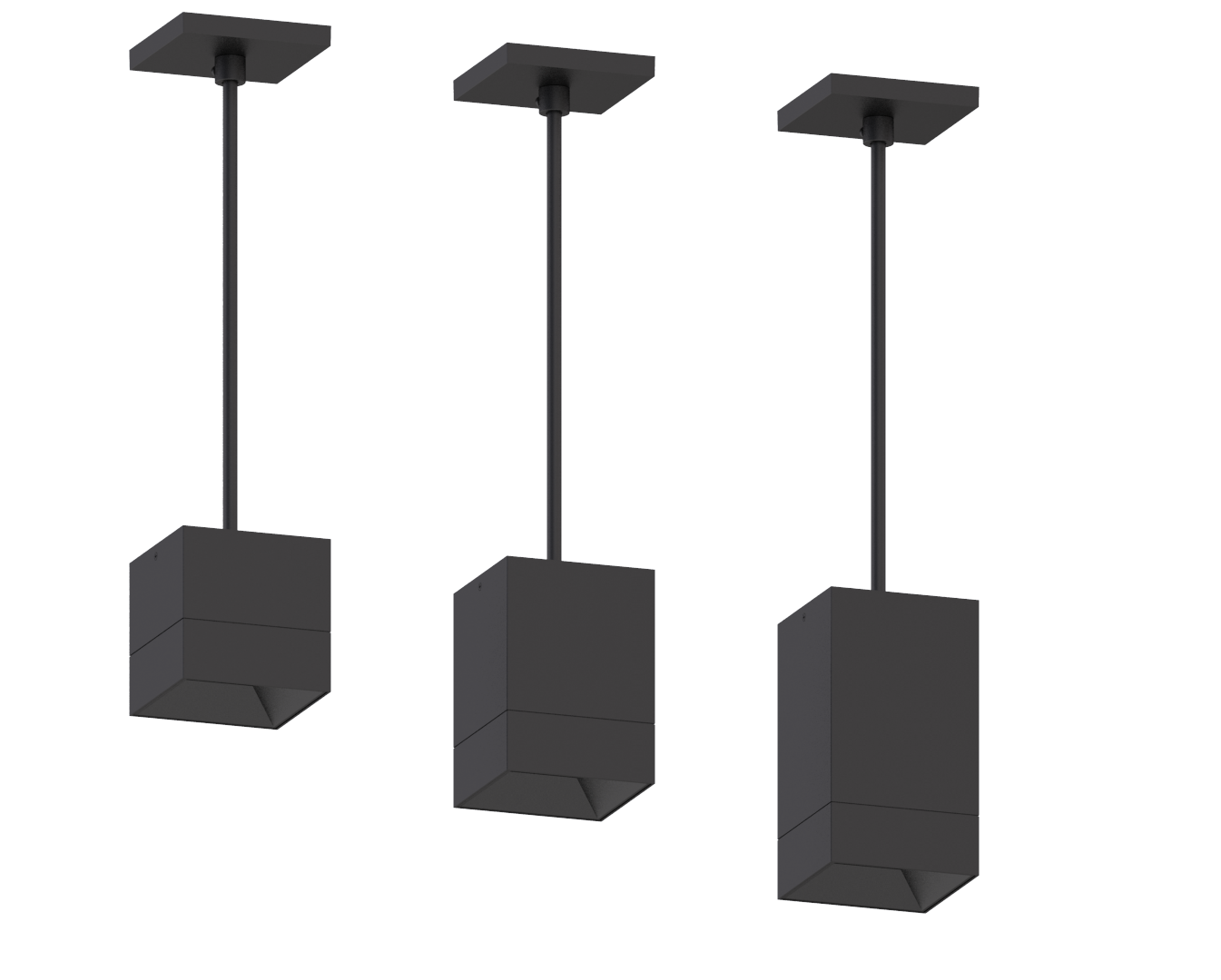

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per Watt : 130 LPW at 80CRI
Beam Angle: 120˚

Features & Benefits

UL94-5VA Standard Housing
With the 5VA standard (highest flame rating in UL94 standard, proof of self-extinguishes materials) PC housing, wires can be connected directly inside of the housing without internal junction box or silicone conduit.


Easy Assembly and Maintenance
Integrated lens and module plate make it easy to open fixtures for assembly.


Field Adjustable Power and CCT
IP66 rated suitable for wet locations. All polycarbonate ensures strength of fixture structure while providing elegant look and finish.


Simple Design
Simple mounting bracket accessory included with fixture allows for surface mounting.


Closing Clasps
Stainless steel, easy-to-use housing clips ensure waterproofing and LED fixture function.


Description

The VADOR EVOLVE Series is an energy-efficient and economical LED linear fixture designed for harsh environment and industrial suited applications where dust and water resistance are necessary. This fixture is configured with adjustable power and CCT switches that can cover most of your project needs. Integrated lens and module plate that makes the installation process simply a breeze.

Downloads

Install Instruction VADOR EVOLVE

Download

Spec Sheet VADOR EVOLVE

Download

VADOR EVOLVE IES Files

Download

Product Configurator

Your Product Code :

AE-SF-VD
INPUT VOLTAGE
SIZE
POWER
CONTROLS
CCT & CRI
SENSOR

Dimensions

4ft

8ft

Output

4940lm

5980lm

7020lm

9100lm

10275lm

12060lm

Color and color temperature



80 CRI



3500K



4000K



5000K



CCT Switchable



Power Switchable

Optics

Suspended Downlight

Surface Mount

Control

On/Off

0-10V Dimming

Motion Sensor

Emergency Backup Battery

Certifications

5 Year Warranty

ETL Canada & US

RoHs Certified

IP66

DLC Listed
