Maven Elite
OPERATIONS & ELECTRICAL
Input voltage : 120V
Power factor : >0.9
Total harmonic distortion (THD) : <20%
Dimming : Triac dimming, 0-10V dimming
Lumens per Watt : 92-99 LPW at 90CRI
Distribution : Spot, Narrow flood, Flood, Wide Flood
DESCRIPTION

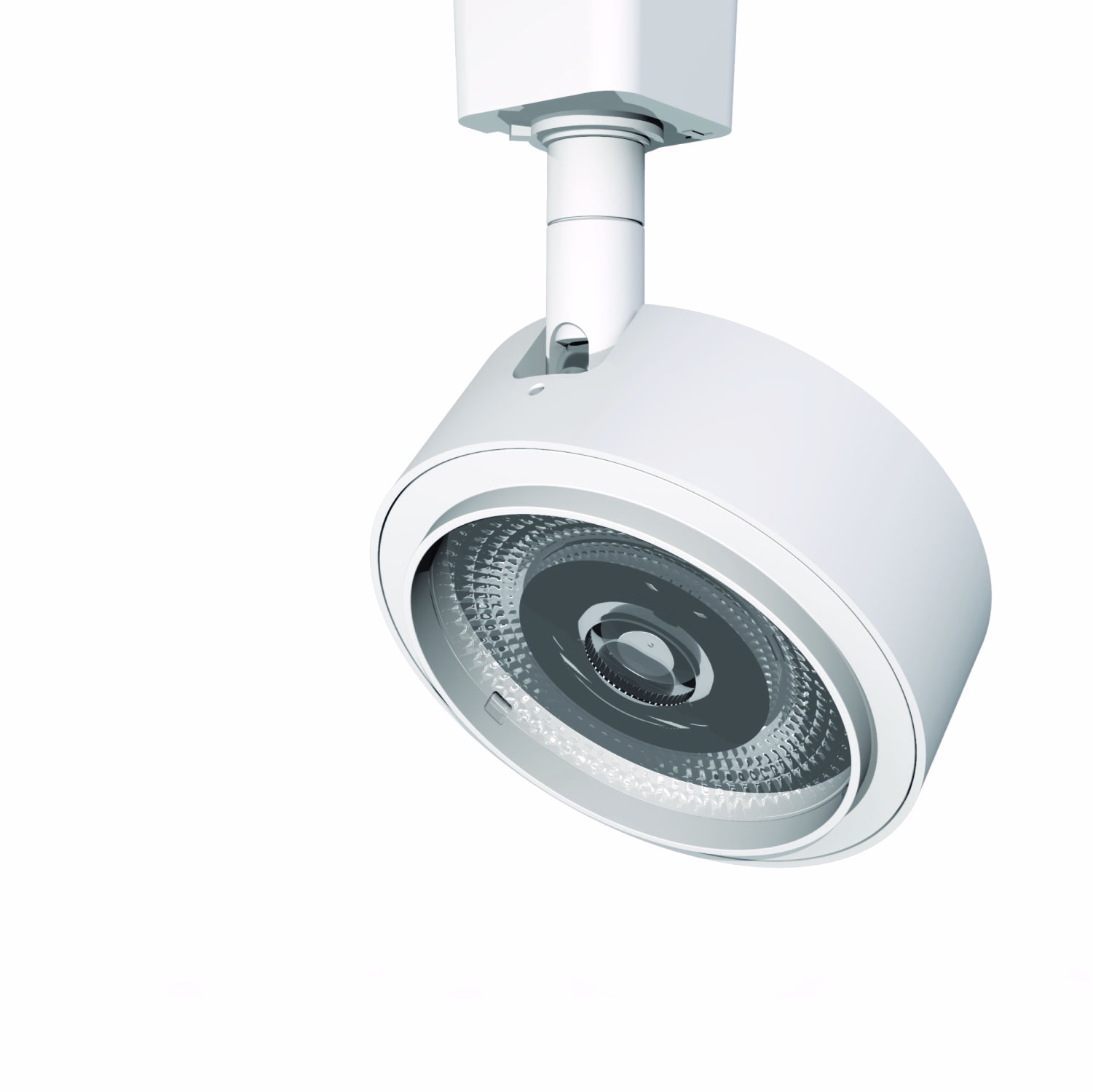

The Maven Elite is the most advanced among the Maven series, with the driver separated from the luminaire. A perfect combination with the other Maven series’ tracklights, Maven Elite is the powerful choice. Available in various CCT, and adapter options, Maven Elite can mount to pre-existing tracks, or paired with other ERALUX accessories to build a new track system. MAVEN provides an even distribution at various beam angles. The LED head rotates for a flexible lock wherever the beam is required.
ORDERING CODE
| FIXTURE FAMILY | VOLTAGE | DISTRIBUTION | CRI | CCT | ADAPTER | FINISH |
|---|---|---|---|---|---|---|
|
AE-TL-MVE ERALUX Maven ELITE track light |
-12 120V |
SP Spotlight distribution: 10° CBCP: 15000 @ 90 CRI |
P Premium 90 CRI |
30 3000K CCT 14 watts: 1288 lumens |
J1 Juno mounting system |
BK Black powder coat finish |
|
NF Narrow flood light distribution: 20° CBCP: 7650 @ 90 CRI |
G1 Global mounting system |
WH White powder coat finish |
||||
|
FL Flood light distribution 35° CBCP: 3420@ 90 CRI |
40 4000K CCT 14 watts: 1386 lumens |
H1 Halo mounting system |
||||
|
WF Wide Flood light distribution 60° CBCP: 1290 @ 90 CRI |
L1 Lightolier mounting system |
SV Silver powder coat finish |
DIMMER
| Manufacturer | Manufacturer Part Number |
|---|---|
| Lutron | S-603PG |
| DVCL-153P | |
| DV-600P | |
| TGCL-153P | |
| S-600P | |
| DVELV-303P | |
| SELV-300P | |
| TG-600P | |
| LG-600P | |
| CT-103P | |
| MAELV-600 | |
| FAELV-500 | |
| Leviton | IPI06-1LZ |
| 6631-2 | |
| VPE06 | |
| 6683-IW | |
| 6161 | |
| 6633-P | |
| IPE04 | |
| Cooper | DLC03P |
| SLC03P | |
| DAL06P | |
| Lightolier | ZP260QEW |
