Terra
OPERATIONS & ELECTRICAL
Input voltage : 120-277V
Power factor : >0.9
Total harmonic distortion (THD) : <20%
Dimming : Tri-mode dimming: Triac, ELV, 0-10V
Lumens per Watt : 54-58 LPW at 90CRI

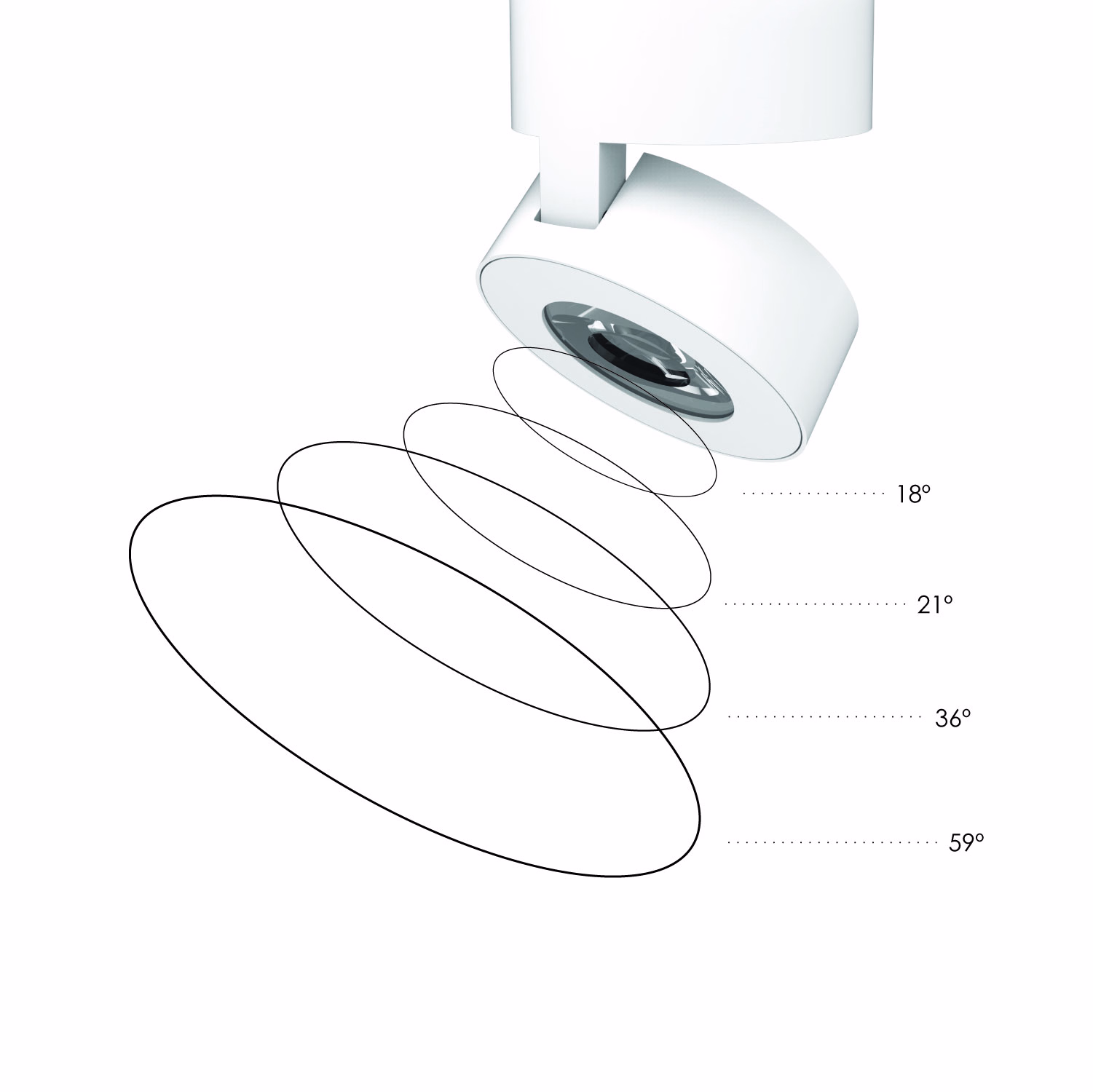

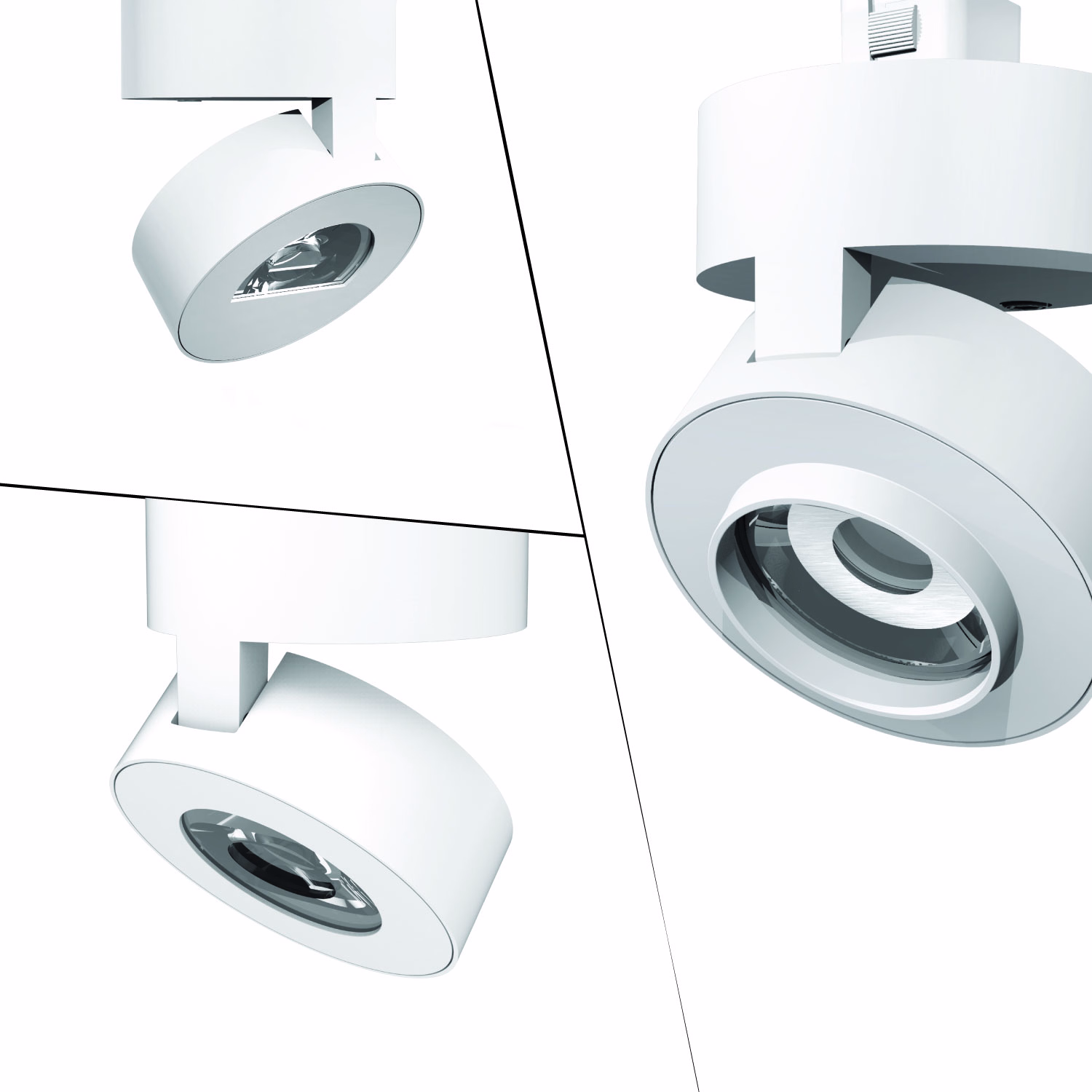

Distribution : Double Asymmetrical, 25°
DESCRIPTION

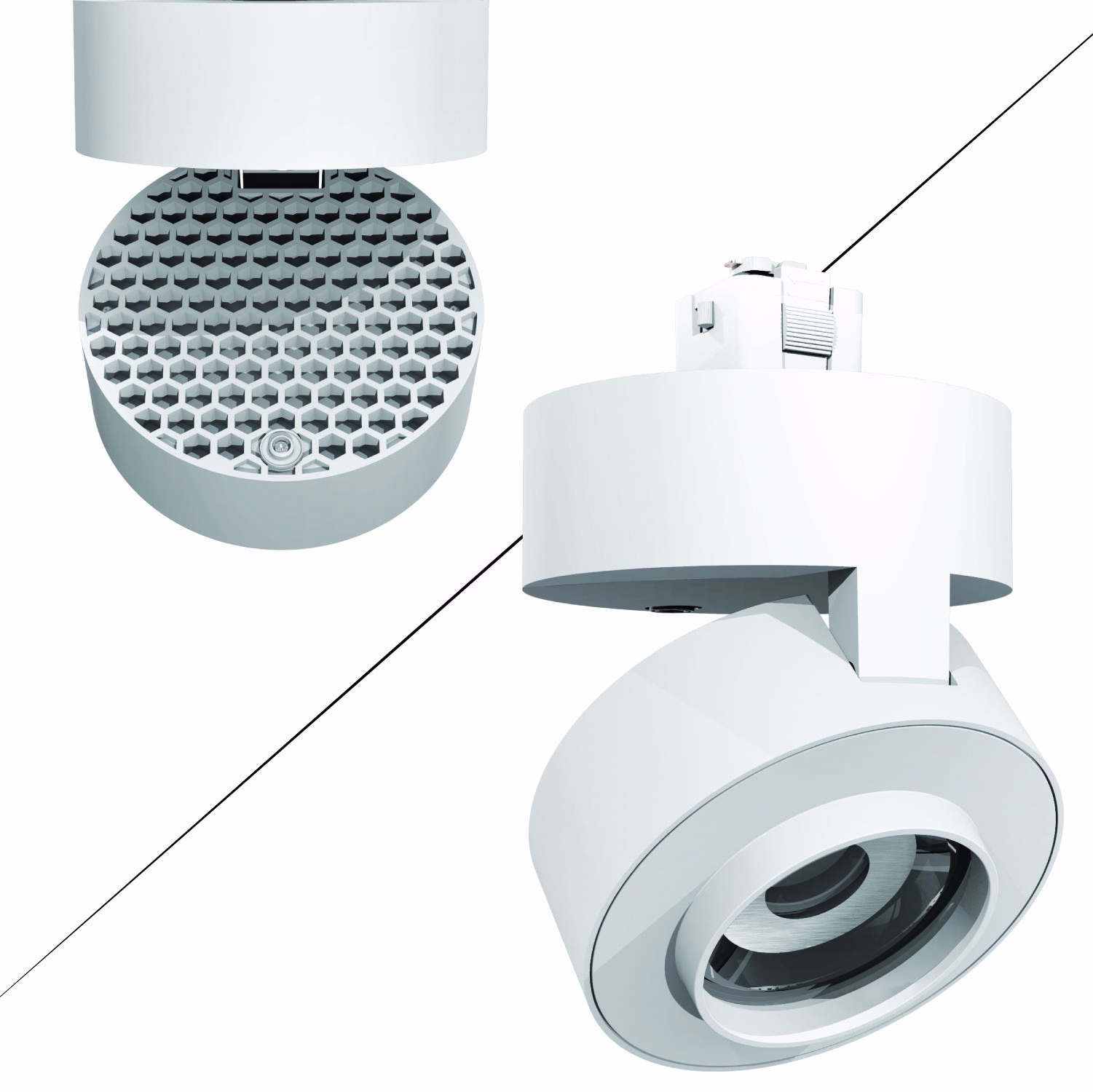

Equipped with a power supply, the TERRA series is capable of more than other track lights. TERRA comes with a programmable driver, smart control capabilities, and is dimmer compatible. The TERRA is made for the track system with a variety of adapter options, TERRA can adapt to your pre-existing track system, or with new ERALUX accessories. Like the TERRA-M, the fixture will offer a double asymmetric beam of light. The LED head can lock into place at various angles, you can choose a straight downlight or a perpendicular light to the wall. The TERRA wall wash track light is a modern and powerful fixture that offers flexibility for your next project.
ORDERING CODE
| FIXTURE FAMILY | VOLTAGE | DISTRIBUTION | CRI | CCT | ADAPTER | FINISH |
|---|---|---|---|---|---|---|
|
AE-TL-TR ERALUX TERRA Series track light |
-UV 120-277V input voltage |
-DA 30 watts: 1620 lumens at 3000K Double Asymmetrical, 25° |
P Premium 90 CRI |
27 2700K CCT |
J1 Juno mounting system |
BK Black powder coat finish |
|
30 3000K CCT |
G1 Global mounting system |
WH White powder coat finish |
||||
|
35 3500K CCT |
H1 Halo mounting system |
SV Silver powder coat finish |
||||
|
40 4000K CCT |
L1 Lightolier mounting system |
DIMMER
| Manufacturer | Manufacturer Part Number |
|---|---|
| Lutron | S-603PG |
| DVCL-153P | |
| DVLV-600P | |
| TGCL-153P | |
| S-600P | |
| DVELV-303P | |
| SELV-300P | |
| TG-600P | |
| LG-600P | |
| CT-103P | |
| MAELV-600 | |
| FAELV-500 | |
| Leviton | IPI06-1LZ |
| 6631-2 | |
| VPE06 | |
| 6683-IW | |
| 6161 | |
| 6633-P | |
| IPE04 | |
| Cooper | DLC03P |
| SLC03P | |
| DAL06P | |
| Lightolier | ZP260QEW |
