TRACK FIXTURE

IRIS

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : TRIAC DIMMING
Lumens per Watt : 81~93 LPW at 90CRI

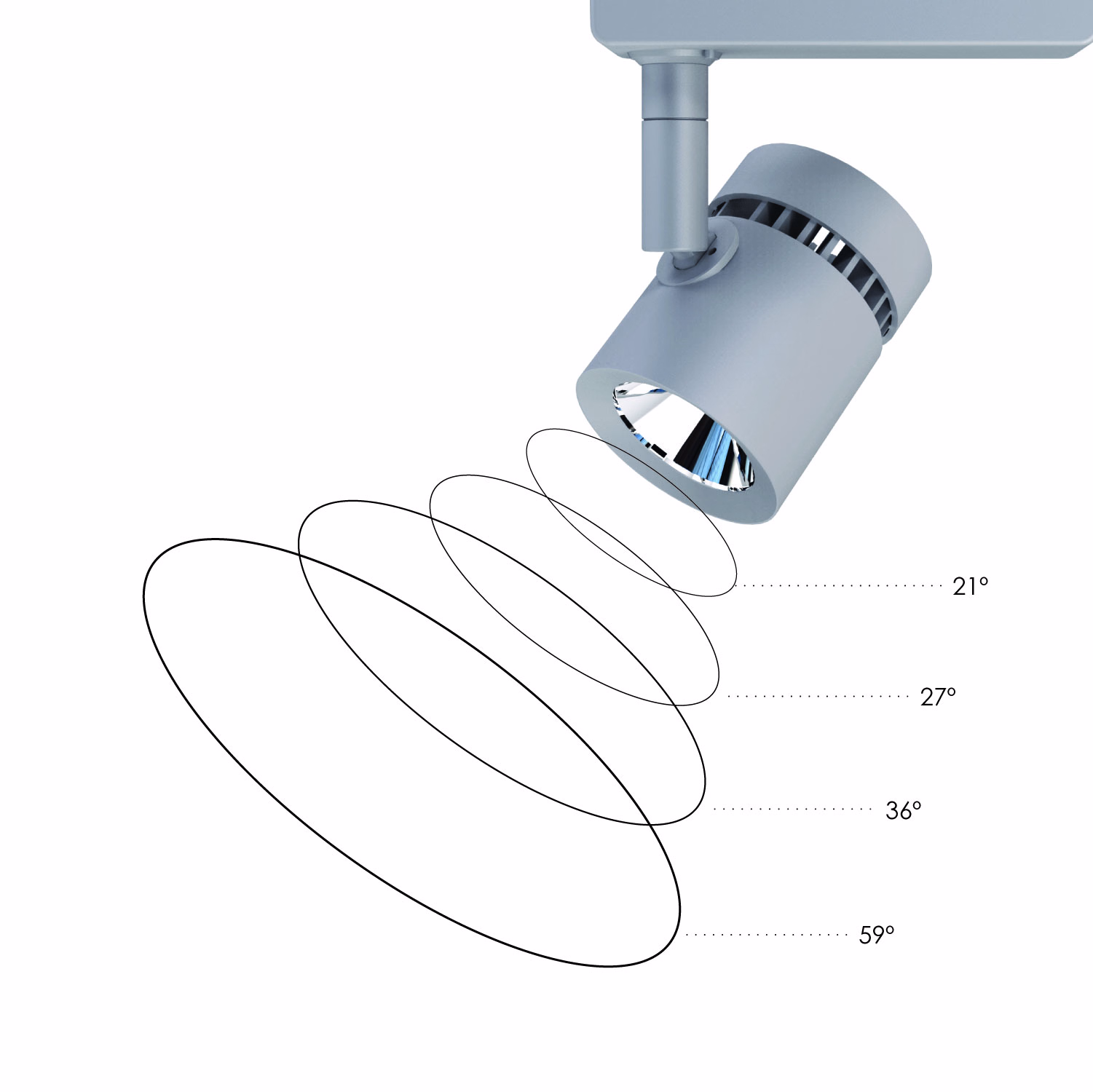

Distribution : Narrow flood, Flood, Wide Flood, Very Wide Flood

Features & Benefits

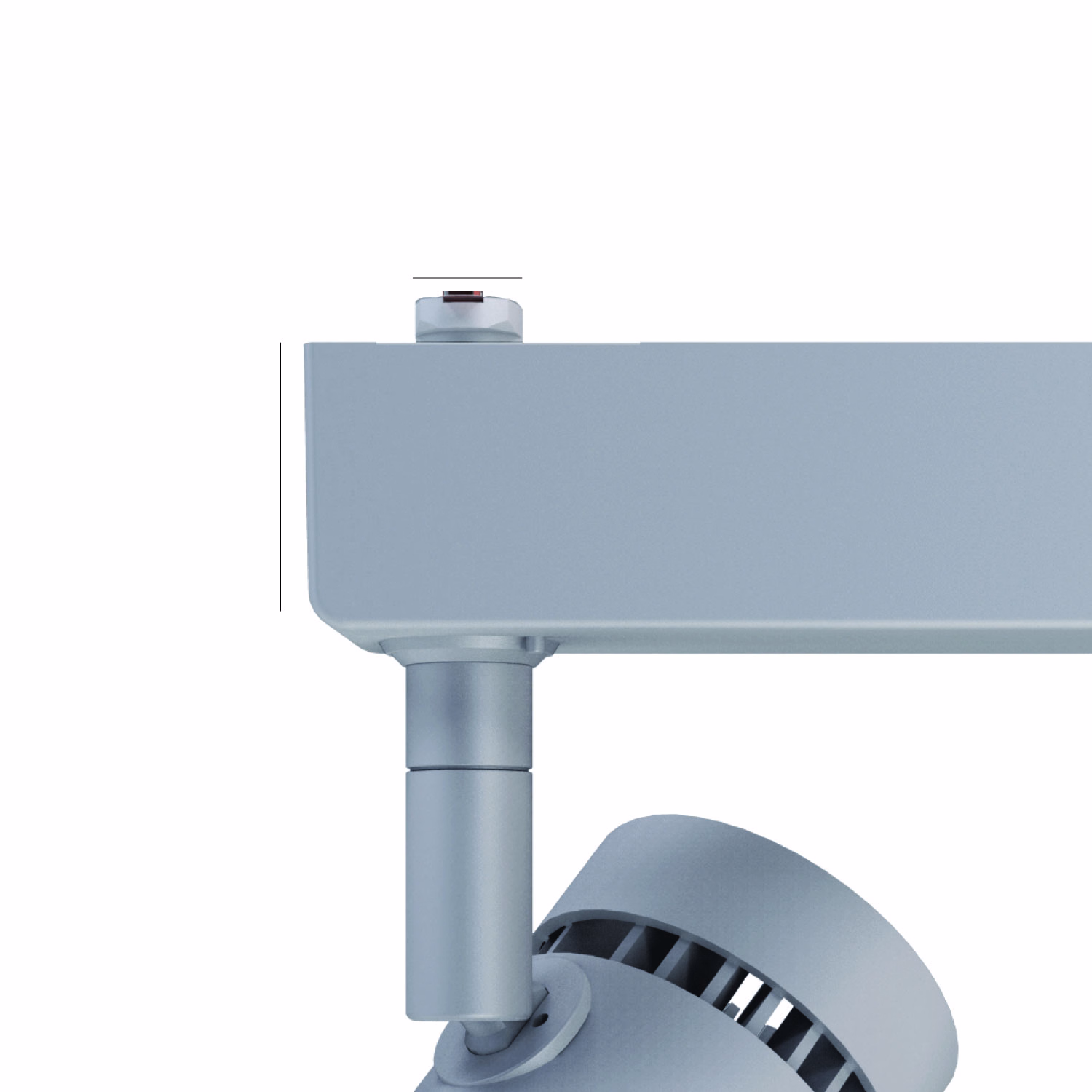

MULTIPLE MOUNTING ADAPTERS

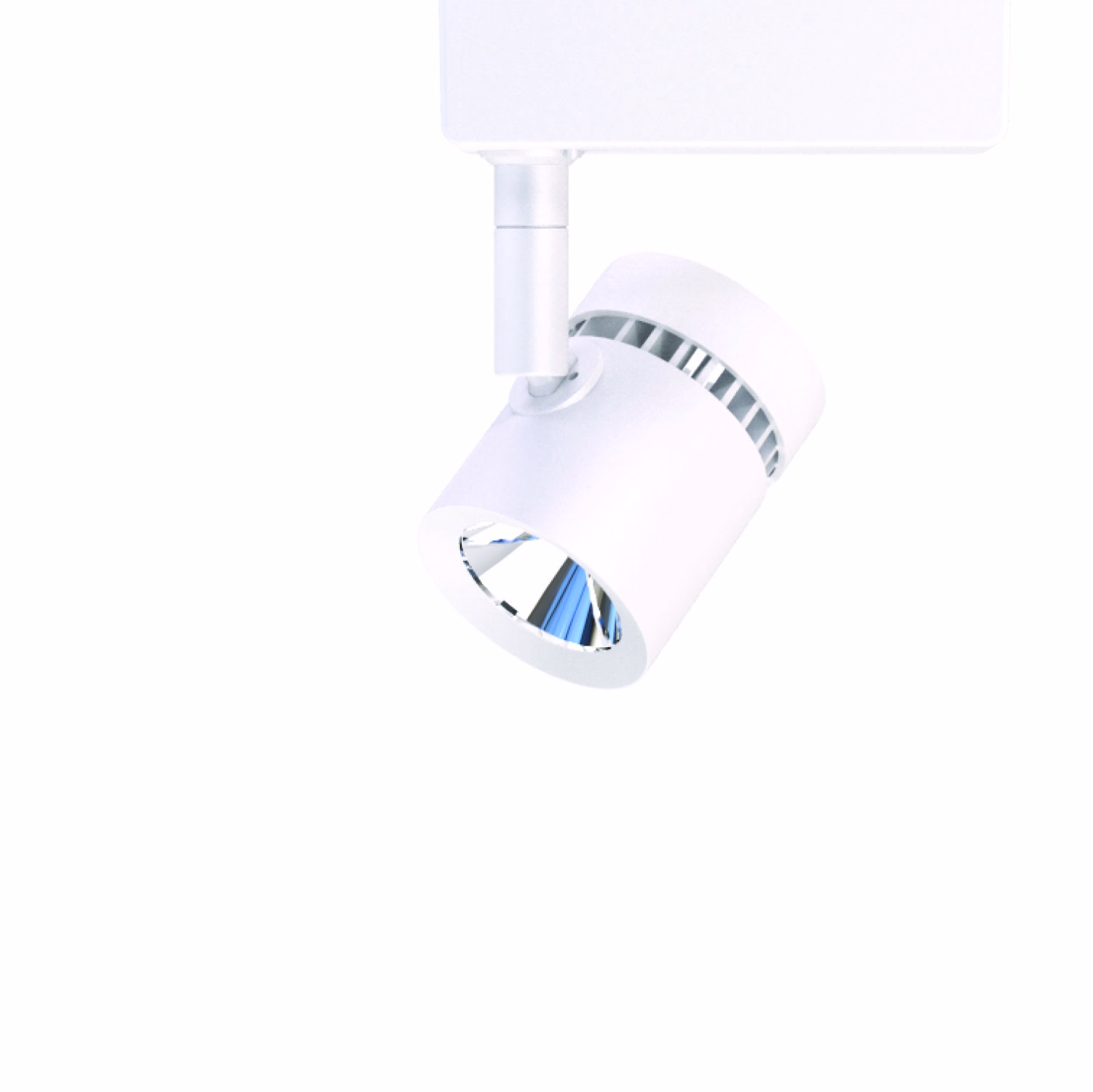

Choose from any of the popular track systems such as Juno, Halo, Lightolier, or Global.


VALUE ENGINEERED DESIGN
Aluminum die cast housing for superior thermal heat dissipation, strength, and rigidity. Integrated fin heat dissipation structure built into the fixture's housing provides long lasting LED and driver function.


PAINT FINISH:
Factory standard in black, white, and silver. Contact for custom paint finishes to enhance your fixture to suit your project space.


MULTIPLE OPTIONS
Customize your track head by selecting from a variety of, CCT, CRI, and beam angle options.


Description

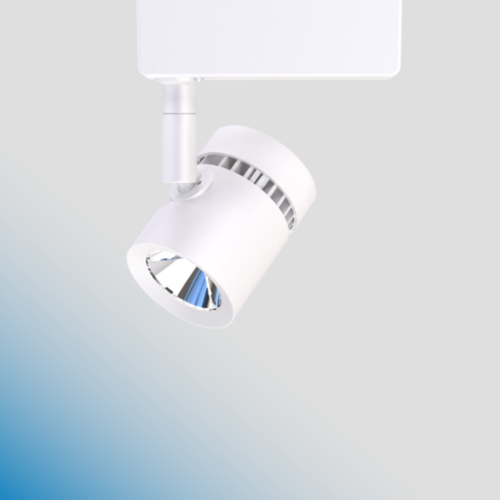

The IRIS series has a distinctive look with a semi-exposed heatsink. This product features four possible beam distributions ranging from narrow flood, flood, wide flood and very wide flood. This product also comes standard at 90 CRI but also caters to lighting experts with a high-GAI (Gamut Area Index) option for an enhanced visual effect on products.

Downloads

Install Instruction IRIS

Download

Spec Sheet IRIS

Download

IES Files IRIS

Download

Product Configurator

Your Product Code :

AE-TL-IR
VOLTAGE
DISTRIBUTION
CRI
CCT
ADAPTER
FINISH

Dimensions

2.28inches

Output

1302lm

Color and color temperature

90 CRI

2700K

3000K

3500K

4000K

HIGH GAI

Color Finish

White Powder Coat Finish

Silver Powder Coat Finish

Black Powder Coat Finish

Optics

Narrow Flood

Flood Light

Wide Flood

Very Wide Flood

Control

ON/OFF

TRIAC

Accessories

GES Adapter

Halo Adapter

Juno Adapter

Lightolier Adapter

Certifications

5 Year Warranty

ETL Canada & US

RoHs Certified
