ERSA
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 48V DC
Power factor : >0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V dimming with external driver
Lumens per Watt : 38 LPW
Distribution : 105˚
Features & Benefits
SNAP-IN MOUNTING ADAPTER
Compatible with the Jupiter snap-in track.
VALUE ENGINEERED DESIGN
Aluminum die-cast materials selected for efficient thermal heat dissipation, enhanced structural rigidity maximizing LED life and driver function.
PAINT FINISH
Available in black or white finish.
MULTIPLE OPTIONS
Customize your track head by selecting from a variety of color finishes and CCT options, allowing you to have a unique fixture that suits your project.
EFFICIENT DESIGN
Integrated components allow for clean aesthetic appearance.
Description

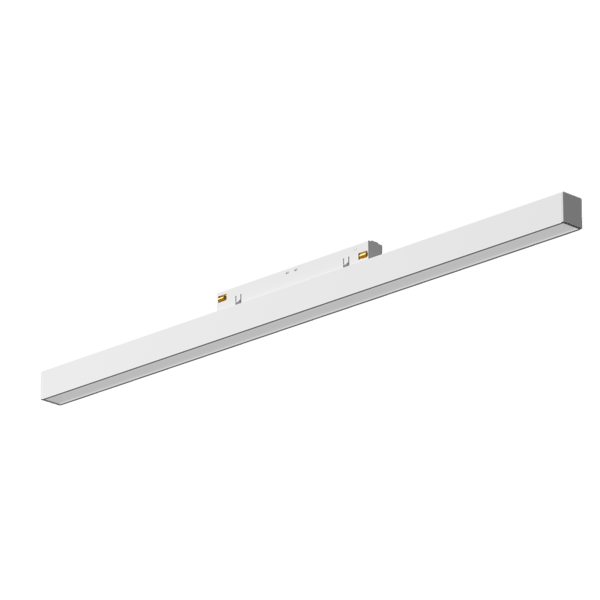

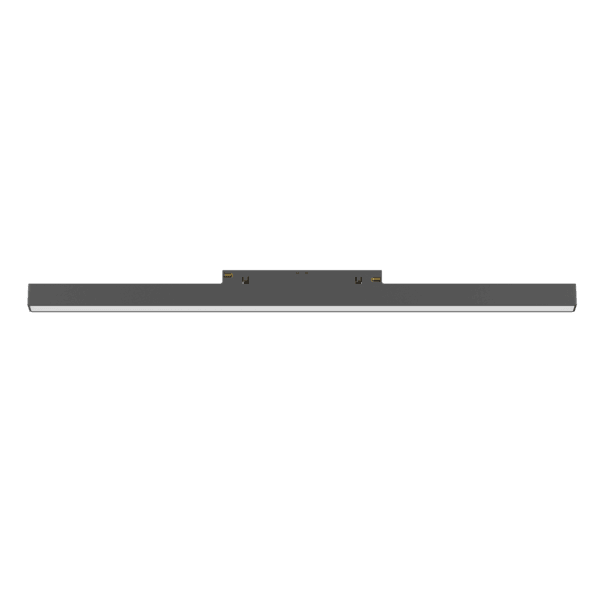

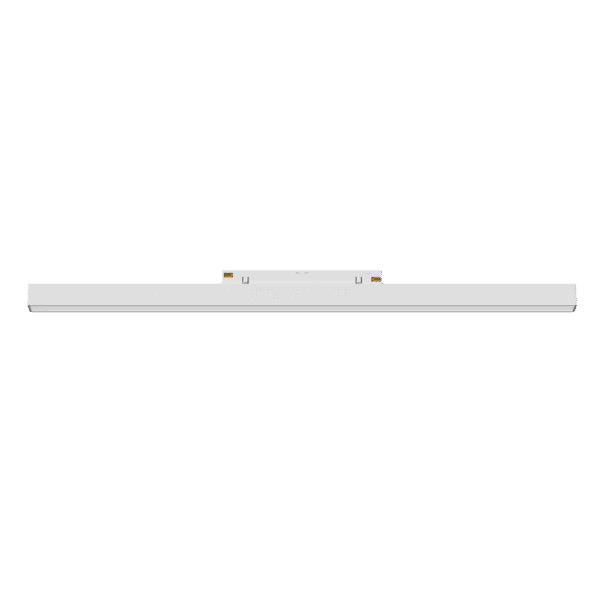

The Ersa is a linear track head compatible with the Jupiter snap-in track system, available in multiple CCTs and color finishes to suit a variety of applications. Its simple snap-in design allows for quick, straightforward installation. Once installed, the Ersa sits flush with the track for a sleek, refined profile.
Downloads
Product Configurator
Your Product Code :

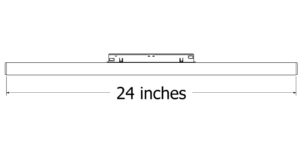

Dimensions
Output
570lm
Color and color temperature
90 CRI
3000K
4000K
Color Finish
White Powder Coat Finish
Black Powder Coat Finish
Optics

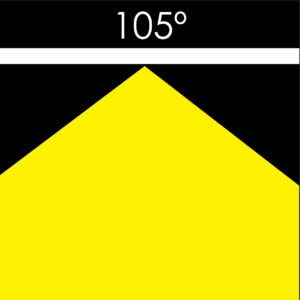

105° Beam Distribution
Control
ON/OFF
0-10V Dimming with External Driver
Certifications
3 Year Warranty
ETL Listed
RoHS Compliant
