CHRONOS
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 100~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 100 LPW at 80CRI
Distribution : 15˚, 30˚, 60˚ (Beam Angle, up & down)
Features & Benefits
PREMIUM MATERIALS AND DESIGN

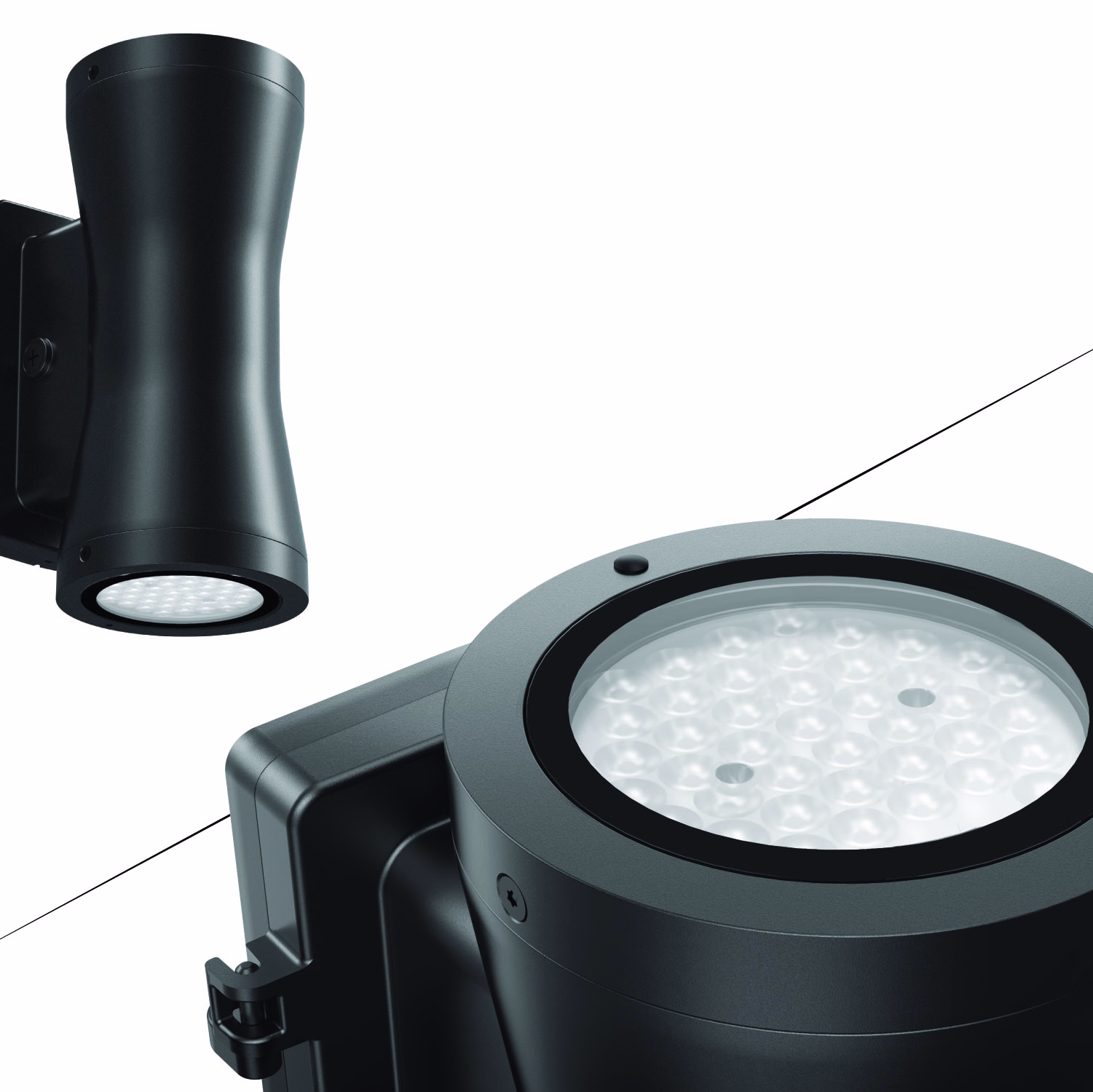

The wall mounted up and down light fixture with an hourglass shape will brighten up spaces elegantly.

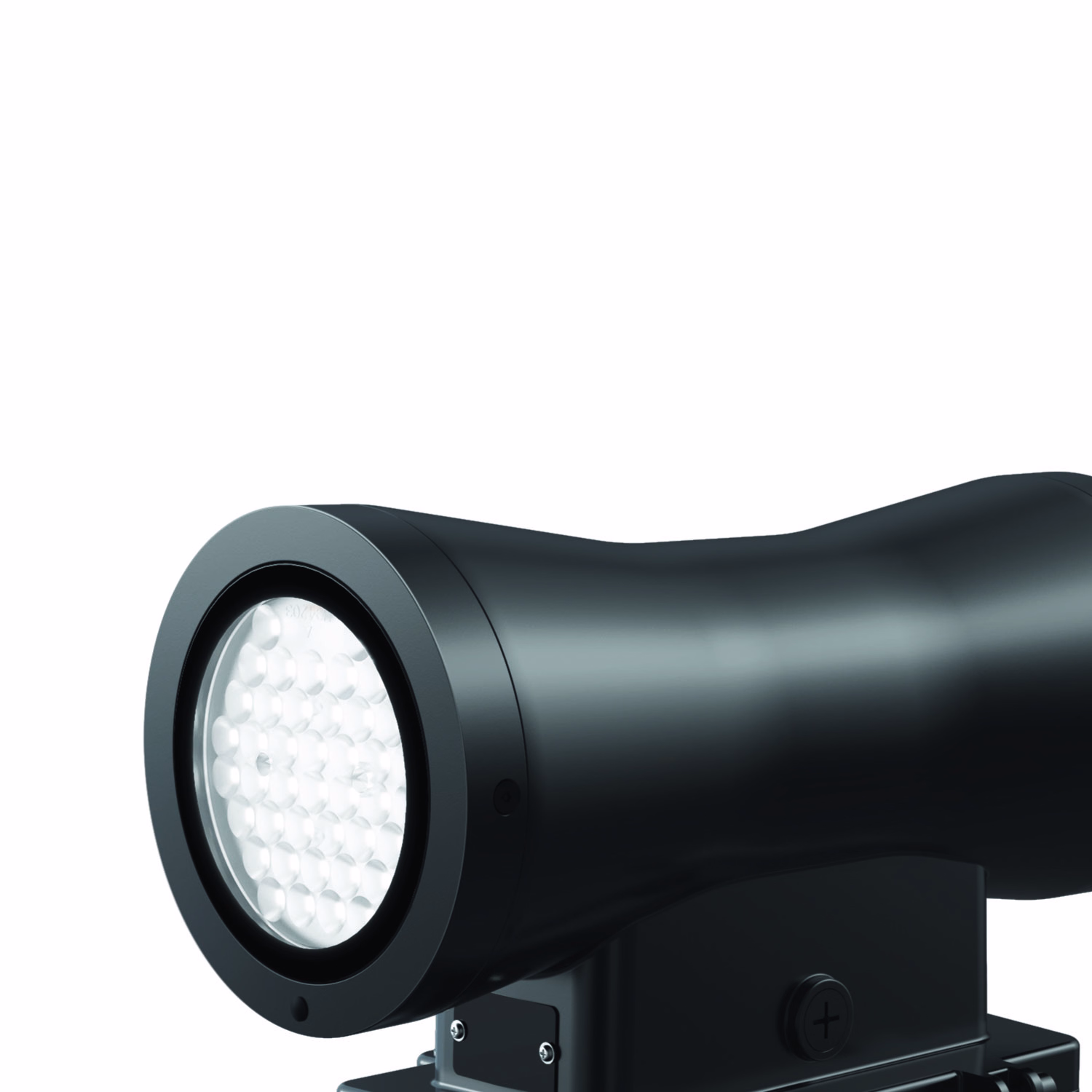

SWITCHABLE POWERS AND CCT
Available in 18W, 30W, 45W and 60W power consumptions and 3000K, 4000K and 5000K CCT options to choose from.

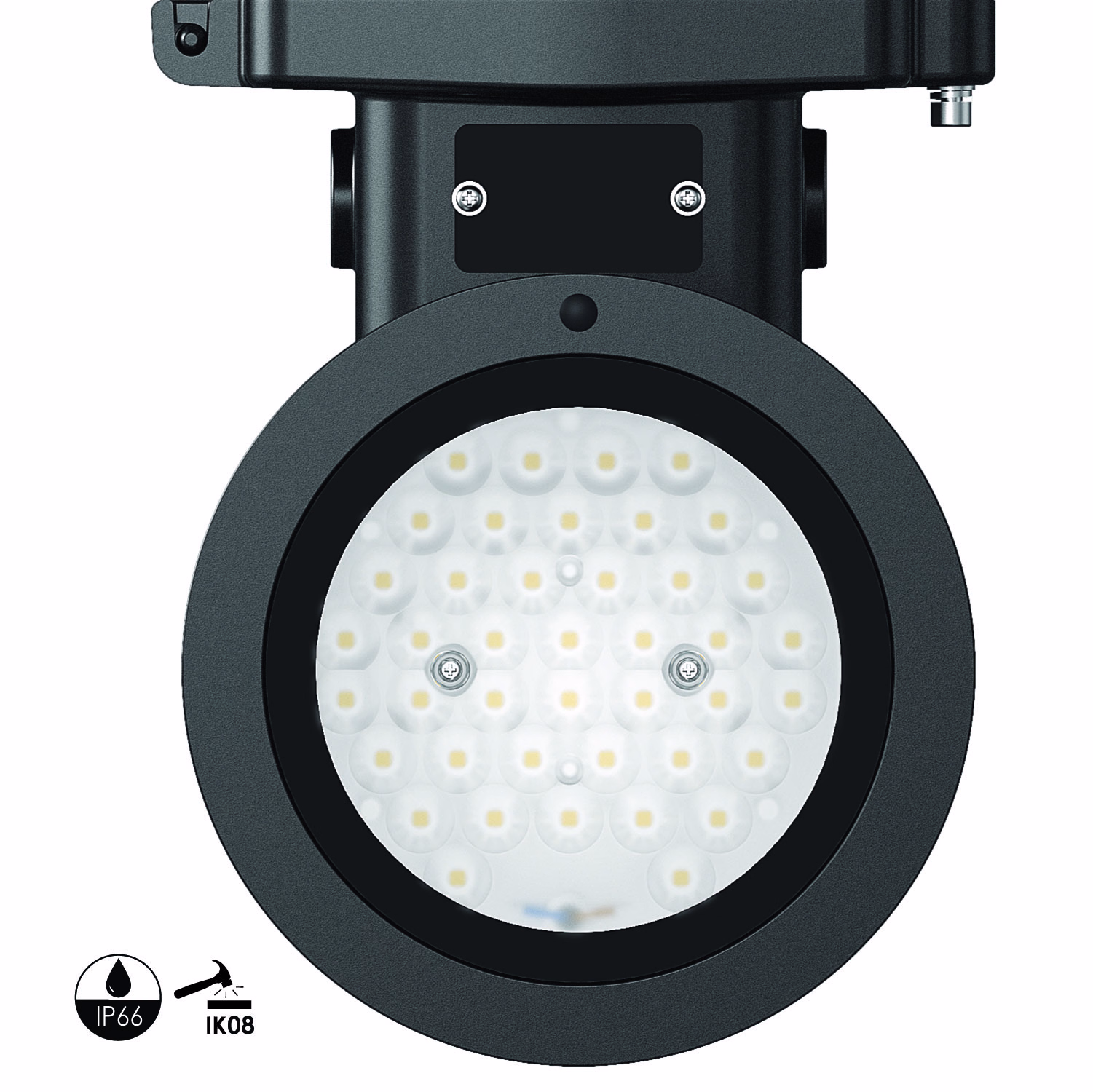

INCREDIBLE PROTECTION
To ensure the protection of the fixture, the Chronos is IP66 and IK08 rated.
CRI
80 CRI provides greater rendering allowing for a more natural light look.
Description
The Chronos Series differentiates itself from other outdoor cylinders through its elegant hourglass design. This wall wash up and down sconce light has IK08 protection and IP66 rated with its powder coating finish.
Downloads
Product Configurator
Your Product Code :
Dimensions
![](https://eralux.com/wp-content/uploads/2024/01/chronos1.png)
Side View
![](https://eralux.com/wp-content/uploads/2024/01/chronos2-1.png)
Front View
![](https://eralux.com/wp-content/uploads/2024/01/chronos3.png)
Top View
Output
1800/3000/4500/6000lm
Color and color temperature
![](https://eralux.com/wp-content/uploads/2024/01/80-CRI-300x300.png)
80 CRI
![](https://eralux.com/wp-content/uploads/2024/01/3000K-300x300.png)
3000K
![](https://eralux.com/wp-content/uploads/2024/01/4000K-300x300.png)
4000K
![](https://eralux.com/wp-content/uploads/2024/01/5000K-300x300.png)
5000K
![](/wp-content/uploads/2024/01/CCT-Switchable.png)
CCT Switchable
![](/wp-content/uploads/2024/01/Power-Switchable.png)
Power Switchable
Color Finish
![](/wp-content/uploads/2024/01/Powder-Bronze-Finish-300x300.png)
Bronze Powder Coat finish
![](https://eralux.com/wp-content/uploads/2024/01/Powder-Black-Finish-300x300.png)
Black Powder Coat Finish
Optics
![](https://eralux.com/wp-content/uploads/2023/12/15-Degrees-300x300.png)
15˚ beam angle
![](https://eralux.com/wp-content/uploads/2023/11/30-Degrees-300x300.png)
30˚ beam angle
![](https://eralux.com/wp-content/uploads/2023/11/60-Degrees-300x300.png)
60˚ beam angle
![](https://eralux.com/wp-content/uploads/2024/01/Up-and-Down-Wall-Mount-300x300.png)
up/down light distribution
Control
![](/wp-content/uploads/2024/01/On-Off.png)
On/Off
![](/wp-content/uploads/2024/01/0-10V.png)
0-10V Dimming
Certifications
![](/wp-content/uploads/2023/11/5-years-warranty-Copy.jpg)
5 Year Warranty
![](https://eralux.com/wp-content/uploads/2024/01/ETL-Canada-US-300x227.png)
ETL Certified
![](/wp-content/uploads/2024/01/RoHS-Certified.png)
RoHs Certified
![](https://eralux.com/wp-content/uploads/2024/01/IP66-300x300.png)
IP66 Rated
![](https://eralux.com/wp-content/uploads/2024/01/IK08-300x300.png)
IK08 Rated
![](https://eralux.com/wp-content/uploads/2024/01/Surge-Protector-300x300.png)
Surge Protection
