OUTDOOR FIXTURE

LEONARDO

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~240V & 120~277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 33.6 LPW at 120~240V & 26.8 LPW at 120~277V at 80CRI

Features & Benefits

MULTIPLE SIZES
Available in 6" and 8" diameter bore sizes, with heights of 32" and 42" depending on the lumen package selected.

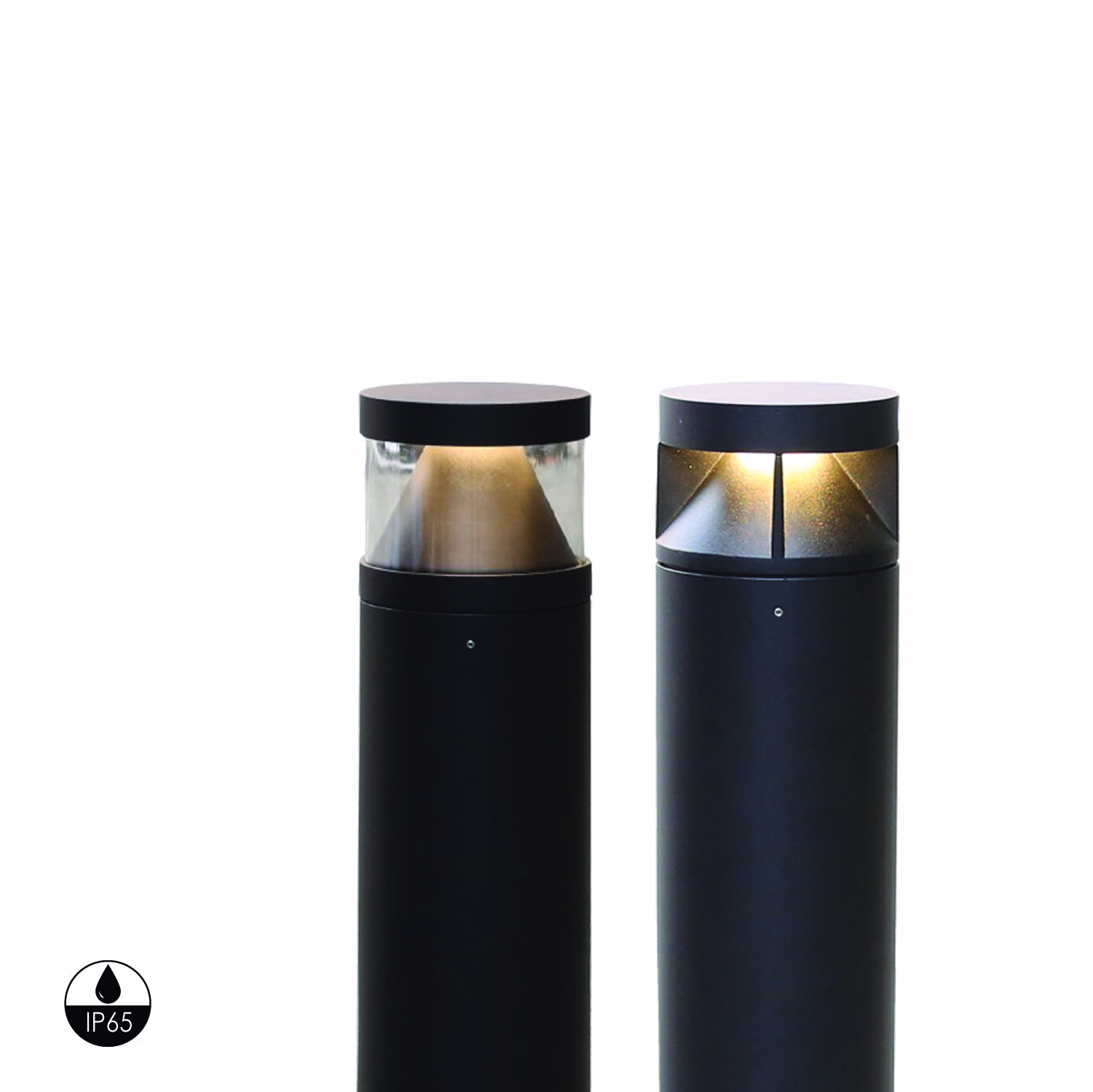

PREMIUM MATERIALS AND DESIGN
Aluminum die-cast housing and plate for enhanced thermal heat dissipation and structural integrity.


CORROSION RESISTANT FINISH
Thermoset powder coat finish combined with anti-cracking marine grade corrosion resistant finish to withstand harsh environmental conditions.


OPTICAL GLASS
180-degree optical polymer.


Description

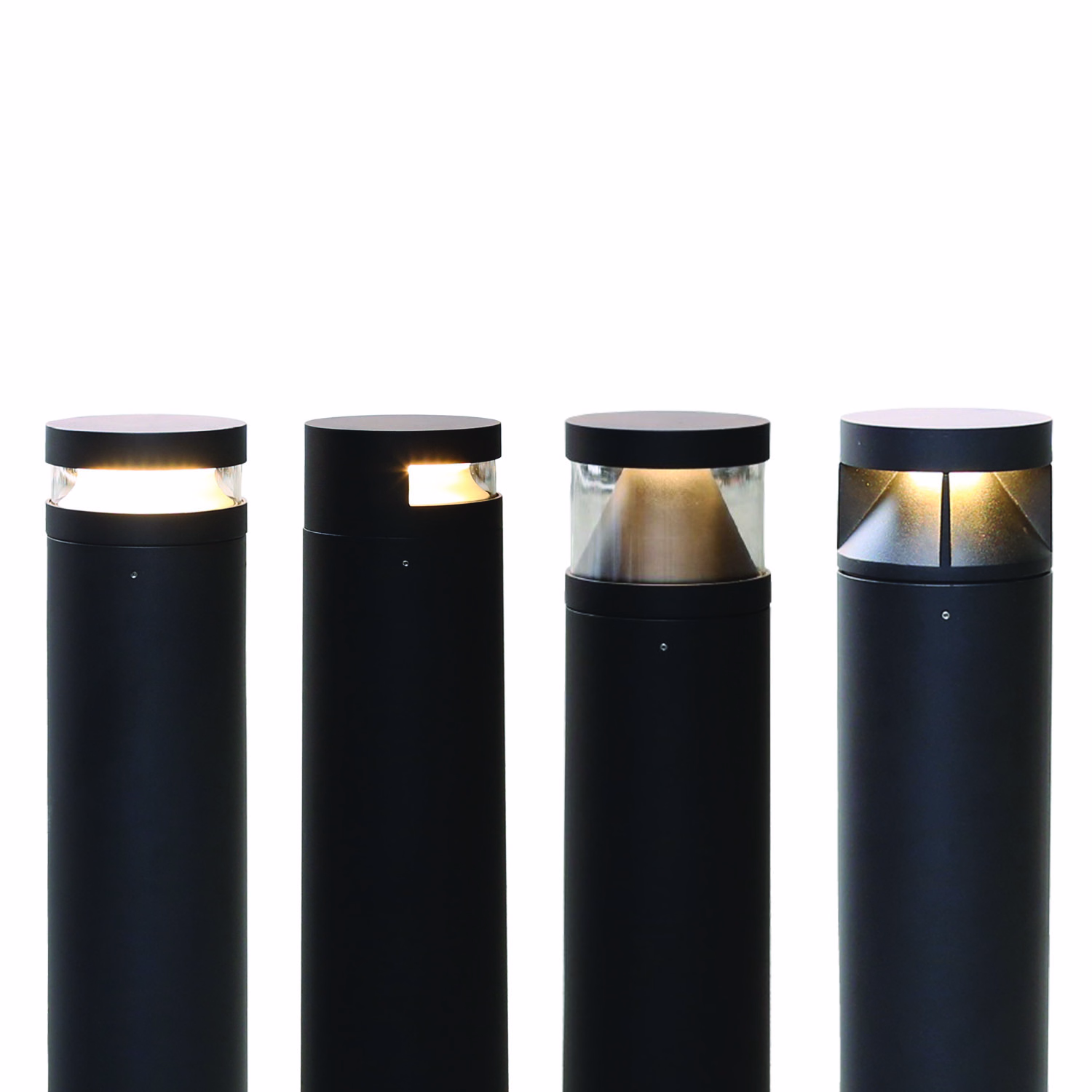

The Leonardo bollard is an elegant solution for your outdoor area lighting needs. Its robust and strong materials allow it to withstand the harshest of elements without a scratch. The Leonardo features an innovative optical system providing illumination to your space while keeping the beam shielded from the eye.

Downloads

Install Instruction LEONARDO

Download

Spec Sheet LEONARDO

Download

IES Files - LEONARDO

Download

Product Configurator

Your Product Code :

AE-OD-LD
POWER & SIZE
CCT
CRI
HOUSING & FINISH
OPTION

Dimensions

6 inches

8 inches

Output

168lm

402lm

Color and color temperature

80 CRI

3000K

4000K

5000K

Color Finish

RAL 9006 Silver

Nebula White

Powder Coat Graphite Black

Powder Coat Mineral Bronze

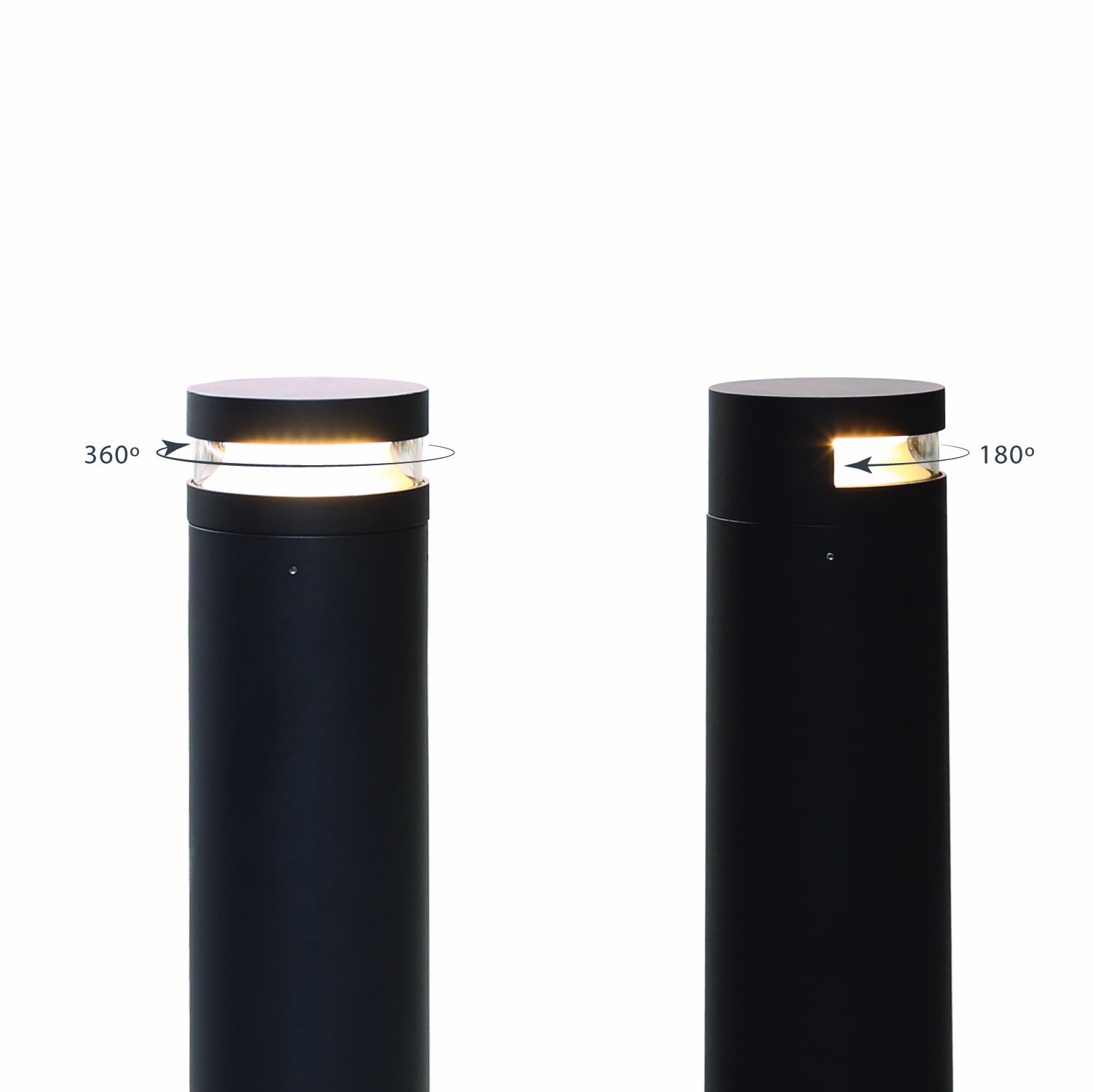

Optics

180-degree distribution

Control

On/Off

0-10V Dimming

Certifications

5 Year Warranty

ETL Certified

RoHs Certified

width=

IP65

Marine Finish
