ROCKSTEADY

The Apex Bollard Series provides an elegant outdoor LED lighting solution with six distinct bollard head styles. Featuring power and CCT switchability, integrated photocell, and robust weather-resistant construction with IP65 rating and 10KV surge protection. The fixtures deliver up to 3600 lumens with high efficacy and minimal glare, ideal for gardens, industrial parks, walkways, and pathways. Mounting is via concrete anchor.

Downloads
Finish
ROCKSTEADY finish preview
Popular Finishes
ROCKSTEADY

Key Specifications

Electrical

Input voltage120-347V
Dimming0-10V

Optical

Lumen Range2100 - 3600 Lumens
CRI70
CCT3000K, 4000K, 5000K
Distribution360 degrees

Physical

Aperture6.4IN
Standard Sizes30IN, 51IN
MountingGround

Certifications

Listings5 Years Warranty, DLC Premium, IP65, RoHS, UL
Landscape
Application Space

Landscape

Resources

Spec Sheet APEX BOLLARD View · Download

Install Instruction Round Bollard View · Download
Install-Instruction Square Bollard View · Download

ROCKSTEADY IES View · Download
REVIT Files View · Download

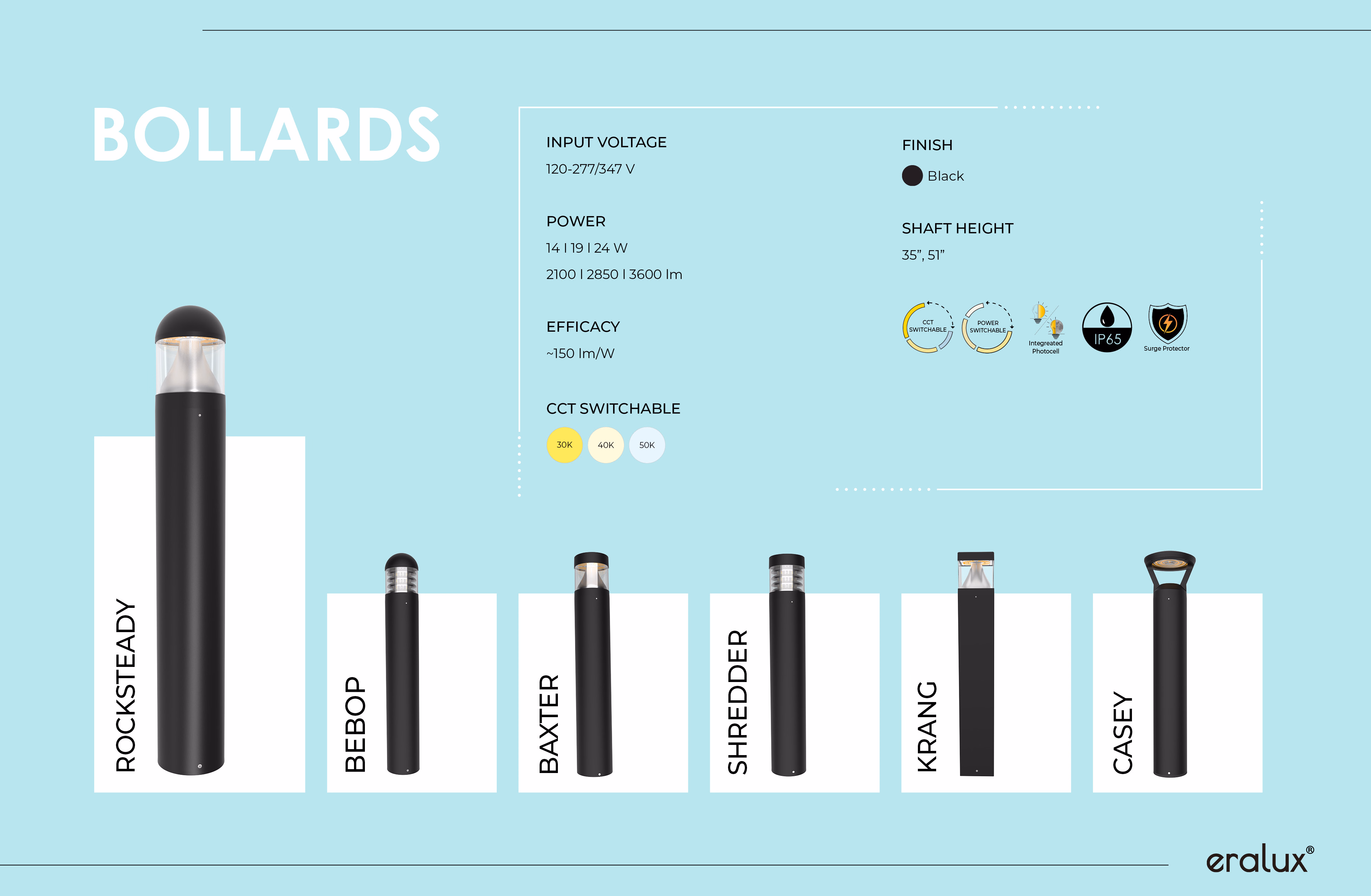

Apex Bollard Poster View · Download

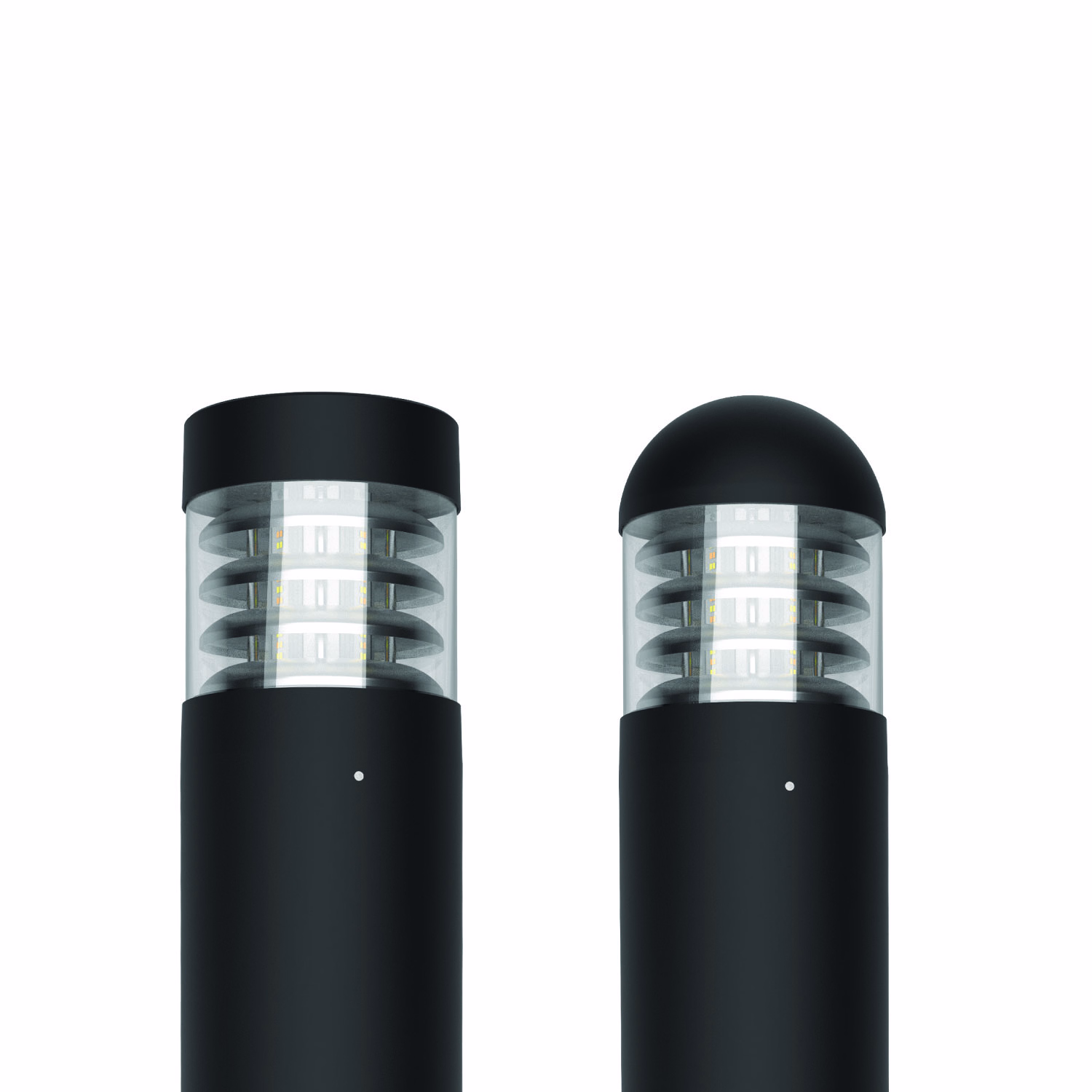

Selectable Performance

Selectable Performance

Available in 14W, 19W, and 24W configurations with selectable CCT options to accommodate a variety of pathway, landscape, and pedestrian lighting applications.

Scroll to Explore

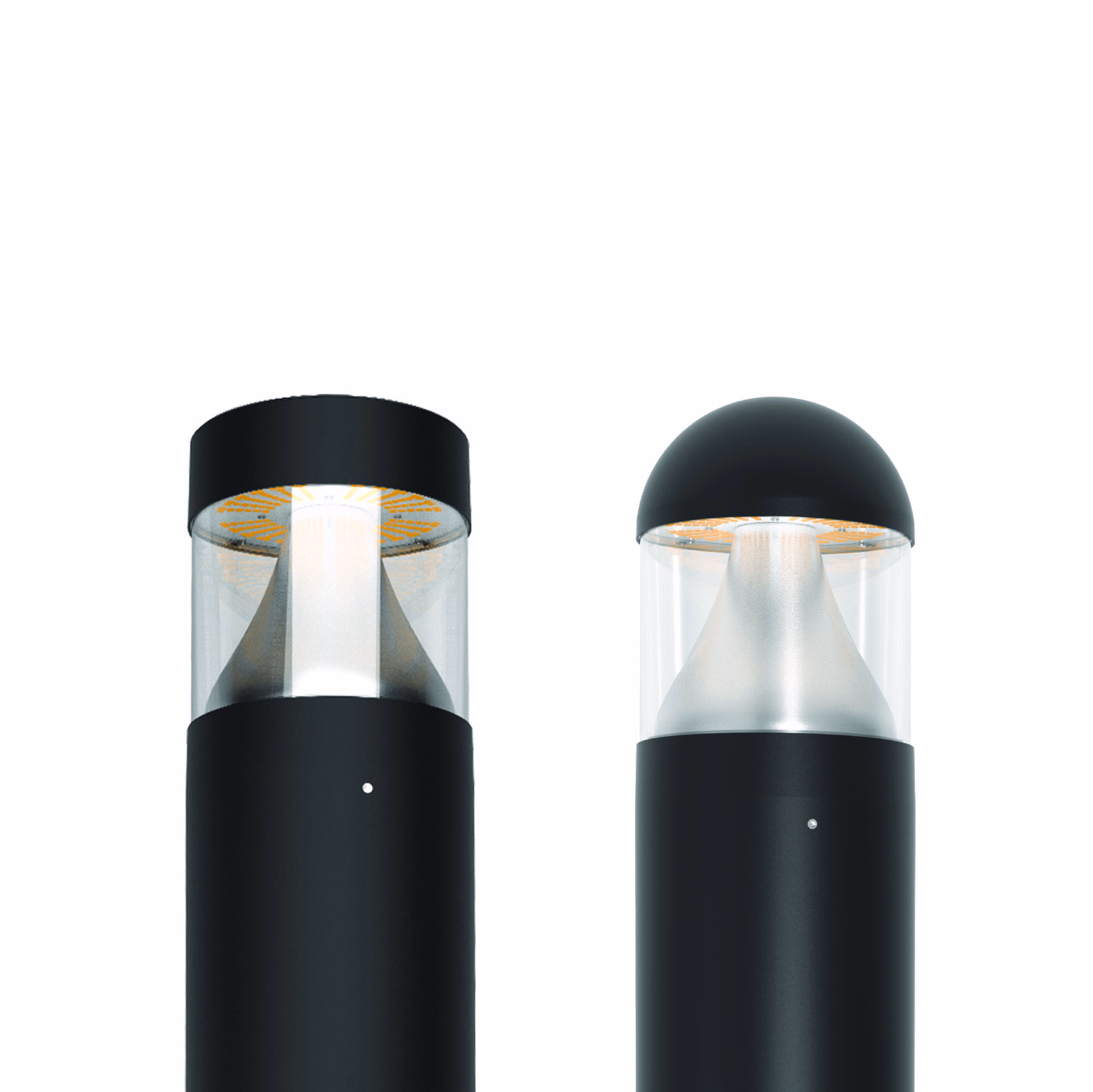

360� Illumination

360� Illumination

Engineered with a full 360� light distribution and advanced optical system to provide uniform illumination with minimal glare.

Scroll to Explore

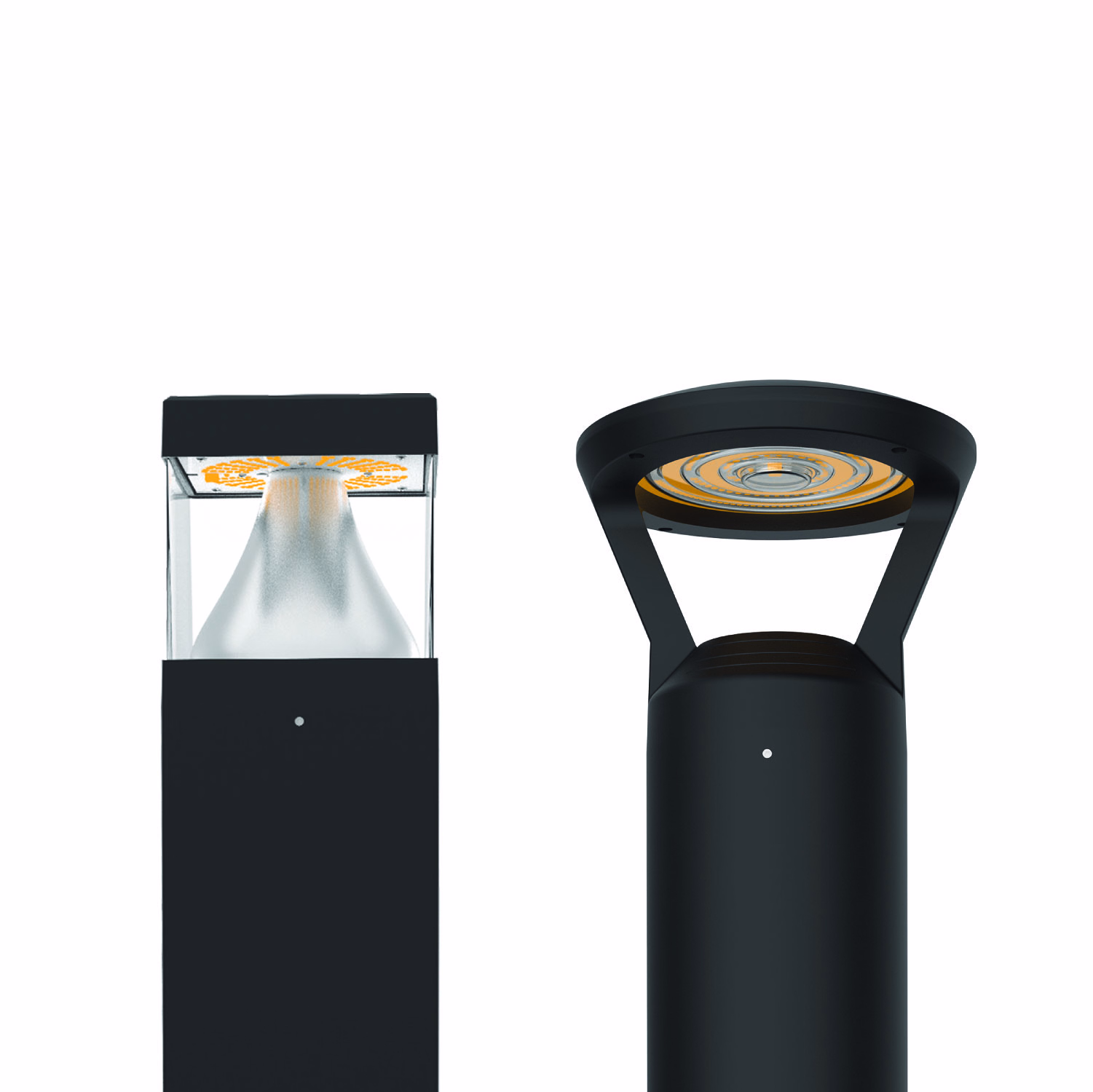

Integrated Functionality

Integrated Functionality

Features a built-in photocell, 10kV surge protection, and IP65-rated construction for reliable outdoor performance and enhanced energy efficiency.

Scroll to Explore
Why Specify 01/03
