Key Specifications
Electrical
Input voltage120-277V
Dimming0-10V, 1%, TRIAC
Optical
Lumen Range2500 - 12500 Lumens
CRI80
CCT3000K, 3500K, 4000K, 5000K
Distribution120 degrees
Physical
Aperture2.5IN
Standard Sizes2FT, 3FT, 4FT, 5FT, 6FT, 8FT
MountingSuspended, Wall
Certifications
Listings5 Years Warranty, DLC Standard, RoHS, Wet Rated, cETL
Application Space
Commercial Office
Resources
Accessories
SPT G5 LIT JOINER
SPT G5 LIT JOINER
LINEAR WALL MOUNT KIT
LINEAR WALL MOUNT KIT
G3 LINK
G3 LINK for SPT and G5
POWER CORD
POWER CORD
CANOPY ELITE
CANOPY ELITE
G5 SPT SUSPENSION WIRE
G5 SPT SUSPENSION WIRE
T BAR CLIP
T BAR CLIP
EMERGENCY BATTERY LINEARS
EMERGENCY BATTERY LINEARS
G5 SPT DROP LENS
G5 SPT DROP LENS
G5 SPT WALL WASH KIT
G5 SPT WALL WASH KIT
G5 SPT CONTINUOUS LENS
G5 SPT CONTINUOUS LENS
G5 SPT PIR MOTION SENSOR
G5 SPT PIR MOTION SENSOR
Design Versatility
Limitless design possibilities with L, T, X, V, Y lit joiners, and multiple lengths, enabling custom configurations that seamlessly integrate into any architectural environment.
Scroll to Explore↓
Multiple Mounting Options
Available in suspended, wall mount, and recessed T-grid configurations to suit a wide range of applications.
Scroll to Explore↓

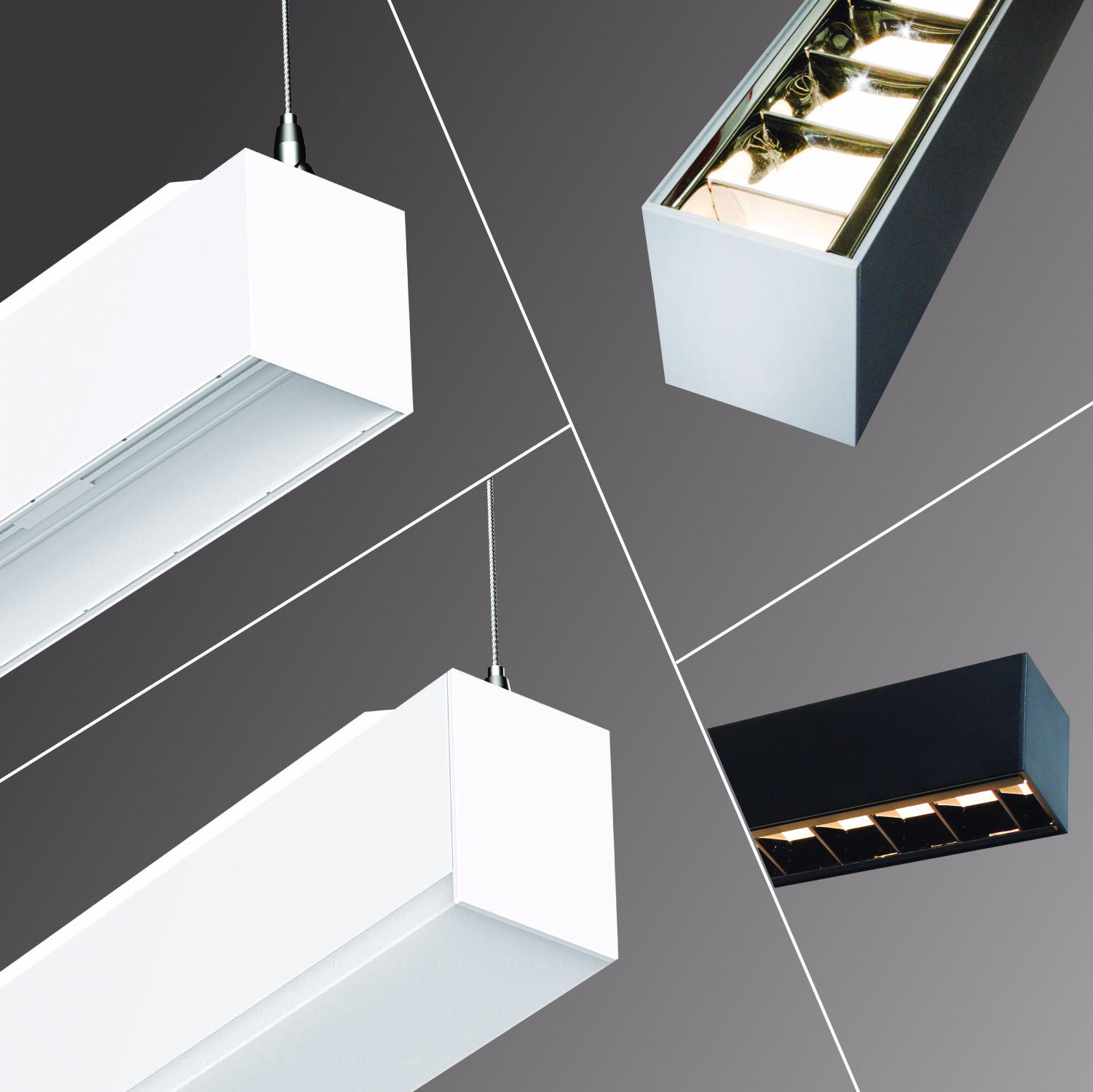

Optical & Distribution Options
Featuring polycarbonate, drop lens, wall wash, parabolic louver, and continuous lens options, with direct, indirect, and direct/indirect distributions available.
Scroll to Explore↓
Why Specify
