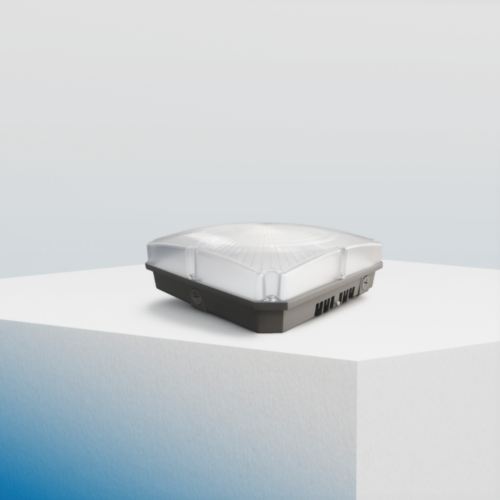

OUTDOOR FIXTURE

GRETA

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V DIMMING

Features & Benefits

MOUNTING
Mount using 3/4" NPT pole or fix flush by surface mounting to wall or ceiling of your project space.


BATWING DISTRIBUTION
155-degree bat-wing beam angle provides a unique distribution while accenting your project space.


ON-SITE FLEXIBILITY
Choose from three of the CCT and three of the power package. A 9-in-1 fixture!
Comes standard with an operating voltage of 120-347V AC


Description

The GRETA Series outdoor luminaire is a parking garage fixture that enables customization on site with the CCT and lumens switchable capability. Its robust and durable design allow it to withstand the outdoor elements wherever placed. Further, the GRETA series comes standard in 120-277Vac, ready for surface mount, pole mount and even enable surface connection of EMTs.

Downloads

Install Instruction Greta

Download

Spec Sheet Greta

Download

Greta IES Files

Download

Product Configurator

Your Product Code :

AE-OD-GR
POWER
CCT
VOLTAGE
CONTROLS

Dimensions

10 x 10 inches

4 inches

Output

3360lm

4200lm

5400lm

7200lm

8400lm

Color and color temperature

3000K

4000K

5000K

CCT Switchable

Power Switchable

Color Finish

Bronze Finish

Optics

155 Degrees

Control

On/Off

0-10V Dimming

Motion Sensor

Photocell

Certifications

5 Year Warranty

ETL Certified

RoHs Certified

IP65 Rated

DLC Premium
