Thalassa ET6024

OPERATIONS & ELECTRICAL

Input voltage :100-277Vac
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V external dimming down to 10%
Lumens per Watt : 70 LPW at 80CRI

DESCRIPTION

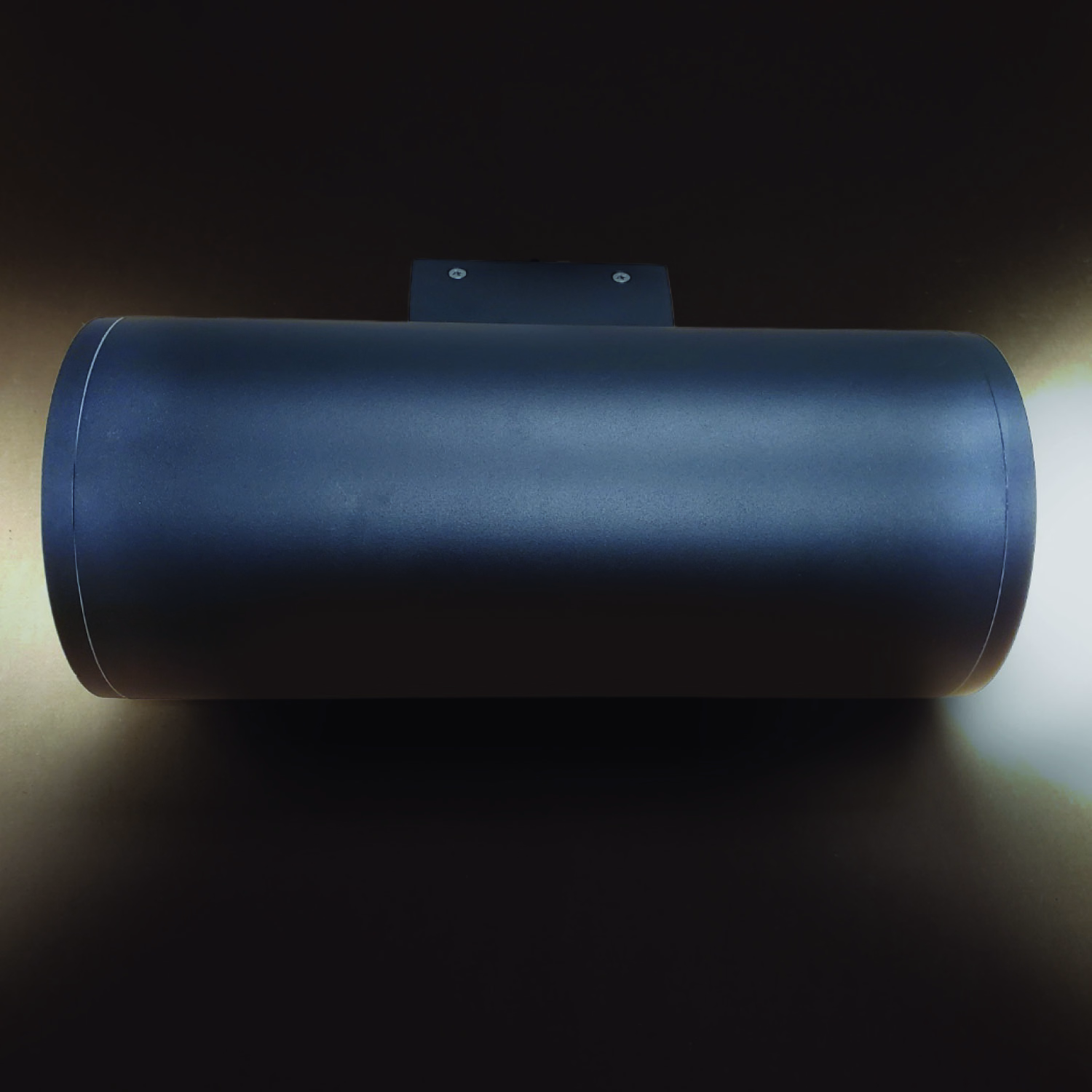

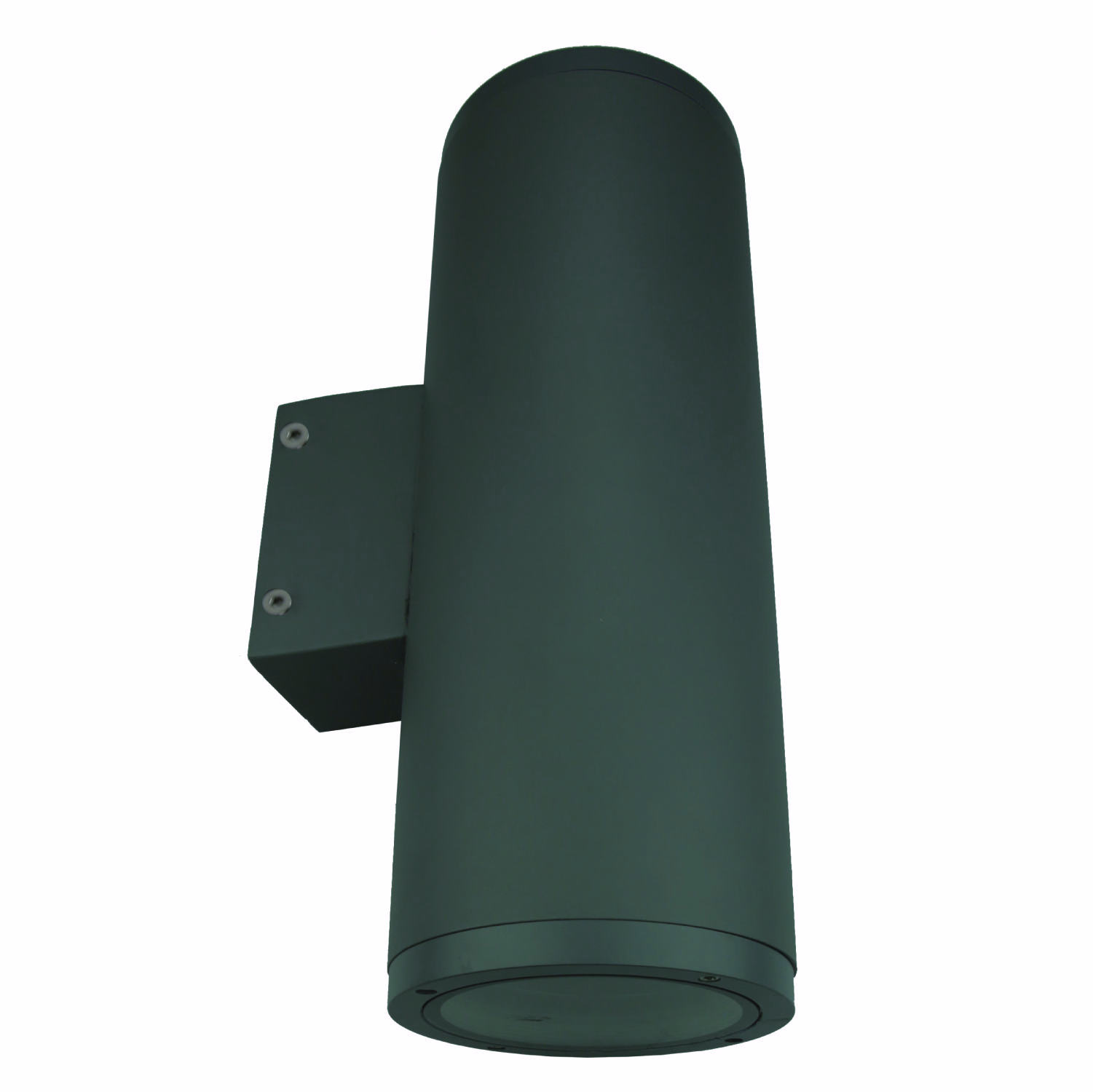

The Thalassa ET6024 outdoor cylindrical LED fixture was created  with a sleek design deliberately, so it could blend in with many different outdoor building styles. The Thalassa also has an impressive efficacy of 79 LPW providing performance as well as elegance in the install environment. With both up-light and downlight this fixture is able to provide the necessary illumination while providing exceptional finesse.

ORDERING CODE

FIXTURE FAMILY POWER CCT UP LIGHT BEAM ANGLE DOWNLIGHT BEAM ANGLE CRI FINISH CONTROLS
ET6024
ERALUX Thalassa
ET6024 outdoor
sconce fixture
-C48
24 watts: 1896 lumens
x2 (up-light & downlight)
-3
3000K CCT
-10
Up light 10˚
-10
Downlight 10˚
-80
80 CRI
-B
Black powder
coat finish
-DMG
0-10V external dimming down
-25 to 10%
-4
4000K CCT
-25
Up light 25˚
-25
Downlight 25˚
-W
White powder
coat finish
-6
6000K CCT
-38
Up light 38˚
-38
Downlight 38˚
-S
Silver (RAL9006)
powder coat finish
-45
Up light 45˚
-45
Downlight 45˚
-60
Up light 60˚
-60
Downlight 60˚
FIXTURE FAMILY POWER CCT UP LIGHT BEAM ANGLE DOWNLIGHT BEAM ANGLE CRI FINISH CONTROLS
ET6024
ERALUX Thalassa
ET6024 outdoor
sconce fixture
-C80
40 watts: 3160 lumens
x2 (up-light & downlight)
-3
3000K CCT
-08
Up light 8˚
-08
Downlight 8˚
-80
80 CRI
-B
Black powder
coat finish
-DMG
0-10V external dimming down
-25 to 10%
-4
4000K CCT
-18
Up light 18˚
-18
Downlight 18˚
-W
White powder
coat finish
-5
5000K CCT
-36
Up light 36˚
-36
Downlight 36˚
-S
Silver (RAL9006)
powder coat finish
-62
Up light 62˚
-62
Downlight 62˚
