ELEGANZA SQUARE

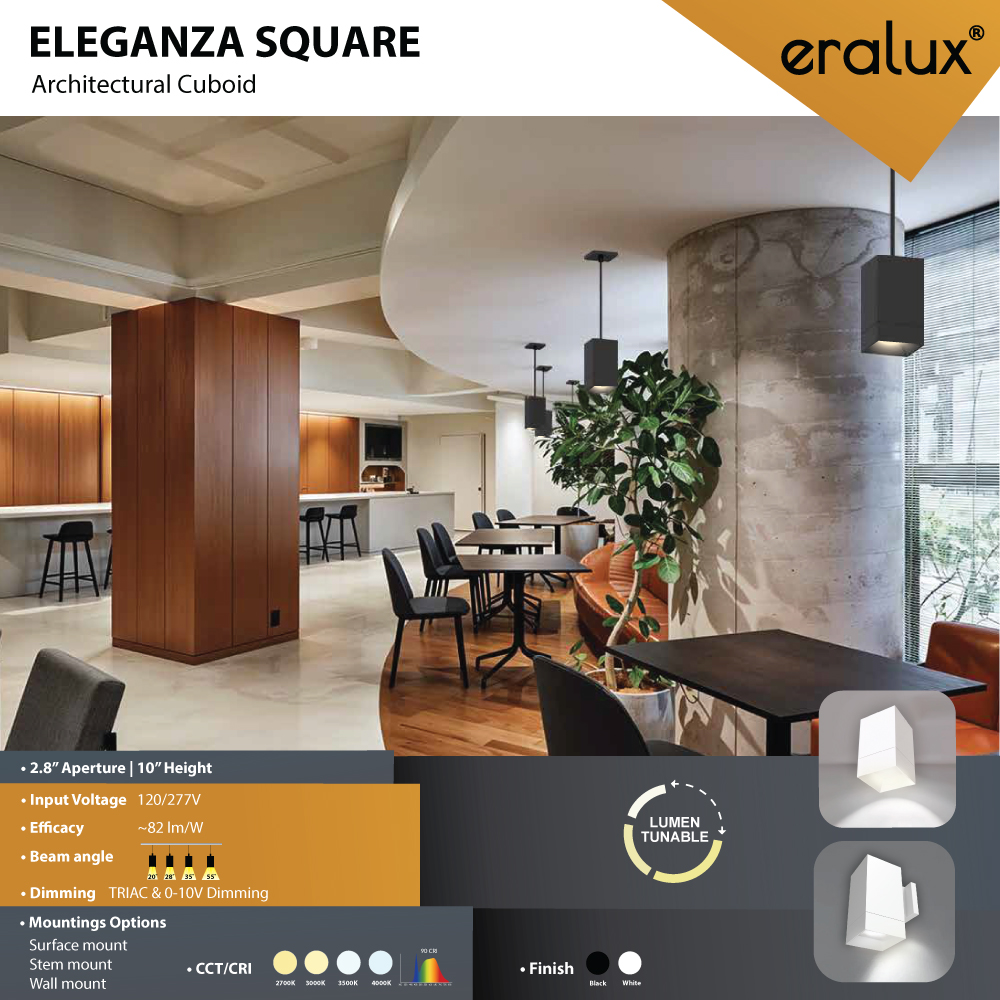

The ELEGANZA Square is an architectural cuboid cylinder LED light with a 2.8 inch aperture and 10 inch height. It features a machined aluminum body with a square profile, offering up to 42W power and efficacy around 82 lm/W. The fixture includes multiple mounting options of wall, stem, and surface, and offers four beam angle distributions (20°, 28°, 35°, 55°) with black or white finishes. Ideal for indoor applications such as art galleries, showrooms, retail stores, hospitality, and education.

Downloads
Finish
ELEGANZA SQUARE finish preview
Popular Finishes
ELEGANZA SQUARE

Key Specifications

Electrical

Input voltage120-277V
Dimming0-10V, 1%, TRIAC

Optical

Lumen Range3440 - 3440 Lumens
CRI90
CCT2700K, 3000K, 3500K, 4000K
Distribution20 degrees, 28 degrees, 35 degrees, 55 degrees

Physical

Aperture2.8IN
Standard Sizes5IN
MountingStem, Surface, Wall

Certifications

Listings5 Years Warranty, ETL, RoHS
Retail Store
Application Space

Retail Store

Resources

Spec Sheet ELEGANZA SQUARE View · Download

Install Instruction ELEGENZA SQUARE View · Download

Revit Files View · Download

Eleganza Family Poster View · Download
Swivel Canopy Poster View · Download

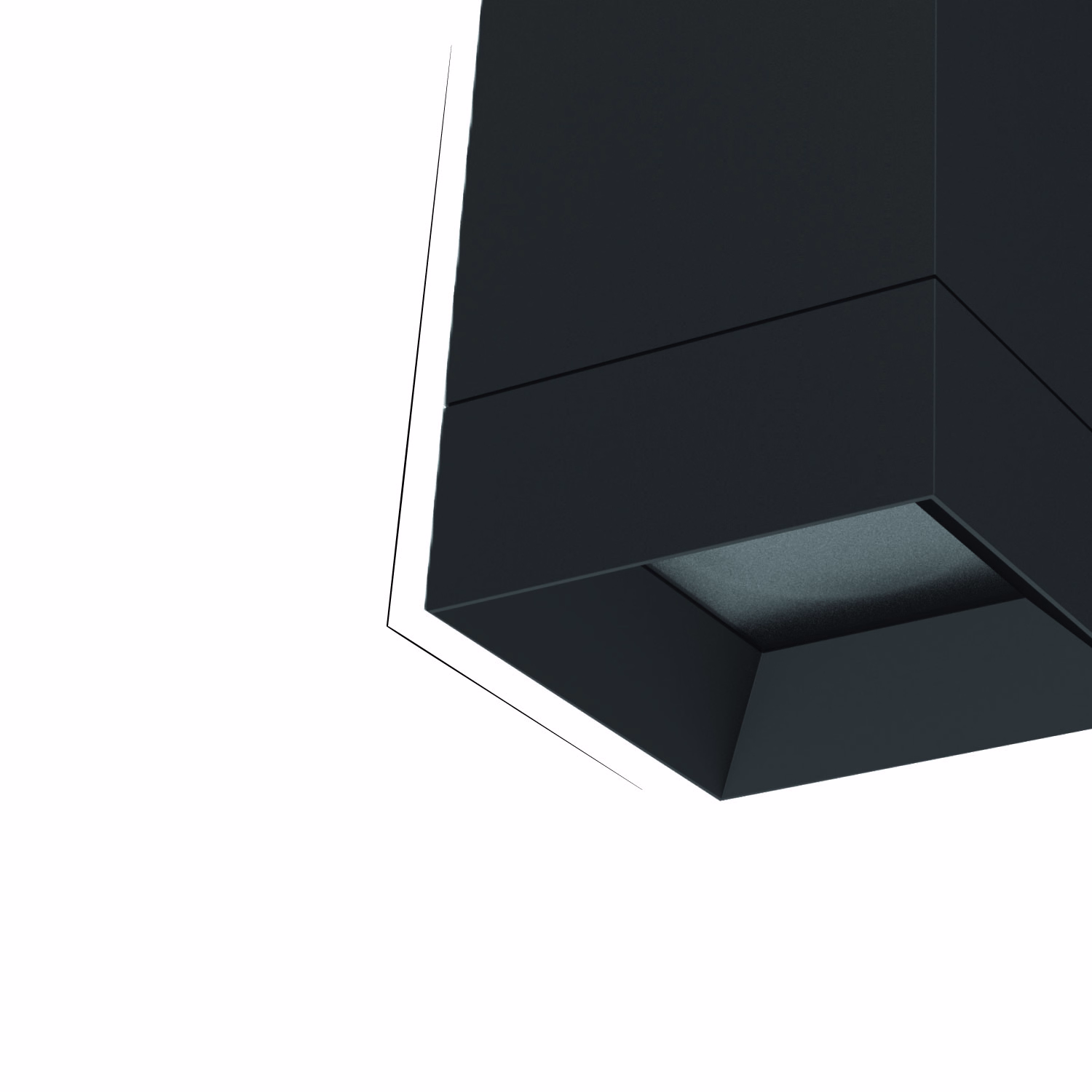

Distinctive Geometry

Distinctive Geometry

The clean cuboid form creates a bold architectural statement while complementing contemporary interiors.

Scroll to Explore

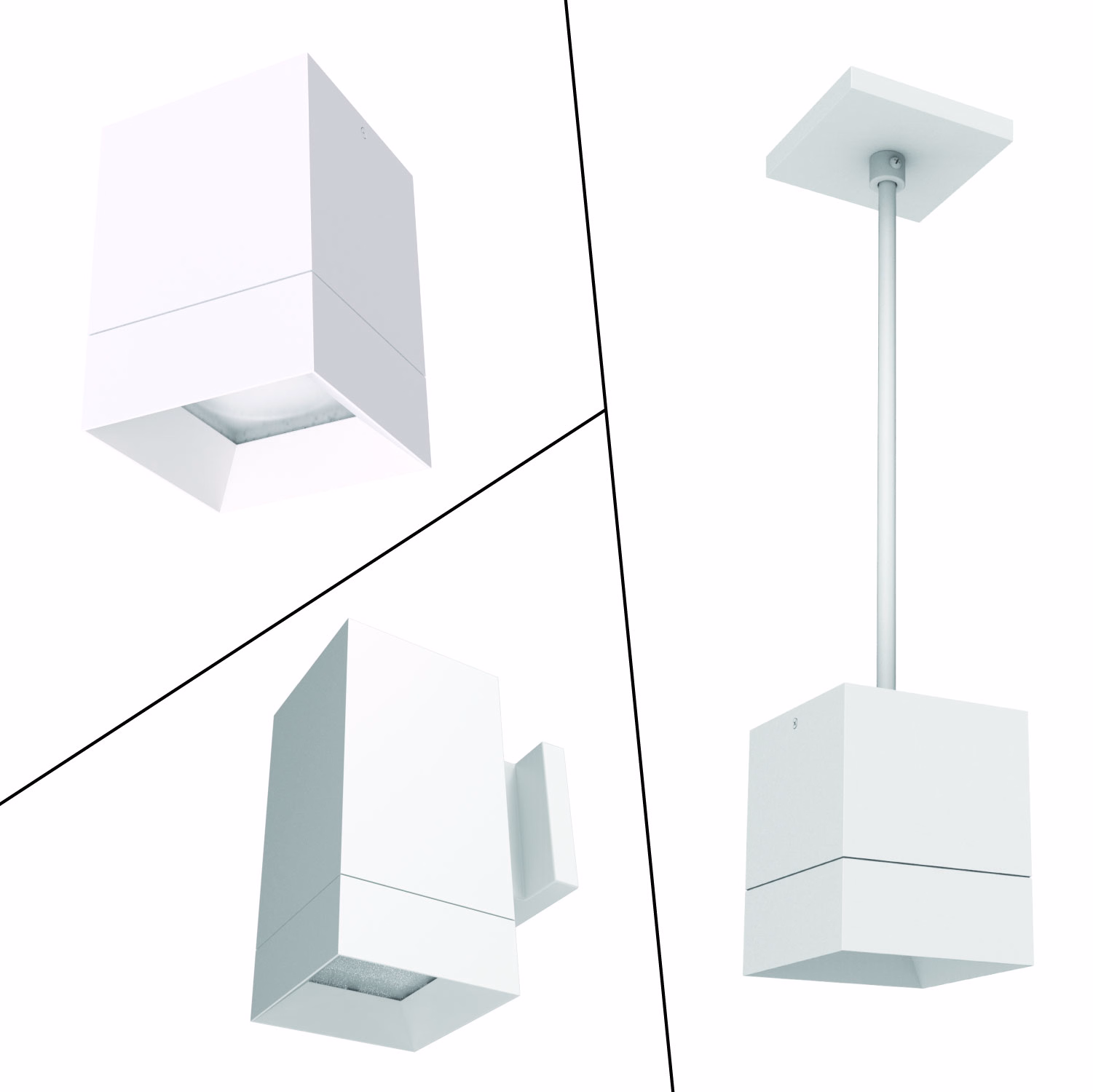

Versatile Mounting

Versatile Mounting

Available in wall, surface, and stem-mounted configurations to suit a variety of application requirements.

Scroll to Explore

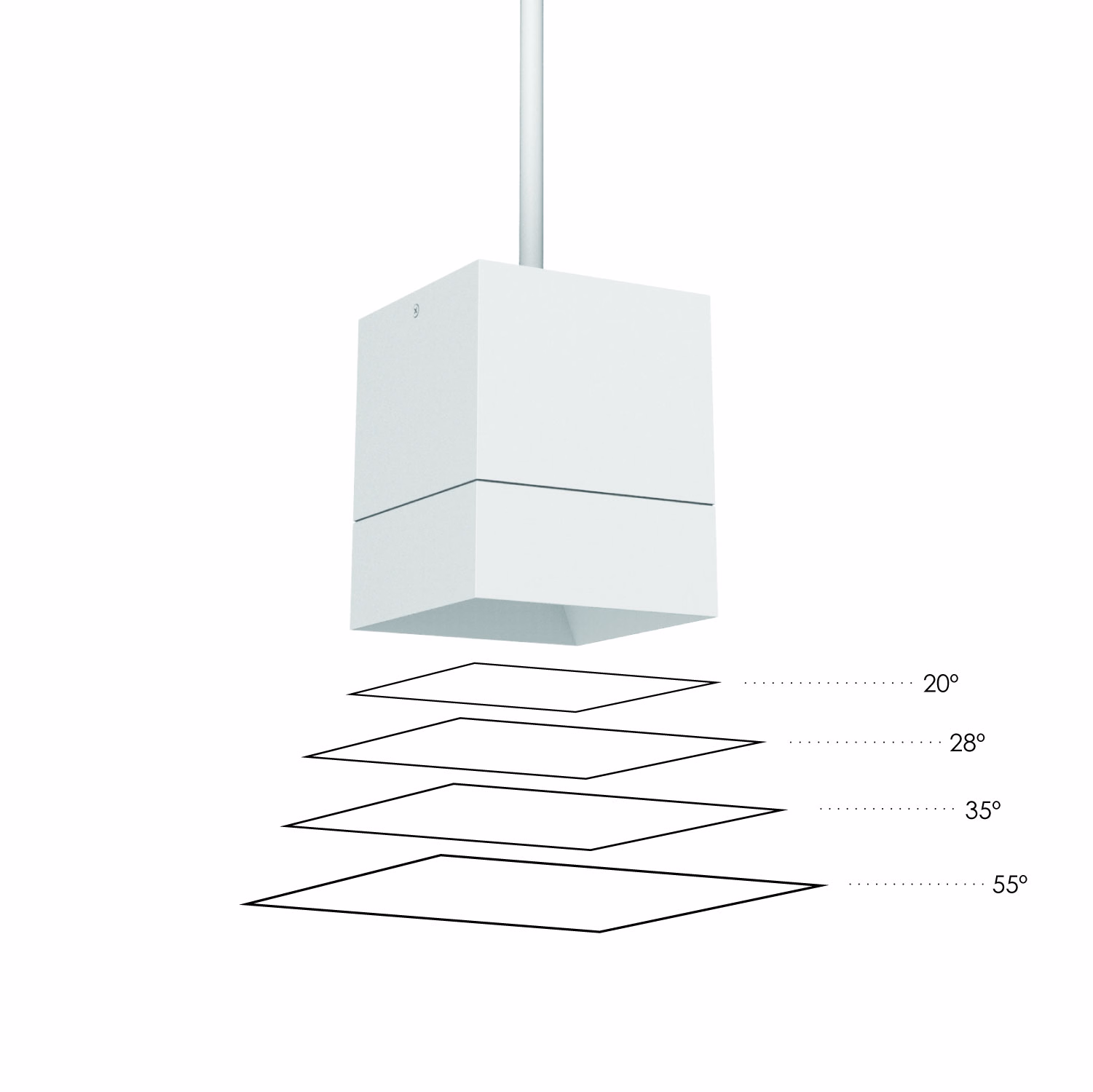

Precision Optics

Precision Optics

Choose from spot, narrow, flood, and wide beam distributions to achieve the desired lighting effect.

Scroll to Explore
Why Specify 01/03
