OUTDOOR FIXTURE

SPLINTER

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 120 LPW at 80CRI

Features & Benefits

MULTIPLE SIZES
Available in 6.5” diameter bore size with height of 35”


PREMIUM MATERIALS AND DESIGN
Aluminum die-cast housing and plate for enhanced thermal heat dissipation and structural integrity.


CORROSION RESISTANT FINISH
Thermoset powder coat finish combined with anti-cracking marine grade corrosion resistant finish to withstand harsh environmental conditions.

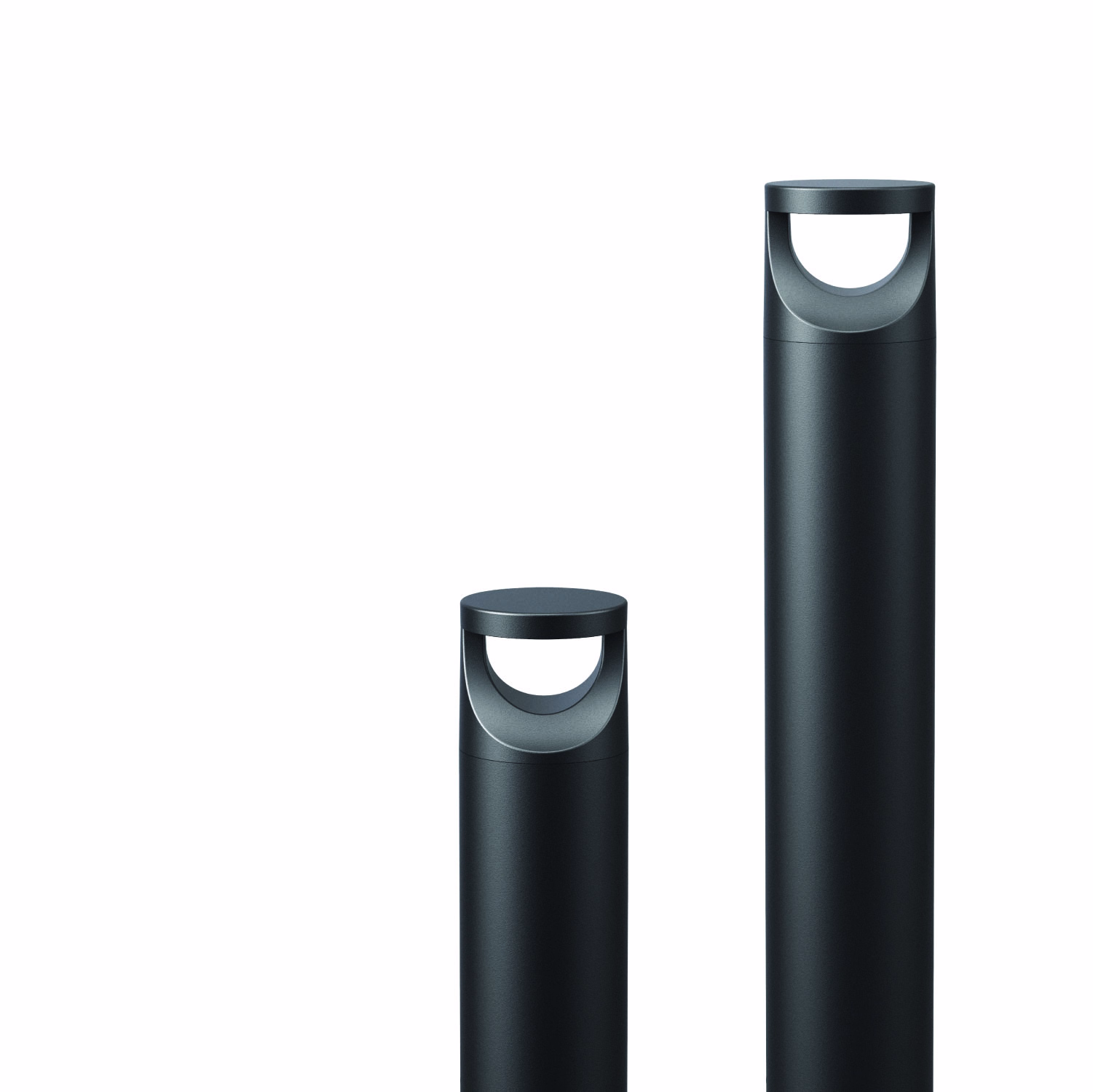

OUTDOOR FEATURES
IP66 and IK10 rated ideal for outdoor applications. Unique aesthetic design helps lighting up your project space.


Description

The SPLINTER bollard is an elegant solution for your outdoor area lighting needs. Its robust and strong materials allow it to withstand the harshest of elements without a scratch. The SPLINTER features an innovative optical system providing illumination to your space while keeping the beam shielded from the eye. Unique “smiley face” design stands out in the environment.

Downloads

Install Instruction SPLINTER

Download

Spec Sheet SPLINTER

Download

IES Files - SPLINTER

Download

Product Configurator

Your Product Code :

AE-OD-ST
POWER
CCT & CRI
HEIGHT
HOUSING & FINISH

Dimensions

6.5 inches

Output

1680lm

2880lm

Color and color temperature

80 CRI

3000K

4000K

5000K

Color Finish

Powder Coat Graphite Black

Optics

T5 distribution

Control

On/Off

0-10V Dimming

Accessories

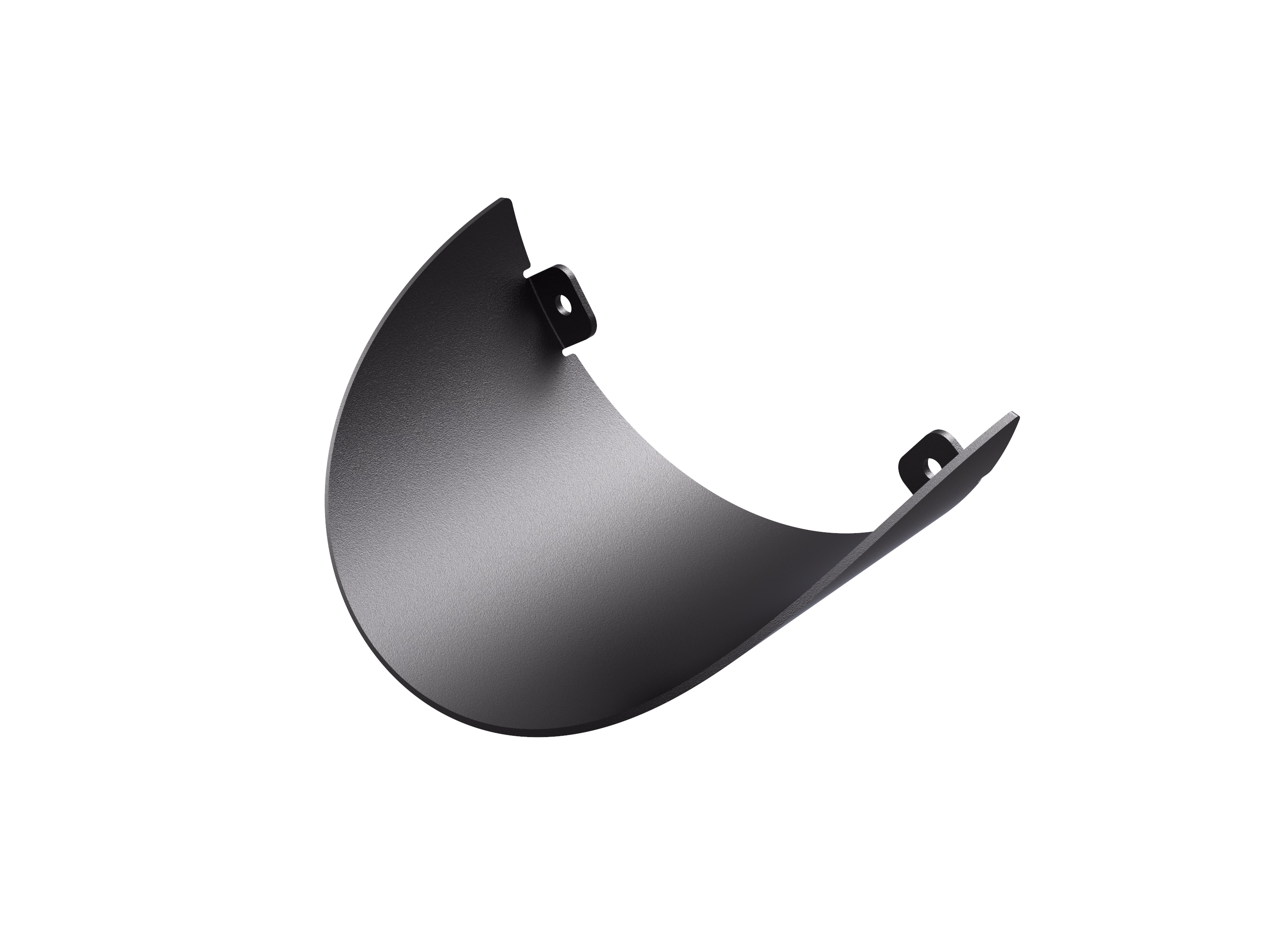

DARK SHIELD

Certifications

5 Year Warranty

ETL Certified

RoHs Certified

IP66

IK10

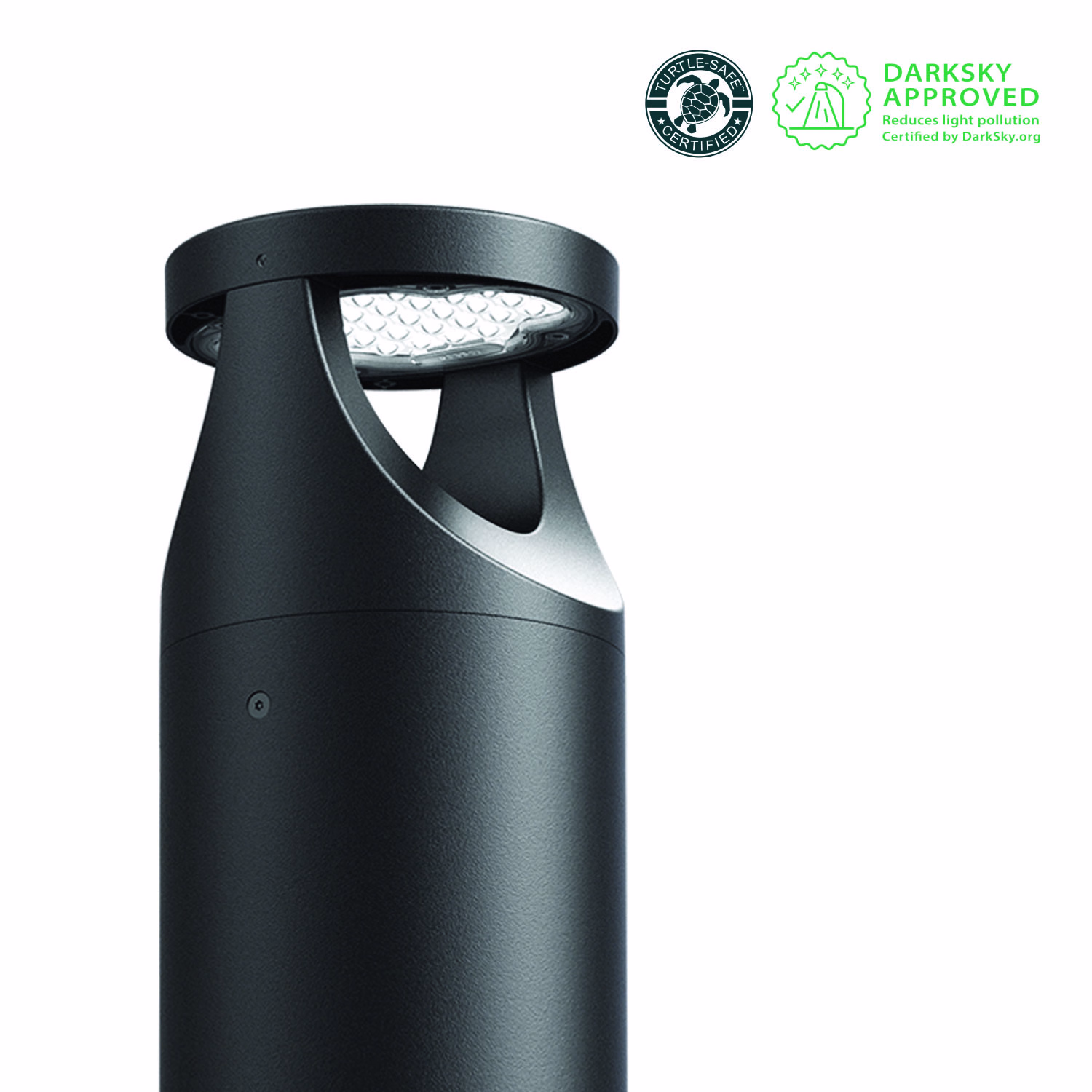

Dark-Sky Certified

Marine Finish
