TRACK FIXTURE

OSIRIS

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : TRIAC DIMMING
Lumens per Watt : 74~92 LPW at 90 CRI
Distribution : Narrow Flood, Flood , Wide Flood

Features & Benefits

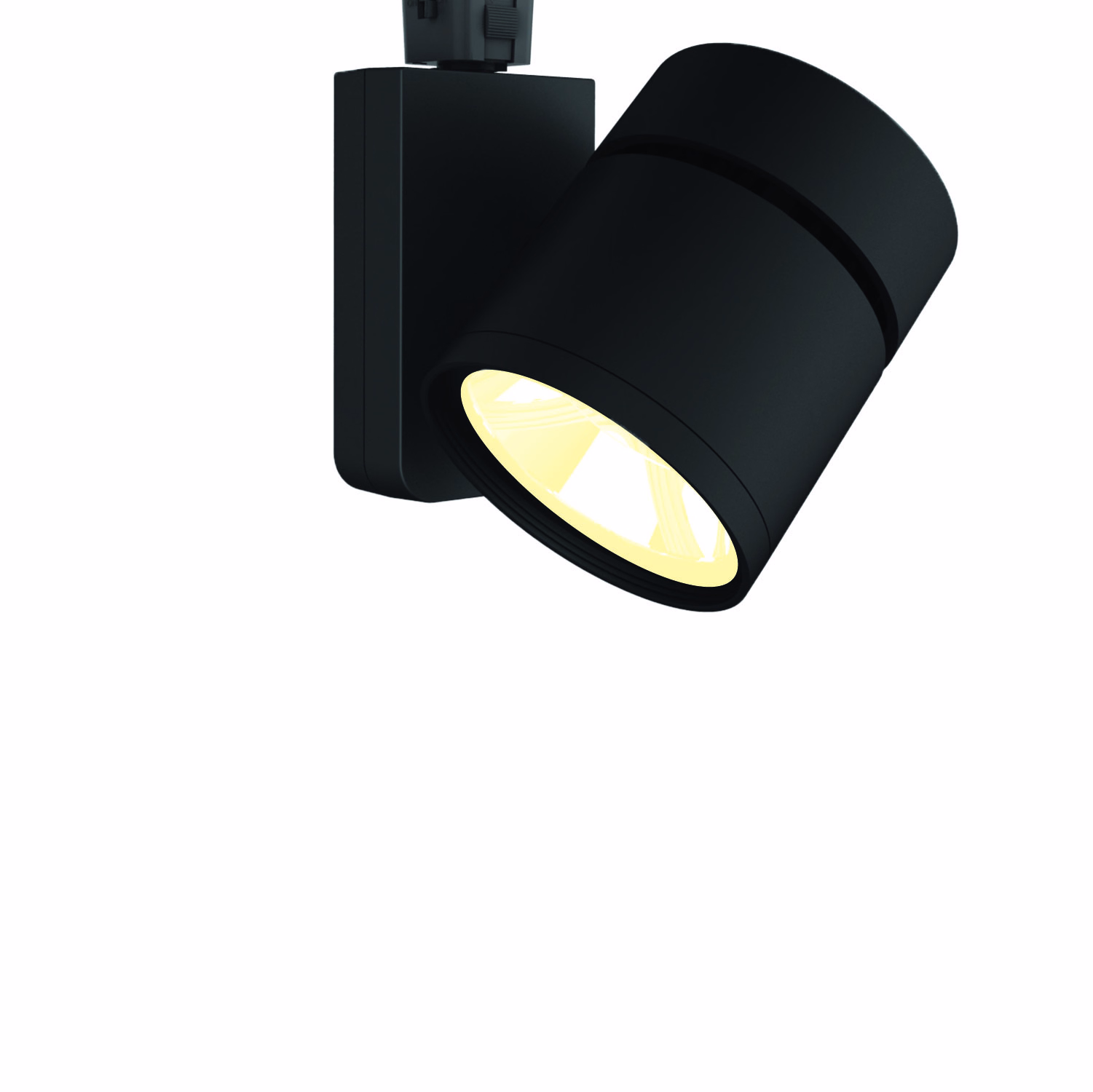

MULTIPLE MOUNTING ADAPTERS
Choose from any of the popular track systems such as Juno, Halo, Lightolier, or Global.


VALUE ENGINEERED DESIGN
Aluminum die-cast materials selected for efficient thermal heat dissipation, enhanced structural rigidity maximizing LED life and driver function.


PAINT FINISH
Factory standard in black, white, and silver. Contact for custom paint finishes to enhance your fixture to suit your project space.

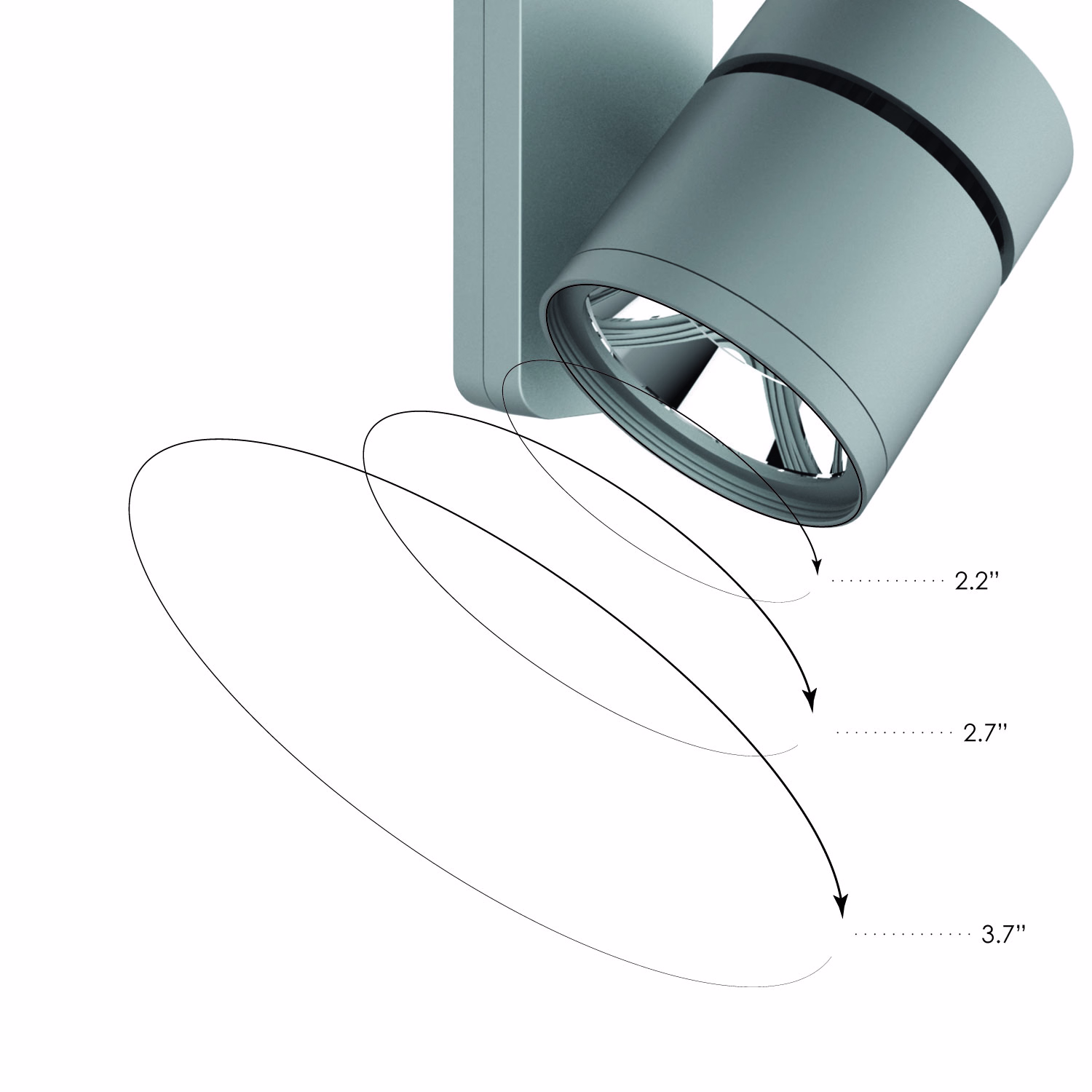

MULTIPLE OPTIONS
Customize your track head by selecting from a variety of beam angle, CCT, and CRI options allowing you to have a unique fixture that suits your project.


ACCESSORIES
Barn doors are also available for the Osiris, allowing one to have better control as to where the light is directed.


Description

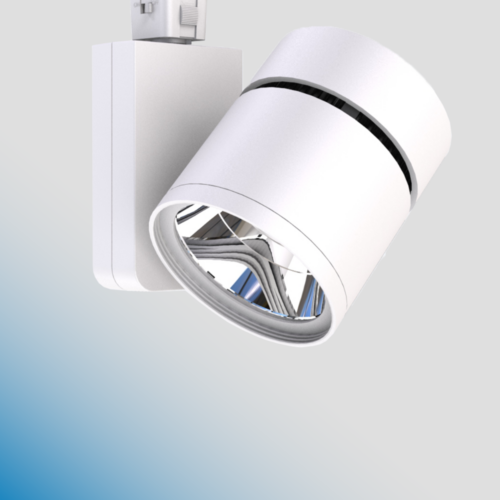

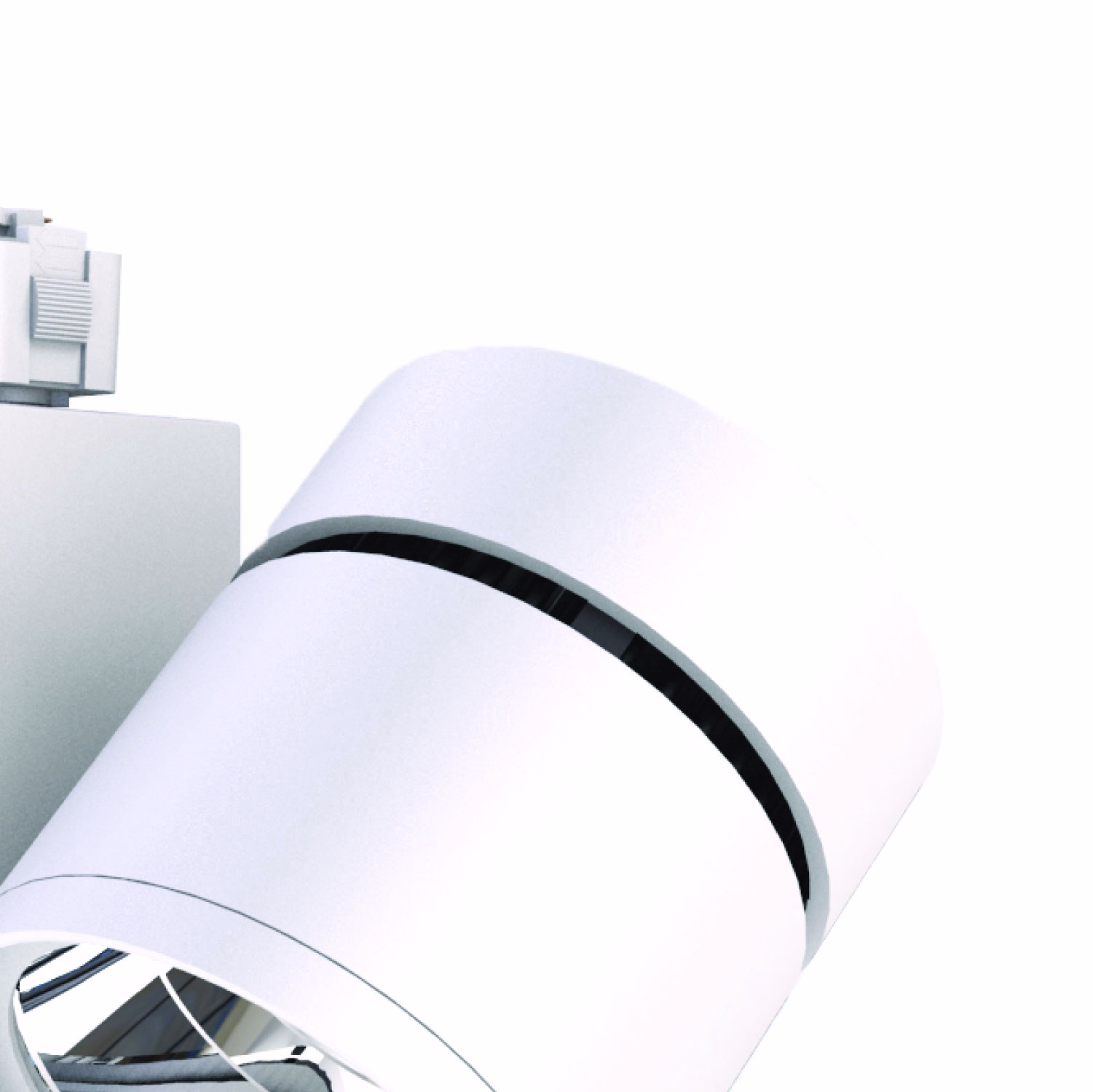

The OSIRIS series features a distinctive look with a smooth heatsink and a vertical driver enclosure. There are three possible lumens packages and three possible beam distributions: narrow flood, flood and wide flood. This product also comes standard at 90 CRI.

Downloads

Install Instruction OSIRIS

Download

Spec Sheet OSIRIS

Download

IES Files OSIRIS

Download

Product Configurator

Your Product Code :

AE-TL-OS
LUMEN
VOLTAGE
DISTRIBUTION
CRI
CCT
ADAPTER
FINISH

Dimensions

2.76 inches

Output

1590lm

2100lm

4430lm

Color and color temperature

90 CRI

2700K

3000K

3500K

4000K

High GAI

Color Finish

White Powder Coat Finish

Silver Powder Coat Finish

Black Powder Coat Finish

Optics

Narrow Flood

Flood

Wide Flood

Control

ON/OFF

TRIAC

Accessories

GES Adapter

Halo Adapter

Juno Adapter

Lightolier Adapter

Barn Door

Certifications

5 Year Warranty

ETL Canada & US

RoHs Certified
