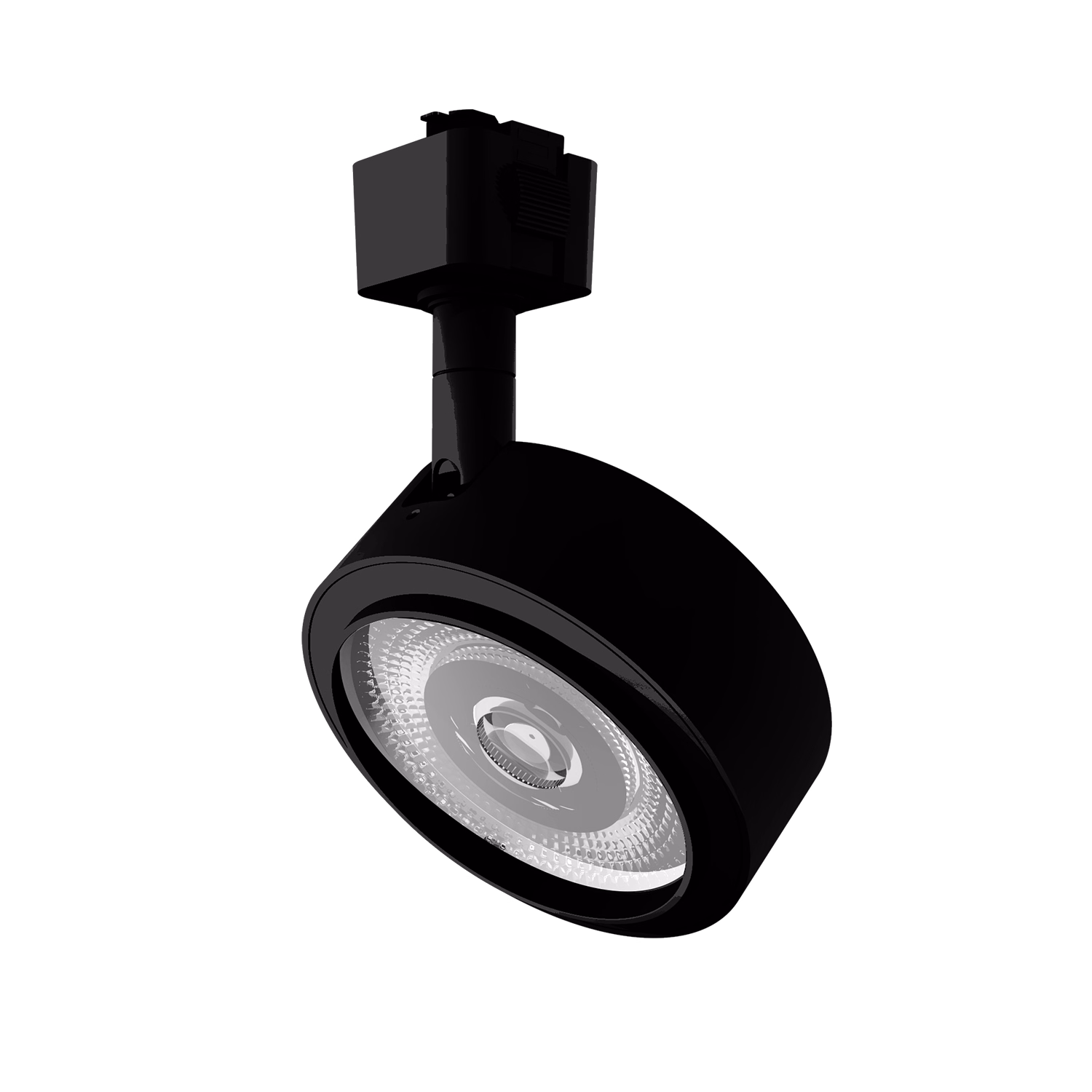

TRACK FIXTURE

MAVEN

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120
Power factor : 0.9
Total harmonic distortion (THD) : <30%
Lumens per Watt : 67~78 LPW at 90CRI
Distribution : Narrow Flood (beam angle 25˚), Flood (beam angle 40˚), Wide Flood (beam angle 65˚)

Features & Benefits

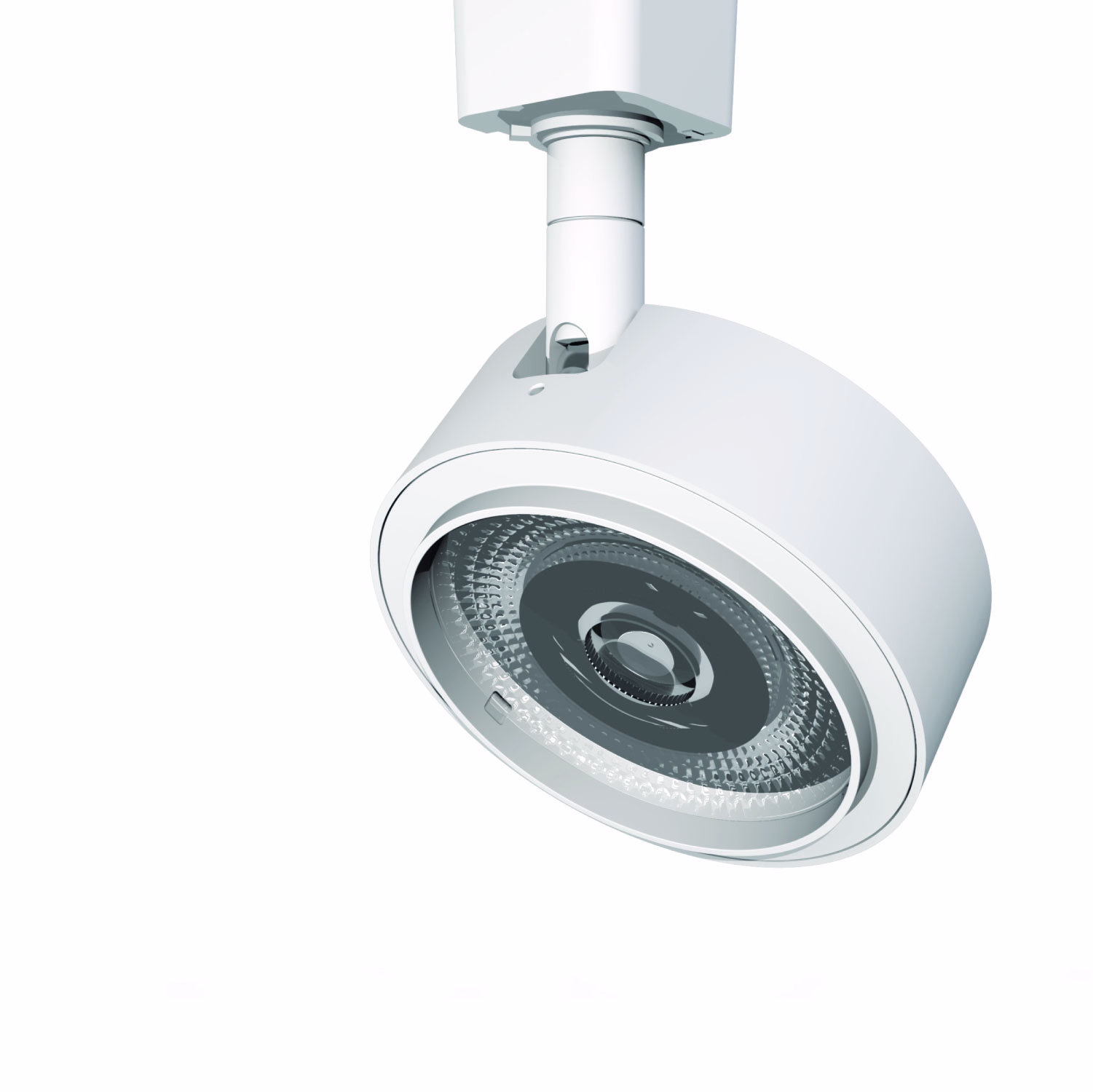

MULTIPLE MOUNTING ADAPTERS
Choose from any of the popular track systems such as Juno, Halo, Lightolier, or Global.


VALUE ENGINEERED DESIGN
Aluminum die-cast materials selected for efficient thermal heat dissipation, enhanced structural rigidity maximizing LED life and driver function.

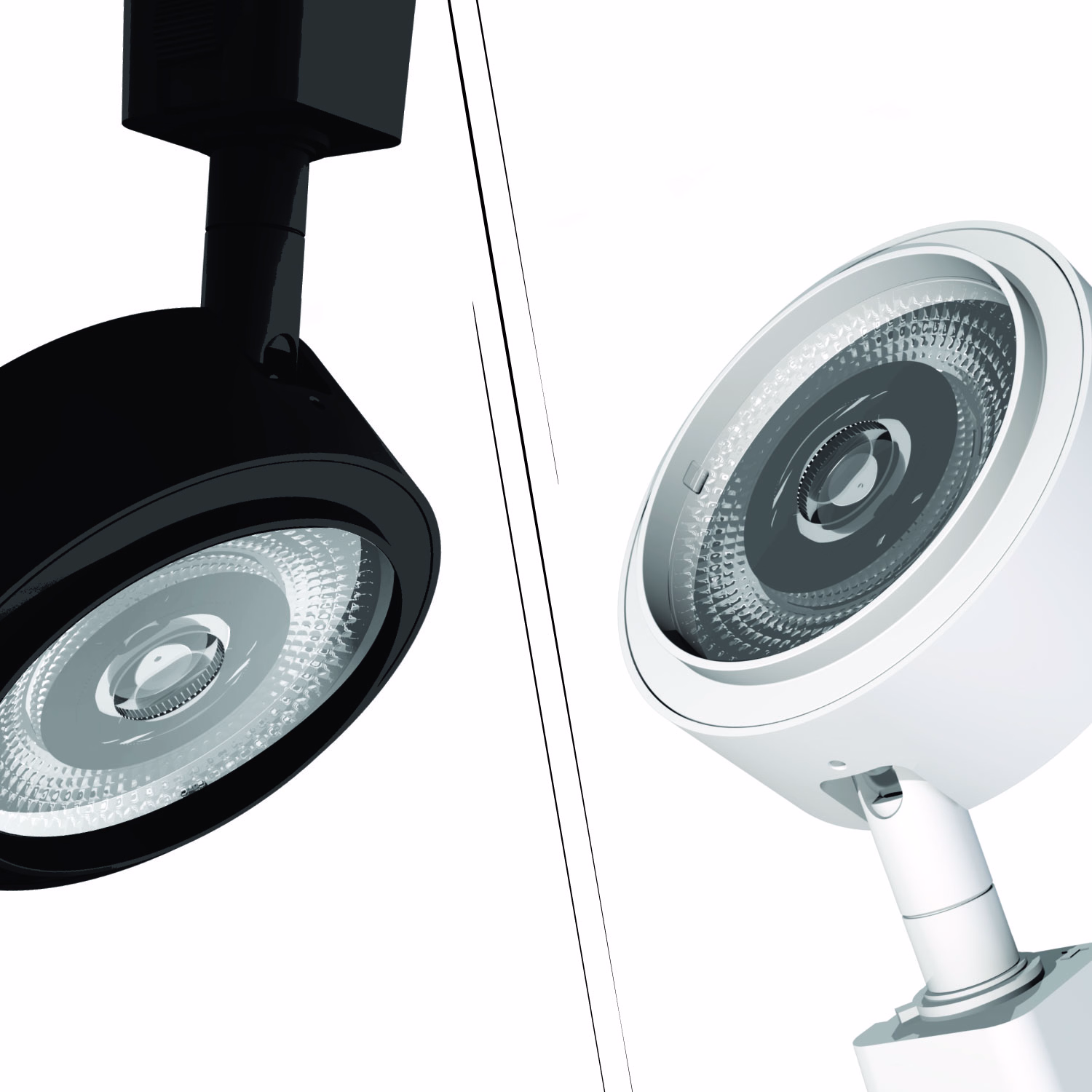

PAINT FINISH
Factory standard in black, white, and silver. Contact for custom paint finishes to enhance your fixture to suit your project space.


MULTIPLE OPTIONS
Customize your track head by selecting from a variety of beam angle, CCT, and CRI options allowing you to have a unique fixture that suits your project.


Description

The Maven tracklight is designed for versatility in any environment while appearing simplistic and timeless. Available in various CCT, and adapter options, MAVEN can mount to pre-existing tracks or be paired with other ERALUX accessories to build a new track system. MAVEN provides an even distribution at various beam angles. The LED head is adjustable for a 355° rotation and can bend up to 90° for a wide range of motion.

Downloads

Install Instruction MAVEN

Download

Spec Sheet MAVEN

Download

IES Files MAVEN

Download

Product Configurator

Your Product Code :

AE-TL-MV
VOLTAGE
DISTRIBUTION
CRI
CCT
ADAPTER
FINISH

Dimensions

3.94 inches

Output

767lm

Color and color temperature

90 CRI

3000K

4000K

Color Finish

White Powder Coat Finish

Silver Powder Coat Finish

Black Powder Coat Finish

Optics

Narrow Flood

Flood

Wide Flood

Control

ON/OFF

Accessories

GES Adapter

Halo Adapter

Juno Adapter

Lightolier Adapter

Certifications

5 Year Warranty

UL Certified

RoHs Certified
