INDOOR CYLINDERS

ELEGANZA

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V dimming and TRIAC
Lumens per Watt : 95 LPW at 90 CRI
Beam angle : 15˚, 30˚, 40˚, 55˚

Features & Benefits

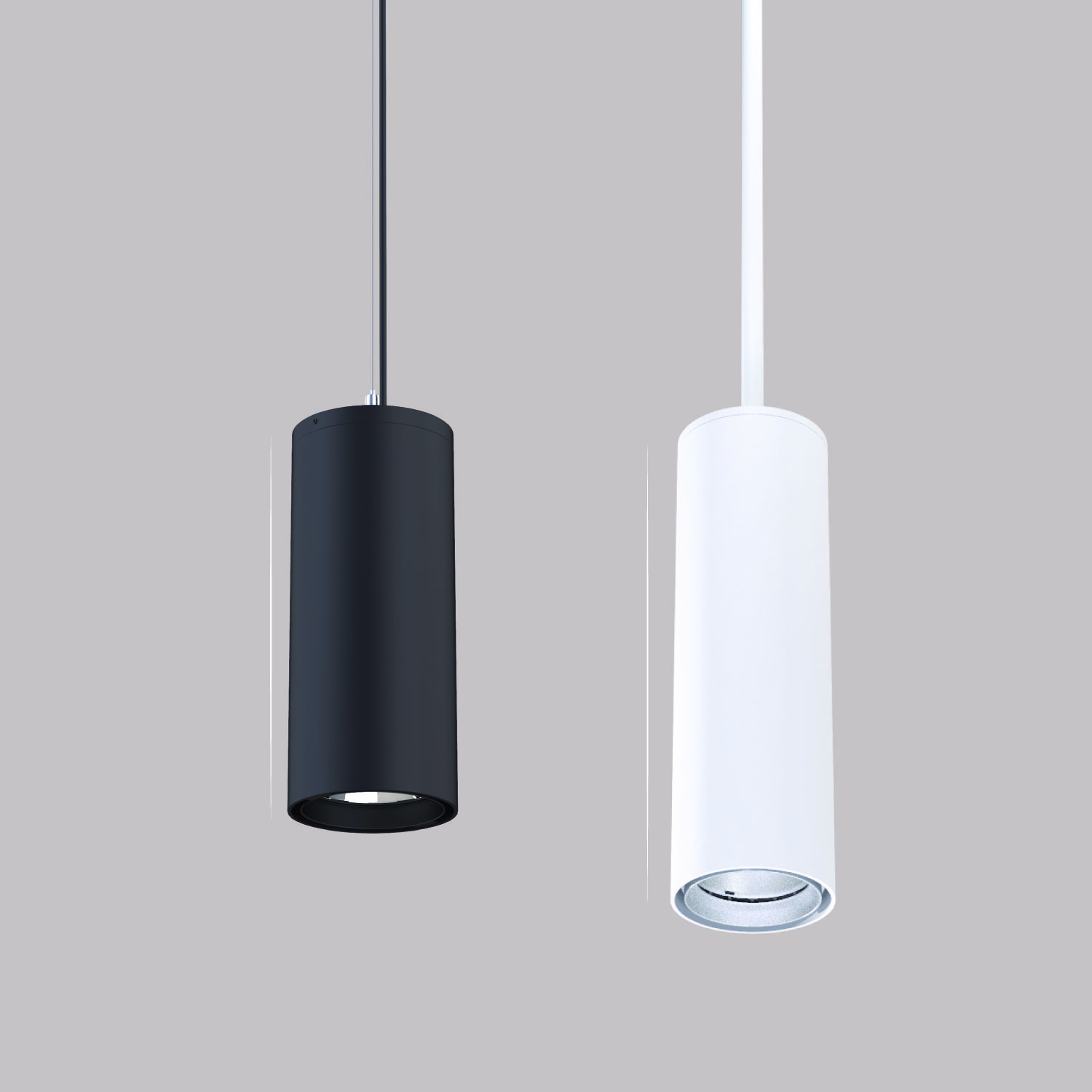

Color Options
Select from standard white, black, and silver or inquire about a custom finish unique for your project.


Unique Fixture

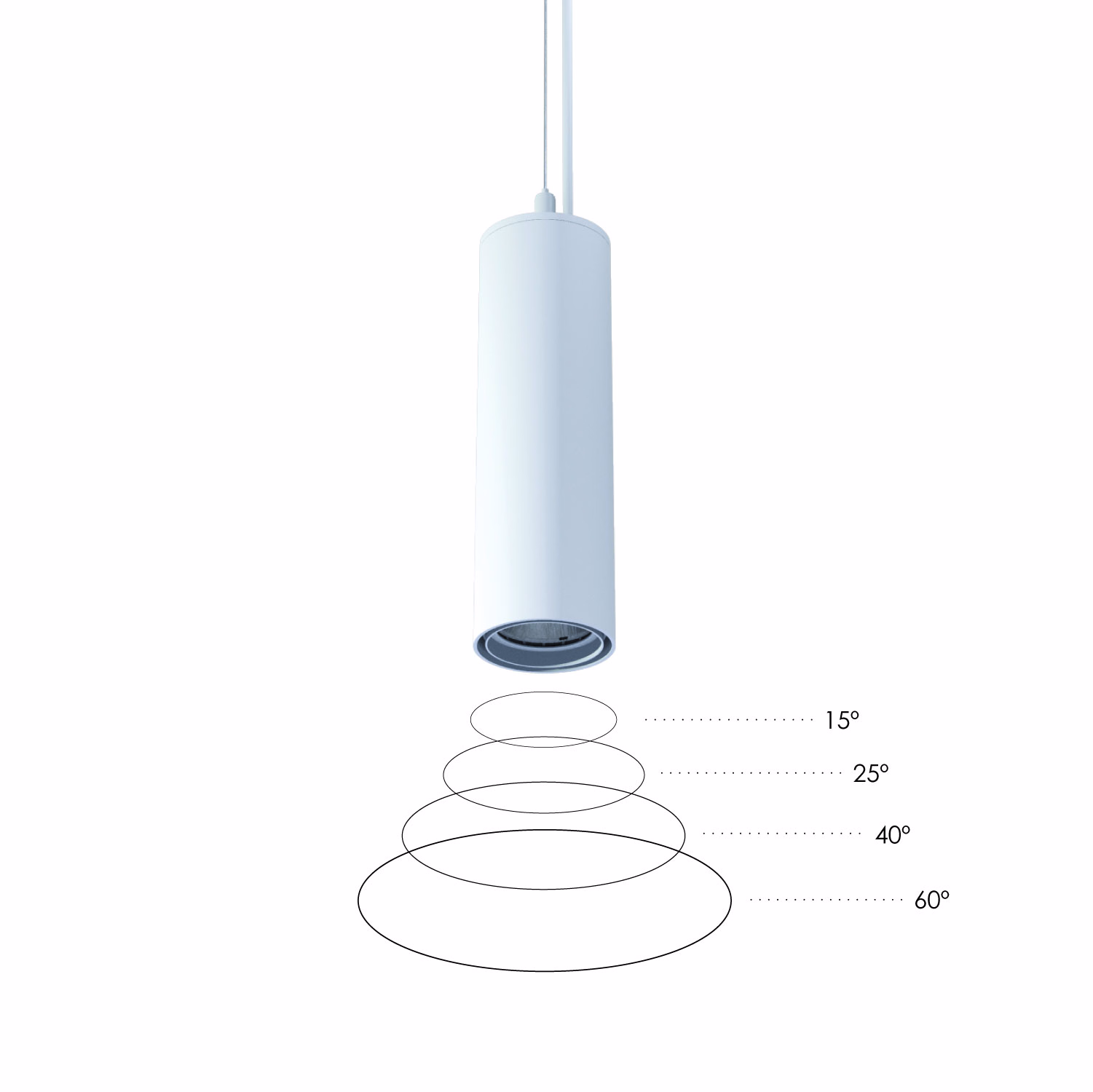

The Eleganza features several beam angles including 15, 30, 40 and 55 degrees.


Premium Materials
Constructed from aluminum diecast for excellent fixture structure strength, and for superior thermal heat management, all ensuring long-lasting LED and driver function.

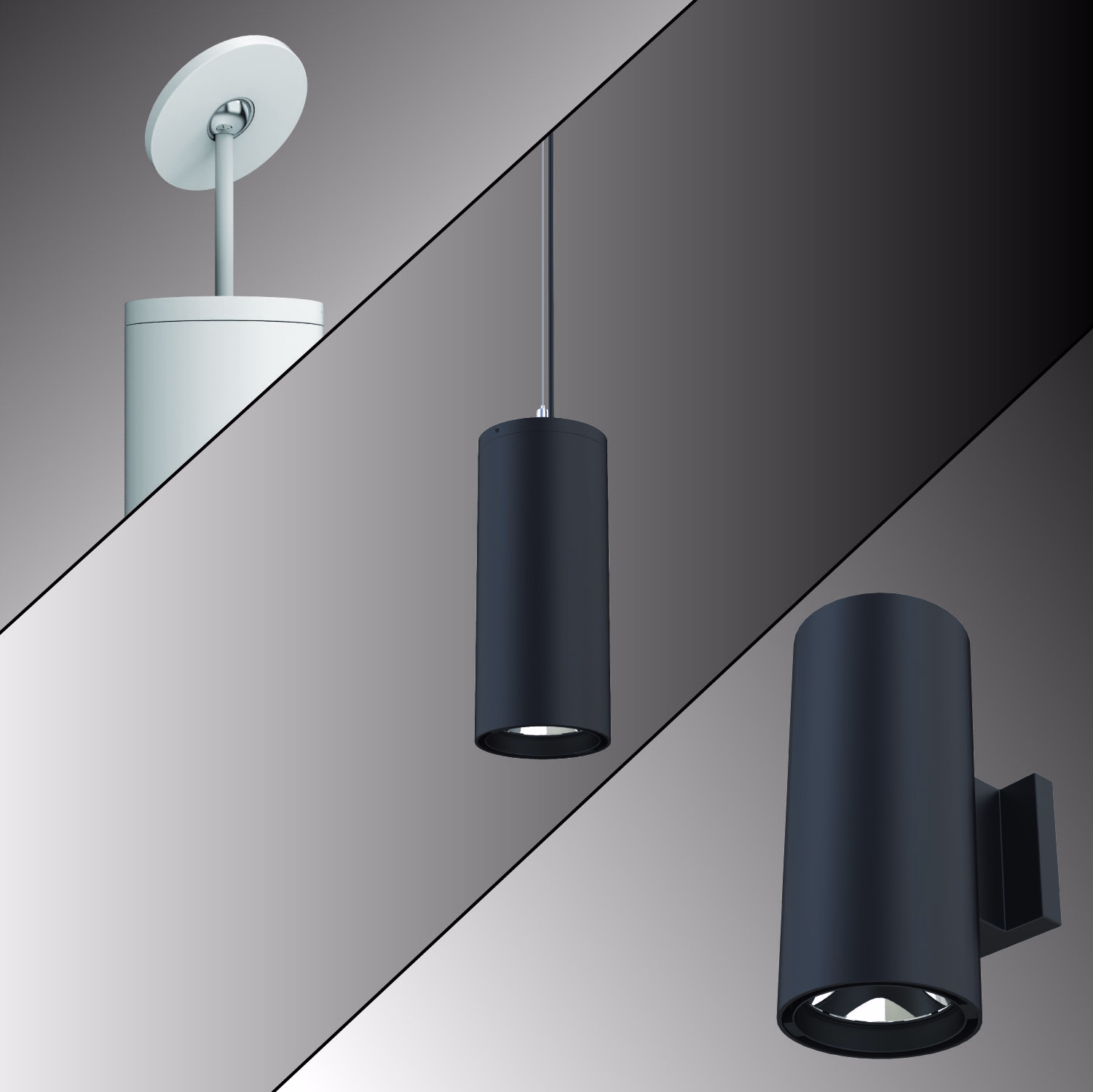

Multiple Mounting Methods
Select from multiple mounting styles including surface, wall, cable, and stem mount.


Description

The ELEGANZA series is a beautiful and elegant solution for open ceilings, and it has a distinctive design featuring machined aluminum body, attention to details including the installation process. The ELEGANZA also has an impressive LPW providing performance as well as elegance in the install environment. Finally, this product is a complete aluminum die cast offering an unparalleled sense of finesse, robustness and quality. It comes in various mounting options such as wall mount, surface mount, pendant and cord stem mount.

Downloads

Install Instruction ELEGANZA

Download

Spec Sheet ELEGANZA

Download

ELEGANZA IES Files

Download

ELEGANZA BROCHURE

Download

Product Configurator

Your Product Code :

AE-TL-EZ-40R
HEIGHT
MOUNTING METHOD
POWER
CCT
BEAM
CRI
FINISH

Dimensions

5 inches

Output

1900lm

2400lm

Color and color temperature

90 CRI

2700K

3000K

3500K

4000K

Color Finish

Atomic Black Finish

Nebula White Finish

Silver Finish

RAL 6032 Signal Green

RAL 6027 Light Green

RAL 6005 Moss Green

RAL 5003 Sapphire Blue

RAL 7001 Silver Grey

RAL 7033 Cement Grey

RAL 7038 Agate Grey

RAL 9001 Cream

RAL 9006 Silver

RAL 7040 Window Grey

RAL 1015 Light Ivory

RAL 2012 Salmon Orange

RAL 3031 Orient Red

RAL 8024 Beige Brown

RAL 9003 Signal White

RAL 9007 Grey Aluminum

RAL 9022 Light Pearl Grey

RAL 7011 Iron Grey/Gun Powder

RAL 9004 Signal Black

Custom Color

Optics

Downlight

15 Degrees

30 Degrees

40 Degrees

55 Degrees

Control

On/Off

0-10V Dimming

TRIAC Dimming

ELV Dimming

Accessories

Cable Mount

Stem Mount

Wall Mount

Certifications

5 Year Warranty

UL Certified

RoHs Certified

JA8 Certified
