OPERATIONS & ELECTRICAL
Input voltage : 120Vac
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : Triac dimming
Lumens per Watt : 75 LPW at 80CRI
Beam angle : 110˚
DESCRIPTION

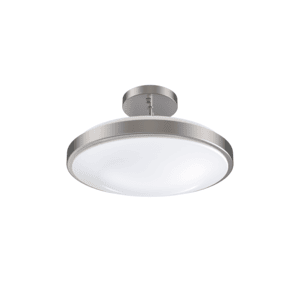

The RING Series is the preferred solution for residences with a light source that provides a seamless transitions to various spaces. It comes in several wattage options as in the 16, 20 and 25W and various CCT options of 3000, 4000 and 5000K CCT. It also enables a rapid transition from incumbent technologies with its triac dimming capabilities.
ORDERING CODE
| FIXTURE FAMILY | SHAPE & SIZE | POWER | CRI & CCT | GENERATION | CONTROLS |
|---|---|---|---|---|---|
| AE-DL-RG ERALUX Ring Series surface mounted downlight | -A11 11” round & 3.3” in height | -16 16 watts: 1,200 lumens | -830 3000K CCT | 01 1st generation surface mounted Ring commercial downlight Energy Star certified for superior efficacy standards | -A1D Triac Dimming |
| -A13 13” round & 3.3” in height | -20 20 watts: 1,500 lumens | -835 3500K CCT | |||
| -A15 15” round & 3.3” in height | -25 25 watts: 1,875 lumens | -840 4000K CCT |
