OUTDOOR FIXTURE

MICHELANGELO

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~240V & 120~277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 40 LPW at 120~240V & 61 LPW at 120~277V at 80CRI

Features & Benefits

MULTIPLE SIZES
Available in 6" and 8" diameter bore sizes, with heights of 33" and 44" depending on the lumen package selected.

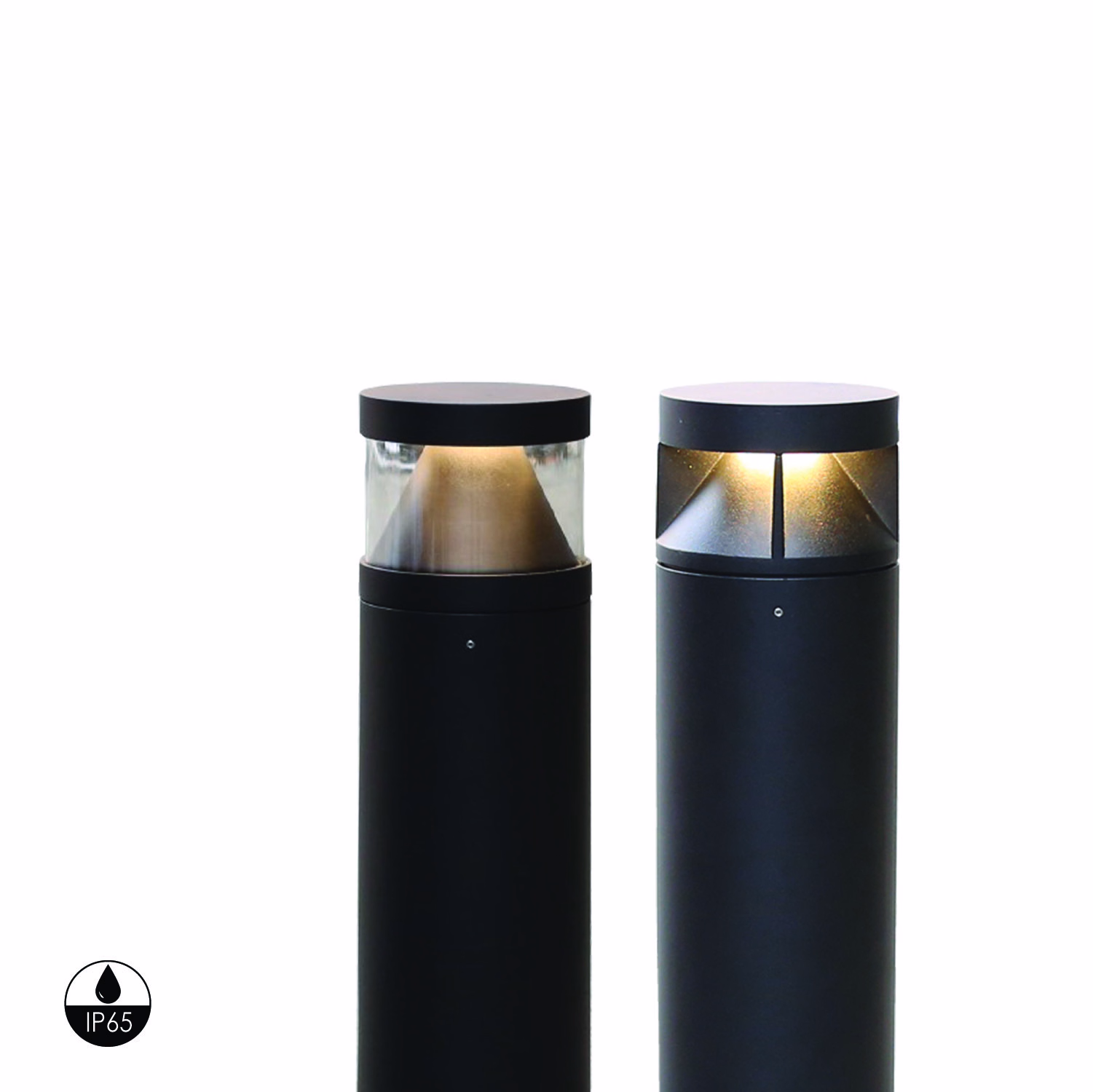

PREMIUM MATERIALS AND DESIGN
Aluminum die-cast housing and plate for enhanced thermal heat dissipation and structural integrity.


CORROSION RESISTANT FINISH
Thermoset powder coat finish combined with anti-cracking marine grade corrosion resistant finish to withstand harsh environmental conditions.


OPTICAL GLASS

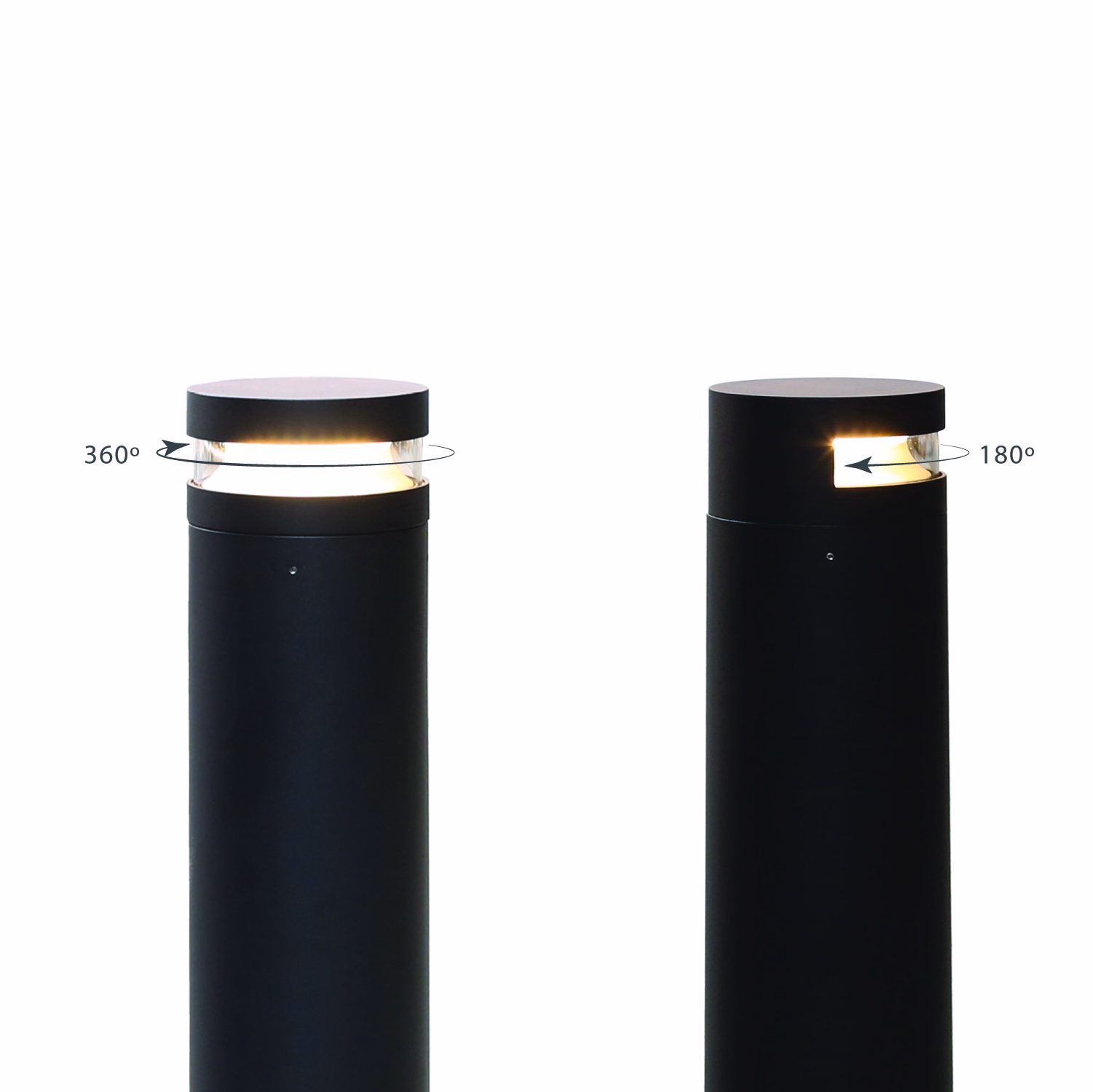

360-degree optical polymer.


Description

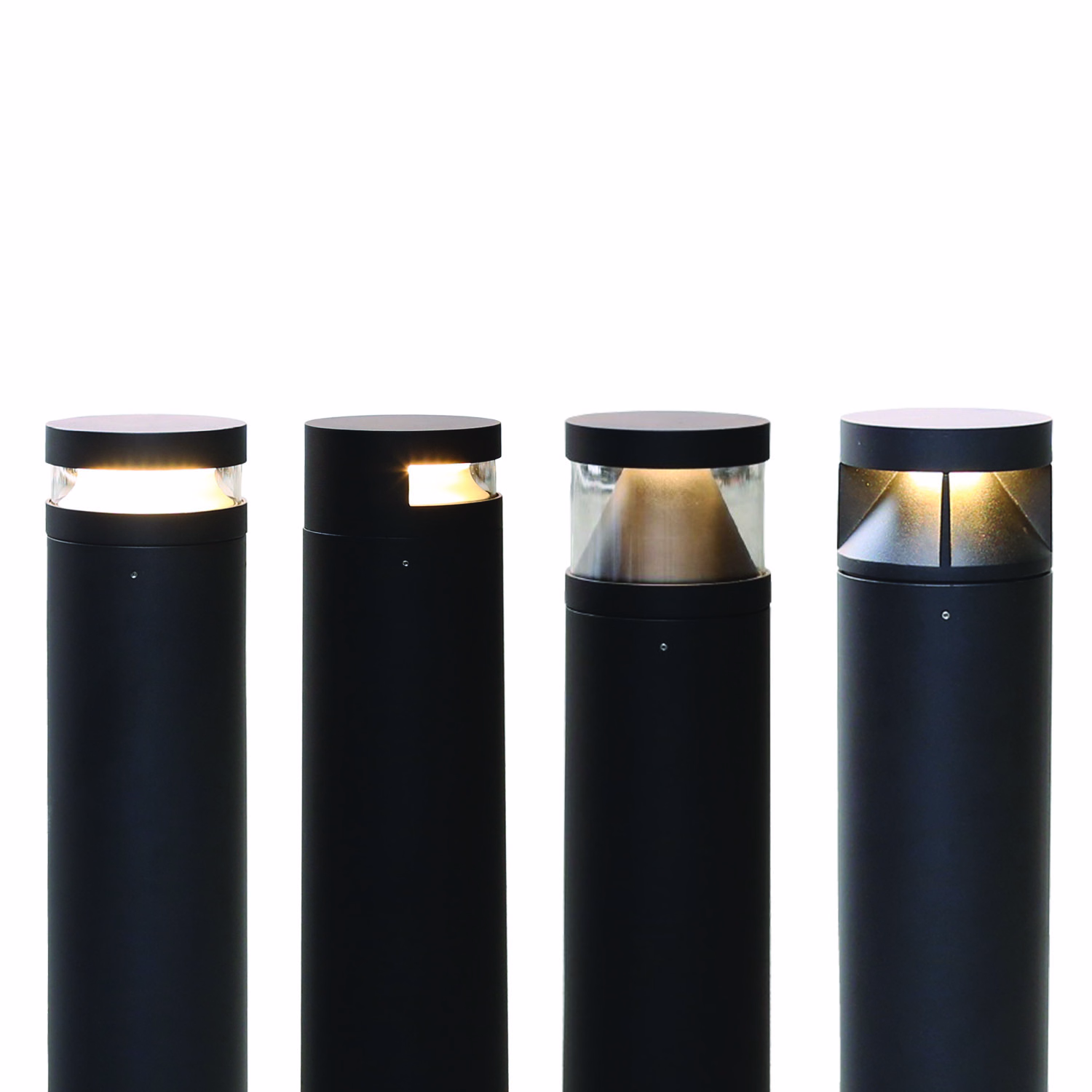

The MICHELANGELO bollard is an elegant solution for your outdoor area lighting needs. Its robust and strong materials allow it to withstand the harshest of elements without a scratch. The Michelangelo features an innovative optical system providing illumination to your space while keeping the beam shielded from the eye.

Downloads

Install Instruction MICHELANGELO

Download

Spec Sheet MICHELANGELO

Download

IES Files - MICHELANGELO

Download

Product Configurator

Your Product Code :

AE-OD-ML
POWER & SIZE
CCT
CRI
HOUSING & FINISH

Dimensions

6 inches

8 inches

Output

400lm

1225lm

1960lm

Color and color temperature

80 CRI

3000K

4000K

5000K

Color Finish

RAL 9006 Silver

Nebula White

Powder Coat Graphite Black

Powder Coat Mineral Bronze

Optics

T5 distribution

Control

On/Off

0-10V Dimming

Certifications

5 Year Warranty

ETL Certified

RoHs Certified

width=

IP65

Marine Finish
