PAGO
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 120-347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V Dimming
Lumens per watt : 150 LPW at 80CRI
Distribution : TYPE 3, TYPE 4
Features & Benefits
SELECTIVITY

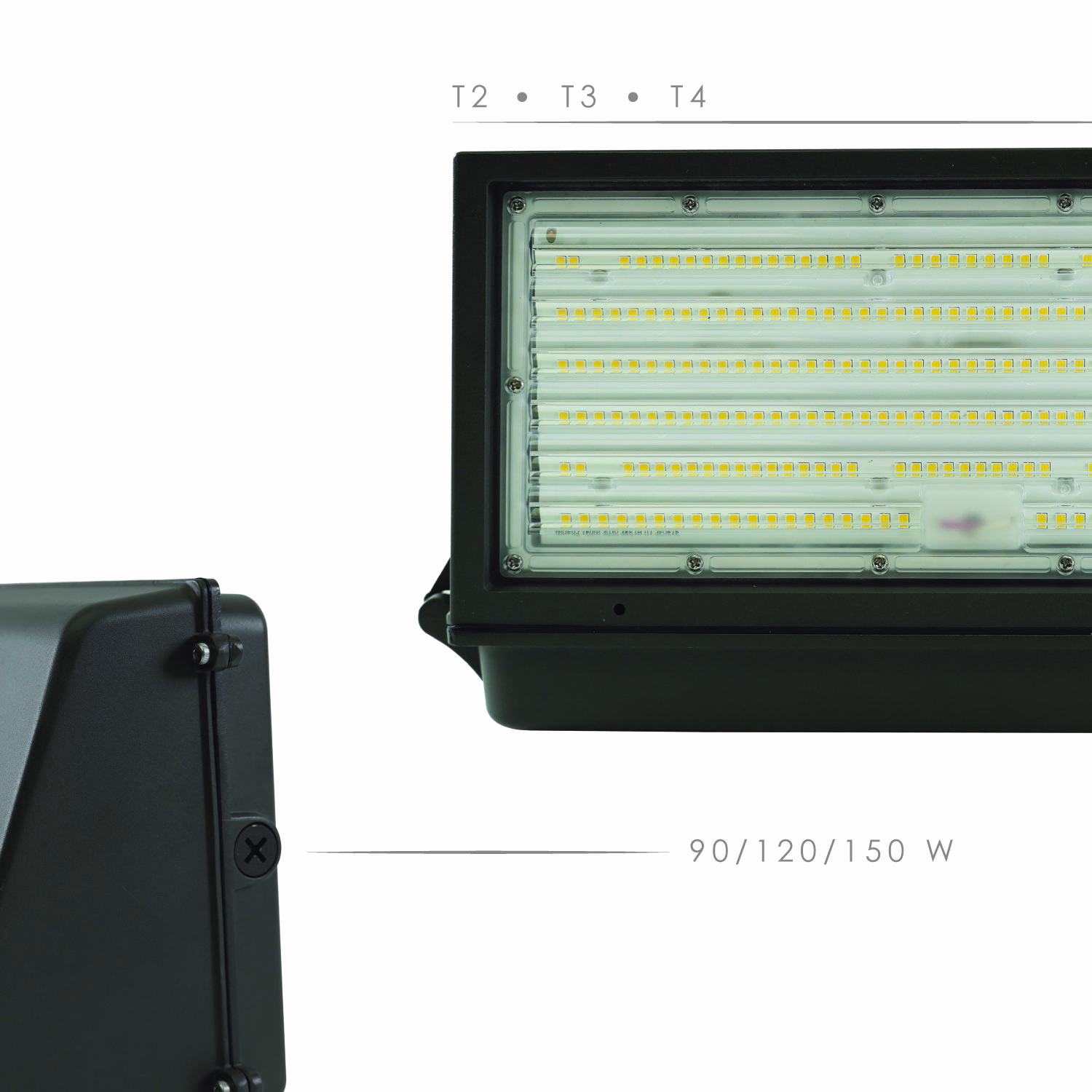

With selectable on field power, this fixture enables you to customize your unique fixture to your project space.
FINISH
Two different colors, Black or Bronze coating finishes will demonstrate a sleek look to buildings.
SPECIAL DISTRIBUTION
The Pago series offers a type 3 or type 4 light distribution to brighten up buildings, entrances, pathways and parking spaces.
PROTECTION
Integrated surge protection (6kV), IK07 rated, LED fixture and driver IP65 rated all allows for protection against harsh environmental conditions.
WEDGE MODERN DESIGN

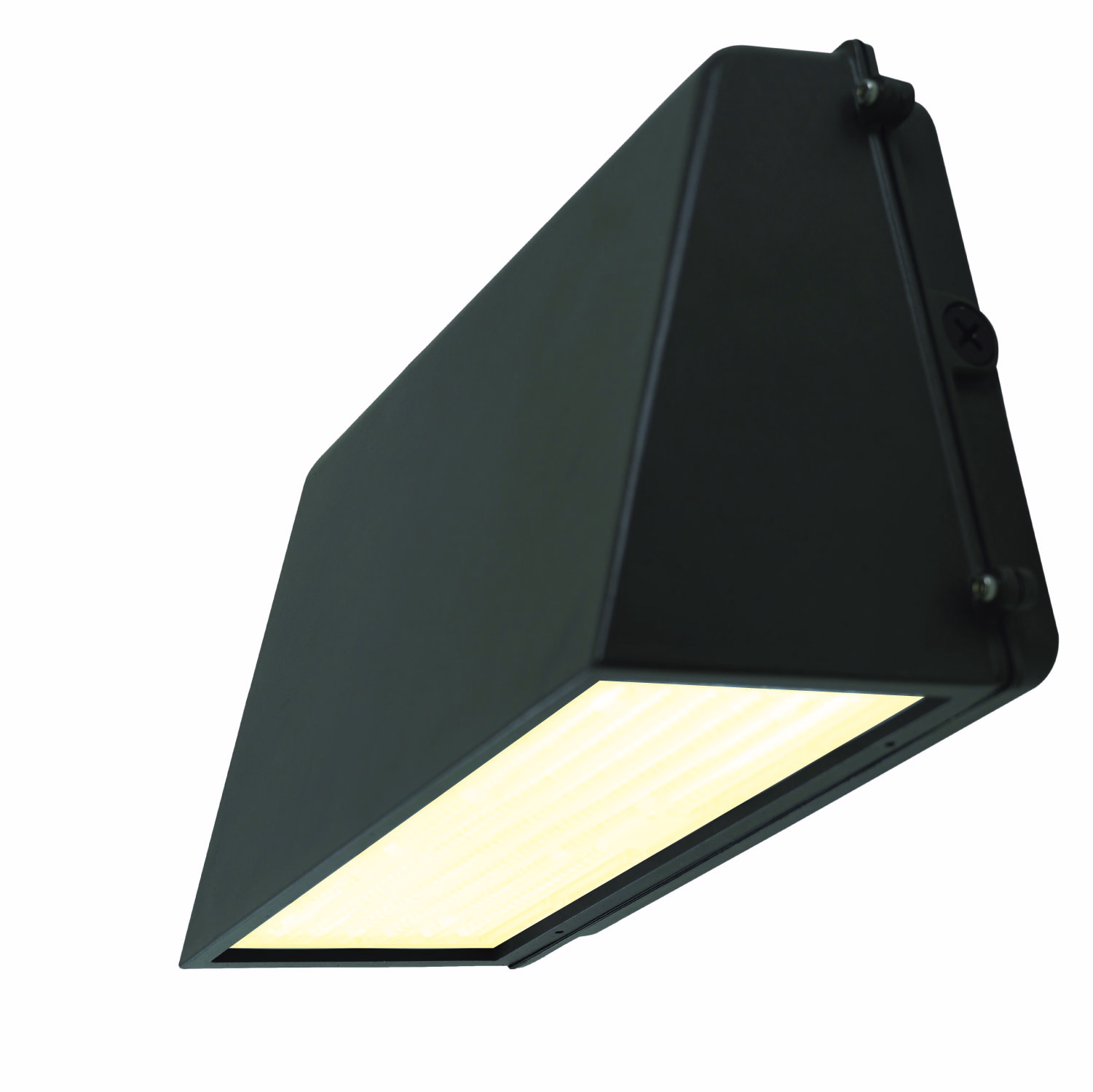

The Pago provides higher power and lumens than all other wall pack types all while keeping wedge modern design.
Description
The Pago series comes in a smooth matte design offering a high power and lumens to any dark outdoor spaces. Its IP65 offers great protection to outdoor environments, making it suitable to be wall mounted above garages, warehouse facades and more.
Downloads
Product Configurator
Your Product Code :
Output
13500/18000/22500lm
Color and color temperature
80 CRI
4000K
5000K
Power Switchable
Color Finish
Bronze Finish
Black Finish
Control
On/Off
0-10V Dimming
Photocell
Motion Sensor
6kV Surge Protector

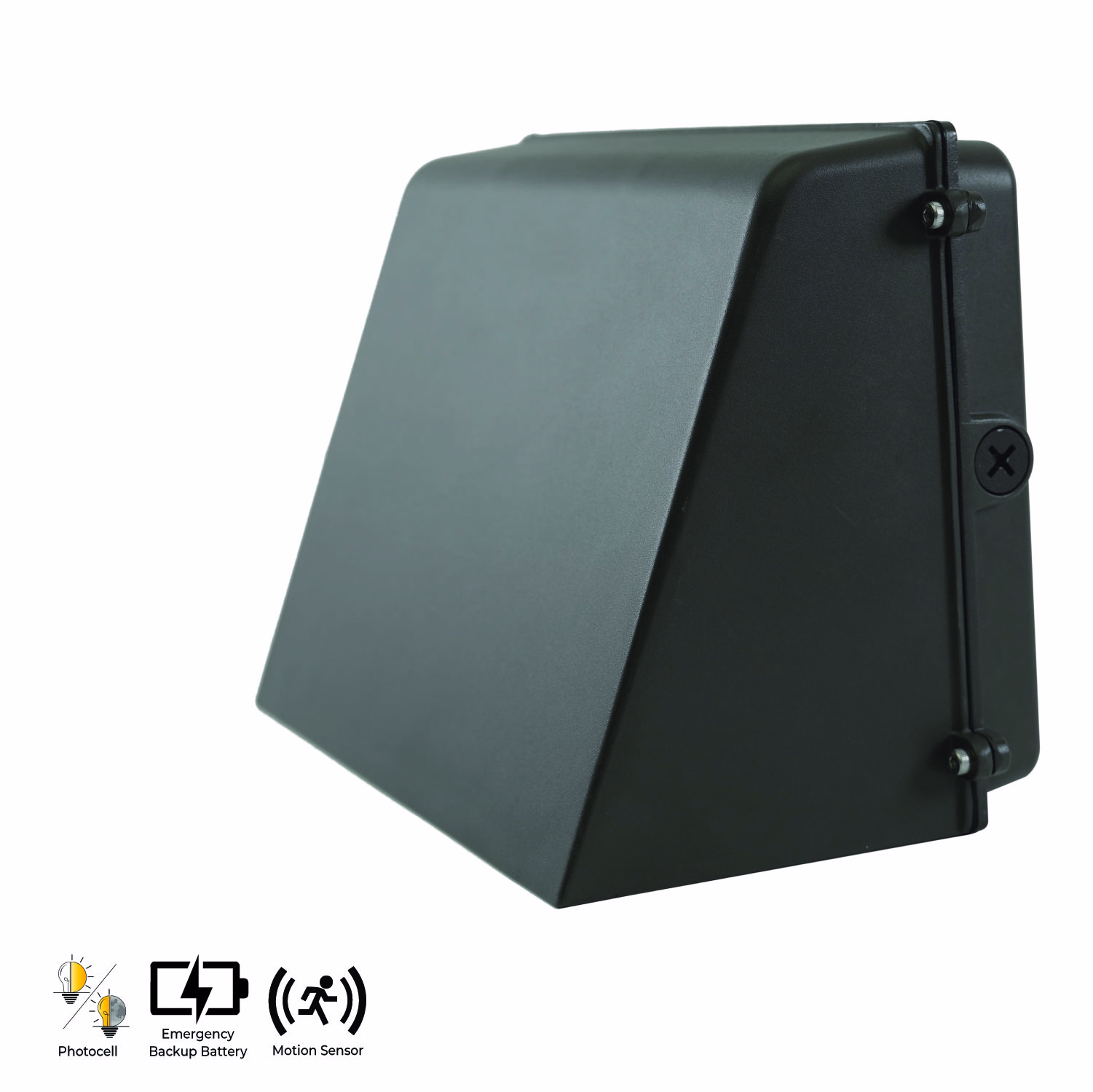

Accessories
Emergency Backup Battery
Photocell
Motion Sensor
Motion Sensor/Photocell Arm
Certifications
5 Year Warranty
ETL Certified
RoHs Certified
IP65
