Eleganza Max
OPERATIONS & ELECTRICAL
Input voltage : 120-277Vac
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : Tri Mode Dimming™ (TRIAC, ELV & 0-10 V)
Lumens per Watt : 73 LPW at 90CRI
Beam angle : 15˚, 30˚, 40˚, 55˚
DESCRIPTION

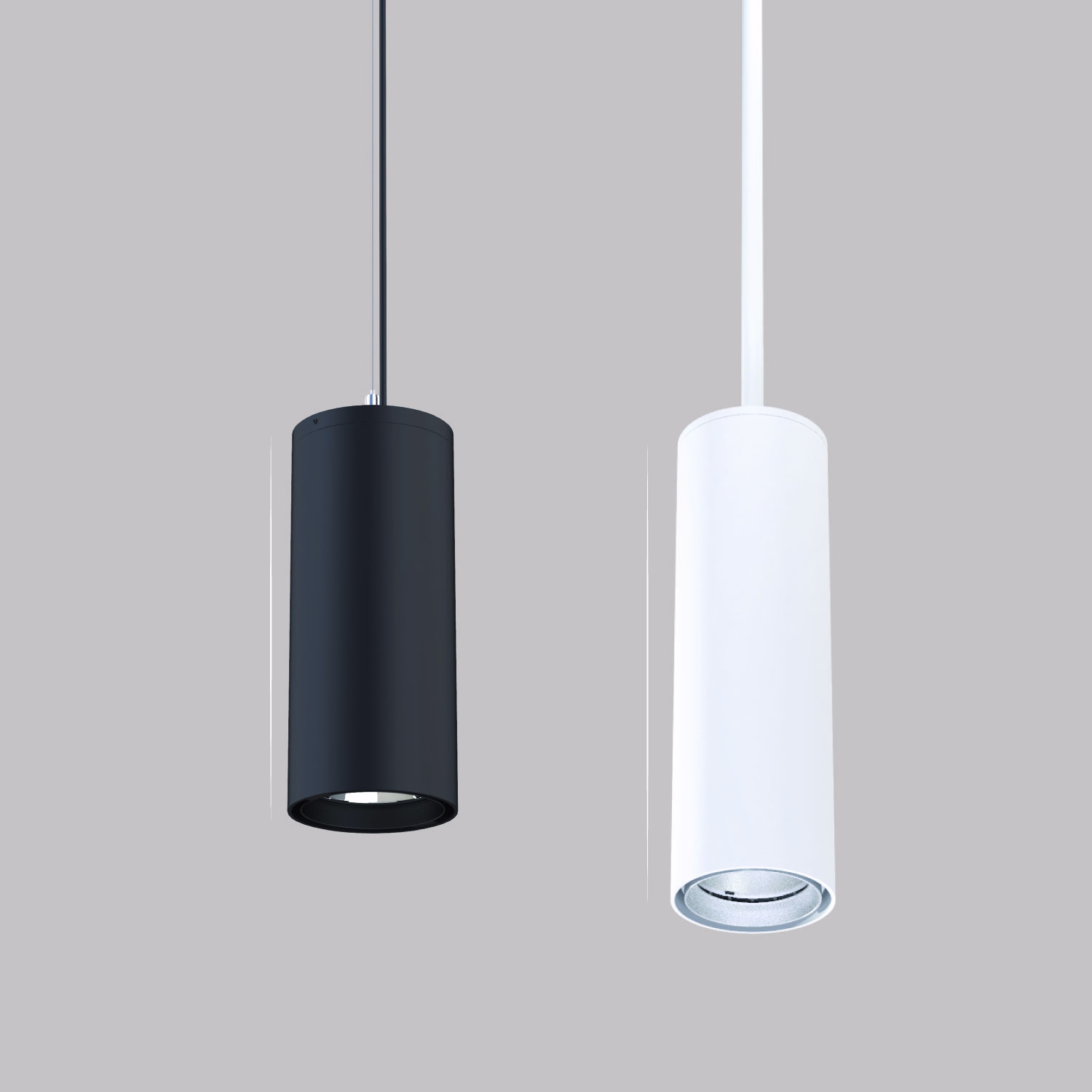

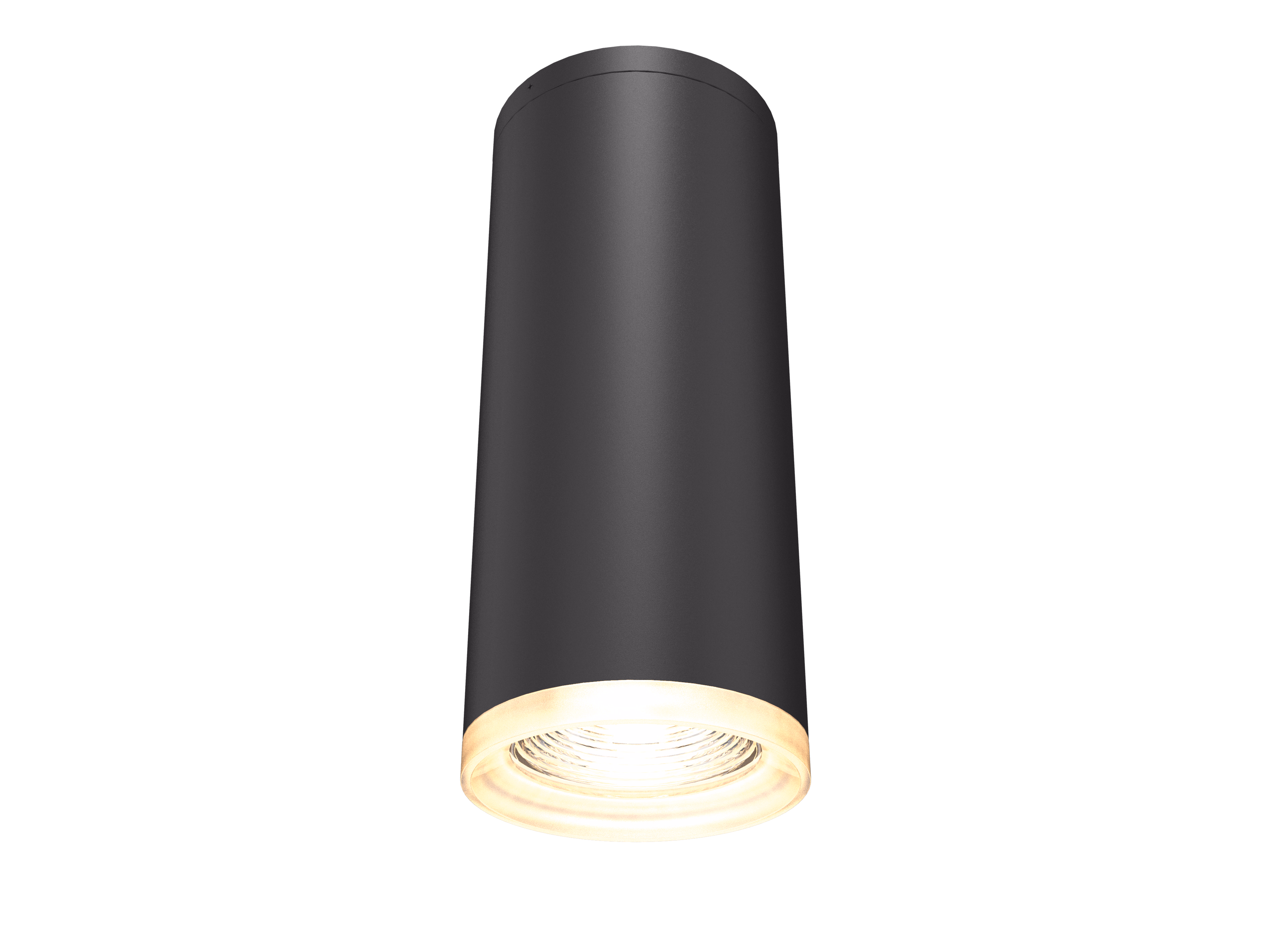

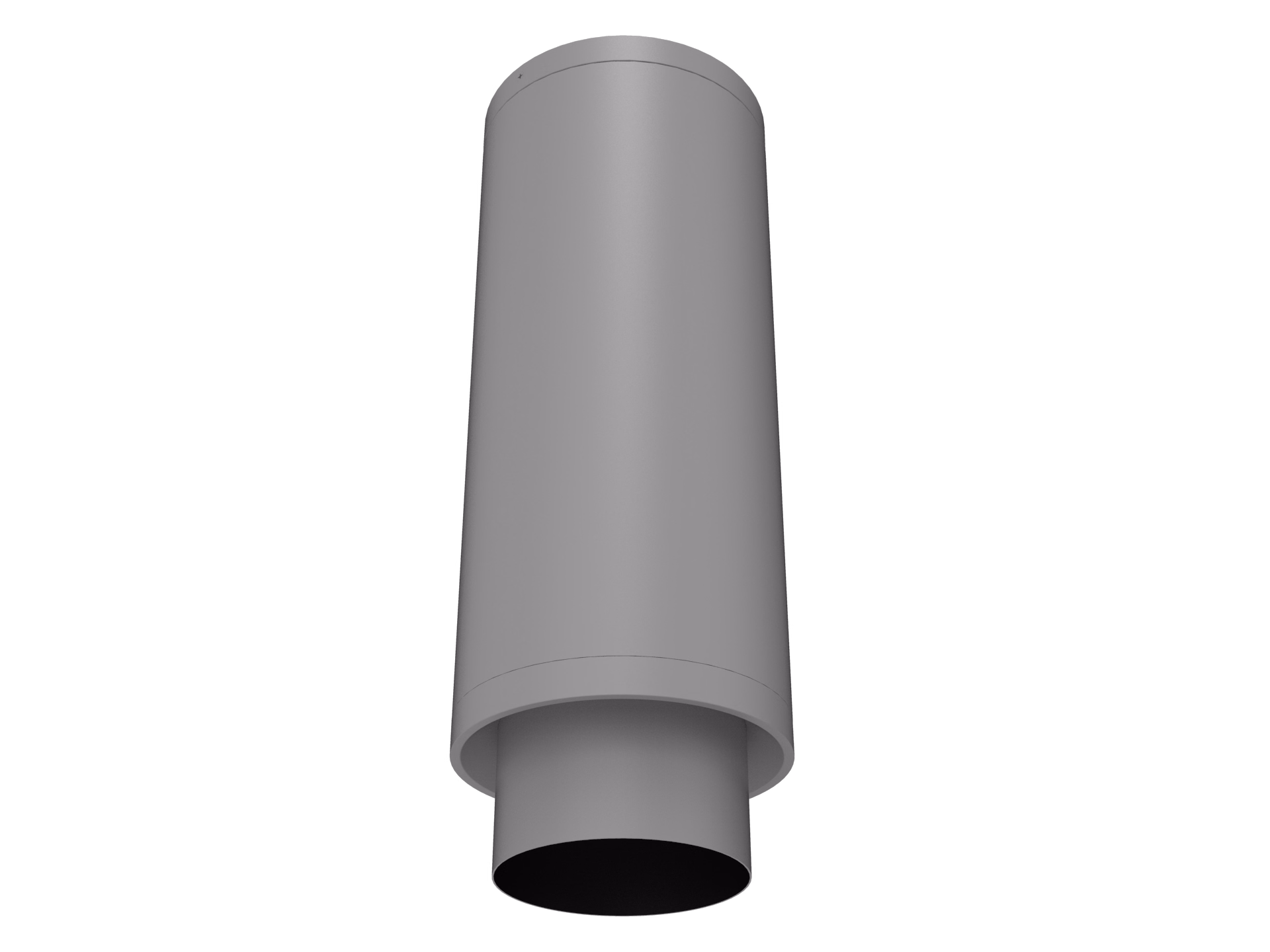

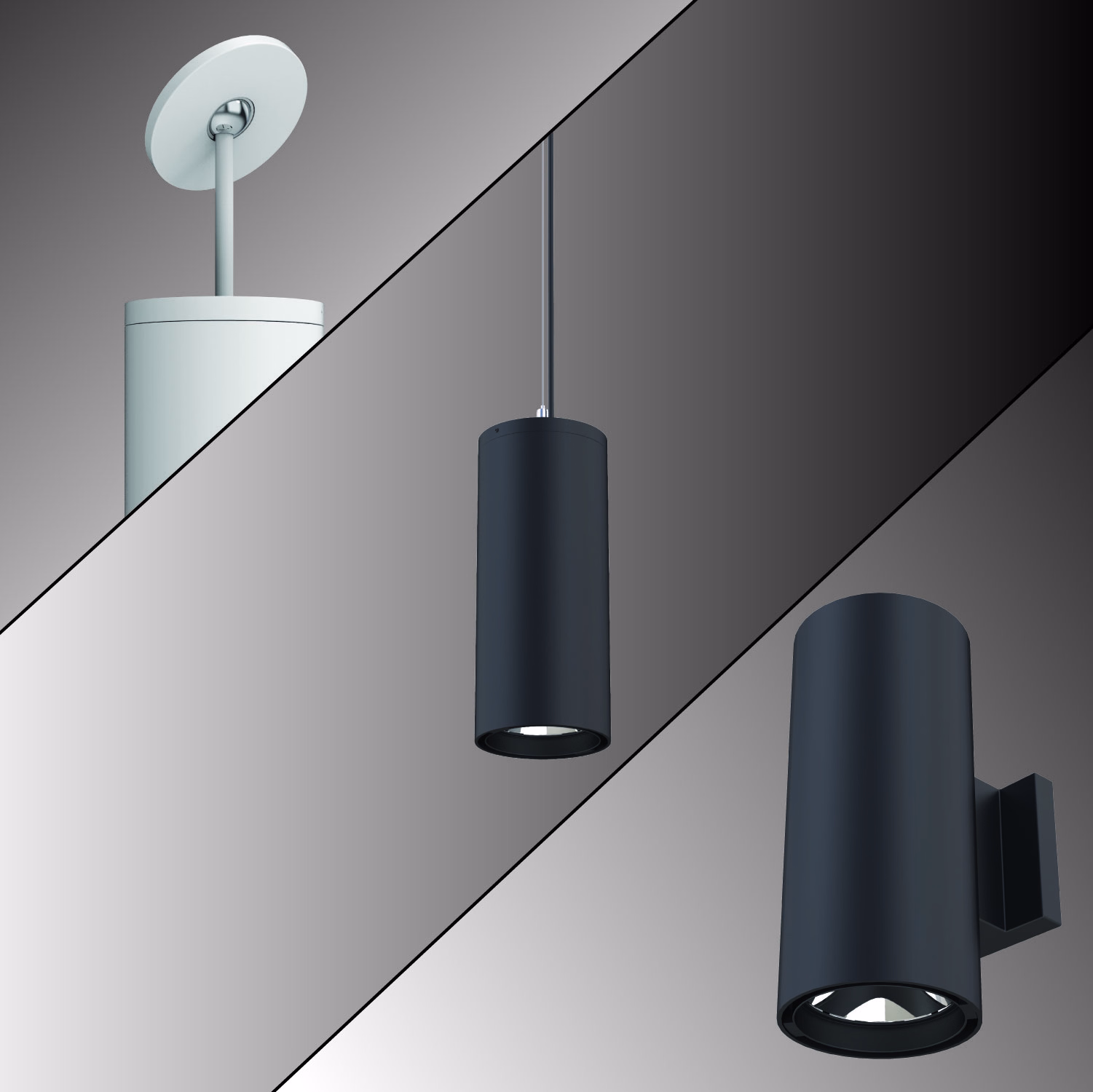

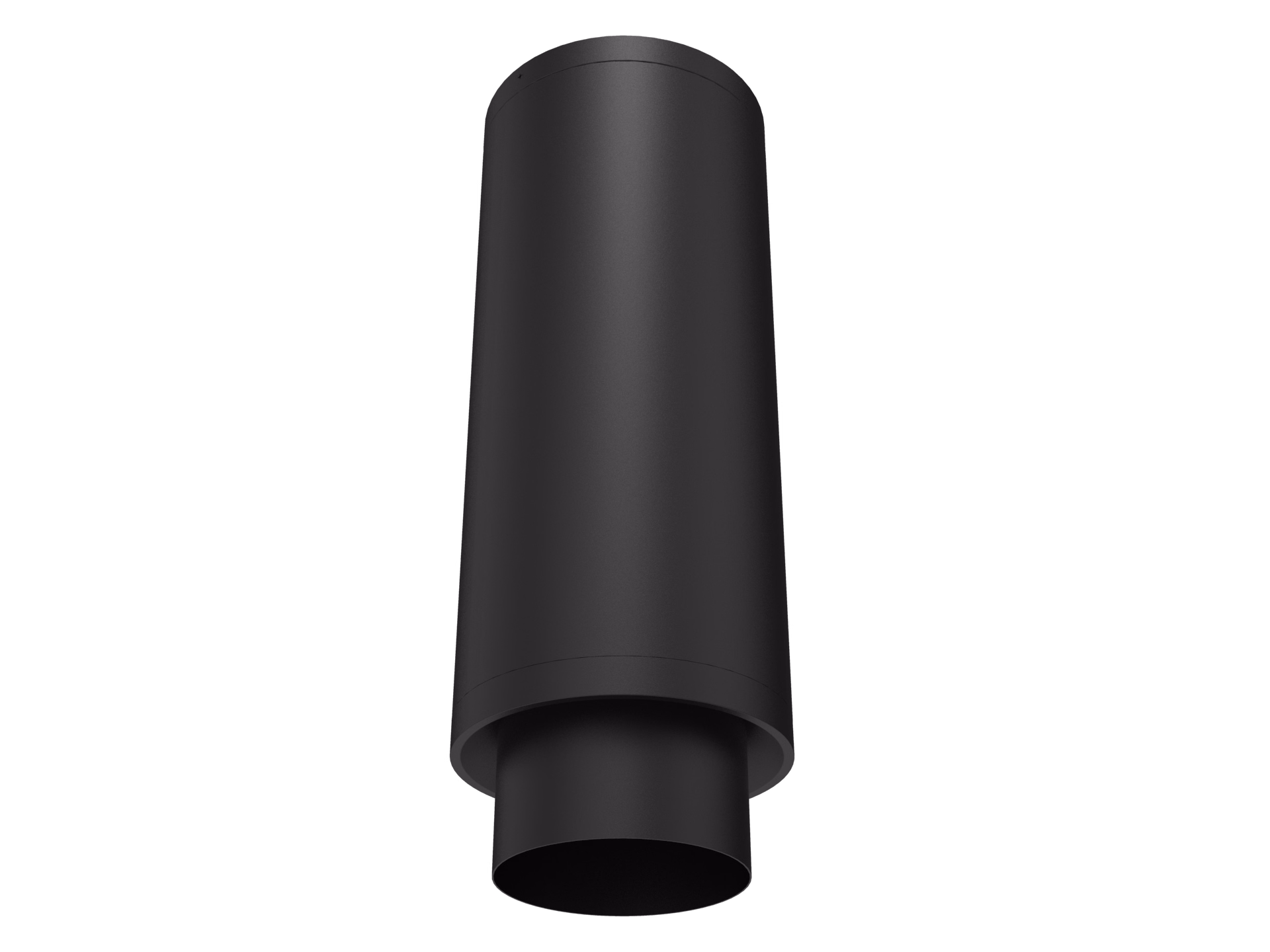

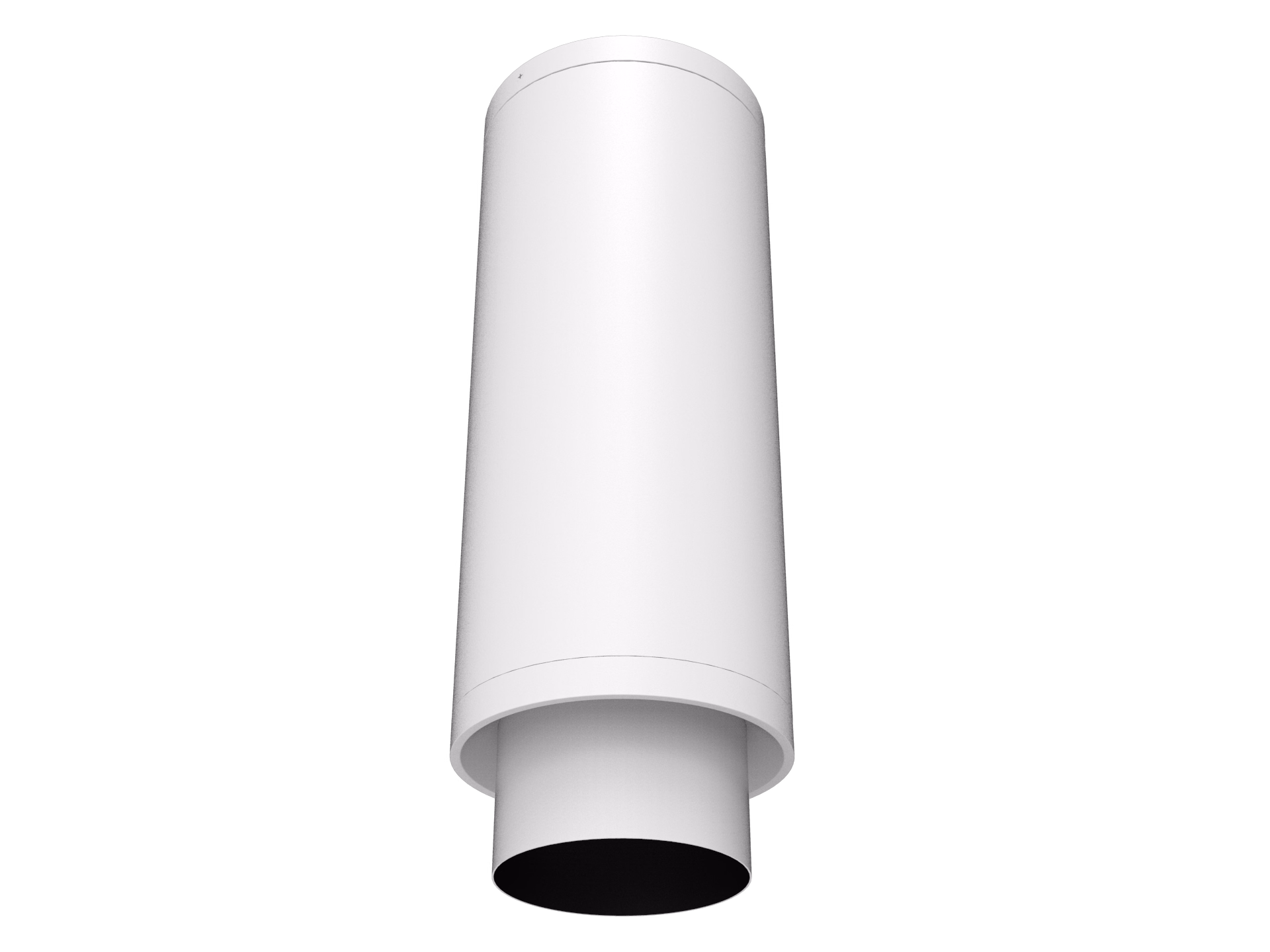

The Eleganza Max Pendant series is a beautiful and elegant solution for open ceilings, and it has a distinctive design featuring machined aluminum body. This product is a complete aluminum die cast offering an unparalleled sense of finesse, robustness and quality. It comes in various mounting options such as surface mount, pendant and stem mount. The Eleganza Max can be further enhanced with several accessories such as the Snoot, Pin-hole, Glowing Ring or Hexcell Louver.
ORDERING CODE
|
FIXTURE FAMILY |
PRODUCT CODE |
HEIGHT |
MOUNTING METHOD |
POWER | CCT |
BEAM ANGLE |
CRI | FINISH |
|---|---|---|---|---|---|---|---|---|
|
AE-TL-EZM ERALUX Eleganza Max Indoor Cylindrical Surface Mounted Fixture |
-40R |
8 8" Fixture Height *20% less Lumens |
-SF-00 Surface Mounting |
-41 41 watts *Can be programmed from 19-41 watts |
-27 2700K CCT 2,800 lms |
15
15° Beam Angle |
-P-T Premium 90CRI |
-WH White Powder Coat Finish |
|
-30 3000K CCT 3,000 lms |
30
30° Beam Angle |
-BK Black Powder Coat Finish |
||||||
|
12 12" Fixture Height |
-35 3500K CCT 3,250 lms |
40
40° Beam Angle |
-SV Silver Powder Coat Finish |
|||||
|
-40 4000K CCT 3,250 lms |
55
55° Beam Angle |
-RALXXXX Customed Finish |
|
FIXTURE FAMILY |
PRODUCT CODE |
HEIGHT |
MOUNTING METHOD |
POWER | CCT |
BEAM ANGLE |
CRI | FINISH |
|---|---|---|---|---|---|---|---|---|
|
AE-TL-EZM ERALUX Eleganza Max Indoor Cylindrical Surface Mounted Fixture |
-40R |
8 8" Fixture Height *20% less Lumens |
-PC-03 3' Pendant Cord Mounting |
-41 41 watts *Can be programmed from 19-41 watts |
-27 2700K CCT 2,800 lms |
15
15° Beam Angle |
-P-T Premium 90CRI |
-WH White Powder Coat Finish |
|
-PC-06 6' Pendant Cord Mounting |
-30 3000K CCT 3,000 lms |
30
30° Beam Angle |
-BK Black Powder Coat Finish |
|||||
|
12 12" Fixture Height |
-PC-09 9' Pendant Cord Mounting |
-35 3500K CCT 3,250 lms |
40
40° Beam Angle |
-SV Silver Powder Coat Finish |
||||
|
-PC-12 12' Pendant Cord Mounting |
-40 4000K CCT 3,250 lms |
55
55° Beam Angle |
-RALXXXX Customed Finish |
|
FIXTURE FAMILY |
PRODUCT CODE |
HEIGHT |
MOUNTING METHOD |
POWER | CCT |
BEAM ANGLE |
CRI | FINISH |
|---|---|---|---|---|---|---|---|---|
|
AE-TL-EZM ERALUX Eleganza Max Indoor Cylindrical Surface Mounted Fixture |
-40R |
8 8" Fixture Height *20% less Lumens |
-SM-01 1' Pendant Stem Mounting |
-41 41 watts *Can be programmed from 19-41 watts |
-27 2700K CCT 2,800 lms |
15
15° Beam Angle |
-P-T Premium 90CRI |
-WH White Powder Coat Finish |
|
-SM-02 2' Pendant Stem Mounting |
-30 3000K CCT 3,000 lms |
30
30° Beam Angle |
||||||
|
12 12" Fixture Height |
-SM-03 3' Pendant Stem Mounting |
-35 3500K CCT 3,250 lms |
40
40° Beam Angle |
-BK Black Powder Coat Finish |
||||
|
-SM-04 4' Pendant Stem Mounting |
-40 4000K CCT 3,250 lms |
55
55° Beam Angle |
