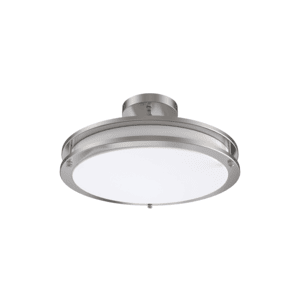

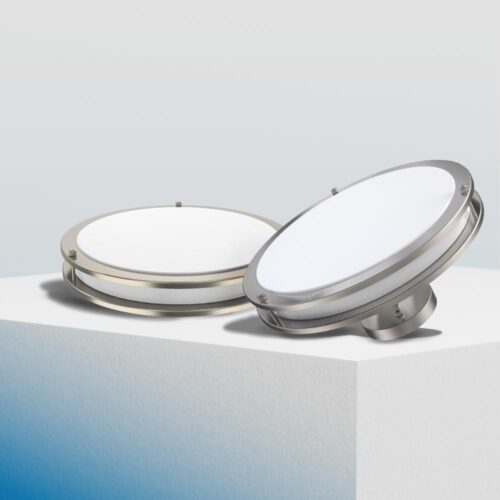

Double Ring
OPERATIONS & ELECTRICAL
Input voltage : 120Vac
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : Triac dimming
Lumens per Watt : 75 LPW at 80CRI
Beam angle : 110˚
DESCRIPTION
The Double RING Series is the preferred solution for residences with a light source that provides a seamless transitions to various spaces. It comes in several wattage options as in the 12W ,16W , 20W and 25W and various CCT options of 3000K, 4000K and 5000K CCT. It also enables a rapid transition from incumbent technologies with its triac dimming capabilities.
ORDERING CODE
| FIXTURE FAMILY | SHAPE & SIZE | POWER | CRI & CCT | GENERATION | CONTROLS |
|---|---|---|---|---|---|
|
AE-DL-DR ERALUX Double Ring Series surface mounted downlight |
-A10 10” round & 3.4” in height |
-12 12 watts: 900 lumens |
-830 3000K CCT |
01 1st generation surface mounted Ring commercial downlight Energy Star certified for superior efficacy standards |
-A1D Triac Dimming |
|
-A12 12” round & 3.4” in height |
-16 16 watts: 1,200 lumens |
-835 3500K CCT |
|||
|
-A14 14” round & 3.4” in height |
-20 20 watts: 1,500 lumens |
-840 4000K CCT |
|||
|
-A16 16” round & 3.4” in height |
-25 25 watts: 1,875 lumens |
