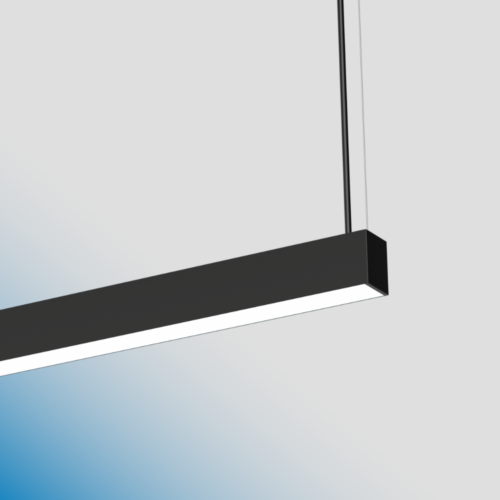

Falcon
OPERATIONS & ELECTRICAL
Input voltage : 120-347V
Power factor : 0.9
Total harmonic distortion (THD) : <20% @ 120V
Dimming : 0-10V dimming
Lumens per Watt : 88 – 108 LPW at >80CRI
Beam angle : 110° Downlight
DESCRIPTION

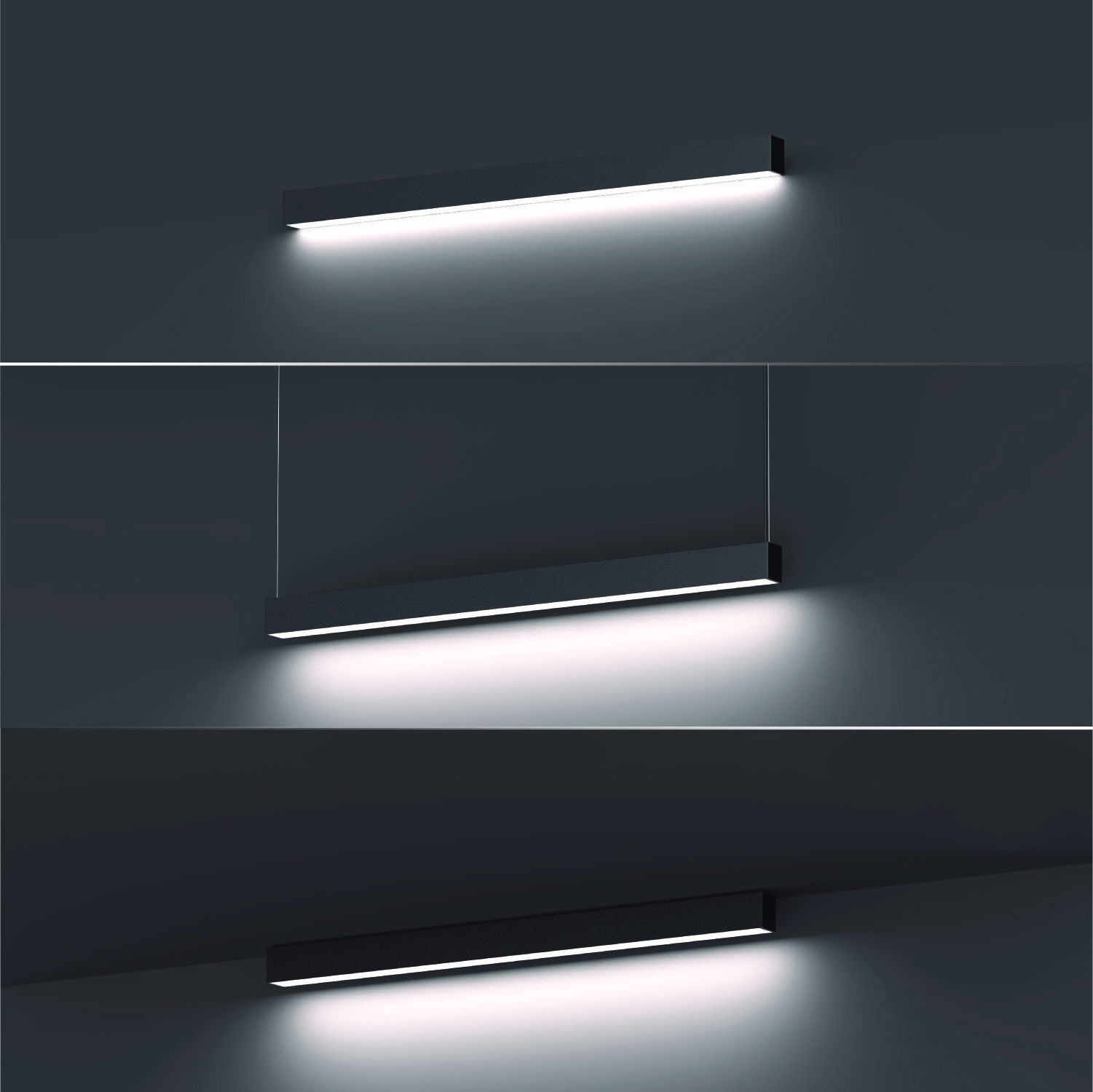

The Falcon series is the economical and yet discrete replacement for surface mount and trim-less look of plaster-in recessed linear fixtures. They are available in 2/4/8 feet lengths to fulfill various design purpose. Furthermore, this luminaire offers a performance up to 130 LPW while showing great versatility in operating voltage from 120-347V.
ORDERING CODE
| FIXTURE FAMILY | LENGTH | POWER | INPUT VOLTAGE | CONTROLS | CCT | FINISH | MOUNTING METHOD |
|---|---|---|---|---|---|---|---|
|
AE-SF-FA- ERALUX Falcon linear architectural fixture |
2- 2’(602mm/1.975ft/23.71in) |
18W- 1650-1950 lumens |
CA 120-347ac input voltage |
010- 0-10V external dimming down to 10% |

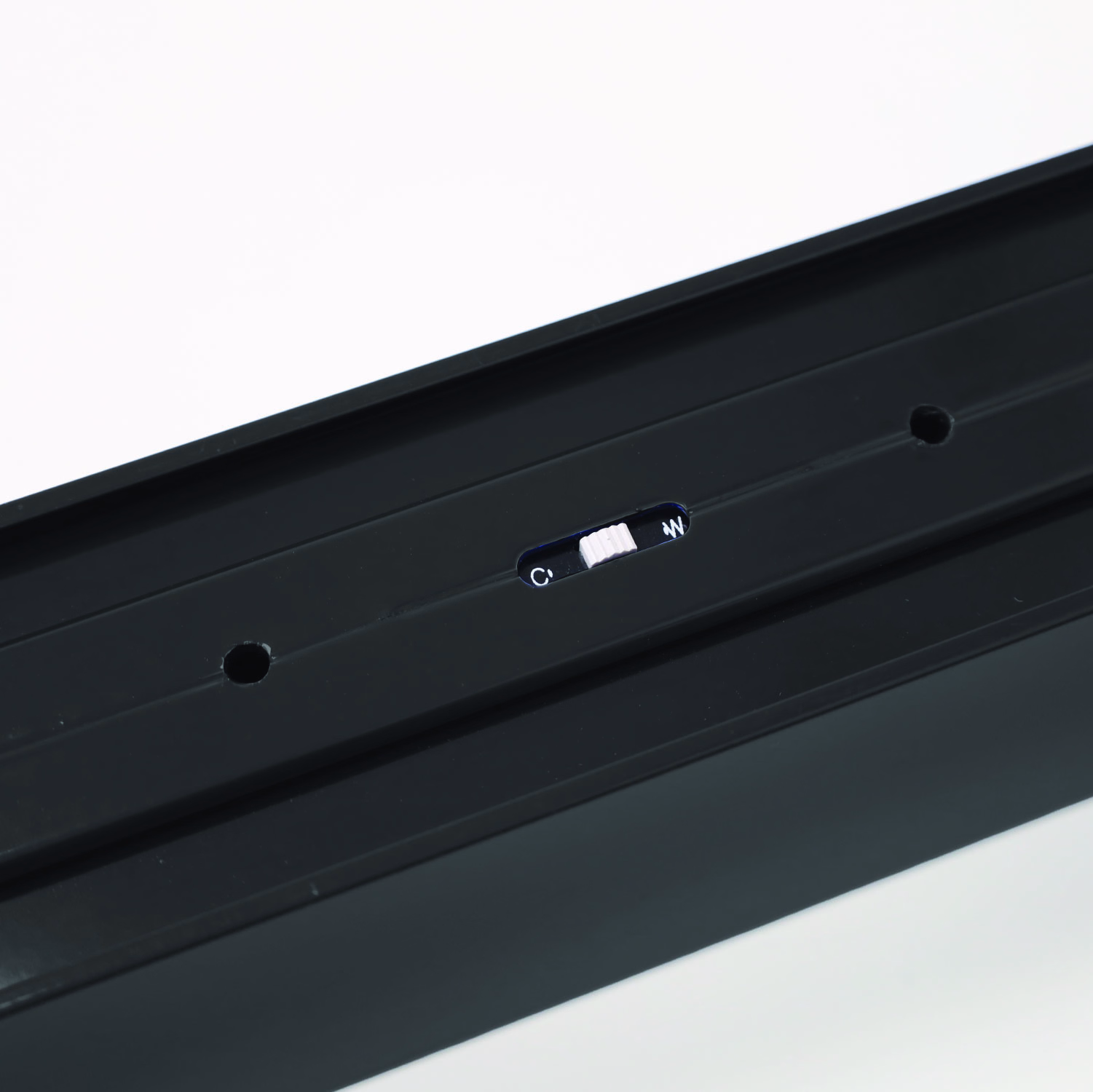

30/40/50 3000/4000K/5000K selectable CCT |
BK ERALUX Atomic Black |
SMT Surface mount |
|
4- 4’(1212mm/3.976ft/47.72in) |
36W- 3200-3850 lumens |
||||||
|
8- 8’(2412mm/94.96ft/7.91in) |
72W- 6400-7700 lumens |
30/35/40 3000/3500/4000K selectable CCT |
WH ERALUX Nebula White |
