OPERATIONS & ELECTRICAL
IP65 WET RATED
Input voltage : 120-347Vac
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per Watt : 125LPW at 80CRI
Distribution : Lambertian
DESCRIPTION

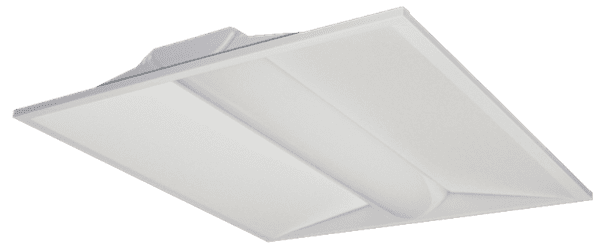

The ALPS series is a backlit panel product designed with optimum LED placement to ensure a uniformly lit diffuser. It features a switchable CCT, and power package enable an endless flexibility at the install site. Wet rated IP65 from below ceiling line, suitable for wet location, capable of being sprayed form the bottom.
ORDERING CODE
FIXTURE FAMILY | SIZE | POWER | CCT | CONTROLS |
---|---|---|---|---|
PL ERALUX Alps Hydro Commercial office Backlit panel |
22 2'X2' Housing |
-40W 25/30/40W: Up to 5,000 lms |
-M 120 - 347 Vac |
-P 0 - 10 V dimming |
24 2'X4' Housing |
-50W 30/40/50W: Up to 6,250 lms |
|||
14 1'X4' Housing |
