OPERATIONS & ELECTRICAL
Input voltage :100-277V, 277-480V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V external dimming down to 10%
Lumens per Watt : 135 LPW at 70CRI
DESCRIPTION

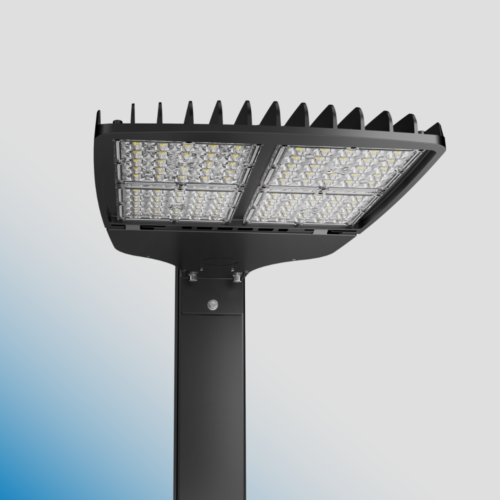

The GENESYS Series from ERALUX combines the desire for high efficacy and a distinguished look in an outdoor luminaire. The GENESYS Series features mounting methods and variety of light distribution patterns, allowing you to tailor your luminaire to your lighting needs.
ORDERING CODE
FIXTURE FAMILY | POWER | VOLTAGE | CONTROLS | CCT | DISTRIBUTION | MOUNTING TYPE | FINISH |
---|---|---|---|---|---|---|---|
AE-OD-GY ERALUX GENESYS Series outdoor area light fixture | -80 80 Watts: 10,500 lumens | UV 100-277Vac input voltage range | -D 0-10V external dimming down to 10% | -22 2200K CCT | -T2 Type 2 | -A Slip Fitter | -BK Black powder coat finish |
-100 100 Watts: 13,500 lumens | -30 3000K CCT | -T3N Type 3 forward | -B Direct Bracket | ||||
-150 150 Watts: 20,250 lumens | -40 4000K CCT | -T3R Type 3 Right | -C Yoke Mount | -BZ Bronze powder coat finish | |||
-200 200 Watts: 26,000 lumens | -50 5000K CCT | -T3L Type 3 Left | -D No Mounting | ||||

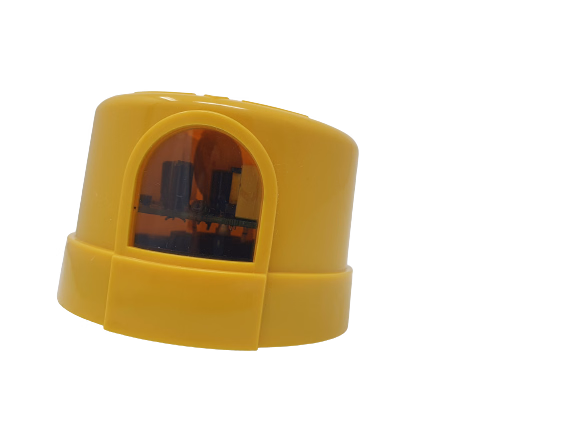

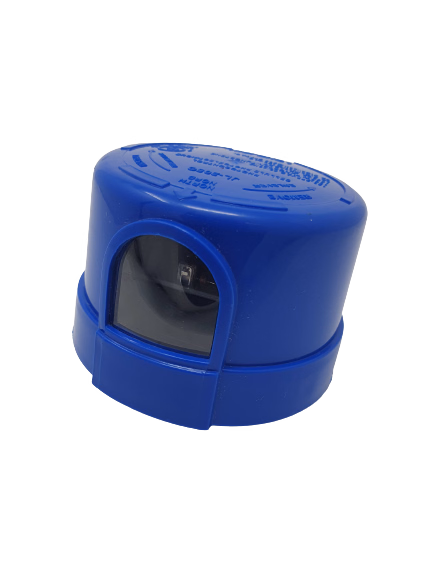

-300 300 Watts: 39,000 lumens | HV 277-480Vac input voltage range | -P Photocontrol daylight sensor | -T4 Type 4 | -AL Aluminum (RAL9006) powder coat finish* *Contact for details on leadtime and availability | |||
-M Microwave controller *Only for 120-277V | -T5 Type 5 | -WH Nebular White powder coat finish |
