OUTDOOR FIXTURE

RAPHAEL

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 26.7 LPW

Features & Benefits

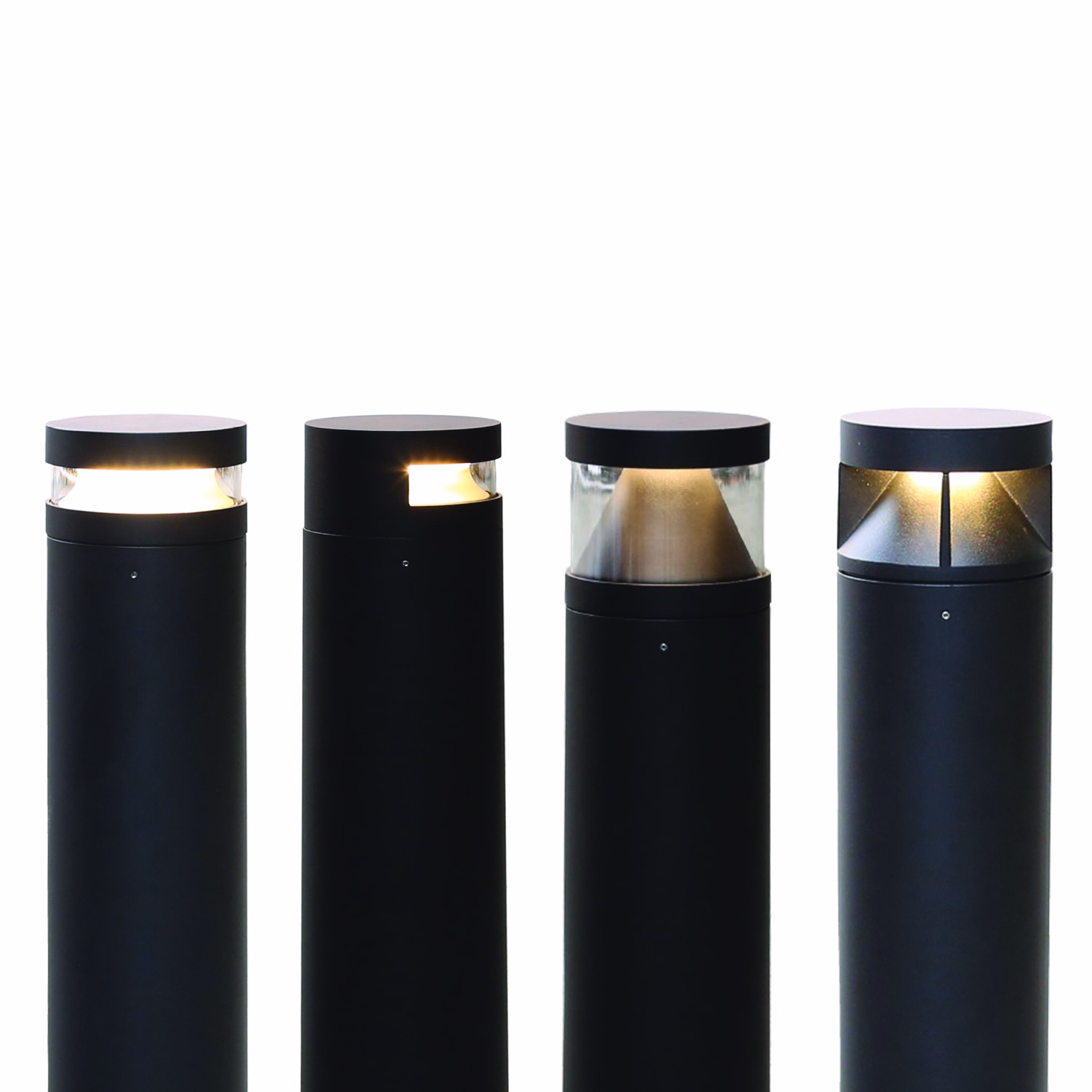

MULTIPLE SIZES
Available in 6" and 8" diameter bore sizes, with heights of 33" and 44" depending on the lumen package selected.

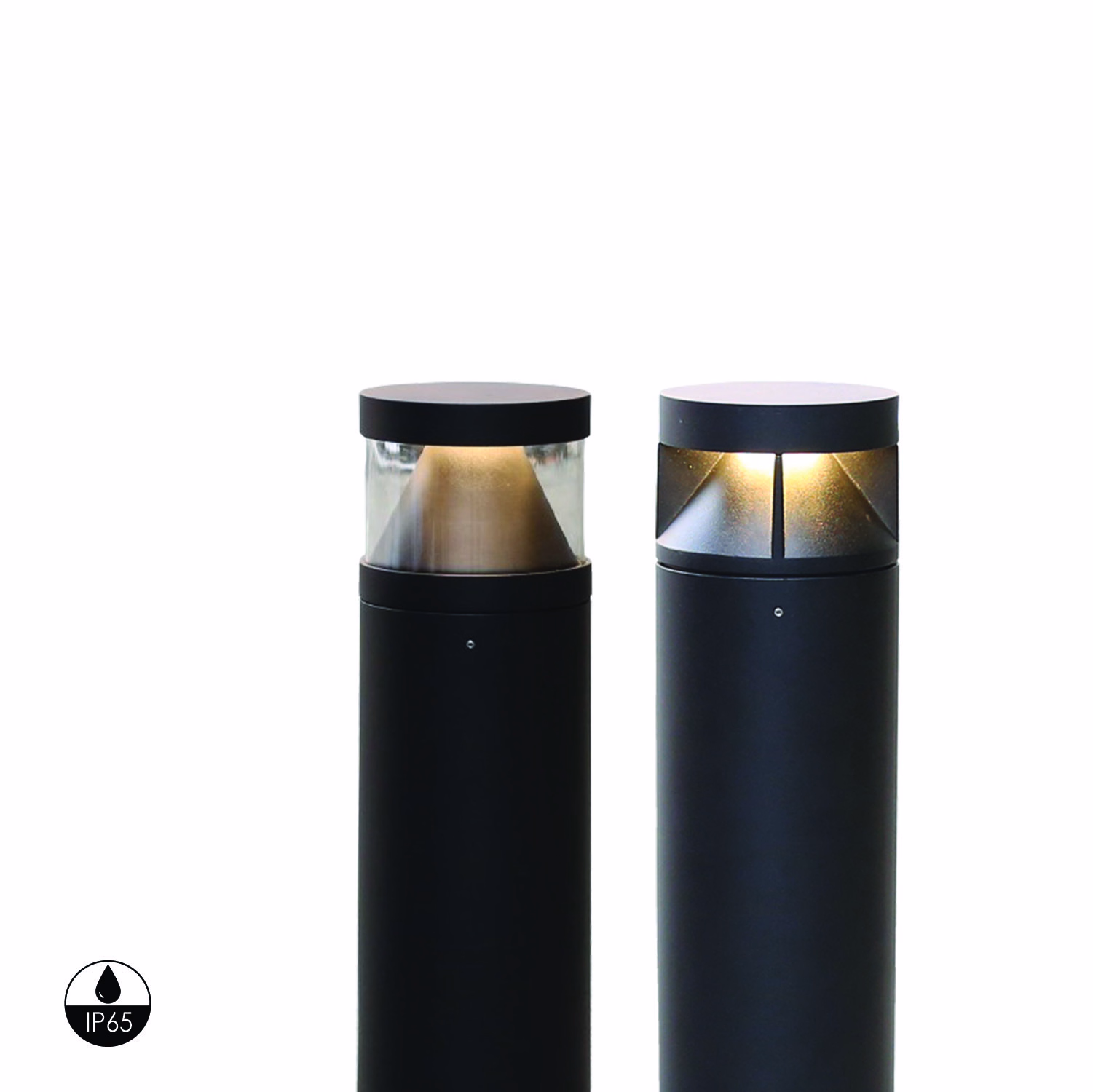

PREMIUM MATERIALS AND DESIGN
Aluminum die-cast housing and plate for enhanced thermal heat dissipation and structural integrity.


CORROSION RESISTANT FINISH
Thermoset powder coat finish combined with anti-cracking marine grade corrosion resistant finish to withstand harsh environmental conditions.

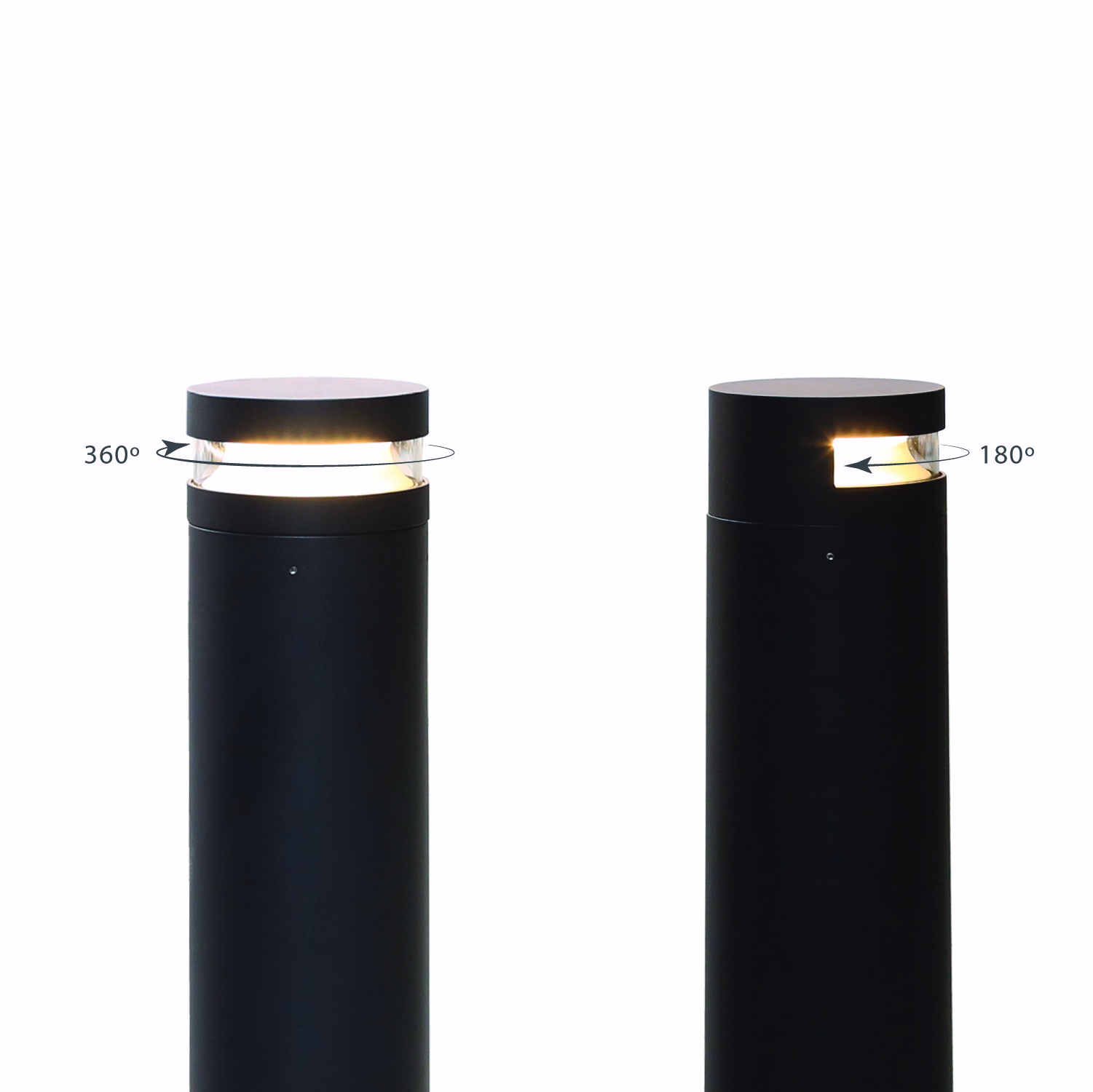

OPTICAL GLASS
Innovative optical system provides illumination to your space while keeping the beam shielded from eyes.


Description

The RAPHAEL bollard is an elegant solution for your outdoor area lighting needs. Its robust and strong materials allow it to withstand the harshest of elements without a scratch. The Raphael features an innovative optical system providing illumination to your space while keeping the beam shielded from the eye.

Downloads

Install Instruction RAPHAEL

Download

Spec Sheet RAPHAEL

Download

IES Files - Raphael

Download

Product Configurator

Your Product Code :

AE-OD-RL
SIZE
POWER
CCT
CRI
FINISH
OPTION

Dimensions

6 inches

8 inches

Output

10500lm

13500lm

20250lm

27000lm

32400lm

32400lm

Color and color temperature

80 CRI



3000K



3500K



4000K

Color Finish

RAL 9006 Silver

RAL 9003 Signal White

RAL 9004 Signal Black

Optics

T5 distribution

Control

On/Off

0-10V Dimming

Accessories

DI Bracket

Slip Fitter

Trunion

Certifications

5 Year Warranty

ETL Certified

RoHs Certified

width=

IP65

Marine Finish
