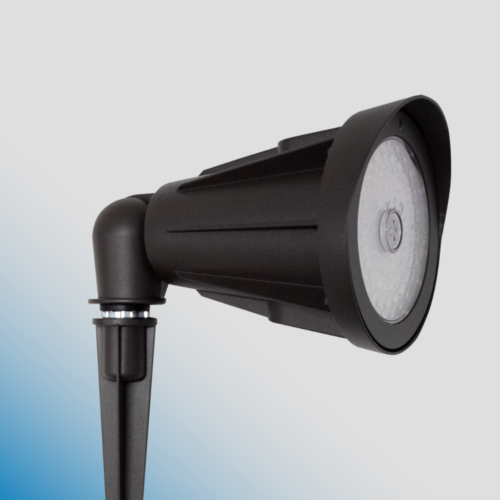

GARDENA ULTIMATE
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 120 LPW at 70CRI
Distribution :
Option 4: 47˚-70˚
Option 5: 70˚-100˚
Option 6: 100˚-130˚
Features & Benefits
Innovative Design
Heavy-duty, die-cast aluminum tiltable knuckle base utilizes tooth-lock adjustment with visual 90-degree adjustment (Outward/Inward).
Multiple Options
CCT Switchable ;30/40/50K
Black/ Bronze finish
Power Switchable ;15/20/25W
Integrated Photocell ; On/Off switchable on field
Brackets
Ground Spike
Round wall plate
Mountings Available
Ground Spike
Round wall plate
Protection
Protected against dust ingress.
Protected against water jets
Impact resistant
Distribution
Beam angle Switchable on field
Option 4: 47˚-70˚
Option 5: 70˚-100˚
Option 6: 100˚-130˚
Description
The GARDENA ULTIMATE fixture combines high performance and durability with a die-cast housing and IP65 rating. It delivers uniform lighting for landscape and accent applications. With switchable CCT, power, and adjustable beam distribution, it offers versatile customization. Ideal for both residential and commercial projects. Built to withstand tough conditions for long-term reliability. Application: Landscape, Architectural, Deck & patio, Pools & Security
Downloads
Product Configurator
Your Product Code :
Output
120lm
Color and color temperature

70 CRI

3000K

4000K

5000K

CCT Switchable

Power Switchable
Color Finish

Bronze Finish

Black Finish
Optics

Option 4: 47-70 Degrees

Option 5: 70-100 Degrees

Option 6: 100-130 Degrees
Control

On/Off

0-10V Dimming

Integrated Photocell
Certifications

5 Year Warranty

ETL Certified

RoHs Certified

IP65

DLC Premium

IK08
