OUTDOOR FIXTURE

CASEY

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 150 LPW at 70CRI

Features & Benefits

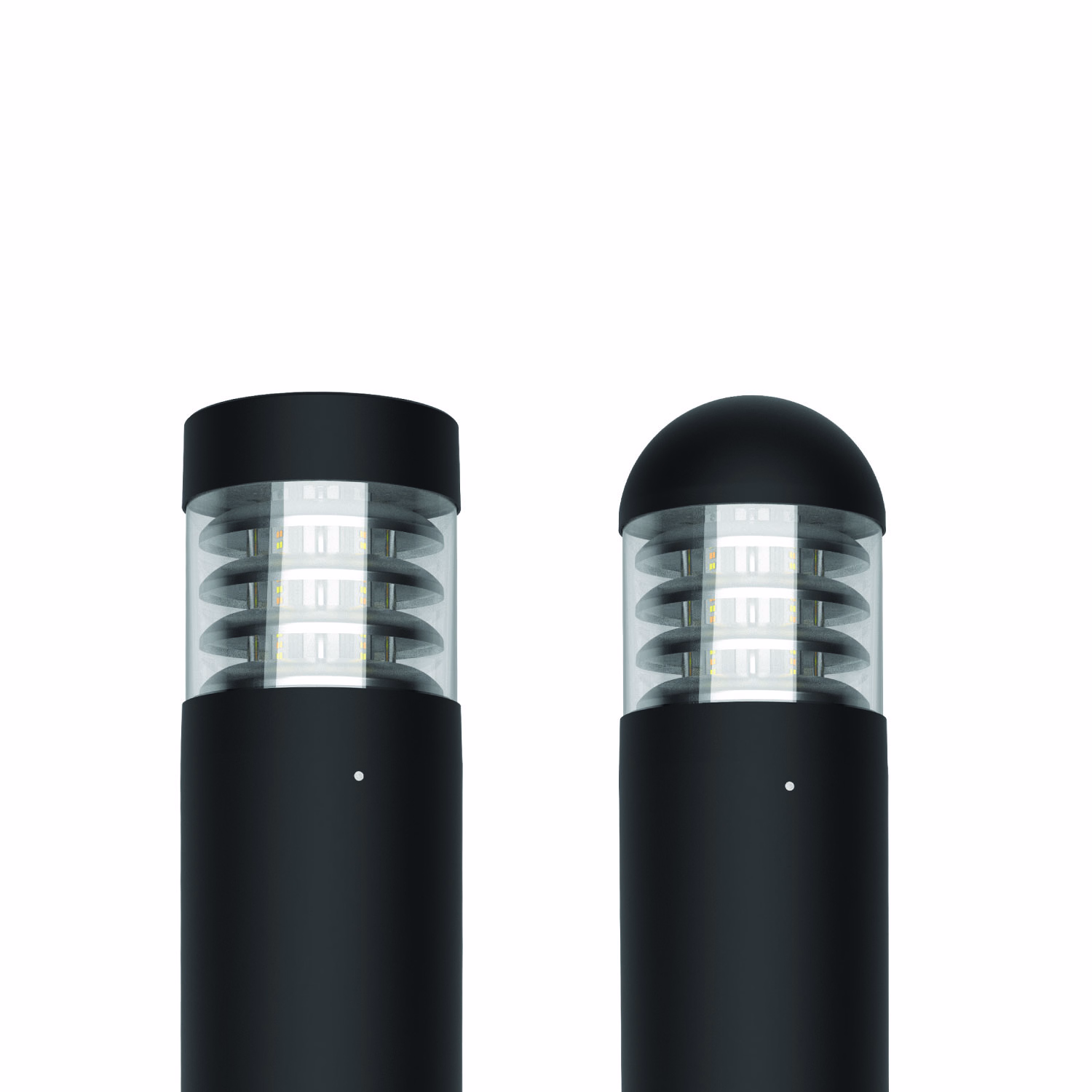

Multiple Options
Available in multiple CCT and power. It comes with 3 different selectable CCT 3000, 4000, and 5000K. Also, with three power selection; 14, 19 and 24W.

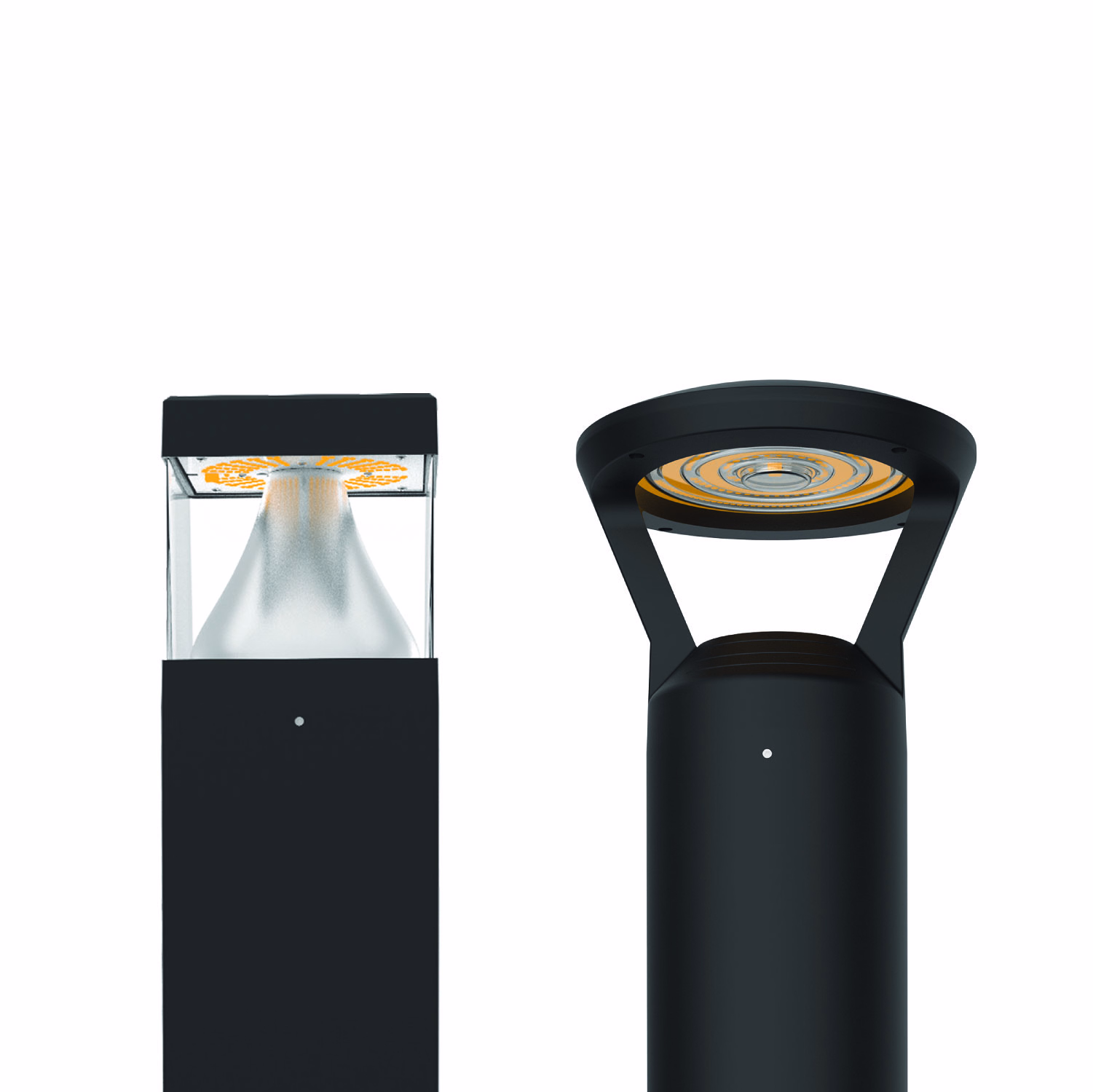

Integrated Photocell
This fixture comes with an integrated photocell. This saves energy by lighting the fixture in darkness.


Premium Materials
This round bollard is made of die-cast aluminum housing for enhanced thermal heat dissipation and structural integrity.


Corrosion Resistant Finish
UV resistant powder coat finish offers outstanding corrosion protection.


Description

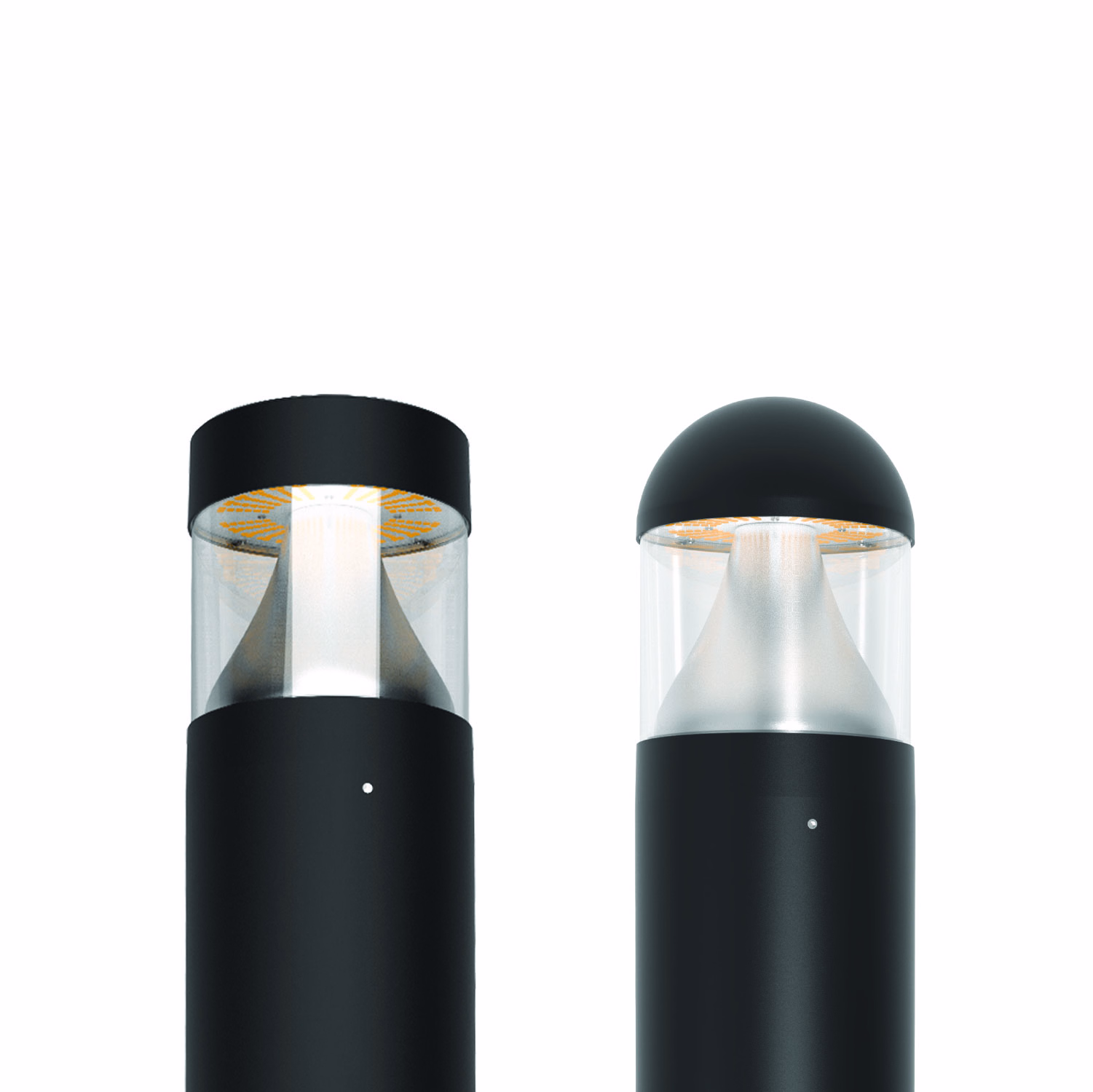

CASEY is a round bollard that features outstanding photometric performance, uniform illumination, low-profile design, high efficacy, long lifespan, and easy installation. It is made of die-cast aluminum housing with UV resistant powder coat finish offers outstanding corrosion protection. Shredded is designed for landscape lighting places, and it is suitable for all kinds of indoor and outdoor garden environment lighting, These fixtures are ideal for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

Downloads

Install Instruction CASEY

Download

Spec Sheet CASEY

Download

CASEY IES Files

Download

CASEY REVIT Files

Download

Product Configurator

Your Product Code :

AE-OD-CS
INPUT VOLTAGE
POWER
CCT
CRI
FINISH

Output

3600/2850/2100lm

Color and color temperature

70 CRI

3000K

4000K

5000K

CCT Switchable

Power Switchable

Color Finish

Powder Coat Black

Optics

T5 distribution

Control

On/Off

0-10V Dimming

Integrated Photocell

Certifications

5 Year Warranty

UL Certified

RoHs Certified

IP65

Surge Protector

DLC Premium
