EQUATOR SERIES
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 120-277V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : TRIAC Dimming
Lumens per Watt : 79|85|85 LPW at 90CRI

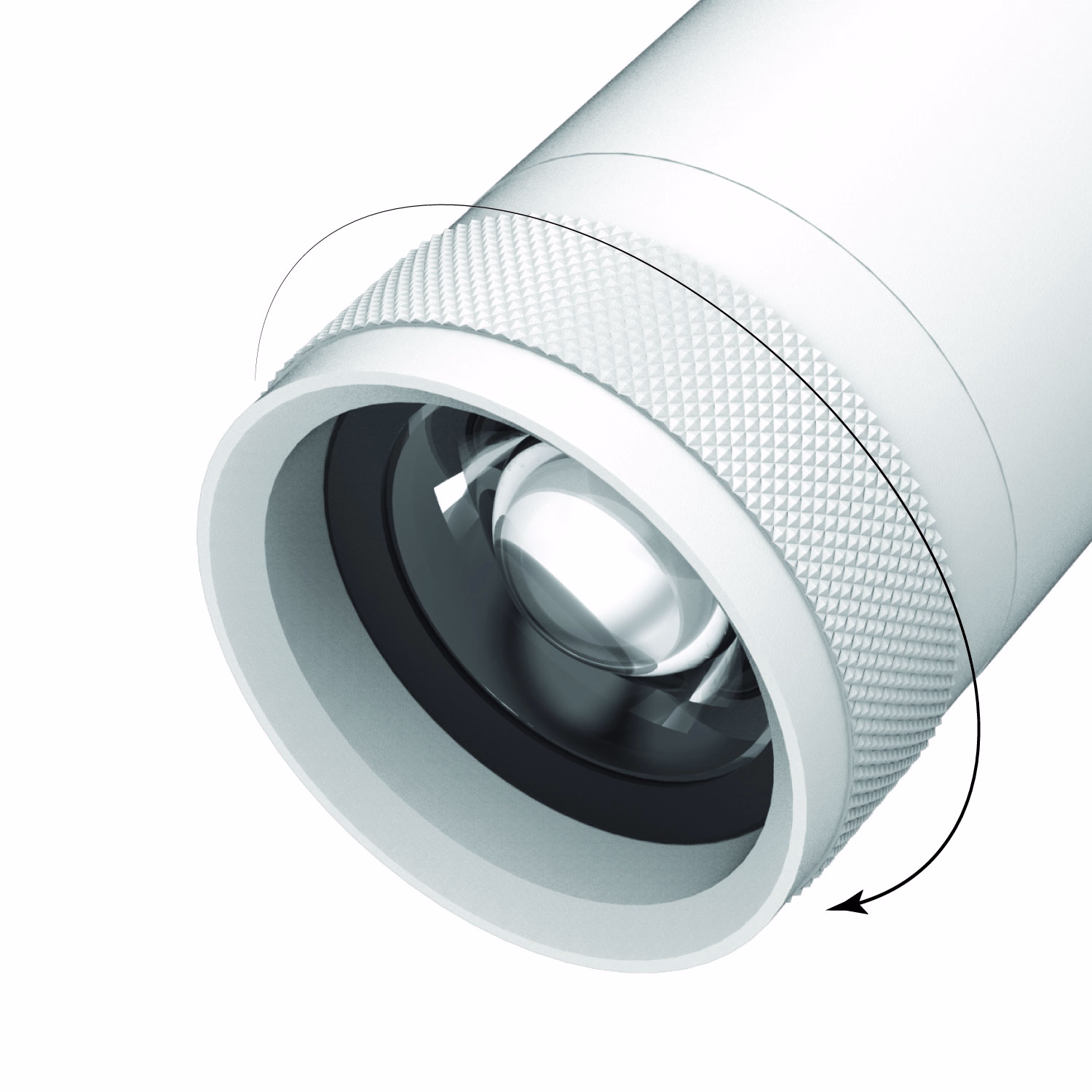

Distribution : EQM : 15˚-53˚|EG : 19˚-52˚|EQG : 20˚-44˚
Features & Benefits
MULTIPLE MOUNTING ADAPTERS
Choose from any of the popular track systems such as Juno, Halo, Lightolier, or Global.
PREMIUM DESIGN
Aluminum die-cast materials selected for efficient thermal heat dissipation, enhanced structural rigidity maximizing LED life and driver function.
MULTIPLE OPTIONS
Customize your track head by selecting from a variety of power, beam angle switchable, CCT switchable options allowing you to have a unique fixture that suits your project.
PAINT FINISH
Factory standard in black and white finish.
EFFICIENT DESIGN
Integrated components allow for small stem and clean aesthetic appearance.
Description
The EQUATOR series are a family of cylinder track head offers a range of optical options, multiple sizing, 5 CCT's and beam angles available. Its accessories and mounting options allow for seamless customization. With straight forward installation, adjustments to the lighting can be made quickly and effortlessly on field. It will brighten your space by offering a maximum of 2450 lumens.
Downloads
Product Configurator
Your Product Code :

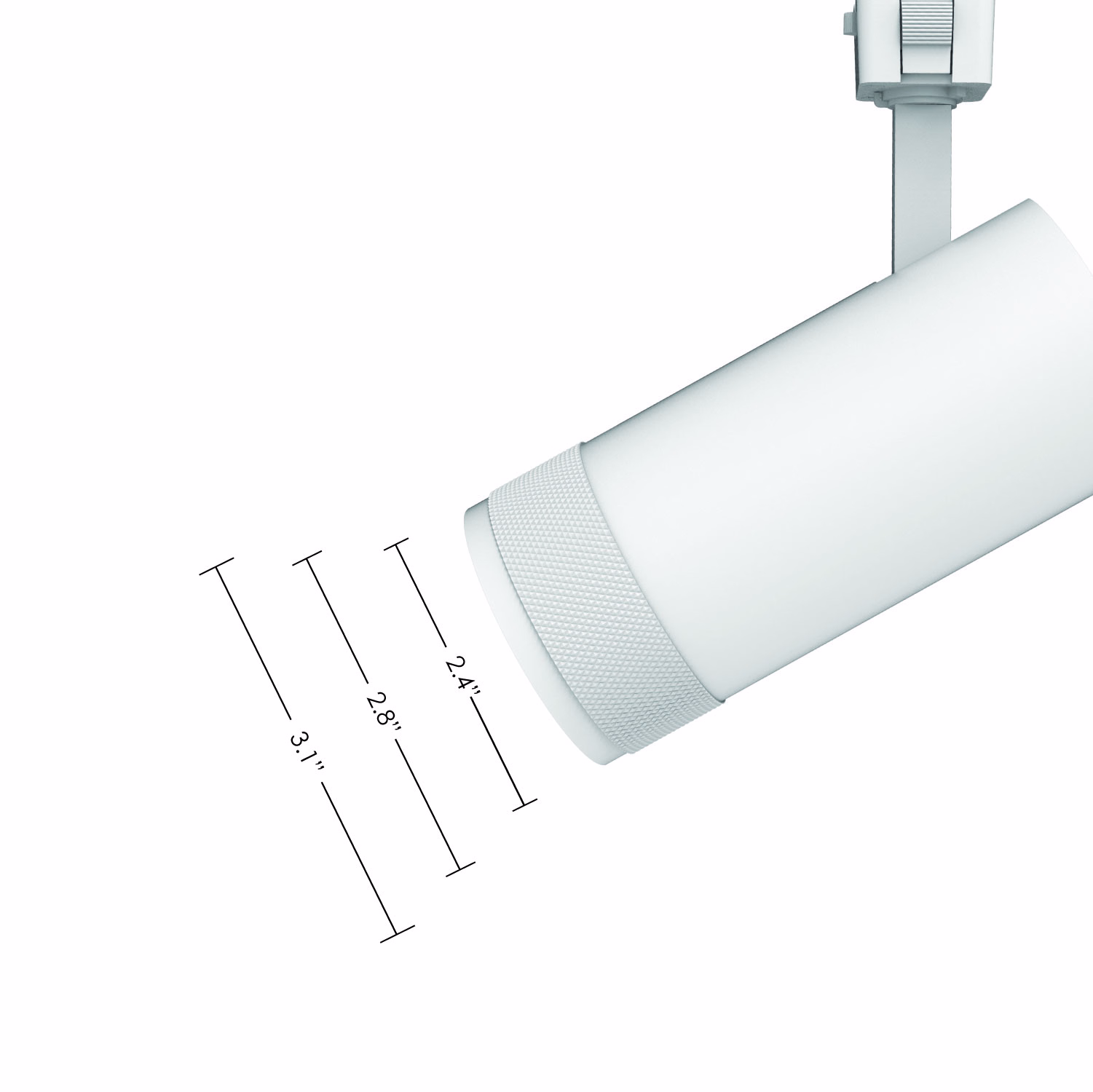

Dimensions
EQM : 2.4 inches
EQ : 2.8 inches
EQG : 3.1 inches
Output
1100lm
1650lm
2450lm
Color and color temperature
90 CRI
2700K
3000K
3500K
4000K
5000K
Color Finish
White Powder Coat Finish
Black Powder Coat Finish
Optics
Narrow Flood
Flood
Wide Flood
Very Wide Flood
Control
ON/OFF
TRIAC
Accessories
GES Adapter
Halo Adapter
Juno Adapter
Certifications
5 Year Warranty
ETL Canada & US
RoHs Certified
