OUTDOOR FIXTURE

ZORRO

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 130 LPW at 80CRI
Distribution : Type 3, Type 4, Type 5

Features & Benefits

PREMIUM MATERIALS AND DESIGN
Constructed from aluminum die-cast for superior structural strength, coupled with a heat sink designed directly into the fixture's housing allows for enhanced thermal heat dissipation using no additional mechanical components.


ACCESSORIES
Select photocell to enhance your fixture’s abilities.


MULTIPLE MOUNTING METHODS
Choose from direct bracket, slip fitter, or yoke mounting each with an adjustable angle.


ENERGY-EFFICIENT
High efficacy output of up to 130 lumen per watt at 80 CRI will enhance your outdoor project space while reducing energy expenditure.


Description

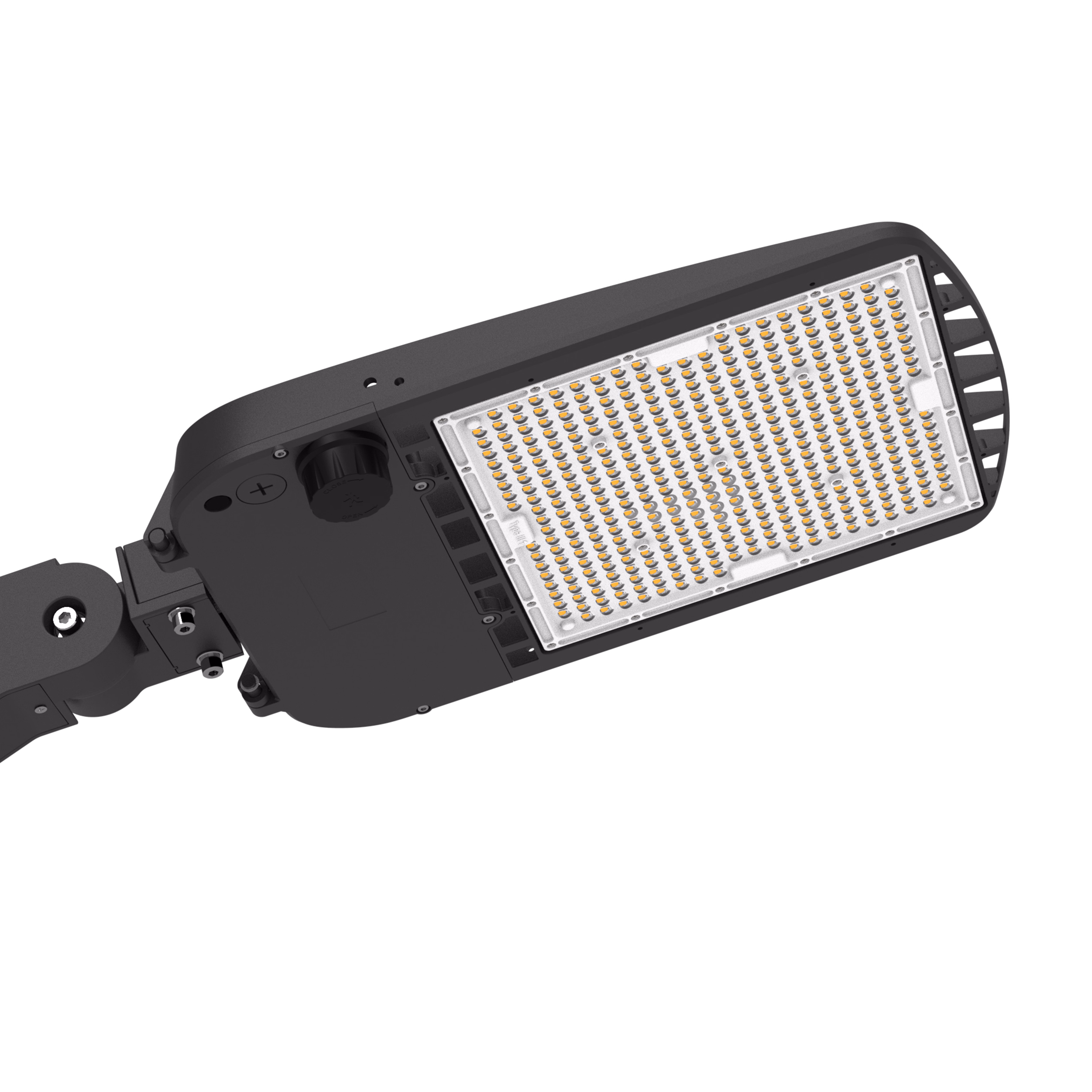

The ZR(ZORRO) Series from ERALUX combines the desire for high efficacy and a distinguished look in an outdoor luminaire. The ZR(ZORRO) Series features mounting methods and variety of light distribution patterns, allowing you to tailor your luminaire to your lighting needs. Our fixture comes standard with a 3 pin NEMA base as well as a 20KV SPD.

Downloads

Install Instruction ZORRO

Download

Spec Sheet ZORRO

Download

IES Files - ZORRO

Download

Product Configurator

Your Product Code :

AE-OD-ZR
POWER
VOLTAGE
CONTROLS
CCT
DISTRIBUTION
MOUNTING
FINISH

Dimensions

100W-150W

200W

240W-300W

Output

13000lm

19500lm

26000lm

31200lm

39000lm

Color and color temperature

80 CRI

4000K

5000K

Color Finish

Bronze Finish

Optics

Type T3

Type T4

Type T5

Control

On/Off

0-10V Dimming

Photocell

Accessories

DI Bracket

Slip Fitter

Yoke

U Bracket for Floodlight Option

Certifications

5 Year Warranty

UL Certified

RoHs Certified

IP65

IK08

Surge Protector
