Industrial Fixture

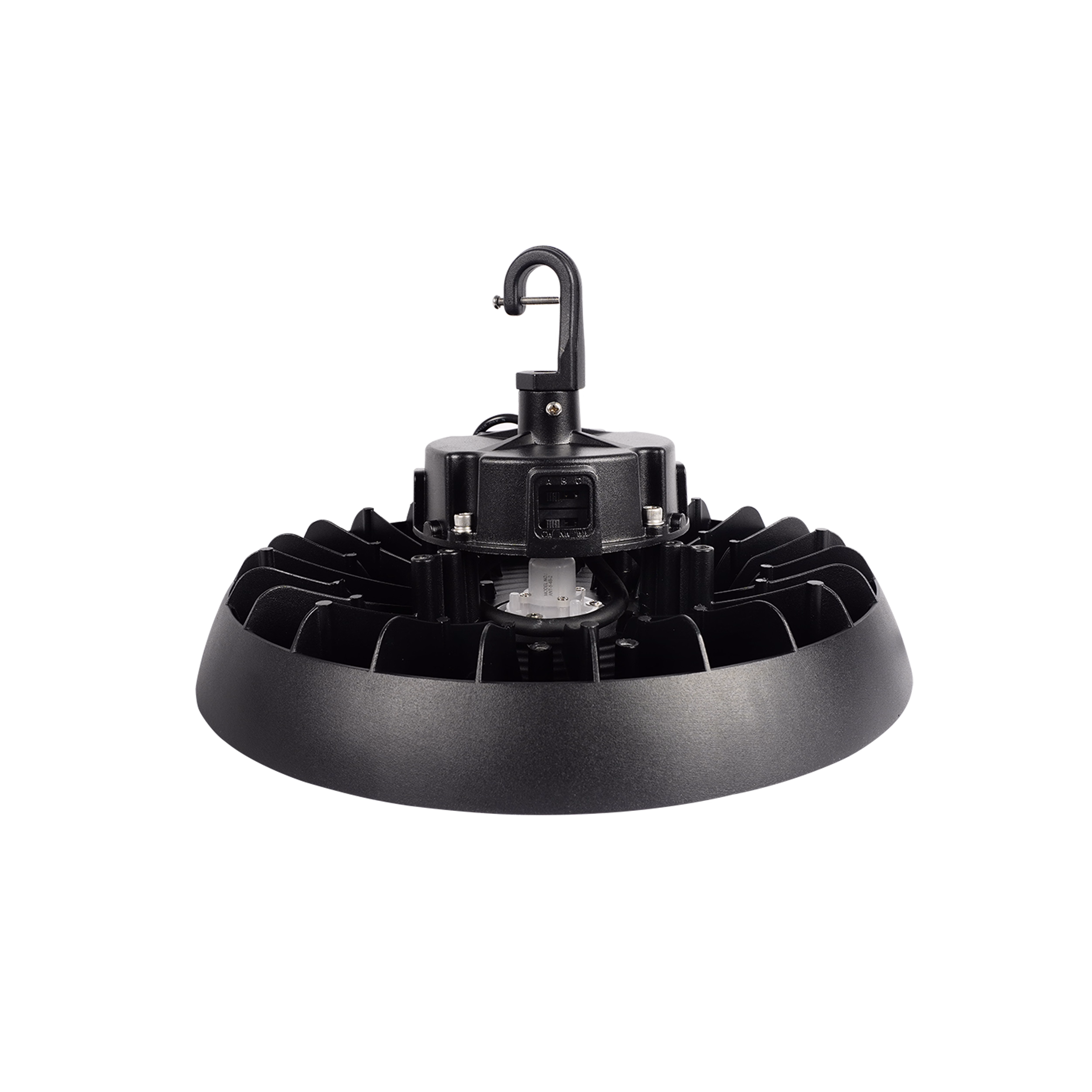

SB2

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V external dimming down to 10%
Lumens per Watt : 135 LPW at 80CRI, 4000K
Distribution : 110˚ (Beam Angle)

Features & Benefits

Versatility
Upgradeable for Motion sensor.
Integrated CCT and Power switchability.


Premium Materials and Components
Aluminum die-cast ensures superior thermal heat dissipation providing long-lasting LED and driver function while increasing fixture housing strength. Enhanced lifetime with premium brand led and power supply


Wide Range of Operating Voltage
Operational from 120V to 277V and 347V.


Description

The SB2 series is the latest addition by ERALUX to its strong portfolio of high bay fixtures. This series features a 135 LPW performance made possible with the die cast aluminum design. It comes standard with the ability to upgrade to integrate motion sensor in the field. The SB2 series comes standard with CCT and Lumens Switchable capability; an ideal solution for warehouses, retail stores.

Downloads

Install Instruction SB2

Download

Spec Sheet SB2

Download

IES Files SB2

Download

Product Configurator

Your Product Code :

AE-IL-SB2-CA
POWER
BEAM
PERFORMANCE
MOUNTING
SPECIALTY
SENSOR

Dimensions

10 inches

13 inches

Output

15000lm

18750lm

22500lm

30000lm

36000lm

Color and color temperature

80 CRI

3500K

4000K

5000K

CCT Switchable

Power Switchable

Color Finish

RAL 9004

Optics

110 Degrees

Control

On/Off

0-10V Dimming

Motion Sensor

Accessories

Reflector

Reflector Combo

Wireguard

Certifications

5 Year Warranty

DLC Listed

UL Certified

RoHS Certified

IP65

Wet Rated

NEMA 4X Rated
